Description

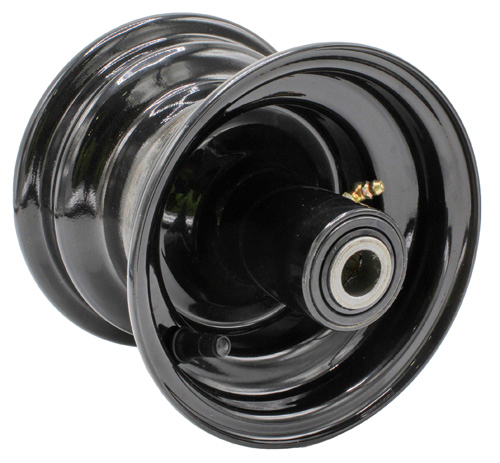

Hustler OEM 606752 Front Caster Wheel Assembly
Rusty, Bent Wheels - Constant Leaky Tires? Maintain Smooth Steering, Stable Front-End Support, and Proper Mower Maneuverability with this Genuine Hustler OEM 606752 Front Caster Wheel Assembly. Designed for Select Hustler Zero Turn Mowers, this Wheel assembly is the Support for the Front Tire and Contains the Roller Bearings Which Enables the Wheel & Tire to Rotate Smoothly. Hustler 606752 Comes as Pictured in the Images Above with All the Wheel Components (Including Valve Stem, Bearings & Seals) Except the Tire. Hustler 606752 Wheel Size is 6 x 4.50 and Fits and Used for Both the 13 x 6.50 - 6 & 15 x 6.00 - 6 Pneumatic Only Tire.
⚠️ Before You Order – Verify Fitment
Although Hustler 606752 OEM Wheel Assembly Fits a Wide Variety of Commercial Models & Series - Select Models & Series may vary on their Required Part Number Usages. Important to Note - All 13 x 6.50 - 6 & 15 x 6.00 - 6 Pneumatic Only Tires Are Compatible to 606752. 606752 Wheel Assemblies will Interchange on Commercial Mower Model that Require that Size of Wheel or Tire and Color of the Rims (Silver & Black) is only Based Preferences. Be Sure to Verify Your Model is Listed in the Model Fit Chart Below - Models that Come Factory Installed Semi-Pneumatic Tires or with Silver Colored Wheels will also Be Listed in the Model Fit Chart Beings those Options are all Interchangeable Based Upon Preference and Not Fitment.
Not sure? Contact us with your Hustler Model and Serial Number and we’ll help verify fitment.
Part Details & Specifications
- Brand: Hustler
- Part Number: 606752
- Supersession: n/a
- Wheel Size: 6 x 4.50
- Tire Fitment Size: 13 x 6.50 - 6 & 15 x 6.00 - 6
- Necessary Tire Type: Pneumatic
- Wheel Color: Black
- Part Type: Front Caster Wheel Assembly
- Assembly Type: Complete Front Caster Wheel Assembly Without the Tire
- Position: Front Caster
- Condition: Genuine OEM Hustler Part
- Application: Zero Turn Mower Front Wheel Support

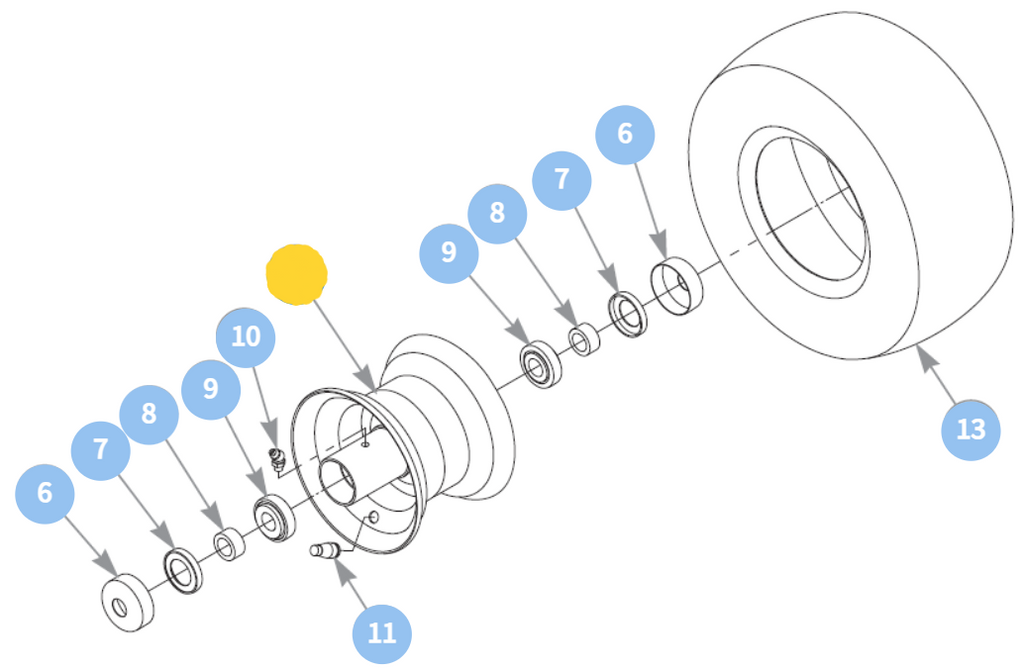

Associated Parts List
- 604843 - Tire Only - Reference 8 * Sold as a 13 x 6.50 - 6 B4R Smooth Tire alone without any other Components.
- 791913 - Tire Only - Reference 8 * Sold as a 15 x 6.00 - 6 B4R Smooth Tire alone without any other Components.
- 606752 - Wheel Assembly - Reference 7 * Comes Without the Tire but Contains all the Other Wheel Components Listed Below (Reference Numbers 1 - 7).
- 606815 - Dust Cap - Reference Number 1
- 606780 - Seal - Reference Number 2
- 606778 - Spacer - Reference Number 3
- 606753P - Tapered Roller Bearing Assembly - Reference Number 4 * Comes with the Tapered Roller Bearing and Bearing Race.
- 606126 - Grease Fitting/Zirk (M8 x 1.0) - Reference Number 5
- 019521 - Tire Valve Stem (TR412) - Reference Number 6
- T656 - Tire Tube (13x6.50-6) - Not Referenced
- 606753 KIT - Kit Includes Tapered Roller Bearing x 2, Bearing Race x 2, Lower Seal x2 (Bearings and Seals Necessary to Rebuild one Wheel) - Part Reference 2 & 4
Model Fit Chart
FasTrack (2022 - Current) 13x6.5-6
941724, 941732, 941740, 941757, 941765, 941773, 941781, 941674, 941682, 941708, 943704, 943753, 943761
X-ONE (2016 - Current Side & Rear Discharge Models) 13x6.5-6
936237, 936245US, 936252, 936260, 936278, 936286, 936294US, 936302, 936310, 936328, 936336, 936740, 936765, 936773, 936781, 936799, 936815, 936823, 936831, 936849, 939314, 939322, 940056, 940064, 940072, 940080, 940106, 940114, 940122, 940130, 940197, 941062, 941070, 941369, 941831, 941856, 941864, 941872, 941880, 941898, 941922, 941930, 941971, 942201, 942334, 942797, 943399, 943407, 943787, 943795, 943803, 943811, 943829, 943837, 943845
X-RIDE (All 60" Models) 13x6.5-6
944074, 944868
Super Z (2011 - Current Side & Rear Discharge Models) 13x6.5-6
929927, 929935, 929943, 929950, 930024, 930065, 930875, 931048, 932012, 932020, 932038, 932046, 932053, 932061, 932129, 932137, 932970, 932988, 933457, 933929US, 934216, 934224, 934232, 934240, 934265, 934273, 934281, 934984US, 934992, 935007, 935015US, 935023, 935031, 935049, 935056US, 935064, 936872, 936880, 936898US, 936914, 936922, 936930, 936948US, 936955, 936989, 937714, 937722, 937730, 938985, 938993, 940031, 940049, 941138, 941146, 941153, 941161, 941179, 941187, 941195, 941203, 941377, 941385, 942342, 942771, 942763, 942805, 942813, 942821, 942839, 942854, 942862, 942870, 942888, 942896, 942912, 942920, 943852, 943860, 943878, 943886, 943894, 943910, 943928, 943936, 943944
Super Z Hyper Drive (2013 - Current Side & Rear Discharge Models) 13x6.5-6
932145, 932152, 932160, 932178, 932186, 932996, 933002, 934307, 934315, 934323, 934349, 934687, 934695, 934919, 934927, 934935, 934943, 934950, 934968, 934976, 936997, 937003, 937011, 937029, 937037, 937045, 937052, 937110, 939561, 939579, 939587, 939595, 941229, 941237, 941245, 941252, 941260, 941278, 941286, 941294, 941302, 941310, 941534, 941542, 941559, 941567, 942219, 942227, 942235, 942243, 942250, 942359, 942961, 942979, 942995, 943001, 943019, 943027, 943035, 943043, 943050, 943068, 943951, 943969, 943977, 943993, 943985, 944017, 944041, 944025, 944033
Diesel Z (2025 - Earlier Models) 13x6.5-6
938233US, 938241US, 938258US, 938266US, 940452US, 940460US, 940478US, 940486US, 943233US, 943241US, 943249US, 943266US
Super 88 (All Models) 13x6.5-6
936617, 939546
Super 104 (All Models) 15x6-6
937201, 937219, 939603, 939462, 939470, 939652, 941005, 941526, 942318, 943217, 943225
Super S (2021 - Current 52" & 60" Models Only) 13x6.5-6
940254, 940304, 943167, 943175
Super SF (All Models) 13x6.5-6
942029, 942037, 942045, 942052, 943506, 943514, 943522, 943530
