Description

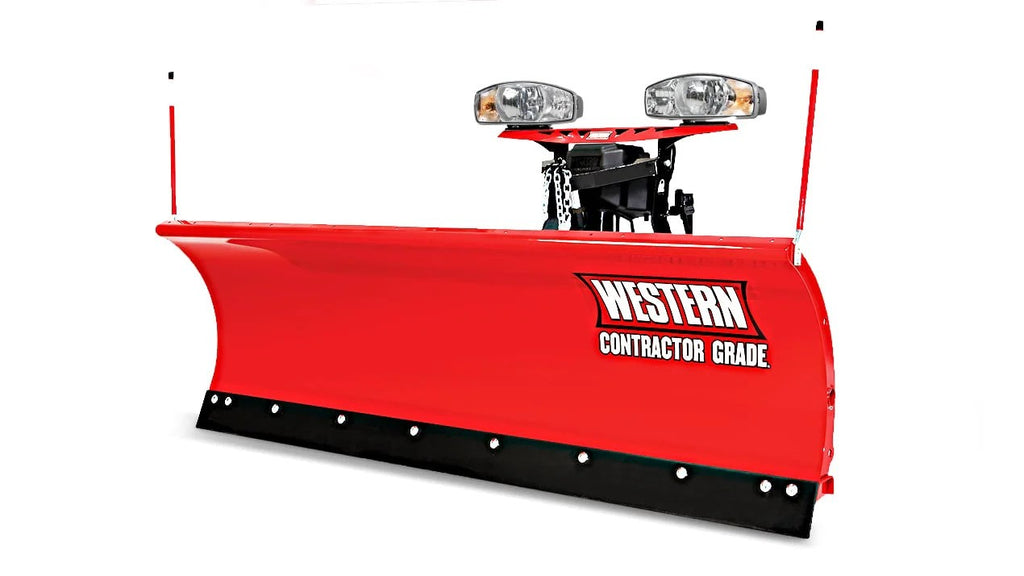

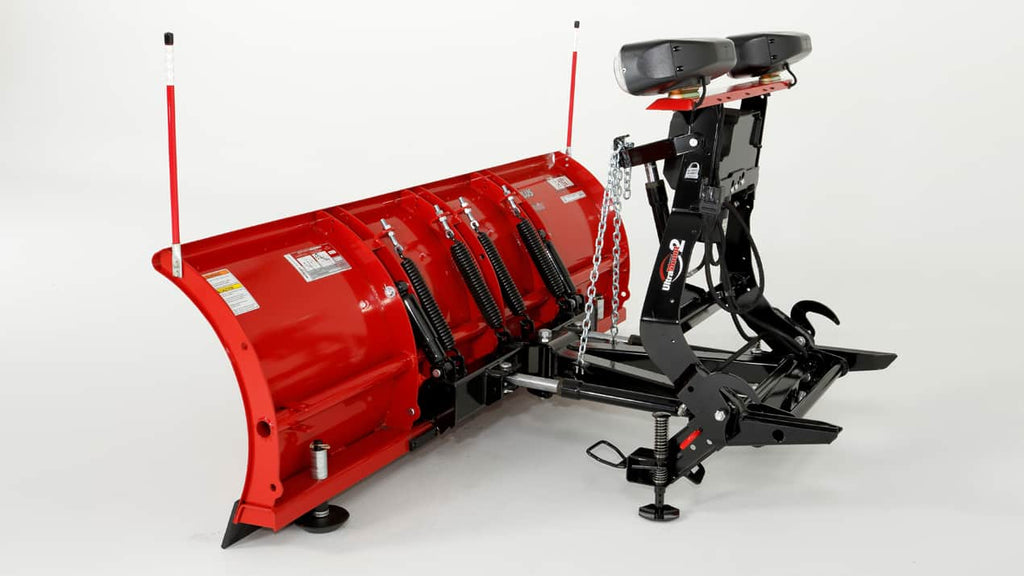

Give winter all you’ve got with the WESTERN^® PRO PLUS^® snow plow. Designed to fit a wide range of vehicles, this rugged straight blade is the ultimate tool for the toughest commercial operations.

Features

• Plow Blade Construction - The robust 12-gauge powder coated steel moldboard is a full 31½” tall and comes in 8′, 8′ 6″, and 9′ widths. The PRO PLUS^® blade features a 65-degree attack angle, and a high carbon steel cutting edge comes standard, reducing wear and extending the life of the blade.

• Structural Reinforcement - Eight vertical ribs, a heavy-duty quadrant, and the exclusive WESTERN^® POWER BAR provide exceptional torsional strength and rigidity, to eliminate blade twisting even under the most brutal conditions. The high-strength steel base channel provides extra support along the bottom of the plow blade. The 1″ diameter pivot bolt secures the plow in place, ensuring proper alignment and reducing stress on the overall plow assembly.

• Reliable Hydraulics - We manufacture our own hydraulic components to ensure the highest standards of quality and reliability, so that you get a hydraulics system that’s not only fast and responsive, but that’s built to last season after season. Fully enclosed components are protected from the elements.

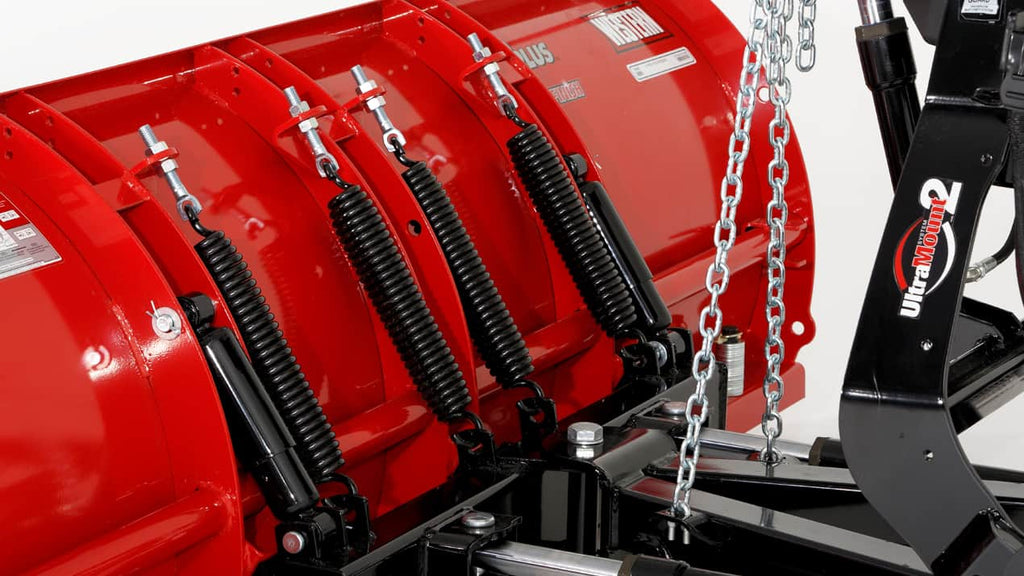

• Trip Protection - Four heavy-duty coil springs protect your plow and truck by allowing the whole blade to trip when striking obstacles. Dual shock absorbers reduce jarring and soften the blade return when tripping occurs, to extend the life of your truck and plow.

• Shoe Kit - Protect your plow and the road, while extending the life of your cutting edge with an adjustable shoe kit. The cast iron construction and shape increases the surface contact area and helps glide over gravel and dirt at the correct height. Extending cutting edge and base angle life when plowing on rocky or abrasive surfaces.

• Nighthawk Snow Plow Headlights - Available in both LED and Dual-Halogen models, NIGHTHAWK plow lights are engineered and tested for maximum light output, performance and durability to keep you ahead of the storm.

• UltraMount® 2 Snowplow Mounting System - The UltraMount^® 2 system is designed for fast and easy installation and removal using a simple mechanical system. It features a robust one-piece design and is 100% compatible with UltraMount^® system mounts and electrical platforms.

• Chain Lift System - The mechanical chain lift system offers a variety of performance and reliability advantages over a hydraulic system. Main benefits include cleaner scraping performance, higher stacking capabilities, reliability, and easy recovery in the event of a breakdown.

• Fleet Flex Electrical System - WESTERN hopper spreaders are designed with FLEET FLEX technology for easy interchangeability between electric hopper spreaders without having to change the wiring or the controls. It provides easy operation, increased reliability, simple wiring, and easy installation. Additionally, accessories automatically integrate into the control for easy plug-and-play.

• Plow Control Options - Choose between a CabCommand hand-held control with push buttons or a joystick control, based on operator preference. For efficient, precise and intuitive blade control while plowing, both controls feature power “on” and “float” LED lights, backlighting for night operation, and plug-in connector for easy removal.

• Security Guard Anti-Theft System - The exclusive WESTERN^® SECURITY GUARD^™ snowplow anti-theft system is a safe and secure way to electronically lock your snow plow when it is detached from your truck as a deterrent from theft. Unlike physical locks that can easily be cut or removed, the system allows you to electronically lock the snowplow’s hydraulic functions, rendering your plow inoperable to unauthorized users.

• Isolation Module - This advanced snow plow light and electrical system features improved electrical pins in the harness for trouble-free connections. An underhood module improves system life and complies with OEM requirements. No toggle switch needed to change from vehicle to plow lights.

• ULTRAFINISH™ Baked On Powder Coat - The ULTRAFINISH^™ baked on powder coat with epoxy primer is standard on all WESTERN^® plows, providing outstanding protection against wear and rust.

• Pre-Punched Blades for Accessories - The blade is pre-punched for easy installation of accessories, providing a custom fit. The pre-punched holes also prevent damage to the powder coat that can sometimes occur when installing an accessory.

Specifications

• Blade Width: 8'6"
• Moldboard Options: Steel
• Blade Type: Straight Blade
• Vehicle Compatibility: Truck Class 2 & 3, Skid-Steers (Under 50 HP) & Tractors
• Approximate Weight (Without Mount): Powder-Coated: 840 lbs
• Plowing Width (Full Angle): 7'4"
• Blade Height: 31.5"
• Blade Thickness: 12 ga
• Shock Absorbers: 2
• Trip Springs: 4
• Ribs: 8
• Lift Cylinder: 1.5" x 8"
• Angling Rams: 1.5" x 12"
• Cutting Edge: 1/2" x 6" (Standard)
• Mount Type: UltraMount 2
