Description

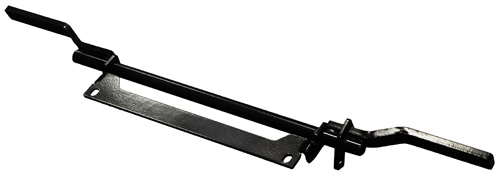

Hustler OEM 606302 Tread Lock Pivot Rod Assembly
The Hustler OEM 606302 Tread Lock Pivot Rod Assembly - Hustler OEM 606302 Tread Lock Pivot Rod Assembly Retains the 606299 Tread Lock Teeth & the Lower End of the 122582 Parking Brake Pull Link that Attaches to the Operator's 123269 Brake Control Handle. This Enable the 606299 Tread Lock Teeth to Insert into the Tread of the Mower Tires Via Pivotal Movement of the Operator's 123269 Handle Transferred to 122582 Brake Pull Link and Transferred to 606302 Tread Lock Pivot Rod Assembly on Which the 606299 Tread Lock Teeth are Fastened to - If any of These Components Becomes Worn It Will Contribute to Drifting or Coasting with the Brakes On. (Part Numbers May Vary for Components Based on the Model Number, Deck Width, Etc. - Review Part Diagrams Above).
⚠️ Before You Order – Verify Fitment
Because Fitment Within Model Numbers and Year Ranges Very - Verify Your Model Number is Listed in the Model Fit Chart Below Before Ordering.
Not sure? Contact us with your Hustler model and serial number and we’ll help verify fitment.
Sold As an Individual Assembly - As Pictured - DOES NOT COME WITH THE Tread Lock Teeth and Other Components
What This Part Does
- Transfers Movement from the Brake Control Handle & Brake Pull Link enabling the Tread Lock Teeth (Mounted to the Tread Lock Pivot Rod) to Rotate into the Tire Tread.
- Maintains Predictable Brake Engagement.
- Replaces a Worn, Damaged, Loose, or Binding Brake Tread Lock Pivot Rod.
- Provides Genuine Hustler OEM Fit, Construction, and Mounting Configuration.
Associated Parts

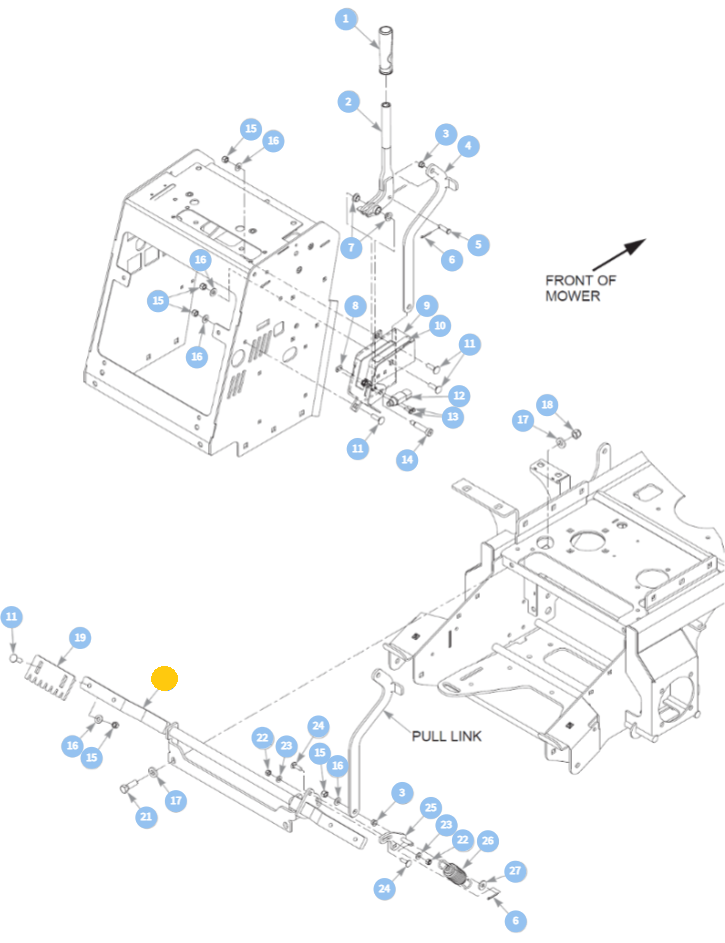

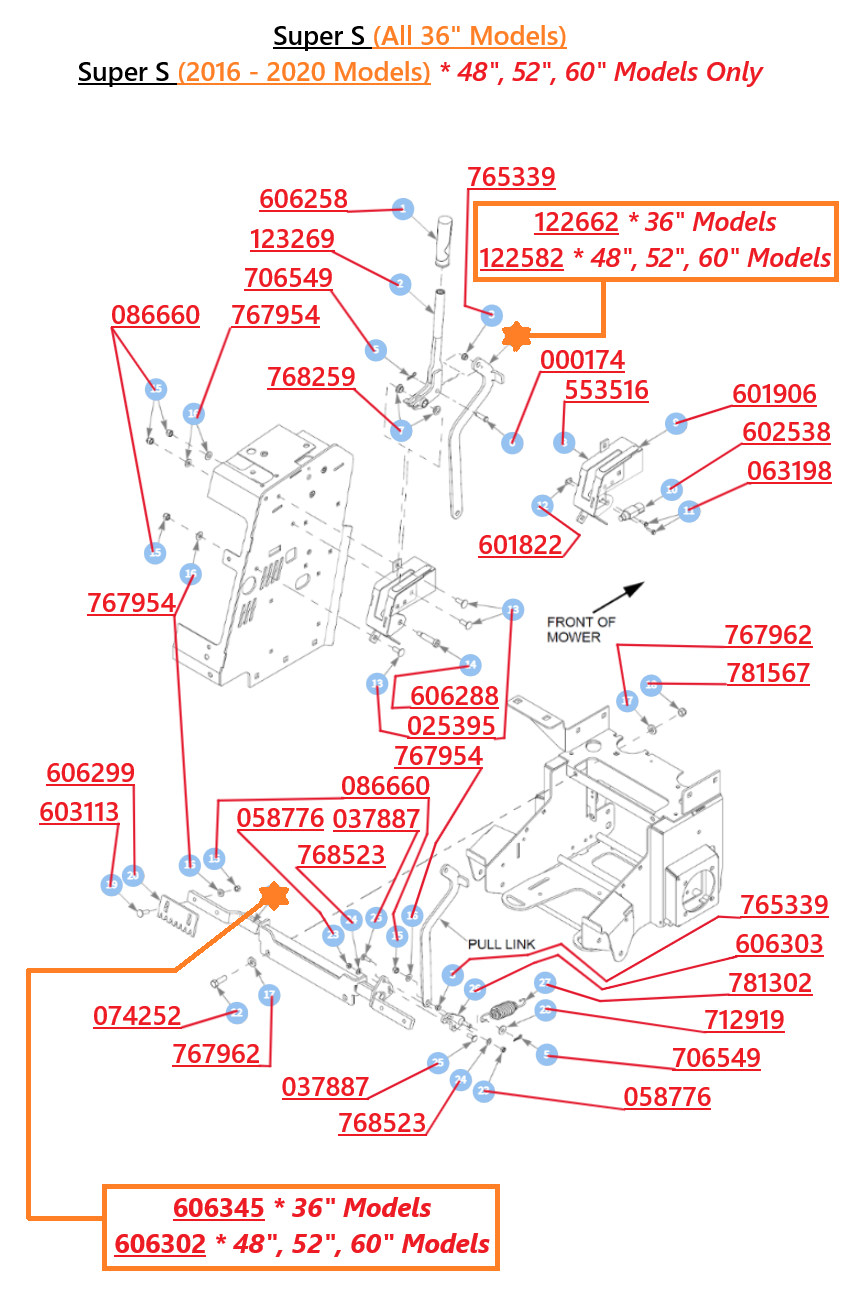

Refer to the Detail Parts Diagrams in the Images for Additional Parts Info.
Part Details
- Brand: Hustler Turf Equipment
- Part Number: 606302
- Supersession: n/a
- Part Name: Brake - Tread Lock Pivot Rod
- Position: Located Across the Rear of the Unit as You Stand on the Operator's Platform.
- Part Type: Genuine OEM Brake Pull Link Linkage
- Quantity: One Brake Pull Link
Model Fit Chart
Super S (2016 - 2020 Models) * 48", 52", 60" Models Only - Exclude All 36" Models
933333, 933341, 933358, 935353, 935361, 935395US, 937136, 937144, 937151, 937169, 937177, 939447, 939454
