Hustler OEM 127268-4 Operator's Park Brake Handle
The Hustler OEM 127268-4 Operator's Park Brake Handle is the Main Component for the Engagement and Disengagement of the Park Brake and Controls the Direction and Movement of a Series of Parking Brake Linkages (Parking Brake Pull Link, Tread Lock Pivot Rod & Tread Lock Teeth). Hustler 127268-4 Is Retained With 016444 Bolt, 767954 Flat Washer, 086660 Nut - Rotates over 608353 Spacer Bushing, 768259 Insert Bushings - Kept in Alignment and Retained in Correct Position With 127272-1 Park Brake Position Bracket and 608324 Handle Stop Pad.
⚠️ Before You Order – Verify Fitment
Because Fitment Within Model Numbers and Year Ranges Very - Verify Your Model & Serial Numbers are Listed in the Model Fit Chart Below Before Ordering.
Not sure? Contact us with your Hustler model and serial number and we’ll help verify fitment.
- Sold As Pictured - Does Not Come with Bushings or Any Mounting Components.
- When Replacing 127268-4, You may also use 129876-4 (Lower Brake Handle Assembly) & 129879-6 (Upper Handle Extension). - This Would Be the Latest Design Type for the Later Serial Number Break - Later Design Type Enable Adjustments Providing a Little More User-Friendly Experience. (Refer to the Parts Diagrams in The Image Section of The Part Number to Determine the Additional Needed Part Number Info.).
What This Part Does
- Allows the Operator to Control the Function of a Series of Parking Brake Linkages (Parking Brake Pull Link, Tread Lock Pivot Rod & Tread Lock Teeth) Without Leaving the Operator's Station.
- Controls and Maintains Predictable Brake Disengagement & Engagement.
- Replaces a Worn, Damaged or Loose Park Brake Handle Assembly.
- Provides Genuine Hustler OEM Fit, Construction, and Mounting Configuration.
Associated Parts

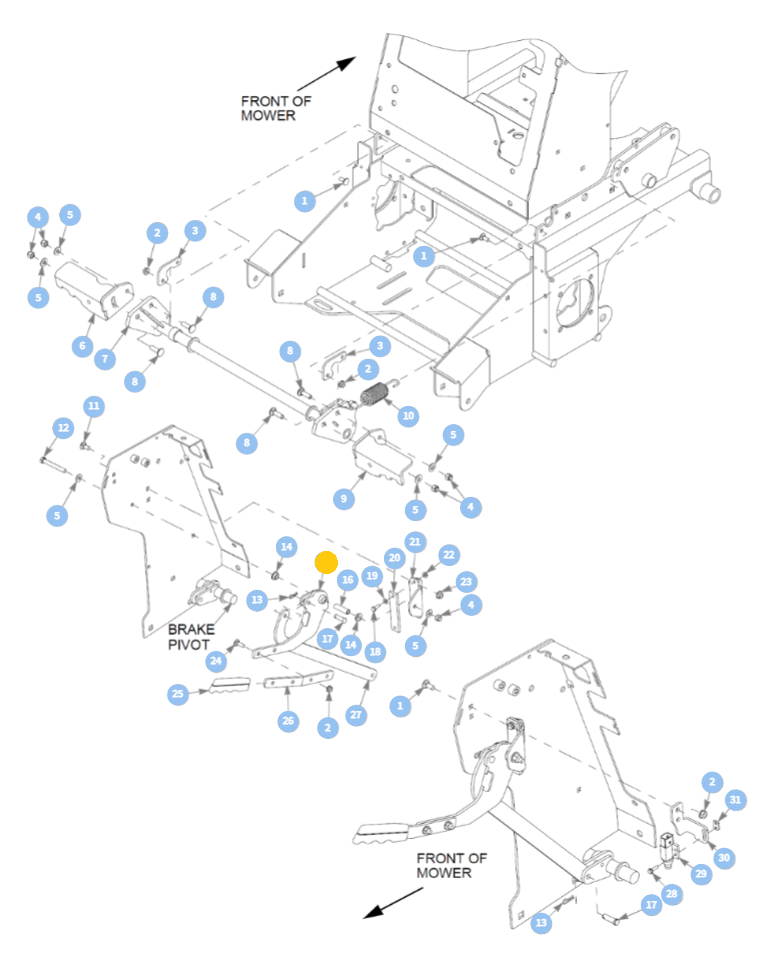

Refer to the Detail Parts Diagrams in the Images for Additional Parts Info.
When Replacing 127268-4, You may also use 129876-4 (Lower Brake Handle Assembly) & 129879-6 (Upper Handle Extension). - This Would Be the Latest Design Type for the Later Serial Number Break - Later Design Type Enable Adjustments Providing a Little More User-Friendly Experience. (Refer to the Parts Diagrams in The Image Section of The Part Number to Determine the Additional Needed Part Number Info.).
Part Details
- Brand: Hustler Turf Equipment
- Part Number: 127268-4
- Supersession: n/a
- Part Name: Operator's Park Brake Control Handle
- Position: Right-Hand Side of the Operator's Tower
- Part Type: Genuine OEM Replacement Brake Control Handle
- Quantity: One Park Brake Handle
Model Fit Chart
Super S (Select 2021 - Current 48", 52", 60" Models) * Review Note Below
Models With the Serial Ranges Listed Below are Only Relevant to the Parts Diagram & Listed Parts References
940213, 940221, 940247, 940296, 941393, 942292, 943126, 943134, 943142
- Serial Number Prior to 24012867
940254, 940304, 943167, 943175
- Serial Number Prior to 24013470
