Description
Hustler OEM 127285-4 Right-Side Tread Lock Teeth / Cleat
The Hustler OEM 127285-4 Right-Side Tread Lock Teeth or Cleat Fastens to the Right-Side of 129448-4 (Select Serial Numbers) OR 127277-4 (Select Serial Numbers) Tread Lock Pivot Rod Assembly Using 603113 Carriage Bolt, 767954 Flat Washer, 086660 Lock Nut. Hustler OEM 127285-4 Tread Lock Teeth are Designed to Insert into the Tread of the Rear Mower Tires Via Pivotal Movement of the 129876-4 (Select Serial Numbers) OR 127268-4 (Select Serial Numbers) Operator's Brake Handle Transferred to 127273-1 Brake Pull Link and Transferred to Select Tread Lock Pivot Rod Assembly on Which the 127285-4 Tread Lock Teeth are Fastened to - If any of These Components Becomes Worn It Will Contribute to Drifting or Coasting with the Brakes On. (Part Numbers Can Vary for Components Based on the Model Number, Deck Width, Etc. - Review Part Diagrams Above).
⚠️ Before You Order – Verify Fitment
Because Fitment Within Model Numbers and Year Ranges Very - Verify Your Model Number is Listed in the Model Fit Chart Below Before Ordering.
Not sure? Contact us with your Hustler model and serial number and we’ll help verify fitment.
Sold As an Individual Right-Hand Tread Lock Teeth - Requires One for Right-Side Tire (Left to Right as You Stand on the Operator's Platform) - DOES NOT COME WITH THE Hardware and Any Other Components
What This Part Does
- Rotates and Inserts into the Right-Side Rear Tire Tread Via the Tread Lock Pivot Rod Assembly and Disables the Tires from Rotating.
- Maintains Predictable Brake Engagement.
- Replaces a Worn, Damaged, or Broken Right-Hand Brake Tread Teeth or Cleat.
- Provides Genuine Hustler OEM Fit, Construction, and Mounting Configuration.
Associated Parts

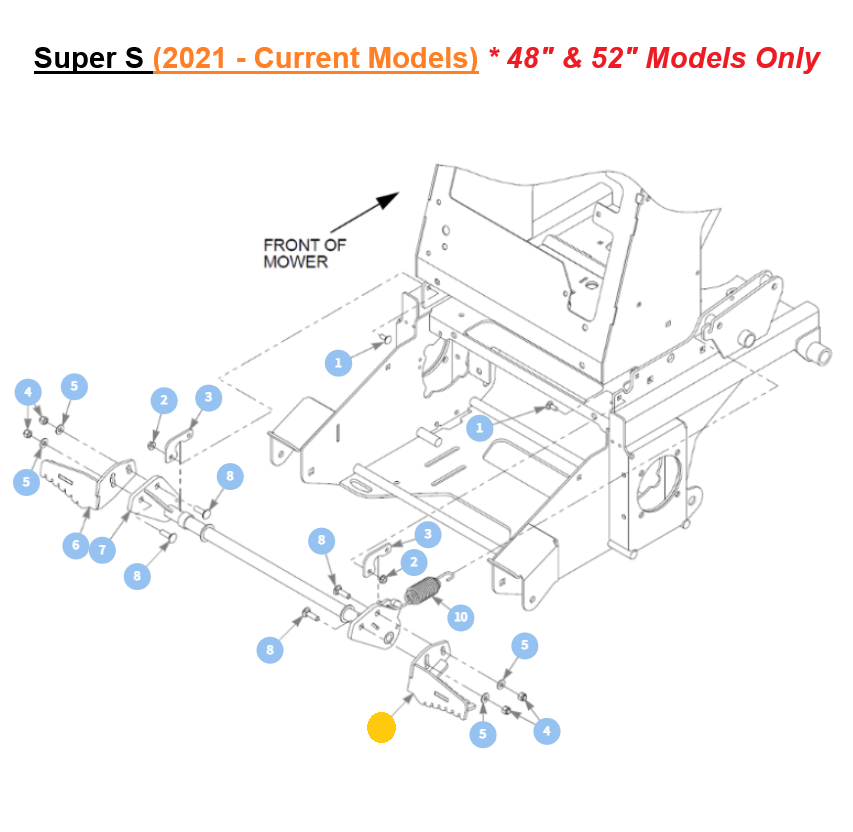

Refer to the Detail Parts Diagrams in the Images for Additional Parts Info.
Part Details
- Brand: Hustler Turf Equipment
- Part Number: 127285-4
- Supersession: n/a
- Part Name: Right-Side Brake Tread Lock Teeth / Cleat
- Position: Located on Right-Side Above the Rear Tires Attached to the Tread Lock Pivot Rod Assembly that Travels Across the Rear of the Unit as You Stand on the Operator's Platform. (Right to Left as You Stand on the Operator's Platform)
- Part Type: Genuine OEM RH Tread Lock Teeth / Cleat
- Quantity: One RH Tread Lock Teeth / Cleat
Model Fit Chart
Super S (Select 2021 - Current 48", 52" Models Only)
940213, 940221, 940247, 940296, 941393, 942292, 943126, 943134, 943142
