Description

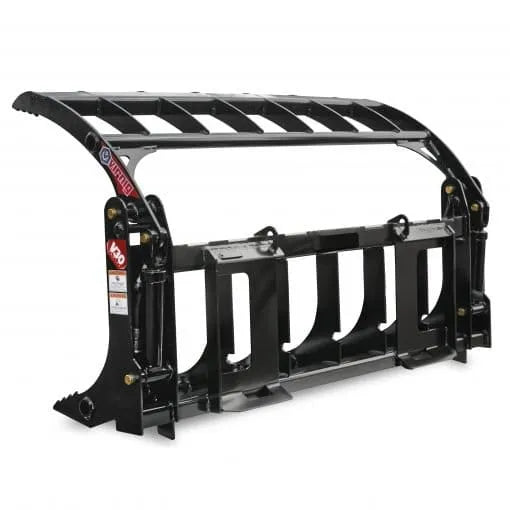

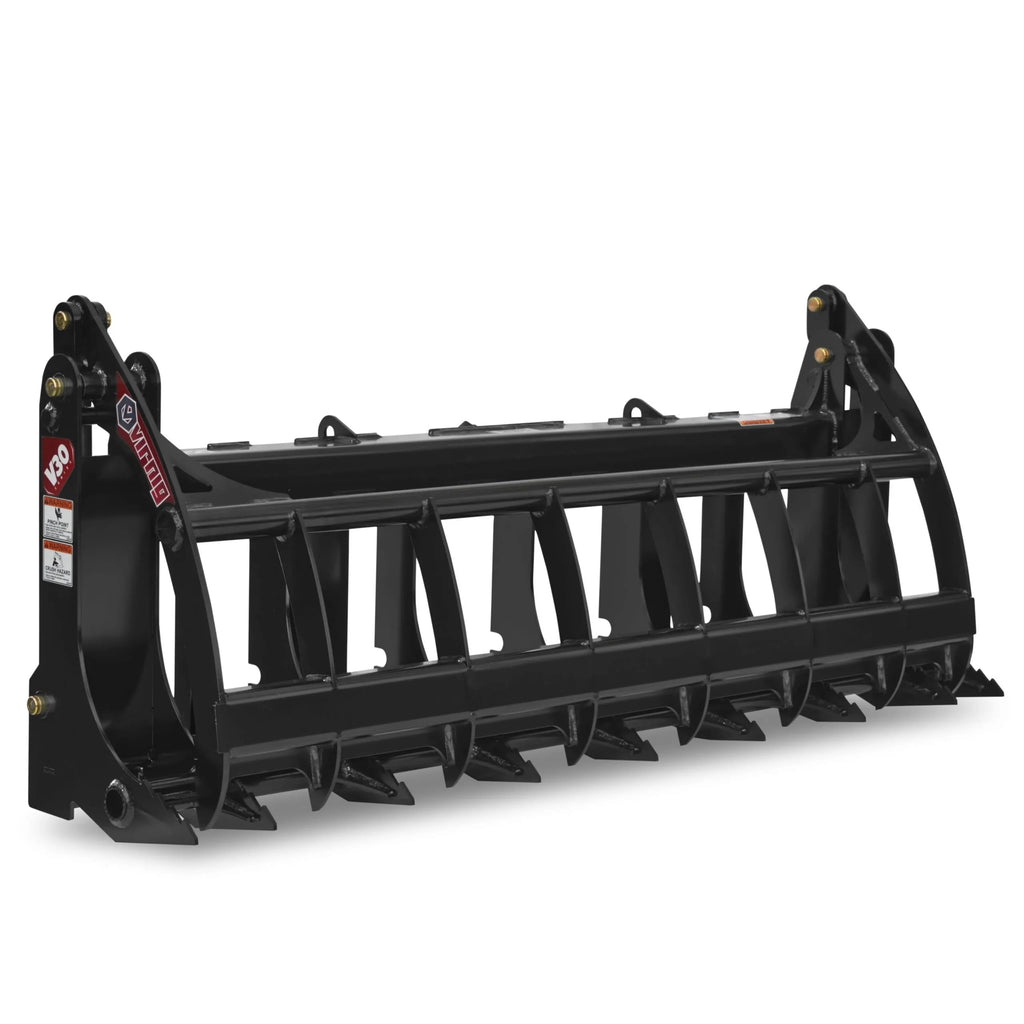

Quickly dig, rake, pile and load brush. Designed light but tough for compact tractors.

Features

• Every tine is made from one piece of steel for maximum rigidity
• URG60 & URG66 tines gusseted for extra strength
• Nitrosteel cylinder rods & teflon coated bushings on all pivots

Specifications

• Overall Width (in): 61.5
• Height Overall / Bucket (in): 27.9 / 24.9
• Overall Depth (in): 16.6
• Number of Bottom Tines: 8
• Space Between Tines / Bottom (in): 4.8 / 9.8
• Space Between Tines / Grapple Jaws (in): 7.8 / 11.2
• Tine Thickness (in): .25
• Cylinder Bore / Stroke (in): 2.0 / 6.0
• Cylinder Pins / Hinge Pins Diameter (in): 1.0
• Grapple Jaw Opening (in): 35.5
• Approximate Weight (lbs): 300
• Recommended Loader Capacity: Less than 1500 pounds
