Description

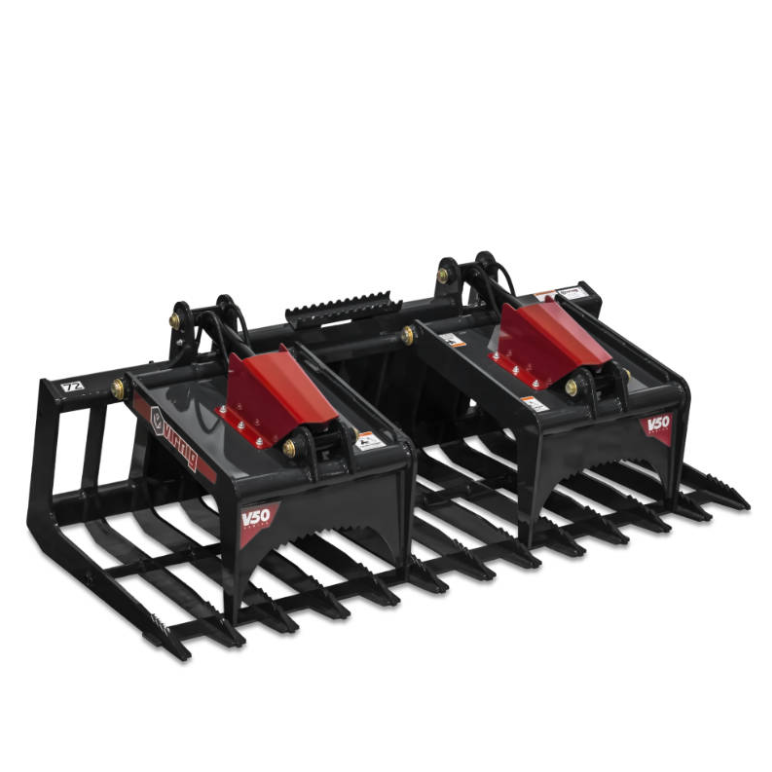

One of the most popular and versatile Virnig grapples used to handle brush, logs and debris.

Features

• Every tine is made from one piece of steel for maximum rigidity
• Nitrosteel cylinder rods and Teflon coated bushings on all pivots
• Standard with cylinder guards

Specifications

• Overall Width: 61.5"
• Height: Overall/Bucket: 27.8"/21.3"
• Overall Depth: 39.9
• Number of Tines with Sides: 11
• Space Between Tines: 5.5"
• Tine Thickness: .5"
• Cylinder Bore/Stroke 2"/8.375"
• Cylinder Pins/Hinge Pins Diameter: 1.25"/1.563"
• Grapple Jaw Opening: 36.1"
• Approximate Weight: 815 lbs
• Recommended Loader Capacity: Greater than 1500 lbs
