Description

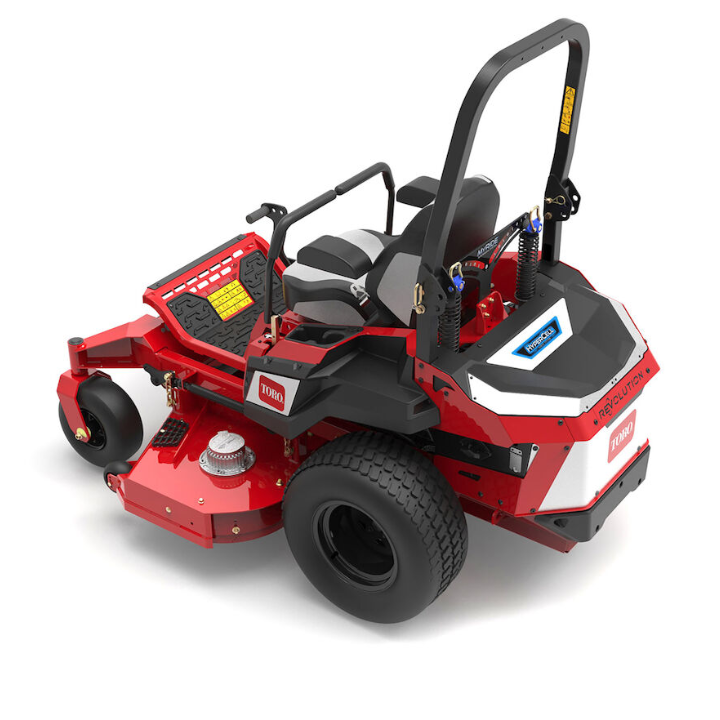

The future of lawn care and your business is here. The new Revolution Series Z Master is built on the same proven Z Master chassis and TURBO FORCE® deck that you’ve trusted for years but with a quieter, eco-friendlier design to deliver lower overall cost over the machine’s lifetime. Featuring our Horizon Technologies, the Revolution Series provides you with a smarter, more connected fleet that makes your operation more efficient than ever before. With all-day runtime from the Toro developed HyperCell battery system, you can expect to power through your day, every day.

Features

• Patent-Pending Software Controls - Optimize machine feel and response, including speed control, with patent-pending software controls.
• Horizon360 Compatible - Automatically pairs with Horizon360 connected technology to get remote insights including battery life and charging status.
• All Day Runtime - Toro's Hypercell Battery is designed to operate with the machinery and meet landscaper needs.
• Deck Rake Adjustment - Optimize run time and quality of cut with the adjustable deck rake.
• Horizon 360 Business Management - Managing and growing your business is hard work. Using a business management software system shouldn't make it harder. That is why we built Horizon360. If you can type and point/click a mouse, you have all the skills required.

Specifications

• Battery Capacity: 23.4 kWh
• Battery Charge Time: 8 hours
• Battery Power: Toro HyperCell™
• Battery Run Time: 4.5 to 7+ hours
• Blade Design: 0.204 in. / 0.518 cm thick
• Blade Tip Speed: Adjustable
• Box Dimensions: 91 in. x 70 in. x 52.5 in. / 231.1 cm x 177.8 cm x 133.4 cm
• Brake System: Integrated in Transmission Automatic
• CARB Compliant: Yes
• Caster Tires: 13 in. x 6.5 in. - 6 in. (Flat-Free Semi-Pneumatic)
• Charge Type: 3.3 kW 240V Standard; 1.2 kW 120V Optional
• Comfort Platform: MyRIDE® Suspension System
• Deck Design: 7-Gauge High-Strength Steel TURBO FORCE®
• Deck Material: 7-Gauge High-Strength Steel
• Deck Size: 60 in / 152 cm
• Discharge Chute: Rubber
• Drive Tires: Super Turf 24 in. x 12 in. - 12 in.
• Foot Operated Height of Cut: Standard
• Forward Speed: Up to 12.0 mph / 19.3 kph
• Fuel Type: Battery
• Height of Cut Range: 1.5 - 5.5 in. / 3.8 - 14.0 cm
• Hour Meter: Standard
• Ignition: Electric
• Lighting: LED Headlights
• Motor Type: Mid-Mount Commercial High Torque
• Number of Batteries Included: 10
• Product Features: Battery Powered, CARB Compliant, Hour Meter, MyRIDE® Suspension
• Product Type: Zero Turn Mower
• Product Use: Commercial
• Roll-Over Protection System (ROPS): Folding (Standard)
• Seat: Handcrafted Deluxe Suspension Seat with Arm Rests
• Spindle Bearings: Maintenance-Free
• Spindle Housing: 9 in. (22.9 cm) Diameter Die-Cast Aluminum with Blade Retainer
• Start Type: Electric
• Transmission: Planetary Gearset
• Weight: 1,515 lbs / 687.2 kg
