Description

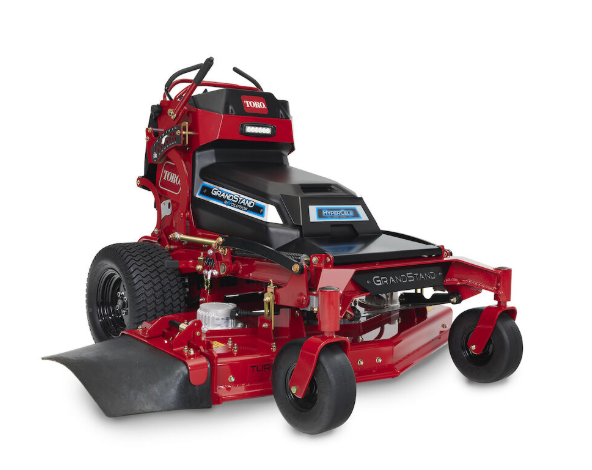

The future of lawn care and your business is here. The new Revolution Series GrandStand is built on the same proven GrandStand chassis and TURBO FORCE® deck that you’ve trusted for years but with a quieter, eco-friendlier design to deliver lower overall cost over the machine’s lifetime. Featuring our Horizon Technologies, the Revolution Series provides you with a smarter, more connected fleet that makes your operation more efficient than ever before. With all-day runtime from the Toro developed HyperCell battery system, you can expect to power through your day, every day.

Features

• Patent-Pending Software Controls - Optimize machine feel and response, including speed control, with patent-pending software controls.
• Horizon360 Compatible - Automatically pairs with Horizon360 connected technology to get remote insights including battery life and charging status.
• All Day Runtime - Toro's Hypercell Battery is designed to operate with the machinery and meet landscaper needs.
• Deck Rake Adjustment - Optimize run time and quality of cut with the adjustable deck rake.
• Horizon360 Business Management Software - Managing and growing your business is hard work. Using a business management software system shouldn't make it harder. That is why we built Horizon360. If you can type and point/click a mouse, you have all the skills required.

Specifications

• Product Type: Stand-On Mower
• Product Use: Commercial
• Start Type: Electric
• Fuel Type: Battery
• CARB Compliant: Yes
• Weight: 1,156 lbs / 524.4 kg
• Box Dimensions: 91 in. x 70.25 in. x 52 in. (231.1 cm x 178.4 cm x 132.1 cm)
• Battery Type: Toro HyperCell
• Battery Capacity: 18.4 kWh
• Number of Batteries Included: 8
• Battery Run Time: 4.5 – 7+ hours
• Charge Type: 1.2kW 120V
• Charge Time: ~14 hours
• Drive Tires: 20 in. x 10.5 in. - 12 in. (51 cm x 26.7 cm - 30.5 cm) Super Turf
• Caster Tires: 11 in. x 4 in. - 5 in. (27.9 cm x 10.2 cm - 12.5 cm) Semi-pneumatic
• Transmission: Planetary Gearset
• Forward Speed (Ground/Transport): Up to 10.0 mph / 16.0 kph
• Steering Controls: Twin Lever
• Deck Size: 60 in / 152 cm
• Deck Design: 7-Gauge TURBO FORCE®
• Deck Material: 7 Gauge Steel
• Blades: 0.204 in. (5.18 mm)
• Height of Cut: 1.5 – 5.5 in. / 3.8 – 14.0 cm
• Discharge Chute: Rubber
• Spindle Housing: 9 in. / 22.9 cm Diameter Die-Cast Aluminum with Blade Retainer
• Hour Meter: Standard
• Lighting: LED Headlights
