Description

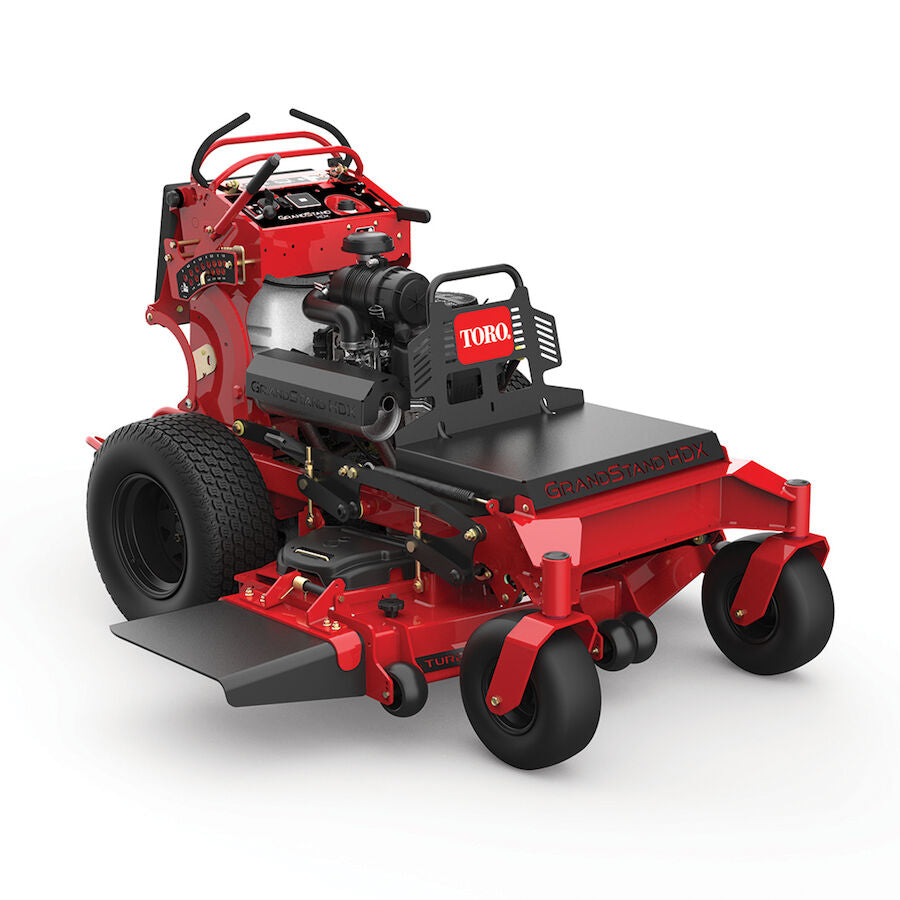

The Toro GrandStand® combines the speed and comfort of a zero-turn rider with the on-and-off ease of a wide area walk-behind creating a fast, maneuverable and more productive alternative. The HDX model provides increased efficiency with higher horsepower.

Features

• Proven Platform - Uses the industry-proven TURBO FORCE^® cutting deck that is built to withstand the extreme conditions of long, tough days on the job.
• Big Time Productivity - Cut time off any day with 24” drive tires with big block horsepower and travel at 12 mph.
• Ease of Use - More efficient operation with a flip up operator platform, utility hood and easy to get on and off.
• Built Tough - Endlessly field tested 7 gauge TURBO FORCE^® deck with the i-beam front end is built to last, just like the machine backed by an equally impressive warranty.
• Easier Maintenance - Access to both sides of the engine, hydros and controls with the easy removal of the fuel tank.
• Extra Large Fuel Tank - Improve productivity with easy access on and off the machine with up to 10.5 gallons of fuel capacity to mow longer with fewer stops. Transparent tank make it easy to gauge the fuel level.
• Comfortable Ride - The platform has self-adjusting suspension, a larger open area to move around, and sloped sides for a more secure stance when cutting sloped terrain.
• Traction on Hills - A wide stance and optimal balance enhance hillside stability and control. Operators can shift weight as needed to further enhance performance.
• Horizon360 Business Management Software - Managing and growing your business is hard work. Using a business management software system shouldn't make it harder. That is why we built Horizon360. If you can type and point/click a mouse, you have all the skills required.

Specifications

• Product Type: Stand-On Mower
• Weight: 1,055 lbs / 478.5 kg
• Box Dimensions: 82 in. x 63 in. x 52.5 in. / 208.3 cm x 160.0 cm x 133.4 cm
• Fuel Type: Gasoline
• Fuel Capacity: 10.5 gal. / 39.7 L / 42 Qt.
• CARB Compliant: Not CARB Compliant
• Engine Brand: Kawasaki
• Engine Model: FX921
• Engine Horsepower: 31.0 hp
• Engine Displacement: 999 cc
• Air Filter: Heavy-Duty Canister Air Cleaner
• Start Type: Electric
• Drive Type: Tuff Torq TZT13s 13cc IHTs
• Drive Tires: 24 in. x 9.5 in. – 12 in. (61 cm x 24.1 cm – 30.5 cm)
• Caster Tires: 13 in. x 6.5 in. (33 cm x 16.5 cm) Flat-Free Semi-Pneumatic
• Forward Ground/Transport Speed: Up to 12.0 mph / 19.3 kph
• Reverse Ground/Transport Speed: Up to 5.0 mph / 8.0 kph
• Deck Size: 52 in / 132 cm
• Deck Design: 7-gauge TURBO FORCE® 2 with bull-nose bumper
• Discharge Chute: Rubber
• Blade Design: 0.204 in. / 0.518 cm
• Number of Blades: 3
• Height of Cut: 1.5 - 5.0 in. / 3.8 - 12.7 cm (in 0.25 in / 0.64 cm increments)
• Anti Scalp Wheels: Standard
• Adjustable Discharge Baffle: Standard, Tools-Free
• Steering Controls: Twin Lever
• Comfort Platform: Foldable Operator Platform with Suspension
• Hour Meter: Standard
• Spindle Bearings: Greaseless Ball Bearings
• Spindle Housing: 9 in / 22.9 cm Diameter Cast Aluminum
• Clutch: Electromagnetic
