Description

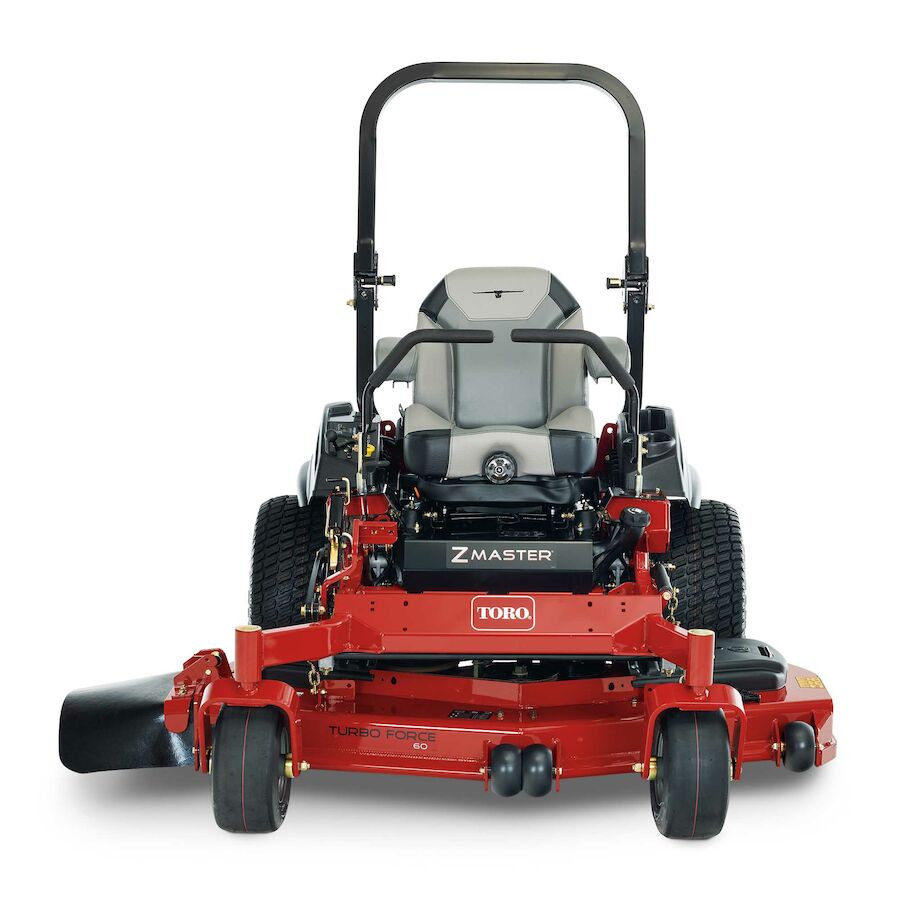

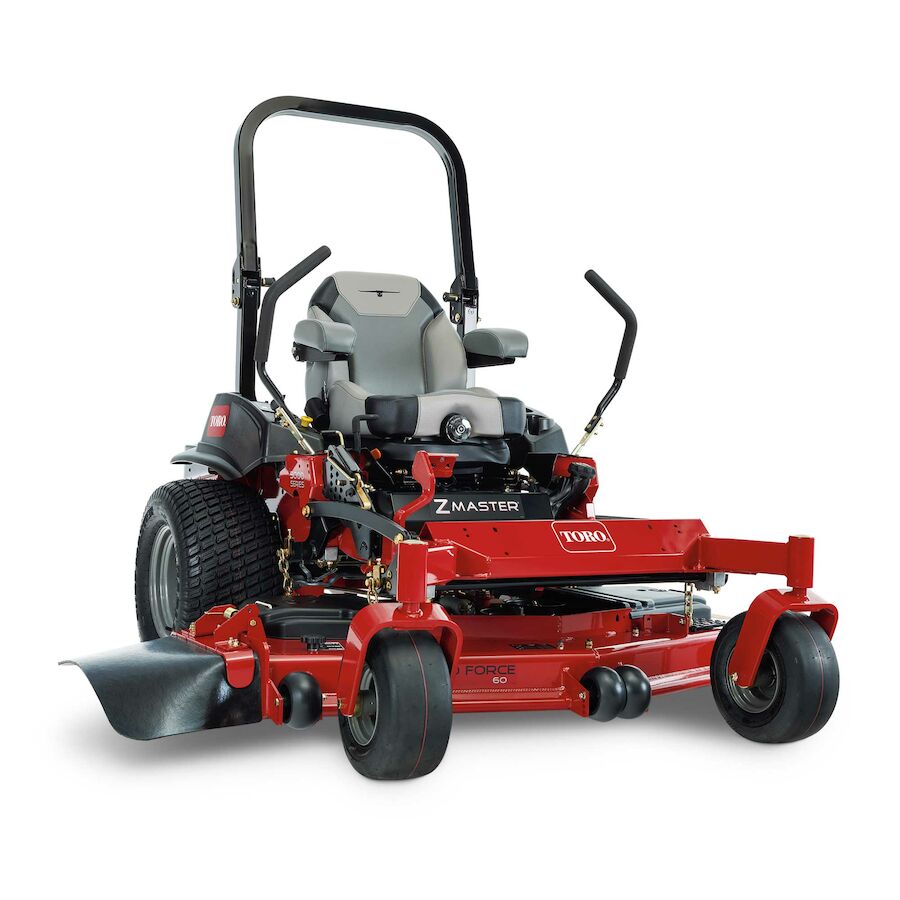

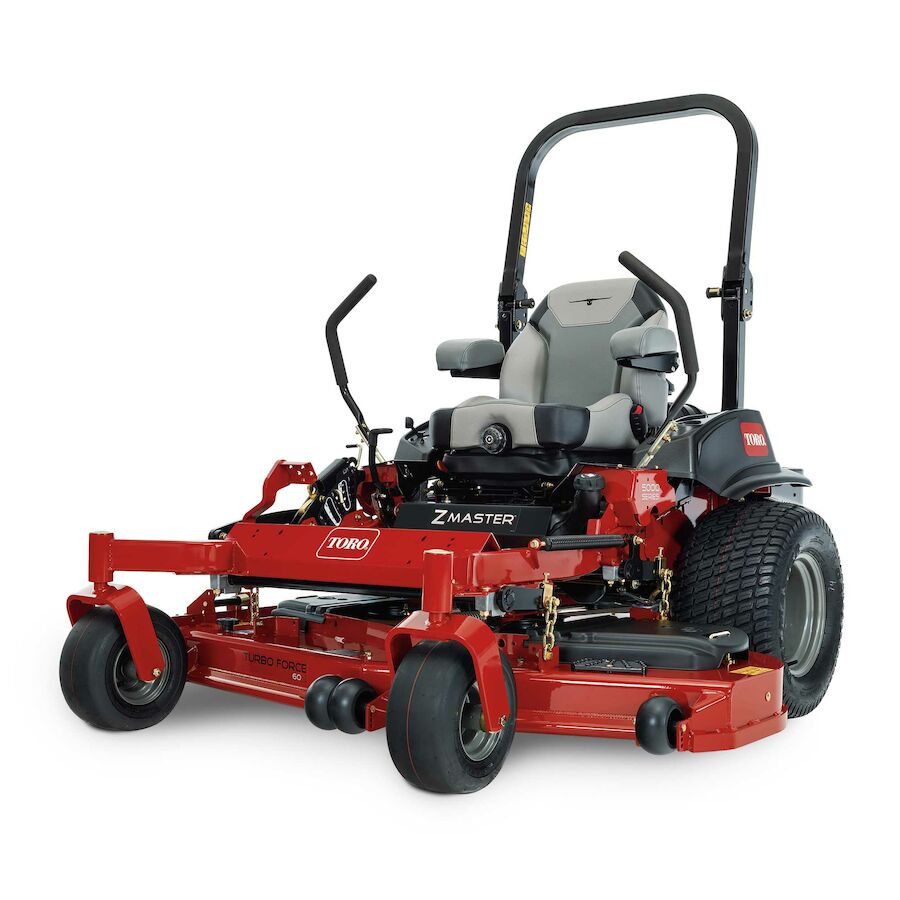

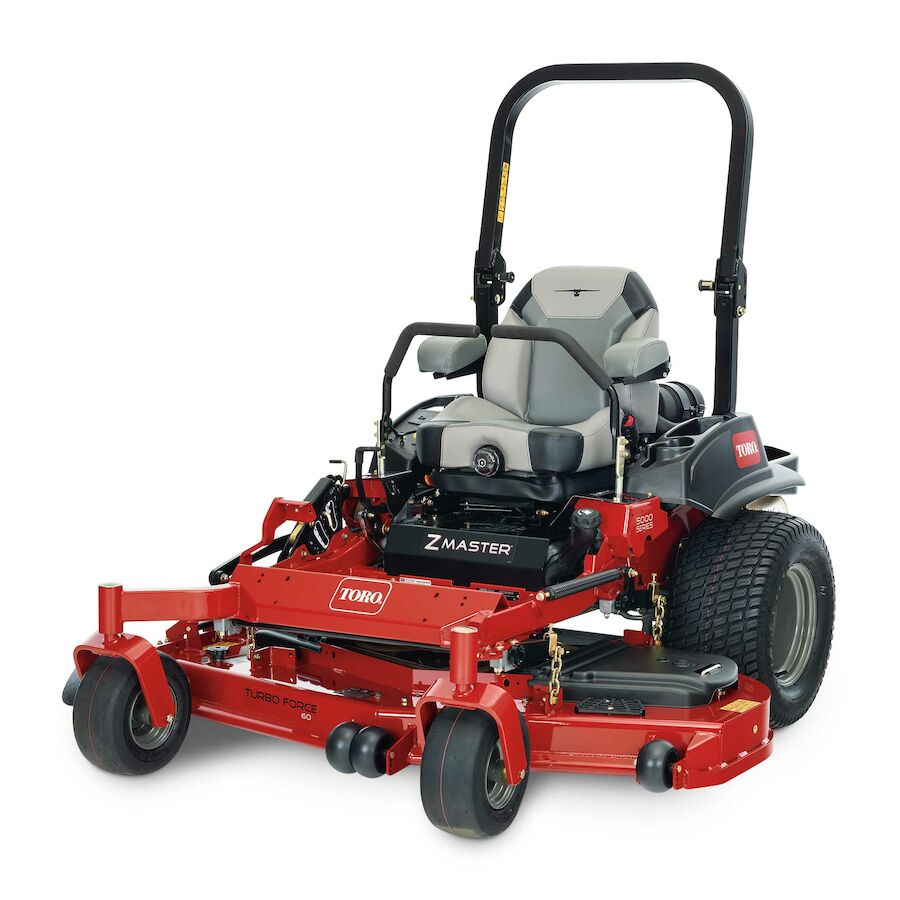

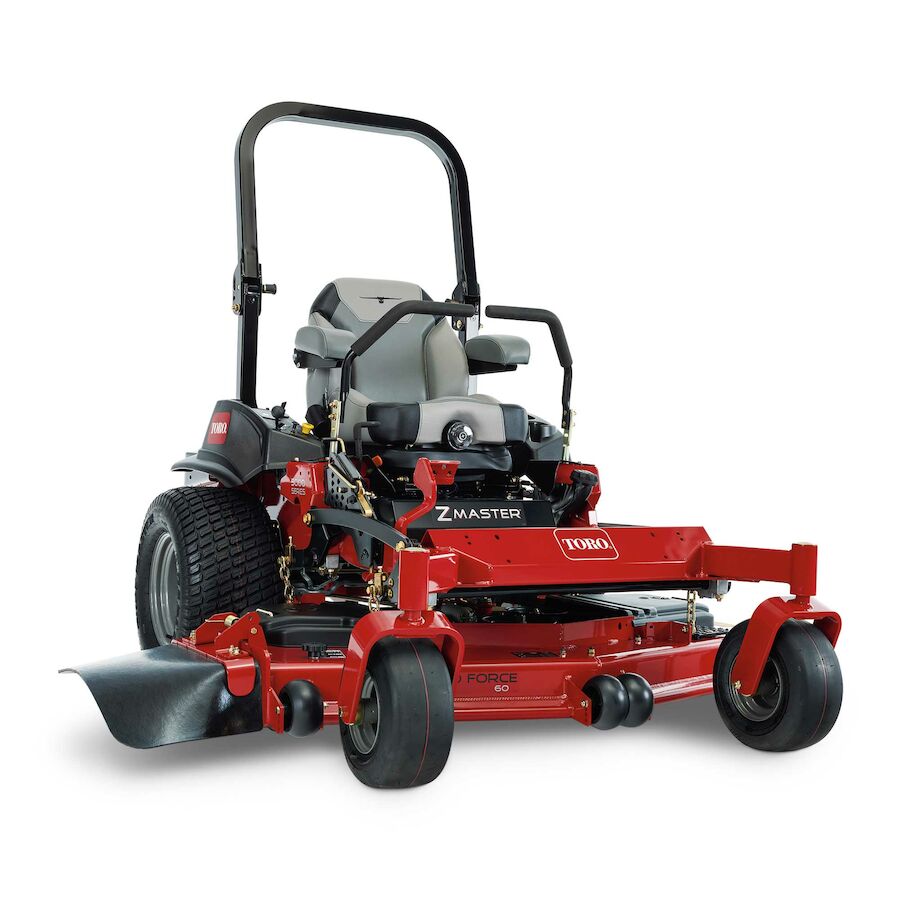

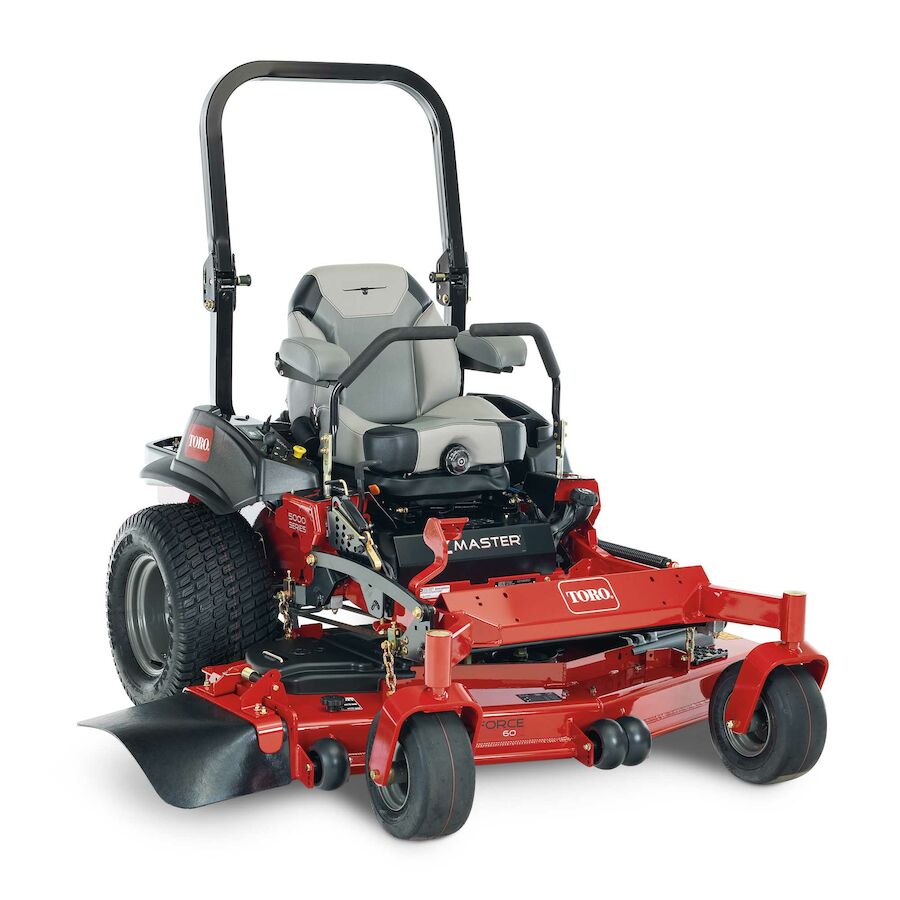

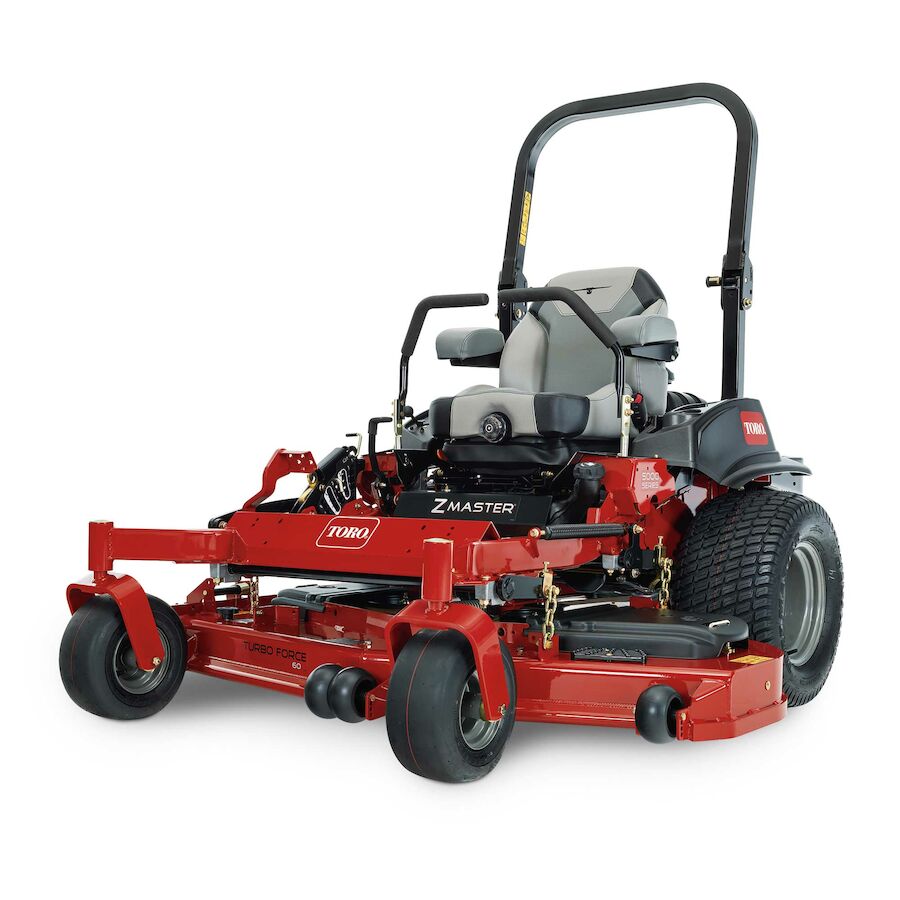

Z Master 5000 Series mowers deliver impressive commercial-grade results and durability, all at an outstanding value. Powerful quality performance from the 25.5 hp Kawasaki FX 852cc engine with 60 in. TURBO FORCE deck.

Features

• Deluxe Handcrafted Seat with Arm Rests - Ultimate padding and back support with a handcrafted seat with arm rests and bullhorn logo.
• Exclusive Turbo Force Deck - High-capacity TURBO FORCE decks deliver unsurpassed strength, a superior cut, and increased productivity in extreme mowing conditions. Equipped with a patented adjustable baffle, TURBO FORCE decks can be fine-tuned in order to conquer changing turf conditions.
• 7-Gauge, High-Strength Steel - The TURBO FORCE deck is constructed of 7-gauge, high-strength steel which is 33% thicker and 32% higher in yield strength than ordinary 10-gauge commercial steel used in 7/10 decks. The combined effect is 75% stronger, so it easily handles the most demanding conditions and resists damage from impacts and abrasion.
• A Flat Crisp Cut with Precision Blades - (.250) thick precision blades resist flexing to provide a flat, crisp cut. High-strength, heat-treated alloy steel survives impacts and provides resistance to the rapid wear commonly associated with abrasive conditions. Options include Recycler® and Atomic® mulching blades, medium sail Bahai blades, and low sail sand blades.
• Rubber Discharge Chute - High performance rubber discharge chute allows for close trimming without damaging chute or landscape structures. Patented design provides exceptional clipping dispersion.
• Rugged Frame - A commercial-grade carrier frame, constructed of 3" x 1.5" tubular steel, supports the cutting deck and stands up to the rigors of professional use.
• Folding Rollover Protection System - A Rollover Protection System (ROPS), complete with seat belt, comes standard for operator protection in the case of accidental rollovers and tipovers. In situations where sufficient vertical clearance is not available, such as loading on an enclosed trailer, the ROPS can be temporarily unlocked and folded down.
• Cast Aluminum Spindle - Cools quickly for enhanced durability and performance.
• Horizon360 Business Management Software - Managing and growing your business is hard work. Using a business management software system shouldn't make it harder. That is why we built Horizon360. If you can type and point/click a mouse, you have all the skills required.

Specifications

• Product Type: Zero Turn Mower
• Product Use: Commercial
• Engine Brand: Kawasaki
• Engine Model: FX
• Engine Horsepower: 25.5 hp*
• Engine Displacement: 852 cc
• Fuel Type: Gasoline
• Fuel Capacity: 12 gal. / 45.4 L / 48 Qt.
• Start Type: Electric
• CARB Compliant: No
• Forward Ground/Transport Speed: Up to 10.0 mph / 16.0 kph
• Blade Tip Speed: 18,300 ft/min / 5,577 m/min
• Blades: 0.204 in. (0.5 cm) Heat-Treated Steel
• Deck Size: 60 in / 152 cm
• Deck Design: 80-Grade 7-Gauge TURBO FORCE® w/Bull-Nose Bumper
• Deck Material: 8 Gauge Steel
• Height of Cut Range: 1.0 - 5.5 in. / 2.5 - 14.0 cm
• Discharge Chute: Rubber
• Adjustable Discharge Baffle: Standard, Tools-Free
• Anti-Scalp Wheels: 4 Standard, 1 Optional
• Drive System: Hydraulic Unitized Pumps and Wheel Motors
• Hydraulic Fluid: Premium Synthetic
• Carrier Frame: 3 in. x 1.5 in. x 10 Gauge (7.6 cm x 3.8 cm x 10 Gauge)
• Drive Tires: 24 in. x 12 in. - 12 in. (61 cm x 30.5 cm - 30.5 cm) Pneumatic
• Caster Tires: 13 in. x 6.5 in. - 6 in. (33 cm x 16.5 cm - 15.2 cm) Flat-Free Semi-Pneumatic
• Front Bumper: Reinforced Bull-Nose
• Comfort Platform: Deluxe Suspension with 3-D Isolation Mounts
• Seat: Handcrafted Deluxe Suspension Seat with Arm Rests Featuring Bullhorn Accent
• Armrests: Standard
• Steering Controls: 1-5/8" (4.1 cm) Diameter Grips; Adjustable, Dampened
• Hour Meter: Standard
• Spindle Bearings: Maintenance-Free
• Spindle Housing: 9 in / 22.9 cm Diameter Cast Aluminum
• Roll-Over Protection System (ROPS): Folding; Standard
• Box Dimensions: 91 in. x 70.25 in. x 52.5 in. / 231.1 cm x 178.4 cm x 133.4 cm
• Weight: 1,132 lbs / 513.5 kg
