Description

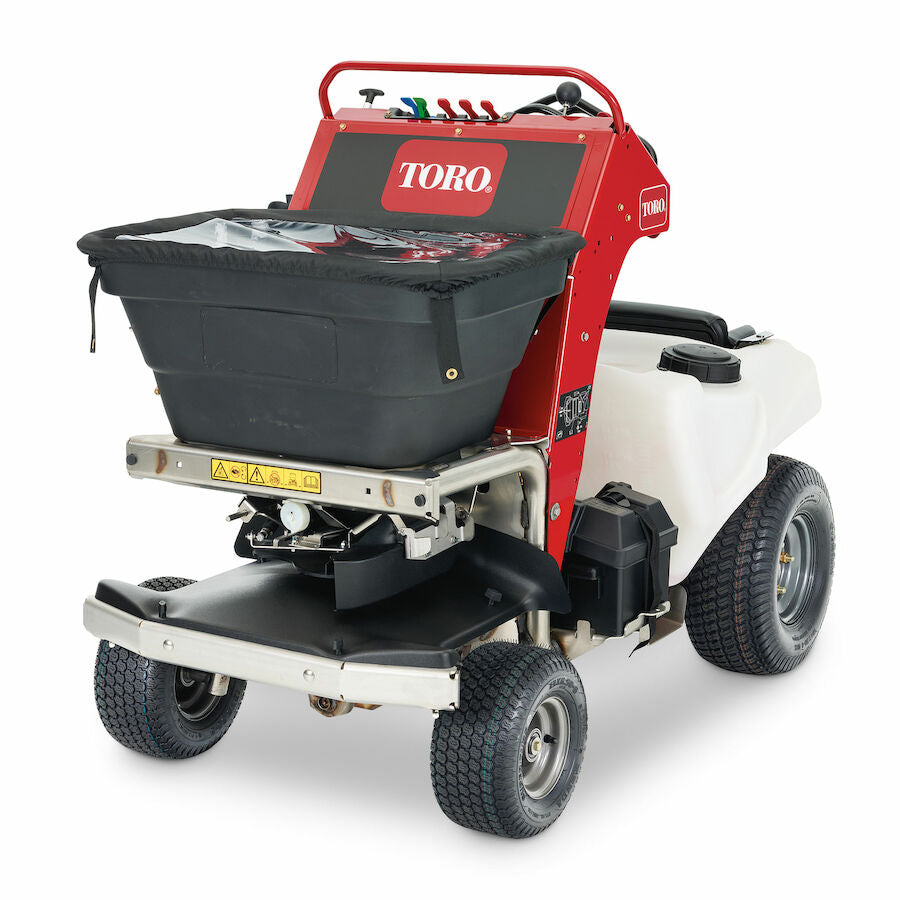

Treating turf can be a big job. Toro’s stand-on spreader sprayer makes that job a whole lot easier. It’s the industry’s most innovative product of its kind, featuring Lean To Steer technology so you can control the machine with one hand and have one hand free to make adjustments to the spreader or sprayer using the intuitive control panel. With fast forward speeds of up to 5.5 mph, a large 175-lb. hopper and a 20-gallon spray tank, you can count on spending less time refilling and more time covering ground.

Features

• Lean to Steer Technology - Control forward/reverse and left/right steering with one hand, allowing adjustments to be made on the fly.
• Large Capacity - From the 20-gallon spray tank and 175 lb. hopper capacity to the 1.85-gallon fuel tank, this unit is designed to maximize ground coverage and reduce refill stops.
• Easy-to-Use Controls - The easy-to-operate control panel allows the operator to conveniently make adjustments to spread and spray settings. The updated digital controls allow for more precise application.
• Compact Design - The compact design allows for exceptional maneuverability in tight spaces, including fitting through 36” gates, so spraying and spreading is possible in any area.
• Operator Comfort - The large stainless steel operator platform, isolation mounts and the ergonomic padded knee bolster allow for a more comfortable ride and reduced operator fatigue.
• Hand-Held Spray Wand - The hand-held spray wand comes standard for spot spraying to ensure you’re covering the whole job, no matter how difficult to reach.
• Two agitation nozzles in the spray tank can be turned on and off on demand from the operator panel to keep material in the tank circulating for even distribution and reduced clogging.
• Horizon360 Business Management Software - Managing and growing your business is hard work. Using a business management software system shouldn't make it harder. That is why we built Horizon360. If you can type and point/click a mouse, you have all the skills required.

Specifications

• Product Type: Spreader / Sprayer
• Model: 34230
• Engine: Kohler 9.5 hp CH395, 277 cc
• Fuel Type: Gasoline
• Fuel Capacity: 1.85 gal (7 L)
• Transmission: Hydrostatic
• Ground Speed: Up to 5.5 mph (8.8 kph)
• Spray Capacity: 20 gal (75.7 L)
• Spray Width: 4 ft or 10 ft (1.2 m or 3.0 m)
• Spray Wand: Standard, hand-held spray wand for spot spraying
• Spreader Hopper Capacity: 175 lbs
• Spreading Width: Adjustable 4 ft – 22 ft (1.2 m – 6.7 m)
• Pump Capacity: 5 GPM
• Spot Spray Hose: 15 ft coil hose
• Deflector Shield: Molded plastic
• Start Type: Electric
• Weight: 500 lbs (226.8 kg) dry
