Description

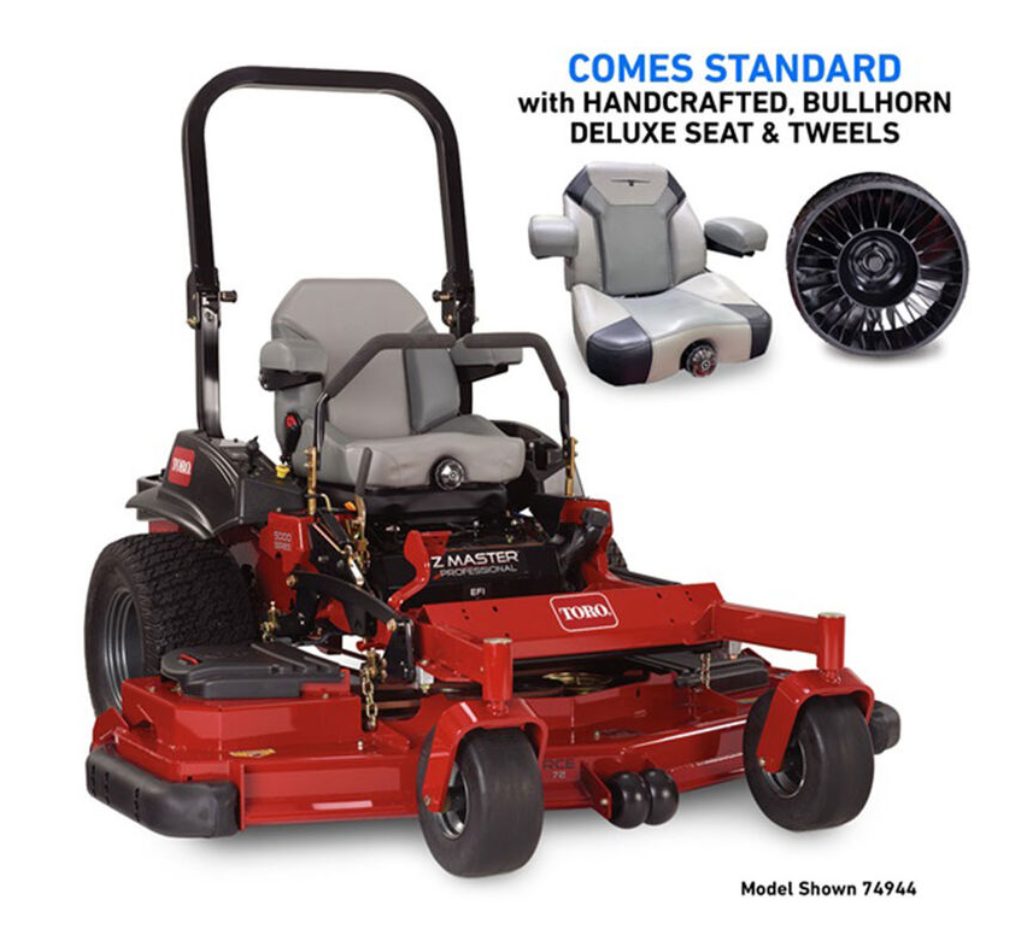

Z Master Professional 5000 Series mowers offer rear discharge decks for increased productivity in taller grass. These EFI models also use up to 25% less fuel than equivalent non-EFI mowers. The rear discharge design allows operators to trim on either side of the deck — no need to change direction to avoid discharging debris on roadways, sidewalks or flowerbeds. Clippings are dropped within the path of the mower, saving time and cleanup.

Features

• Cast Aluminum Spindle - Cools quickly for enhanced durability and performance.
• Exclusive Turbo Force Deck - High-capacity TURBO FORCE decks deliver unsurpassed strength, a superior cut, and increased productivity in extreme mowing conditions. Equipped with a patented adjustable baffle, TURBO FORCE decks can be fine-tuned in order to conquer changing turf conditions.
• 7-Gauge, High-Strength Steel - The TURBO FORCE deck is constructed of 7-gauge, high-strength steel which is 33% thicker and 32% higher in yield strength than ordinary 10-gauge commercial steel used in 7/10 decks. The combined effect is 75% stronger, so it easily handles the most demanding conditions and resists damage from impacts and abrasion.
• A Flat Crisp Cut with Precision Blades - (.250) thick precision blades resist flexing to provide a flat, crisp cut. High-strength, heat-treated alloy steel survives impacts and provides resistance to the rapid wear commonly associated with abrasive conditions. Options include Recycler® and Atomic® mulching blades, medium sail Bahai blades, and low sail sand blades.
• Folding Rollover Protection System - A Rollover Protection System (ROPS), complete with seat belt, comes standard for operator protection in the case of accidental rollovers and tipovers. In situations where sufficient vertical clearance is not available, such as loading on an enclosed trailer, the ROPS can be temporarily unlocked and folded down.
• Patented Adjustable Baffle - Allows operator to achieve maximum cutting performance by fine-tuning deck to conquer changing conditions, unique job sites or different times of the season. In extreme conditions, the baffle can be opened in order to conserve power and achieve faster mowing speeds. In less demanding conditions, the baffle can be closed to yield micro-sized particles and maximize discharge velocity.
• Smooth, Powerful Response - The new unitized pump and wheel motor use proven commercial hydraulic components while eliminating hoses and other potential leak points. You'll get a smoother, faster response while enjoying an even more reliable machine.
• Smarter Design in a Bull-Nose Bumper - 7-gauge bull-nose bumper not only protects against frontal impacts, but also contains an integral underskirt to minimize blowout of debris and dust. The bottom, leading edge of the deck is raised 1/4" (6 mm), allowing grass to stand more upright when entering the cutting chamber, ensuring a level cut. Leaf "plowing" during spring and fall clean-up also is significantly reduced.
• Operator Information Center - The instrument panel includes a digital hour meter, fuel gauge, and voltage meter, as well as diagnostic indicators for the safety interlock system.
• Deluxe Suspension Seat - Deluxe suspension seat features thick cushions, large bolsters and 3-D isolator mounts that absorb bumps and vibrations to reduce operator fatigue.
• Michelin X Tweel Turf Tires - No air pressure to maintain, no flat tires, no compromises. Get extra long wear life two to three times that of a pneumatic tire at equal tread depth.
• Horizon360 Business Management Software - Managing and growing your business is hard work. Using a business management software system shouldn't make it harder. That is why we built Horizon360. If you can type and point/click a mouse, you have all the skills required.

Specifications

• Engine Brand: Kohler®
• Engine Model: Command Pro EFI
• Horsepower: 26.5 hp (gross)
• Displacement: 747 cc
• Fuel Type: Gasoline
• Fuel Capacity: 12 gal (45.4 L)
• Start Type: Electric
• Deck Size: 60 in (152 cm) TURBO FORCE® rear discharge deck with bull-nose bumper
• Deck Material: 7-gauge high-strength steel
• Blades: 3 × 0.204 in heat-treated steel
• Blade Tip Speed: 18,500 ft/min
• Height of Cut: 1.0 – 5.5 in (2.5 – 14.0 cm)
• Adjustable Discharge Baffle: Standard
• Drive System: Unitized pumps (12 cc) and wheel motors (14.6 cir)
• Steering Controls: Adjustable, dampened grips
• Forward Ground/Transport Speed: Up to 10.0 mph (16.0 kph)
• Rear Drive Tires: Michelin® X® Tweel® Turf airless radial 24 in
• Front Caster Tires: 13 × 6.5-6 in flat-free semi-pneumatic
• Carrier Frame: 3 in × 1.5 in × 10 gauge tubular frame
• Seat: Handcrafted deluxe suspension seat with arm rests featuring bullhorn accent
• Comfort Platform: Deluxe suspension with 3-D isolation mounts
• ROPS: Folding rollover protection system (standard)
• Hour Meter: Standard
• Cup Holder: Standard
• Box Dimensions: 91 in × 80 in × 52.5 in (231.1 × 203.2 × 133.4 cm)
• Weight: ~1,315 lbs (596.5 kg)
• Air Filter: Heavy-duty canister
• Hydraulic Fluid: Premium synthetic
• Anti-Scalp Wheels: 2 side bumpers + 4 rollers
• CARB Compliance: CARB compliant
• Horizon360® Business Management Software: Included
