Description

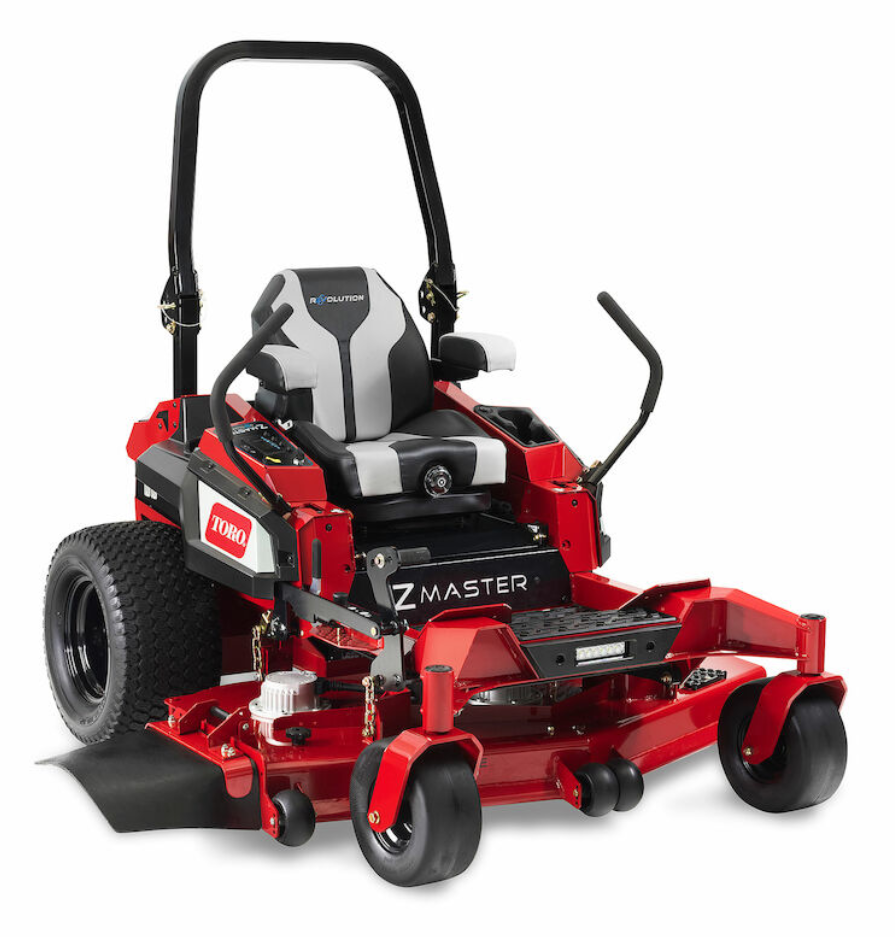

The future of lawn care and your business is here. The new Revolution Series Z Master is built on the same proven Z Master chassis and TURBO FORCE® deck that you’ve trusted for years but with a quieter, eco-friendlier design to deliver lower overall cost over the machine’s lifetime. Featuring our Horizon Technologies, the Revolution Series provides you with a smarter, more connected fleet that makes your operation more efficient than ever before. With all-day runtime from the Toro developed HyperCell battery system, you can expect to power through your day, every day.

Features

• Patent-Pending Software Controls - Optimize machine feel and response, including speed control, with patent-pending software controls.
• Horizon360 Compatible - Automatically pairs with Horizon360 connected technology to get remote insights including battery life and charging status.
• All Day Runtime - Toro's Hypercell Battery is designed to operate with the machinery and meet landscaper needs.
• Deck Rake Adjustment - Optimize run time and quality of cut with the adjustable deck rake.
• Horizon360 Business Management Software - Managing and growing your business is hard work. Using a business management software system shouldn't make it harder. That is why we built Horizon360. If you can type and point/click a mouse, you have all the skills required.

Specifications

• Power Source: Battery / electric (no gas engine)
• Battery System: Toro HyperCell® high-capacity battery
• Battery Capacity: 23.4 kWh
• Charge Time: ~8 hours (with 3.3 kW 240 V charger; optional 120 V charging available)
• Run Time: ~4.5 – 7+ hours on a full charge
• Deck Size: 60 in (152 cm) TURBO FORCE® fabricated steel
• Deck Material: 7-gauge high-strength steel
• Cutting Height: 1.5 – 5.5 in (3.8 – 14.0 cm)
• Blades: Heat-treated blades (blade thickness 0.204 in / 0.518 cm)
• Blade Tip Speed: Adjustable (maintained by electric motor)
• Discharge Chute: Rubber
• Transmission: Planetary gearset (commercial-grade)
• Motor: Mid-mount commercial high-torque electric motor
• Drive Tires: Super Turf 24 in × 12 in – 12 in
• Front Caster Tires: 13 in × 6.5 in – 6 in flat-free semi-pneumatic
• Forward Speed: Up to approximately 12 mph (19.3 kph)
• Brake System: Integrated automatic transmission brake
• Seat: Handcrafted deluxe suspension seat with arm rests
• ROPS: Folding rollover protection system (standard)
• Hour Meter: Standard
• LED Headlights: Included
• Horizon360® Software Compatible: Yes (remote fleet and battery insights)
• Machine Weight: Approximately 1,429 lbs (648.2 kg)
• Box/Shipping Dimensions: ~91 in × 70 in × 52.5 in (~231 × 178 × 133 cm)
• Fuel Type: Battery (no gasoline)
• CARB Compliant: Yes
• Product Use: Commercial
