Description

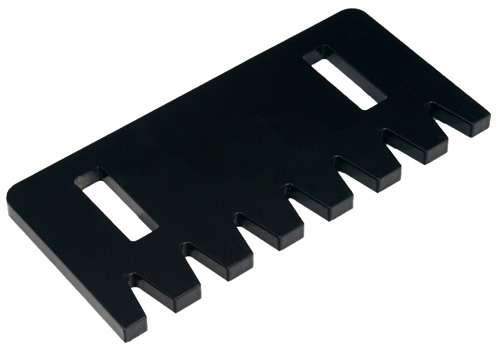

Hustler OEM 606299 Tread Lock Teeth
The Hustler OEM 606299 Tread Lock Teeth Fasten to the 606302 (Select 48", 52", 60" Models) & 606345 (All 36" Models) Tread Lock Pivot Rod Assembly Using 603113 Carriage Bolt, 767954 Flat Washer, 086660 Lock Nut. Hustler OEM 606299 Tread Lock Teeth are Designed to Insert into the Tread of the Rear Mower Tires Via Pivotal Movement of the Operator's 123269 Brake Handle Transferred to 122582 Brake Pull Link and Transferred to the Selected Tread Lock Pivot Rod Assembly on Which the 606299 Tread Lock Teeth are Fastened to - If any of TSelectedhese Components Becomes Worn It Will Contribute to Drifting or Coasting with the Brakes On. (Part Numbers Can Vary for Components Based on the Model Number, Deck Width, Etc. - Review Part Diagrams Above).
⚠️ Before You Order – Verify Fitment
Because Fitment Within Model Numbers and Year Ranges Very - Verify Your Model Number is Listed in the Model Fit Chart Below Before Ordering.
Not sure? Contact us with your Hustler model and serial number and we’ll help verify fitment.
Sold As an Individual Tread Lock Teeth - Requires One Per Tire - DOES NOT COME WITH THE Hardware and Any Other Components
What This Part Does
- Rotates and Inserts into the Rear Tire Tread Via the Tread Lock Pivot Rod Assembly and Disables the Tires from Rotating.
- Maintains Predictable Brake Engagement.
- Replaces a Worn, Damaged, or Broke Brake Tread Teeth.
- Provides Genuine Hustler OEM Fit, Construction, and Mounting Configuration.
Associated Parts

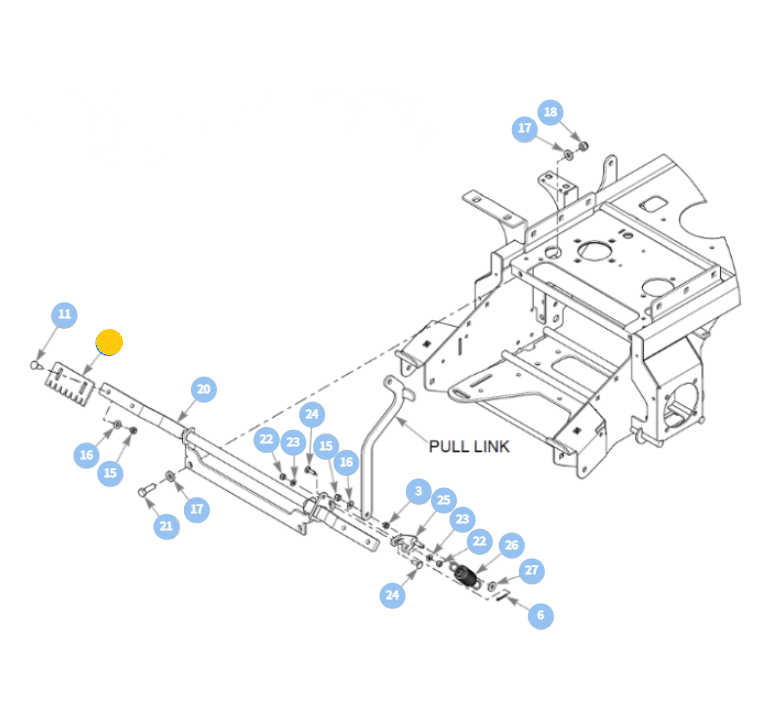

Refer to the Detail Parts Diagrams in the Images for Additional Parts Info.
Part Details
- Brand: Hustler Turf Equipment
- Part Number: 606299
- Supersession: n/a
- Part Name: Brake - Tread Lock Teeth
- Position: Located one on Each Side Above the Rear Tires Attached to the Tread Lock Pivot Rod Assembly that Travels Across the Rear of the Unit as You Stand on the Operator's Platform.
- Part Type: Genuine OEM Tread Lock Teeth
- Quantity: One Tread Lock Teeth
Model Fit Chart
Super S (All 36" Models) & (2016 - 2020 48", 52", 60" Models)
933325, 933333, 933341, 933358, 935353, 935361, 935387US, 935395US, 937128, 937136, 937144, 937151, 937169, 937177, 939439, 939447, 939454, 940205, 940288
