Hustler OEM 553516 Park Brake Handle Mounting Bracket Fits Hustler Super S (All 36" Models) and Super S (2016 - 2020 48", 52", 60" Models).

Hustler OEM 553516 Brake Handle Bracket

The Hustler OEM 553516 Brake Handle Mounting Bracket is a Bracket That Fastens to the Operator's Tower and Enable 123269 Operator's Brake Handle to Fit Through the Slotted Hole as Well as Bolt to the 553516 Brake Handle Mount Bracket Using 606288 Shoulder Bolt. 553516 Brake Handle Mounting Bracket Ads Support, Helps Guide & Limit Pivotal Movement and Assist in Retaining the Operator's Brake Handle. 553516 Brake Handle Mounting Bracket is Assembled to the Operators Tower or Frame Using 025395 Carriage Bolts, 767954 Flat Washer & 086660 Lock Nuts.





Sold as an Individual Retaining Bracket - No Hardware or Additional Part Are Included.





What This Part Does



• Assist in Retaining the Brake Handle, Assist in Supporting, Limiting and Directing the Brake Handle Pivot Motion, as Well as Adding Additional Structural Support.
• Controls and Maintains Predictable Brake Handle Disengagement & Engagement Movement.
• Replaces a Worn, Damaged or Broken Brake Handle Mounting Bracket.
• Provides Genuine Hustler OEM Fit, Construction, and Mounting Configuration.





Associated Parts

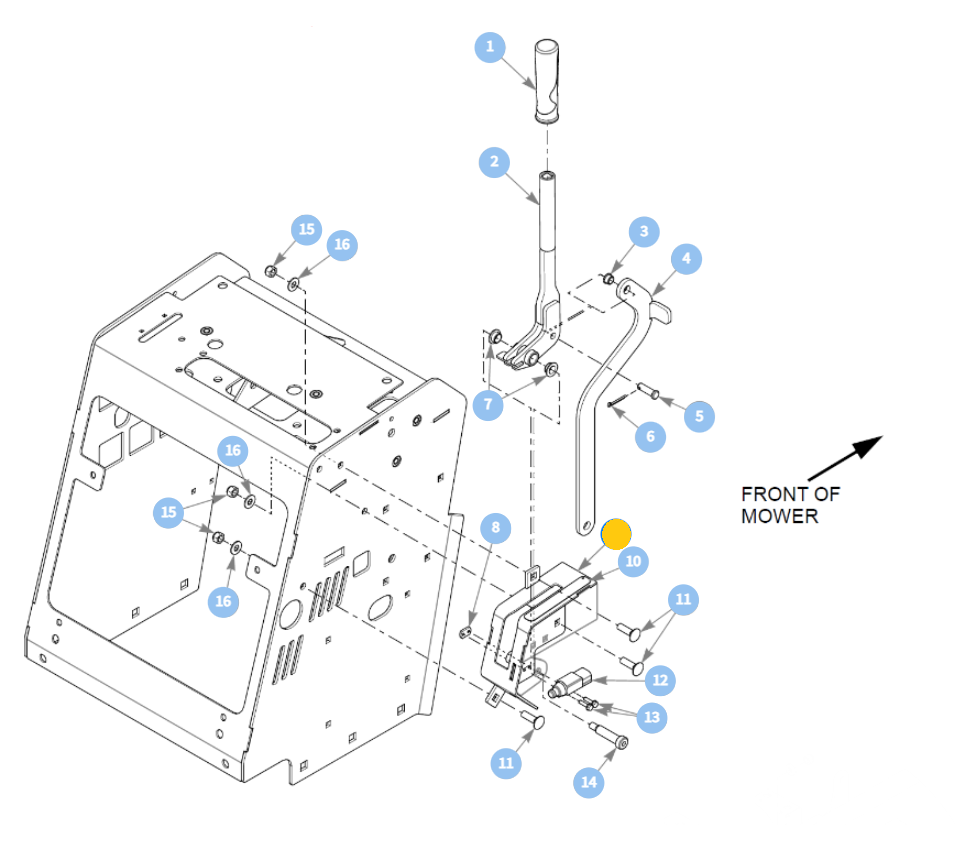

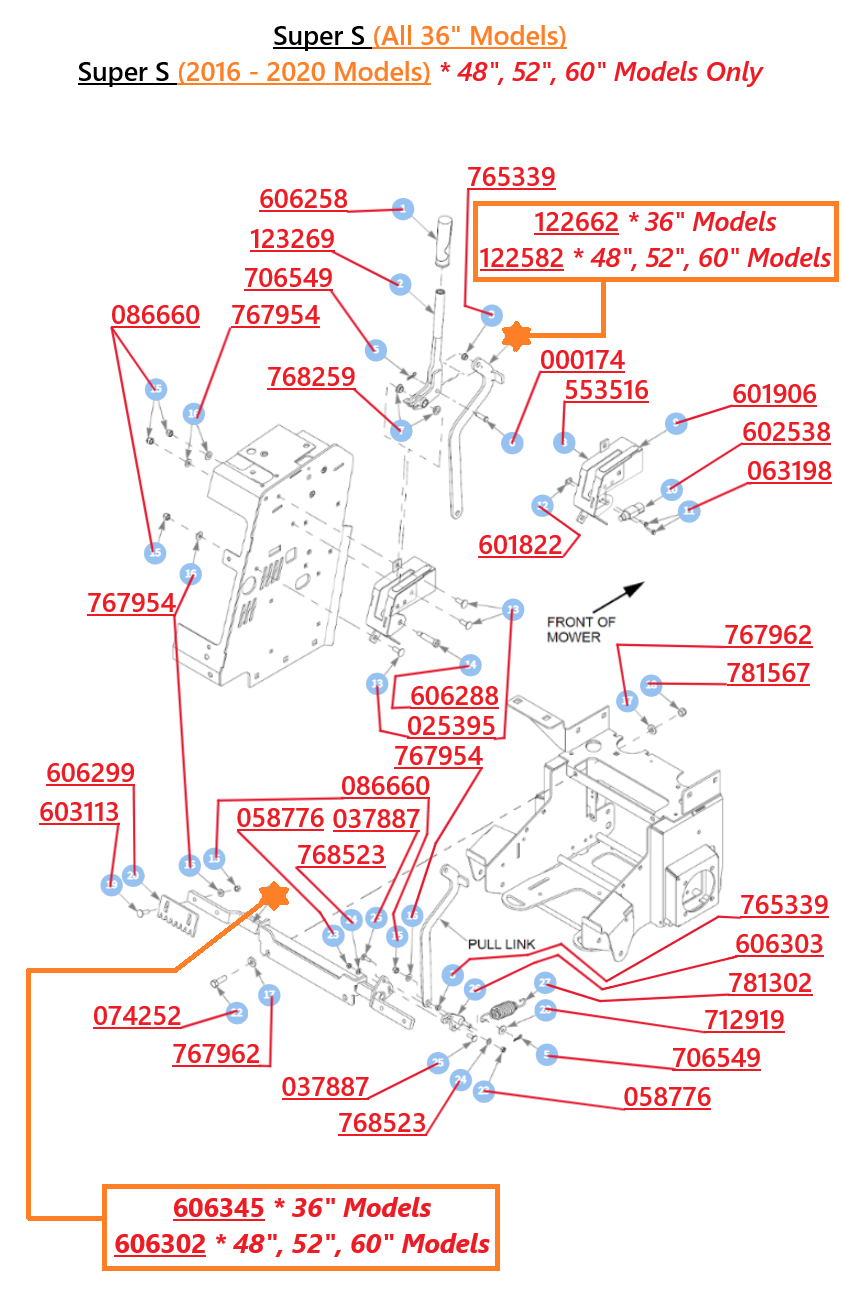

Refer to the Detail Parts Diagrams in the Images for Additional Parts Info.



Part Details



• Brand: Hustler Turf Equipment
• Part Number: 553516
• Supersession: n/a
• Part Name: Park Brake Handle Mounting Bracket
• Position: Mounts to the Right-Side of the Operator's Tower & Fits Around Both Sides of the Brake Handle.
• Part Type: Genuine OEM Replacement Park Brake Handle Mounting Bracket
• Quantity: One Park Brake Handle Mounting Bracket



Model Fit Chart





Super S (All 36" Models) & (2016 - 2020 48", 52", 60" Models)



933325, 933333, 933341, 933358, 935353, 935361, 935387US, 935395US, 937128, 937136, 937144, 937151, 937169, 937177, 939439, 939447, 939454, 940205, 940288
