Description
Hustler OEM 125532-3 Brake Pull Link Bracket
Hustler OEM 125532-3 Brake Pull Link Bracket Ties the 109203 Left Brake Spring Ling Bracket & 109202 Right Brake Spring Lift Bracket Together and Uses Only One 601710 Brake Engagement Rod Versus Two. - 125532-3 Brake Pull Link Bracket is Retained to the 109203 Left Brake Spring Ling Bracket & 109202 Right Brake Spring Lift Bracket Using Hex Head Bolt 034280, Flat Washers 768523, Nut 058776.
The Hustler OEM 125532-3 Brake Pull Link Bracket Serves the Purpose of Syncronyzing Both Hydro Gear (Brand) Hydraulic Wheel Motor/Pump's 604957 Brake Arm (Brake Arm Too Which the 109203 Left Brake Spring Ling Bracket & 109202 Right Brake Spring Lift Bracket Are Fasten Too) on Both the Left & Right Hydraulic Pump/Wheel Motor Assemblies - Enabling Them to Engage and Disengage the Internal Brakes at the Same Time.
The Hustler OEM 125532-3 Brake Pull Link Bracket Serves the Purpose Engaging and Disengagement of Both Hydraulic Pump/Wheel Motor Brakes (Internally Built-In to the Hydraulic Pump & Wheel Motor Assembly) By Relaying the Movement of the 601710 Brake Engagement Rod Via the Pressure Point Between the 054502 Jam Nuts, 797954 Washers, 784421 Engagement/Disengagement Pressure Spring - 601051 Disengagement/Return Spring (Raptor & Fastrack) & 086660 Rod/Spring Retaining Lock Nut.
Adjustment to the Brake Engagement is Often Made by Adjusting the Lock Nut & Jam Nut on the Brake Engagement & Disengagement Spring or Springs Tension or Lack of Tension.
Reference Note
(To Better Understand the Breaking Components and their Appropriate Roles - Review the Detailed Part Diagram Above in the Image).
⚠️ Before You Order – Verify Fitment
Because Fitment Within Model Numbers and Year Ranges Very - Verify Your Model Is Listed in the Model Fit Chart Below Before Ordering.
Not sure? Contact us with your Hustler model and serial number and we’ll help verify fitment.

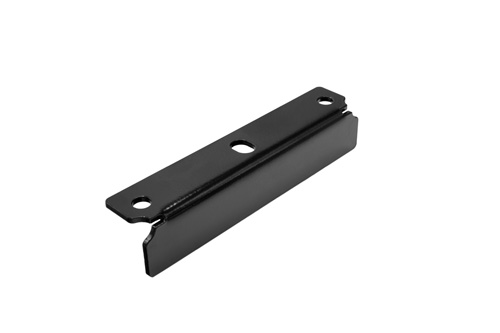

Sold Individually - As Pictured
What This Part Does
- Transfers Movement from the Brake Engagement Rod to the Hydraulic Brake Spring Ling Bracket & Wheel/Motor Brake Arm.
- Attaches to Both Side Brake Spring Ling Bracket & Hydraulic Wheel Motor/Pump Brake Arms - Enabling Them in Sync of Each Other
- Assist in Maintaining Predictable Brake Engagement.
- Replaces a Worn, Broken, or Bent Brake Pull Link Bracket.
- Provides Genuine Hustler OEM Fit, Construction, and Mounting Configuration.
Associated Parts
Refer to the Detail Parts Diagrams in the Images for Additional Parts Info.
Part Details
- Brand: Hustler Turf Equipment
- Part Number: 125532-3
- Supersession: n/a
- Part Name: Park Brake Pull Link Bracket
- Position: Located Between and Attaches to Both Left & Right Hydraulic Pump/Wheel Motors Brake Spring Lift Bracket Which Attach to Both Hydrostatic Wheel Motor/Pump Brake Arms.
- Part Type: Genuine OEM Park Brake Pull Link Bracket
- Quantity: One Brake Pull Link Bracket
Model Fit Chart
Trimstar (2020 - Current Models) *36" Model Only
939496
