Description:

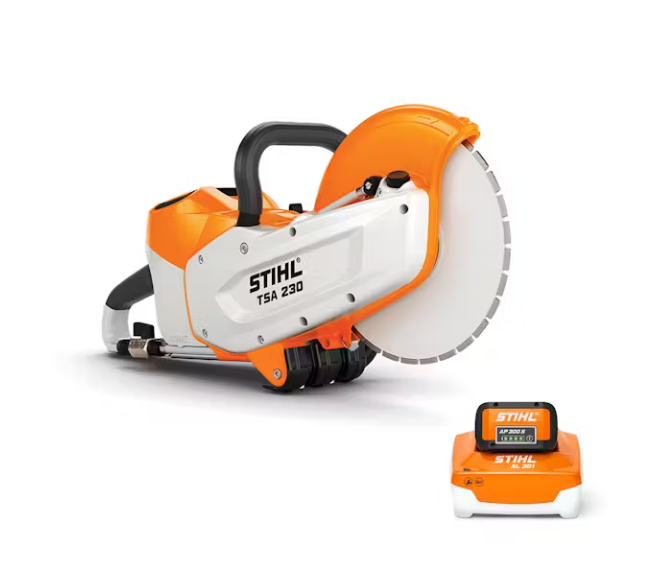

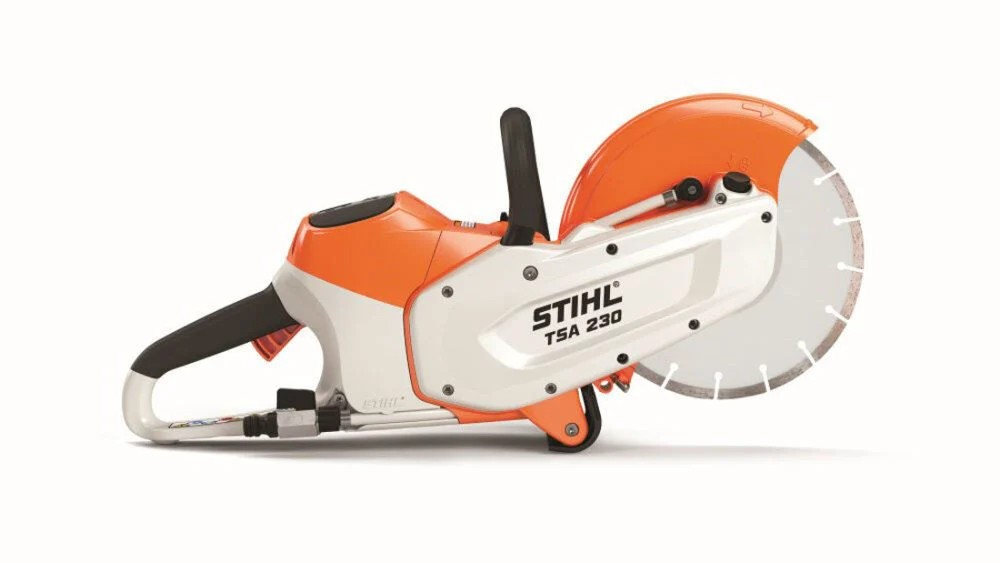

STIHL introduces another worlds first a Cut-off Machine powered by 36-volt Lithium-Ion battery technology. The TSA 230 STIHL QUIK-BIT® Cut-off Machine starts with ease and changes the game for the jobsite, delivering maneuverability and solid cutting performance in a lightweight, compact package that can be used indoors. Its onboard water control helps suppress dust while a wheel lock prevents wheel rotation when removing the wheel attachment bolt. The TSA 230 provides great value priced below its gasoline-powered counterpart. Groundbreaking innovation, grounded in quality engineering. TSA 230 Cut-off Machine, battery, and charger are all sold separately.

Features:

• Sealed Control Unit - Sealed control unit for improved water resistance while wet cutting.
• Magnesium Guard - The cutting wheel guard is made from lightweight and durable magnesium to improve maneuverability.
• Spindle Locking Mechanism - The spindle locking mechanism allows the user to lock the wheel rotation for easier removal of the wheel.
• Water Connection and Shut-Off Valve - The water connection is designed for the user to shut off the water when the unit is not in use and not waste water.
• Sealed Belt Drive - Maintenance-free sealed belt drive.
• STIHL QuickStop™ Wheel Brake - Allows extended guard adjustability by reducing the risk of injury from kickback when the guard has been adjusted to expose the top portion of the wheel
• Electronic Coaster Brake - Stops wheel after use.
• Lightweight Portability - This product is lightweight for easy portability, great maneuverability, and extended use.
• Compact, Ergonomic Design - The compact, ergonomic design provides more comfortable use.
• Brushless Motor - The advanced brushless motor virtually eliminates maintenance while supplying the power and performance you expect from STIHL.
• Reduced-Emission Engine Technology—Caring for Nature - The STIHL Inc. “Caring for Nature” seal identifies its powered products that are more environmentally conscious, producing zero or low exhaust emissions. STIHL Inc. defines “low exhaust emissions” as being cleaner than EPA and/or CARB exhaust emission standards.

Specifications:

• Power Source: Battery
• Weight: 8.6 lbs.
• Maximum Cutting Depth: 2.75 in.
• Maximum Wheel Size: 9 in.
• Arbor Size: 7/8 in.
• Battery System: AP System
• Run Time (with AP 200 battery): Up to 14 min.
• Run Time (with AP 100 battery): Up to 7 min.
• Run Time (with AP 300 S battery): Up to 22 min.
• Run Time (with AP 300 battery): Up to 18 min.
• Voltage: 36 volt
