Description

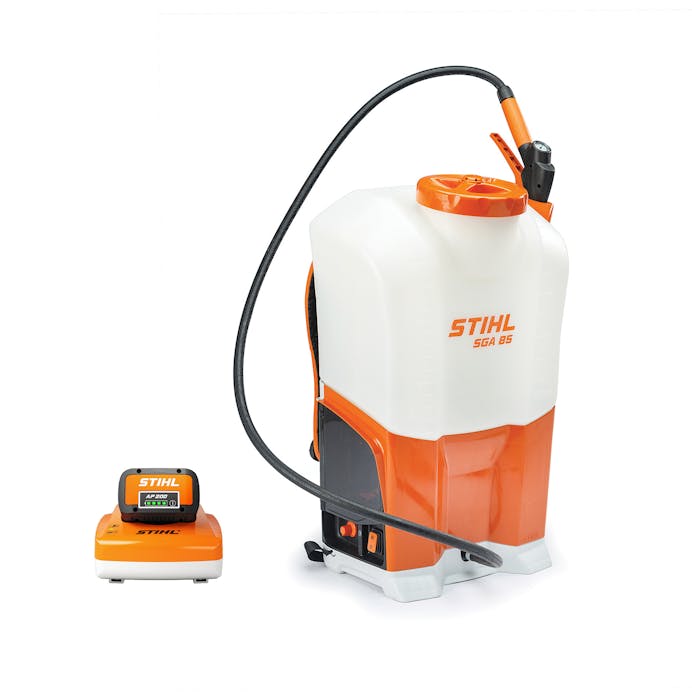

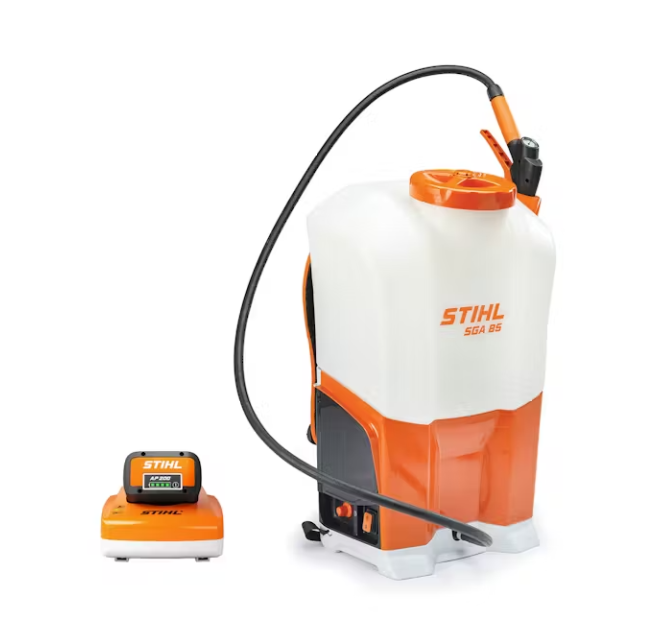

Built with your professional needs in mind, the SGA 85 sprayer is the first battery-powered sprayer in the STIHL AP Battery System. Featuring strong Viton® seals for durability and reliability, an easy-to-use diaphragm-style pump, and a leak-resistant design, you can count on the robust construction of the SGA 85 for the long haul. This professional sprayer provides a high working pressure in a range anywhere from 14.5 to 87 psi, easily controlled by a variable working pressure trigger. With a variety of optional compatible nozzle accessories available for purchase, there’s an option to suit the specific needs of professionals across a variety of applications. When using the AP 200 battery, the SGA 85 boasts 1,000 minutes of run time On A Single Charge™. With an ergonomic carrying system, padded shoulder straps, and a chest strap, you can operate comfortably throughout a full day of work.

Features

• Viton® Seals – Engineered for long-lasting durability and leak protection, Viton® seals help ensure reliability in demanding applications.
• Adjustable Support Harness – Distributes weight evenly across the shoulders and back to reduce user fatigue during extended use.
• Diaphragm-Style Pump – Designed for rugged performance and durability, even under frequent or extended use.
• Leak-Resistant Design – Built to protect the operator from leaks, especially when working with potentially harsh chemicals.
• Variable Working Pressure – Easily adjust pressure using the side-access gauge without removing the unit, giving users precise control for various tasks.
• Ergonomic Carrying System – Features padded shoulder straps and a chest strap to provide all-day comfort and reduce operator fatigue.
• Tank Filter – Positioned at the base of the tank to help protect the pump from debris and support uninterrupted spraying.
• Sealed Battery Cover – Helps safeguard the battery compartment from spills and debris for added protection in tough work environments.
• Battery Indicator Lights – Built-in LED lights display battery charge level at a glance for efficient runtime management.
• Quiet Operation – Ideal for working in noise-sensitive areas without disturbing nearby people or animals.
• Ergonomic Design – Thoughtfully constructed for maximum user comfort, balance, and control during prolonged use.

Specifications

• Rated Voltage: 36 V
• Max. Voltage: 40 V
• Cordless power System: AP
• Recommended Battery: AP 200 S
• Device Weight Without Battery: 13.7 lbs
• Container Capacity: 17 l
• Container Capacity: 4.5 gal
• Max. Water Throughput: 1.5 l/min
• Min. Water Throughput: 3.1 l/min
• Operating Pressure: 1 - 6 bar
• IPX Rating: N/A
• Max. Battery Working Time AP 100: 510 min
• Max. Battery Working Time AP 200: 1000 min
• Max. Battery Working Time AP 200 S: 1000 min
• Device Width: 406 mm
• Device Height: 606 mm
• Device Depth: 292 mm
