Description

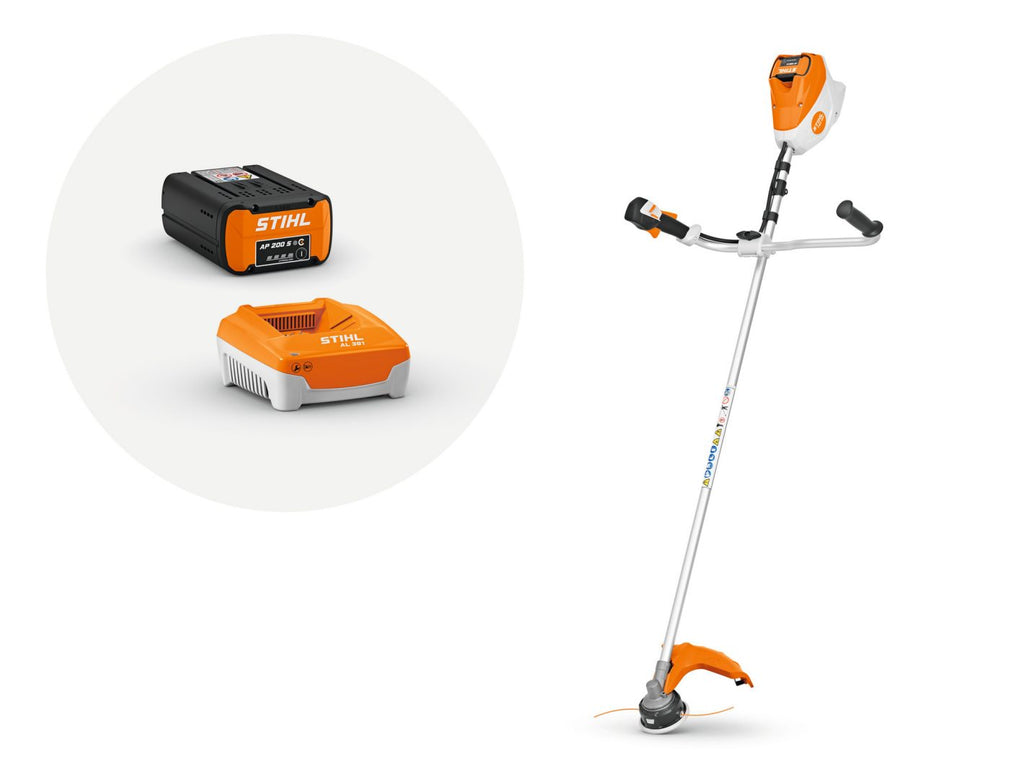

The FSA 120 R features 40% more power than the previous model and is virtually maintenance-free thanks to its brushless motor. Compatible with AP System batteries, this powerful trimmer offers a loop-handle design with quick release for easy height adjustment. Choose from either line heads or grass cutting blade attachments with automatic speed adjustments for each option.

This tool is IPX4-rated for weather-resistant construction and has been designed and tested for splash-water protection.

Features

• Brushless Motors: LOW-MAINTENANCE AND EFFICIENT. Thanks to its compact design, low weight and high efficiency, the brushless motor enables you to work in an energy efficient manner. This engine also has a long service life.
• IPX4 Rating: This tool is IPX4-rated weather-resistant construction and has been designed and tested for splash water protection.
• Made in America: A majority of STIHL products sold in America are made in America of U.S. and global materials.

Specifications

• Rated Voltage: 36 V
• Max Voltage: 40 V
• Power Consumption: 1.03 kW
• Power: 1.1 BHP
• Power: 1.072 BHP
• Cordless Power System: ALLPRO/AP
• Recommended Battery: AP 200.0 P
• Device Weight Without Battery: 9.5 lbs
• Cutting Circle Diameter: 15"
• Min. battery working time AP 100 with line mowing head: 10 min
• Max. battery working time AP 100 with line mowing head: 15 min
• Min. battery working time AP 100.0 P: 12 min
• Max. battery working time AP 100.0 P: 20 min
• Max. battery working time AP 20 with line mowing head (Name_143): 15 min
• Min. battery working time AP 20 with plastic blade mowing head: 25 min
• Min. battery working time AP 20 with metal blade: 30 min
• Max. battery working time AP 20 with line mowing head (Name_146): 50 min
• Min. battery working time AP 20.1: 15 min
• Max. battery working time AP 20.1: 25 min
• Min. battery working time AP 200 with line mowing head: 20 min
• Max. battery working time AP 200 with line mowing head: 30 min
• Min. battery working time AP 200 with plastic blade mowing head: 40 min
• Max. battery working time AP 200 with plastic blade mowing head: 60 min
• Min. battery working time AP 200 S with line mowing head: 20 min
• Max. battery working time AP 200 S with line mowing head: 30 min
• Min. battery working time AP 200 S with plastic blade mowing head: 40 min
• Max. battery working time AP 200 S with plastic blade mowing head: 60 min
• Min. battery working time AP 200.0 P: 25 min
• Max. battery working time AP 200.0 P: 40 min
• Min. battery working time AP 30 with line mowing head: 25 min
• Min. battery working time AP 30 with plastic blade mowing head: 45 min
• Min. battery working time AP 30 with metal blade: 50 min
• Max. battery working time AP 30 with line mowing head: 90 min
• Min. battery working time AP 30.1: 25 min
• Max. battery working time AP 30.1: 45 min
• Min. battery working time AP 300 with line mowing head: 25 min
• Max. battery working time AP 300 with line mowing head: 40 min
• Min. battery working time AP 300 with plastic blade mowing head: 50 min
• Max. battery working time AP 300 with plastic blade mowing head: 80 min
• Min. battery working time AP 300 S with line mowing head: 30 min
• Max. battery working time AP 300 S with line mowing head: 50 min
• Min. battery working time AP 300 S with plastic blade mowing head: 60 min
• Max. battery working time AP 300 S with plastic blade mowing head: 100 min
• Min. battery working time AP 300.0 P: 35 min
• Max. battery working time AP 300.0 P: 60 min
• Min. battery working time AP 500 S with line mowing head: 35 min
• Max. battery working time AP 500 S with line mowing head: 60 min
• Min. battery working time AP 500 S with plastic blade mowing head: 70 min
• Max. battery working time AP 500 S with plastic blade mowing head: 120 min
• Max. battery working time AR 2000 L with line mowing head: 210 min
• Min. battery working time AR 2000 L with line mowing head: 130 min
• Max. battery working time AR 2000 L with plastic blade mowing head: 260 min
• Min. battery working time AR 2000 L with plastic blade mowing head: 220 min
• Min. battery working time AR 3000 L with line mowing head: 190 min
• Min. battery working time AR 3000 L with plastic blade mowing head: 380 min
• Max. battery working time AR 3000 L with line mowing head: 320 min
• Max. battery working time AR 3000 L with plastic blade mowing head: 640 min
• Device length without cutting tool: 70.3"
• Vibration value on the left in right-handed operation: 19 ft/s
• Vibration value on the left in right-handed operation: 10.5 ft/s
• Vibration value on the right in right-handed operation: 9.2 ft/s
• Vibration value on the right in right-handed operation: 5.2 ft/s
