Hustler OEM 348862 Steering Lever/ Steering Box Spacer Fits Hustler X-ONE, X-RIDE, Super Z, Super Z HD, Diesel Z, Super 104

• Part Number: 348862

• Supersession: Part Number 839-019C, 839019C Supersede to Part Number 348862.

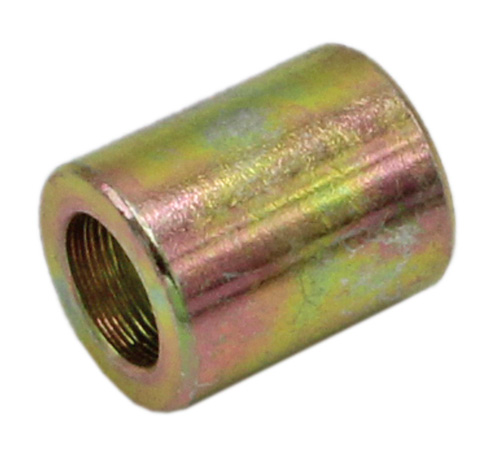

• Description: 348862 Steering Box or Steering Lever Spacer/Bushing

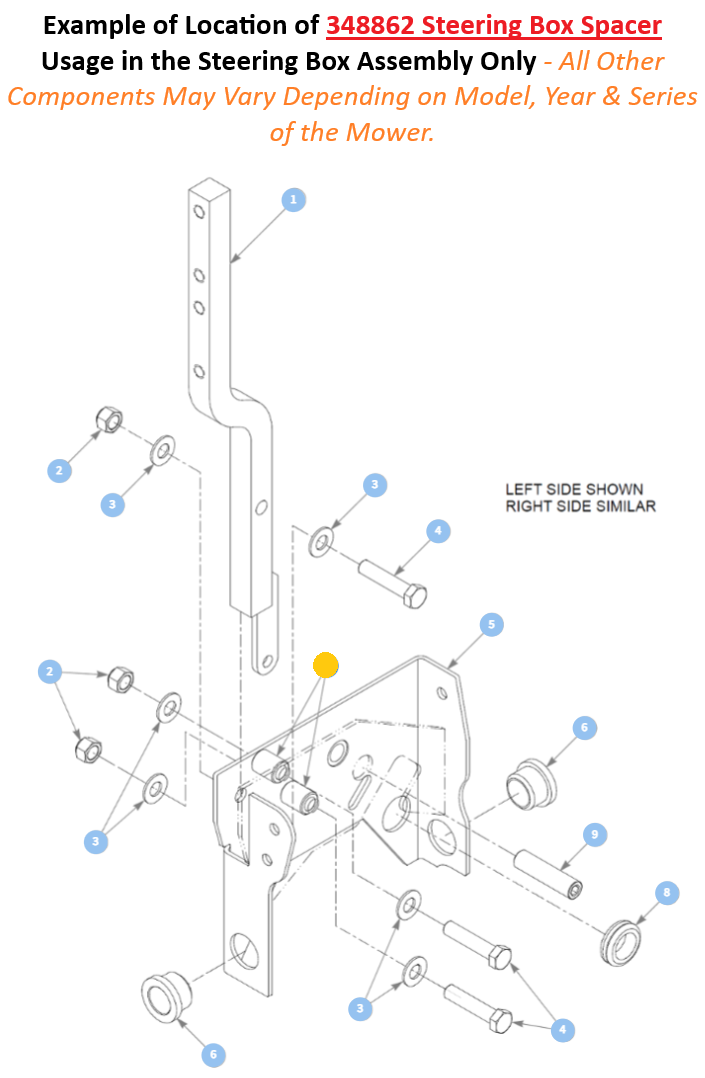

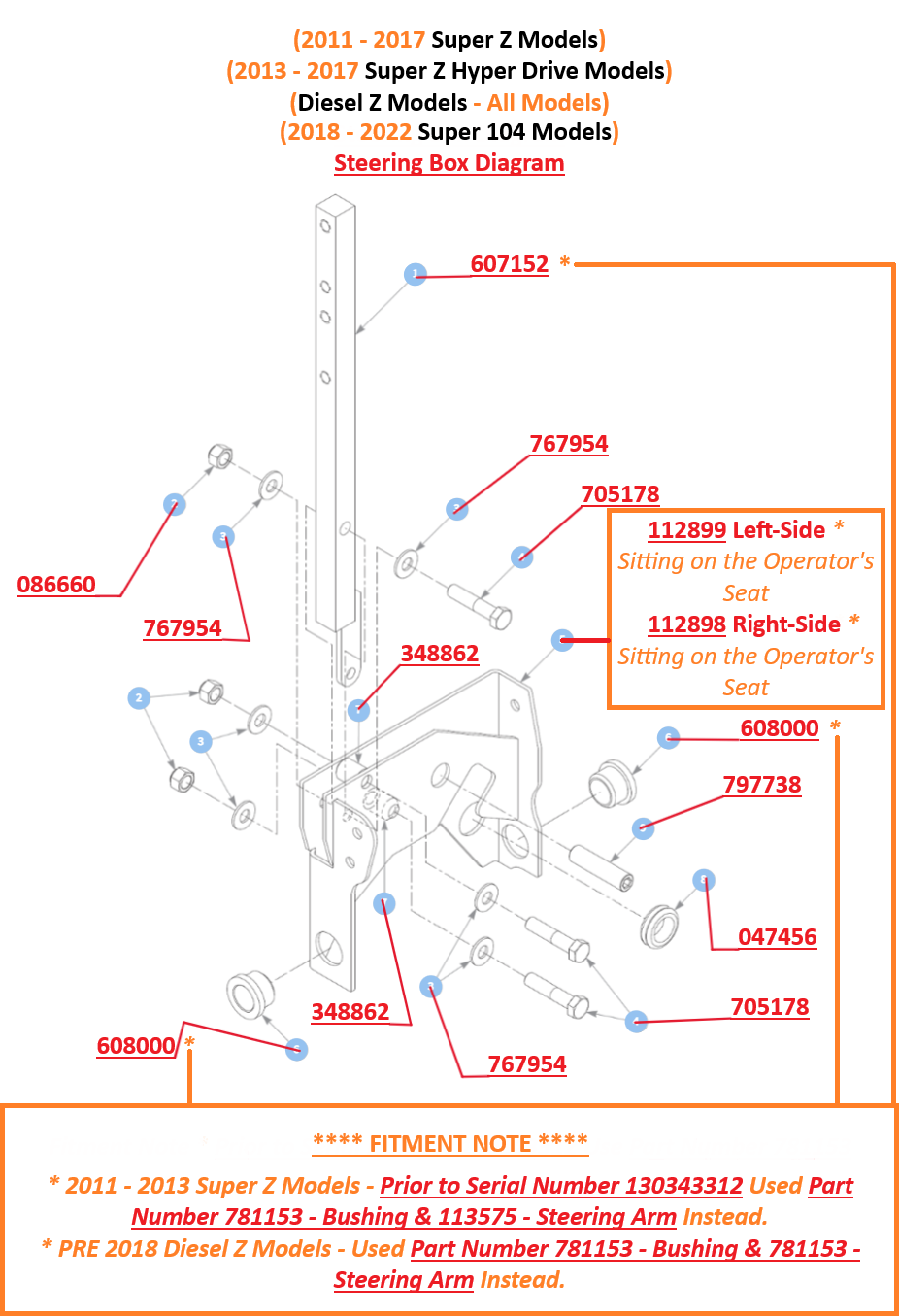

• Application: 348862 Steering Box Spacers are Assembled Inside the Steering Box Assembling Between the Weldment Ear of the Steering Box. 348862 Steering Box Spacer or Spacers First Responsibility: Is to Ensure that the Steering Arm Retaining Bolts are Able to Be Tightened Without Over Tightening - Preventing Cinching the Two Steering Box Weldment Ears Against the Steering Arm that Insert into the Steering Box Assembly Between the Two Weldment Ears. The Steering Arm in the Steering Box Assembly Typically Uses a Separate Retaining Bolt that Is Only Snug Tightened and Enables Adjustment of the In and Out Friction Movements of the Steering Arm (Neutral/Brake Engagement) to Ensure that the Steering Arms Don't Move in and Out (Neutral/Brake Engagement) to Loosely or To Hard. 348862 Steering Box Spacer or Spacers Second Responsibility: Is to Add Structural Support for the In and Out Movement of the Steering Arm - 348862 Steering Box Spacer or Spacers are Position at the Exact Locations that Enable the Steering Levers to Rest against it Adding Firm Secondary or Primary Support When the Steering Lever Are Moving Out (Neutral/Brake Position) and In (Neutral/Drive Position). 348862 Steering Box & Steering Arm Spacer as Well as the Steering (Varies by Model/Series) Are Retained Using the Following Hardware: 705178 Bolt - 767954 Washer - 086660 Nut.



Keep your equipment performing the way it was designed with this genuine OEM replacement part. Manufactured to the original equipment manufacturer's specifications, this part is engineered for the proper fit, dependable performance, and long service life.

Whether you're performing routine maintenance or repairing a broken component, using genuine OEM parts helps maintain the reliability and performance of your equipment.

Choosing genuine OEM parts helps ensure your machine continues to operate as the manufacturer intended.

Please verify that Part Number 348862 is the correct replacement for your equipment before placing your order.

Model Fit Chart

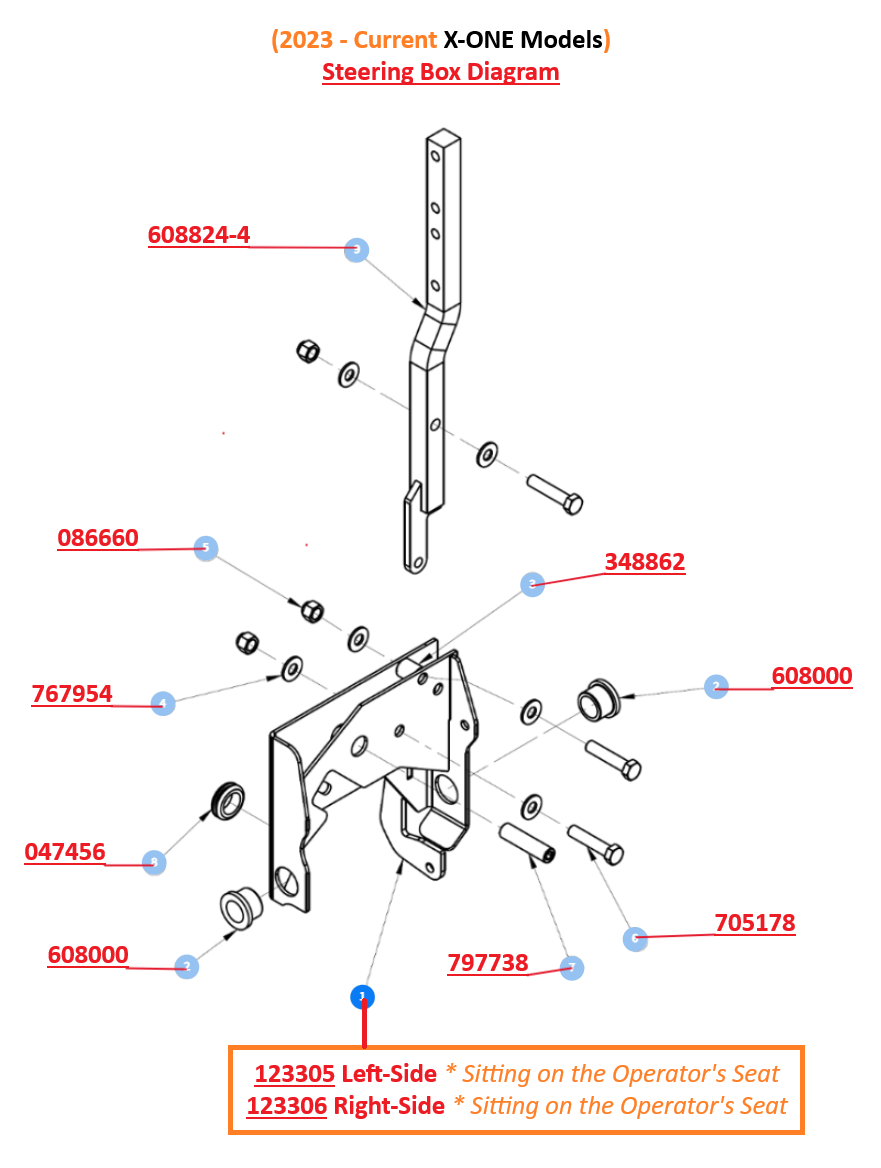

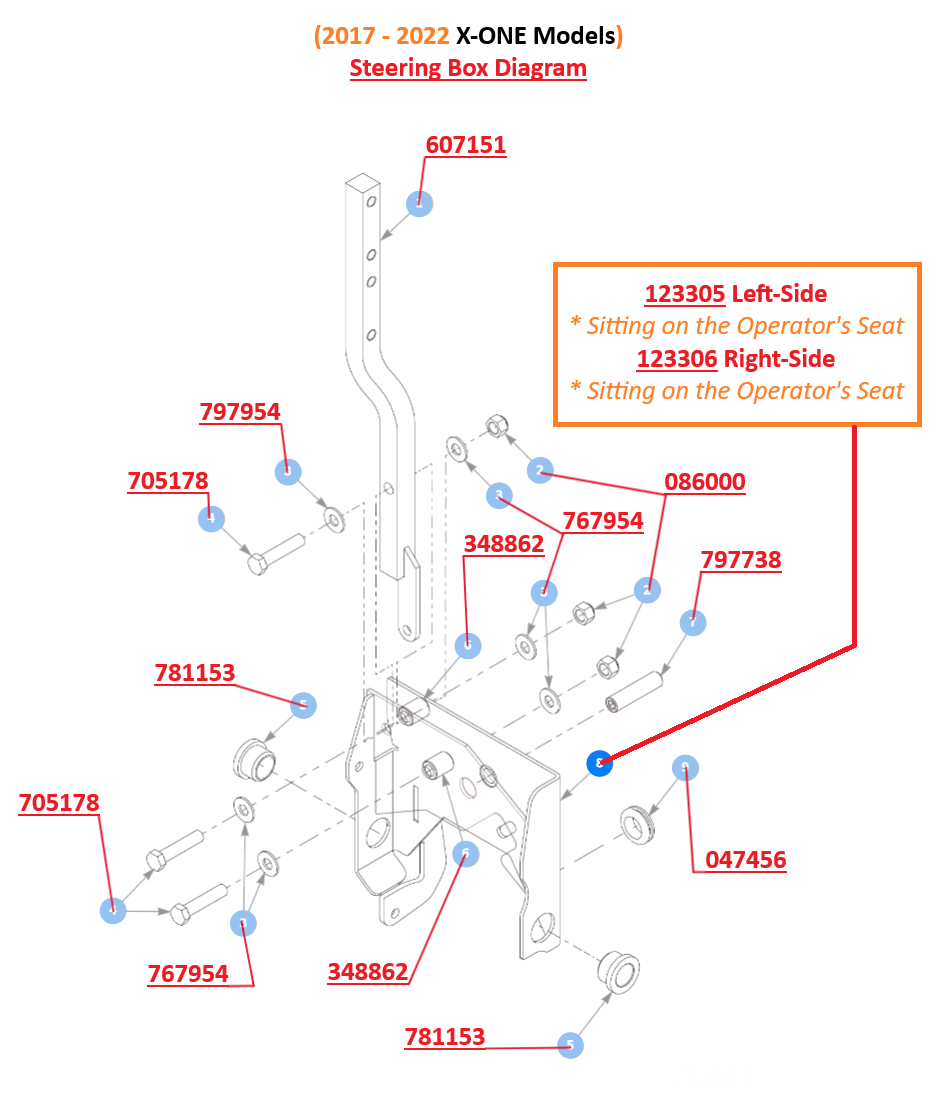

X-ONE (2011 – Current)



930503, 930503US, 930511, 930529, 930529US, 930537, 930537US, 930545, 930552, 930560, 930578, 930586, 930594, 930883, 930891, 931006, 931055, 931055US, 931774, 931782, 932194, 932202, 932210, 932228, 932236, 932244, 932251, 932269, 932715, 932723, 932731, 932749, 932756, 932764, 932772, 932780, 932798, 933317US, 933887US, 933895US, 933978US, 933986US, 933994US, 934117, 934125, 934133, 934141, 934158, 934166, 934174, 936237, 936245US, 936252, 936260, 936278, 936286, 936294US, 936302, 936310, 936328, 936336, 936740, 936765, 936773, 936781, 936799, 936815, 936823, 936831, 936849, 939314, 939322, 940056, 940064, 940072, 940080, 940106, 940114, 940122, 940130, 940197, 941062, 941070, 941369, 941831, 941856, 941864, 941872, 941880, 941898, 941922, 941930, 941971, 942201, 942334, 942797, 943399, 943407, 943787, 943795, 943803, 943811, 943829, 943837, 943845

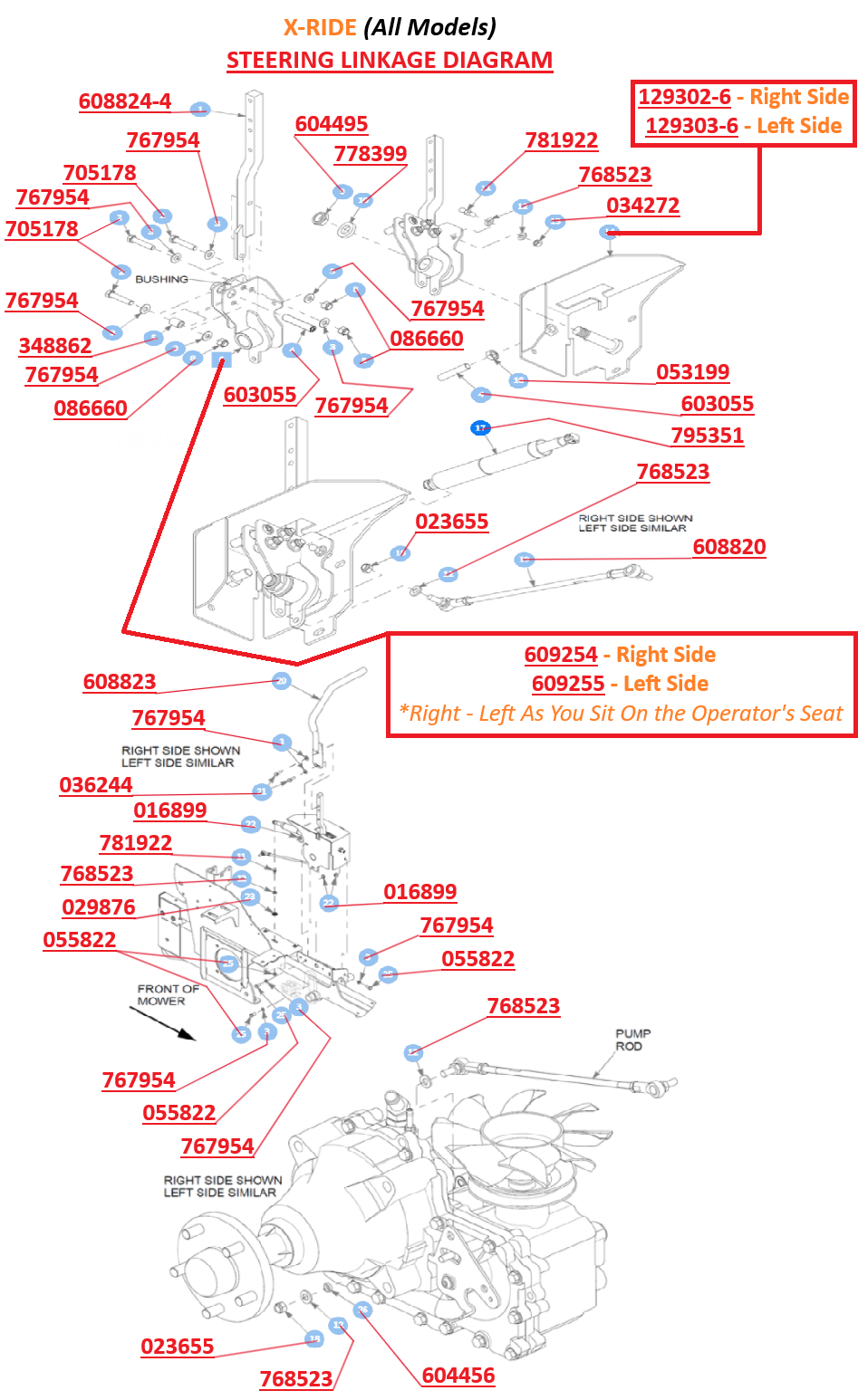

X-RIDE (All Models)



944074, 944868

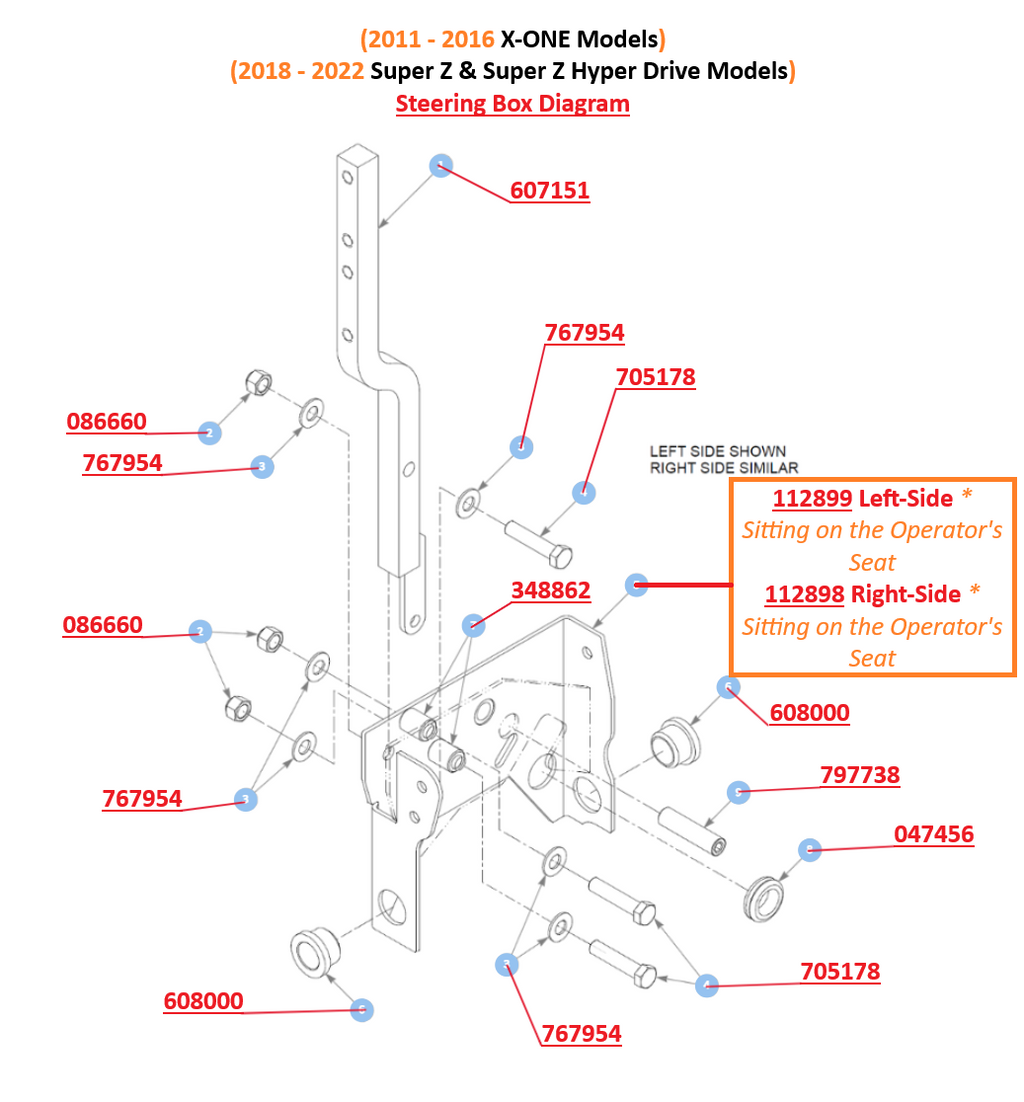

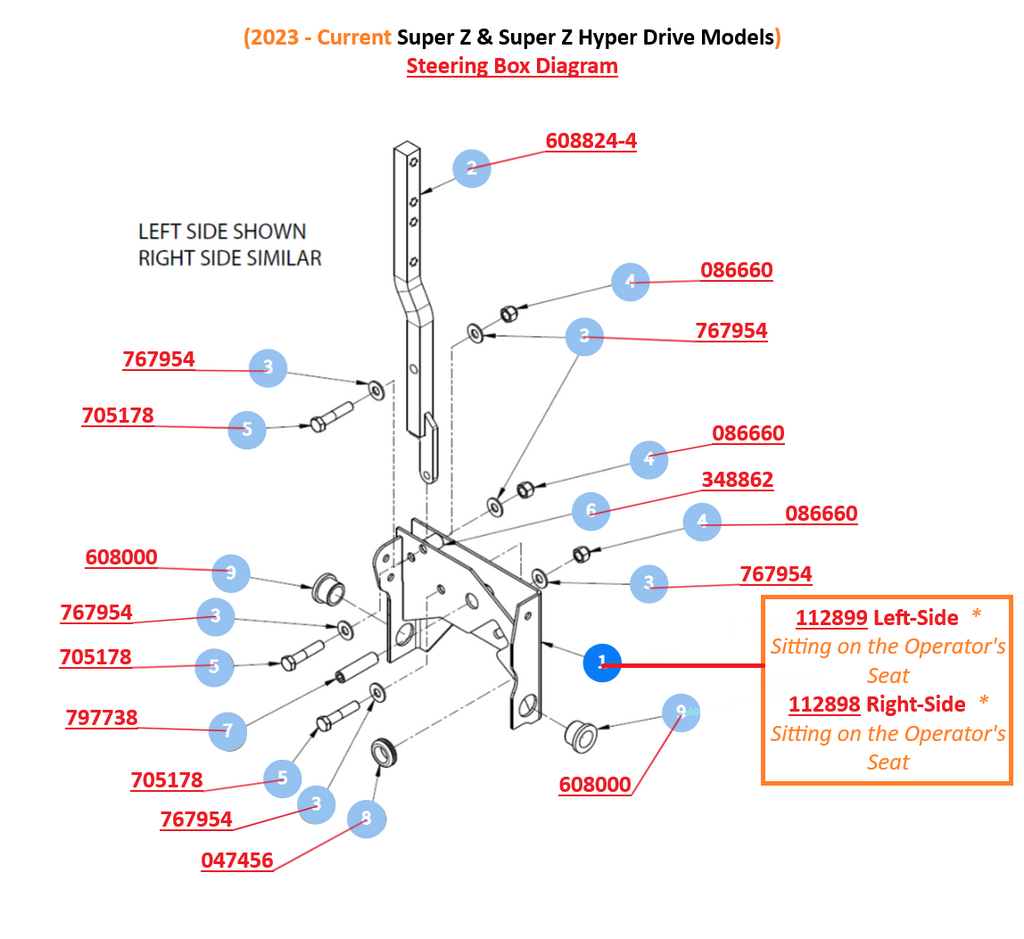

Super Z (2011 - Current Models)



929927, 929935, 929943, 929950, 930024, 930065, 930875, 931048, 931725, 932012, 932020, 932038, 932046, 932053, 932061, 932129, 932137, 932970, 932988, 933457, 933929US, 934216, 934224, 934232, 934240, 934265, 934273, 934281, 934299, 934984US, 934992, 935007, 935015US, 935023, 935031, 935049, 935056US, 935064, 936872, 936880, 936898US, 936914, 936922, 936930, 936948US, 936955, 936989, 937714, 937722, 937730, 938985, 938993, 940031, 940049, 941138, 941146, 941153, 941161, 941179, 941187, 941195, 941203, 941377, 941385, 942342, 942763, 942771, 942805, 942813, 942821, 942839, 942854, 942862, 942870, 942888, 942896, 942912, 942920, 943852, 943860, 943878, 943886, 943894, 943910, 943928, 943936, 943944





Super Z Hyper Drive (2013 - Current Models)



932145, 932152, 932160, 932178, 932186, 932384US, 932392US, 932996, 933002, 934307, 934315, 934323, 934331, 934349, 934356, 934687, 934695, 934703, 934711, 934919, 934927, 934935, 934943, 934950, 934968, 934976, 936625, 936997, 937003, 937011, 937029, 937045, 937037, 937052, 937110, 939561, 939579, 939587, 939595, 941229, 941237, 941245, 941252, 941260, 941278, 941286, 941294, 941302, 941310, 941328, 941534, 941542, 941559, 941567, 942219, 942227, 942235, 942243, 942250, 942359, 942961, 942979, 942995, 943001, 943019, 943027, 943035, 943043, 943050, 943068, 943951, 943969, 943977, 943993, 943985, 944017, 944041, 944025, 944033





Diesel Z (All Models)



928606, 928606A, 928606B, 928614, 928614A, 928614B, 928614US, 928614EX, 928622, 928622A, 928622B, 928630, 928630A, 928630B, 928630US, 928630EX, 928655, 928655US, 928655EX, 928663, 928663EX, 932665US, 932673US, 932681US, 932699US, 932707US, 938233US, 938241US, 938258US, 938266US, 940452US, 940460US, 940478US, 940486US, 943233US, 943241US, 943249US, 943266US

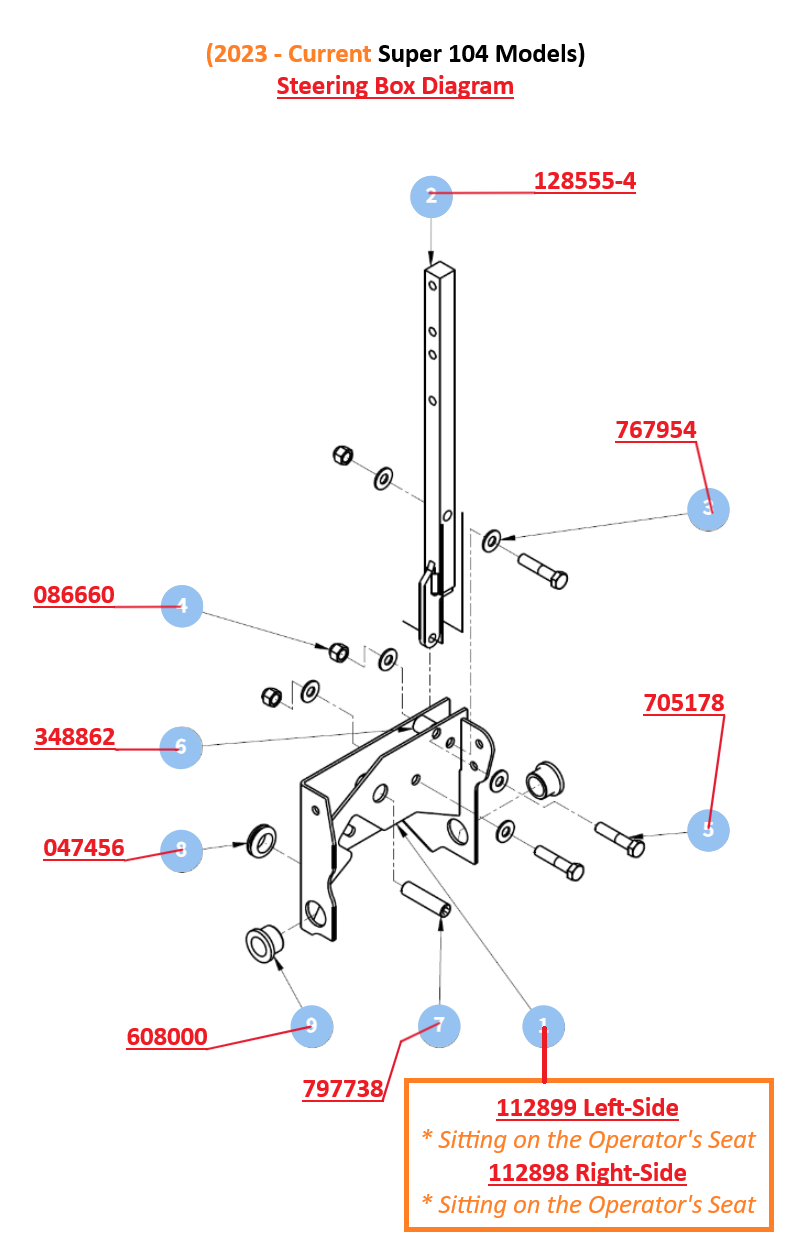

Super 104 (All Models)



937201, 937219, 939462, 939470, 939603, 939652, 941005, 941526, 942318, 943217, 943225, 944058, 944066





If you're unsure, send us your model and serial number, and we'll be happy to verify the correct part before you order.

Your order is shipped by a knowledgeable outdoor power equipment dealership—not a general warehouse.

Every order is carefully packed, and our experienced parts specialists are available to help if you have questions before or after your purchase.

Thank you for choosing Hilly Ridge Sales & Service for your genuine OEM parts needs.

Part Number: 348862

Description: 348862 Steering Box or Steering Lever Spacer/Bushing
