Description
Hustler OEM 129303-6 Left-Side Pivot Stud/Steering Cover Assembly
Hustler OEM 129303-6 Left Side Pivot Stud and Steering Cover Assembly (Left - Right as You Stand on the Operator's Station) is a Cover or Box Assembly with a Pivot Stud Weldment on the Inside - This Assembly Mounts to the Mower Frame. Hustler OEM 129303-6 Covers and Protect Vital Moving Steering Components as well as Retaining the 609255 & 609254 Left & Right Steering Box Assembly. The Stud on the 129302-6 Assembly Enable the 609255 & 609254 Left & Right Steering Box Assembly to Rotate. Worn 60800 Insert Bushings in the Steering Box May Result in Wear Between the Pivot Stud on the Steering Cover Assembly and Brake Box - If Components Becomes Worn It Will Contribute to Uncontrollable Drifting in Neutral Position, Inconsistent Drive Tracking and Incoherent or Jerky Speed Acceleration and Deceleration.
⚠️ Before You Order – Verify Fitment
Because Fitment may vary by Model Number and Year Verify Your Model is Listed in the Model Fit Chart Below Before Ordering.
Not sure? Contact us with your Hustler model and serial number and we’ll help verify fitment.
What This Part Does
- Assist in Protecting the Steering Box and Other Steering Components and Linkages from Water and Dirt Elements.
- Retains the Left Side Steering Box Assembly and Enables it to Pivot.
- Assist in Transferring Movement from the Steering Control Handle to the Other Steering System and Hydraulic Drive Components.
- Helps Maintains Responsive and Predictable Mower Drive Handling.
- Replaces a Worn, Damaged, Loose, or Binding Steering Pivot Stud and Steering Box Cover.
- Provides Genuine Hustler OEM Fit, Construction, and Mounting Configuration.
Associated Parts

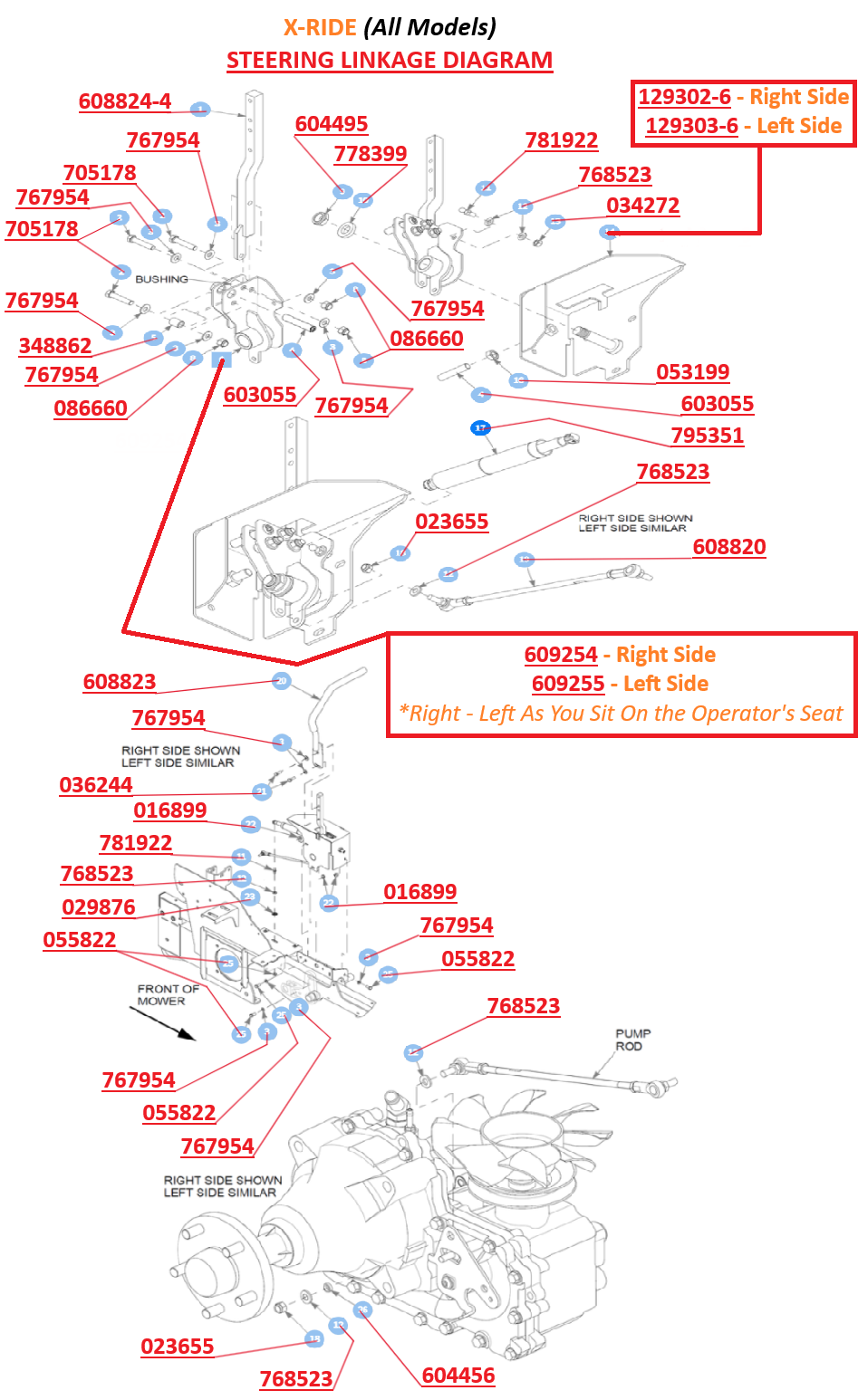

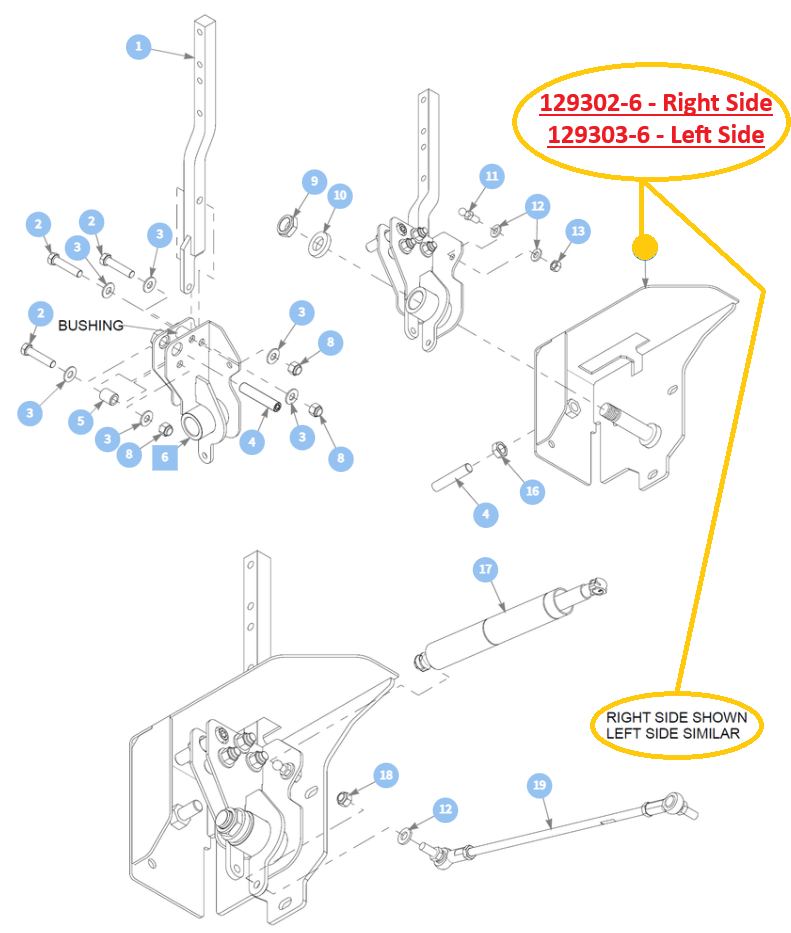

Refer to the Detail Parts Diagrams in the Images for Additional Parts Info.
Part Details
- Brand: Hustler Turf Equipment
- Part Number: 129303-6
- Supersession: n/a
- Part Name: Left Side Steering Pivot Stud/Steering Box Cover (Left - Right as You Stand on the Operator's Station)
- Position: Mount to the Left Side Only as You Sit on the Operator's Seat - Between the Fuel Tank and Operator's Seat Area on the Main Frame
- Part Type: Genuine OEM Replacement Steering Pivot Stud & Steering Cover
- Quantity: One Left Side Pivot Stud & Steering Box Ass.
Model Fit Chart
X-RIDE (All Models)
944074, 944868
