Description
OEM Replacement Steering Box (Left-Side) – 129304-4
Product Information
- Part Number: 129304-4
- Supersession: n/a
- Description: 129304-4 OEM Left-Side Steering Box * Does Not Come as an Assembly (Steering Arm, Spacer & Other Components are Not Included) - Is the Steering Box Component Only for the 609255 Steering Box Assembly.
- Application & Usage: Steering Box Usage - The Operator's Forward & Reverse Movement of the Operator's Steering Control Levers (Fastened to the Steering Arm & Steering Arm Is Retained in the Steering Box) Dictates to the Steering Box Creating a Pivotal Movement of the Steering Box over the Retaining Pivot Pin - The Steering Box Pivotal Movement Then Transfers the Movement to the Hydraulic Linkage Connected to the Steering Box, Allowing the Operator’s Control Levers to Control the Machine’s Drive Functions.
Hustler OEM 129304-4 Steering Box Retains the Pivotal Position of the Steering Lever - If it Becomes Worn it Will Contribute to Uncontrollable Drifting in Neutral Position, Inconsistent Drive Tracking and Incoherent or Jerky Speed Acceleration and Deceleration.

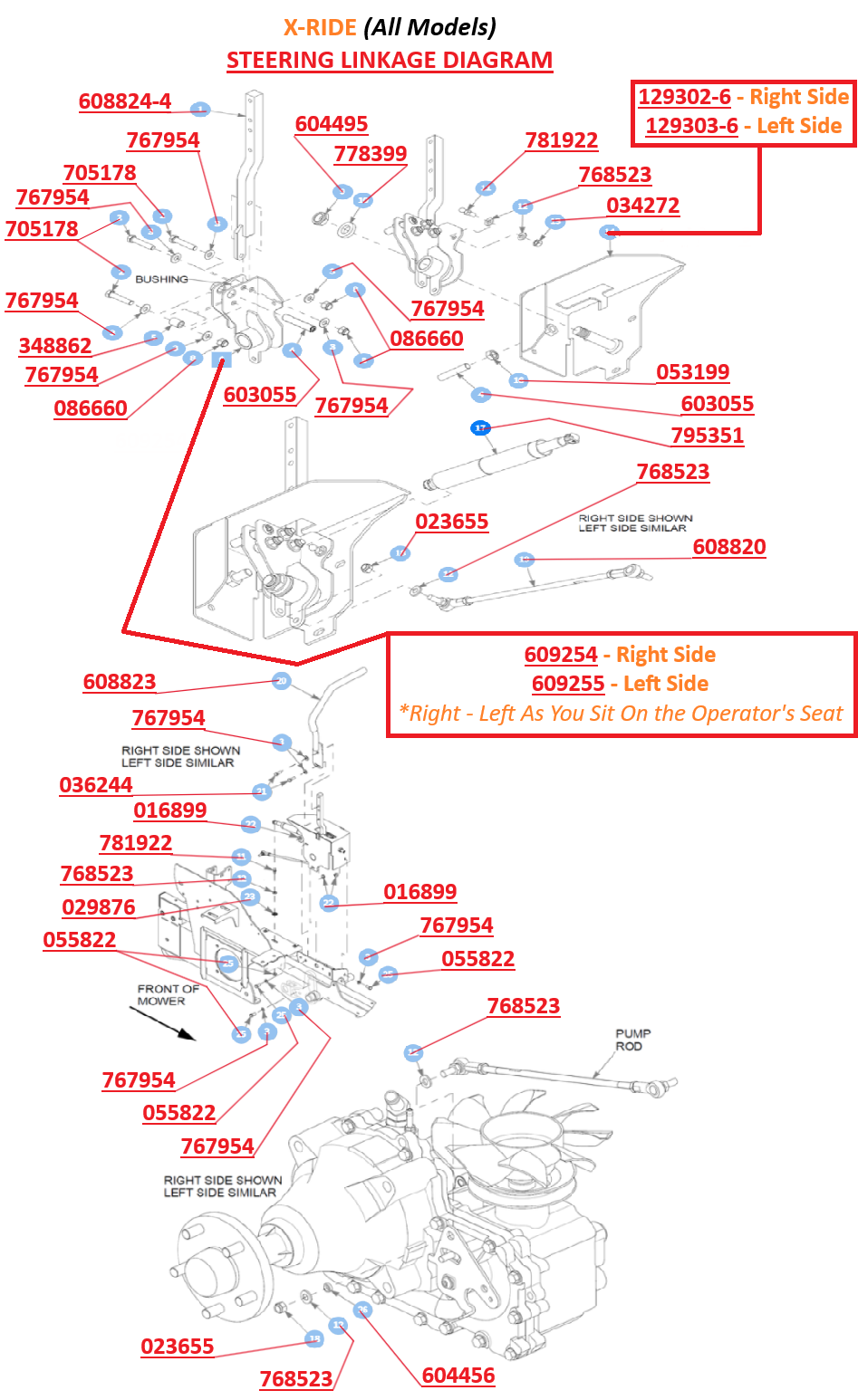

- Common Associated Components:
129304-4 – Assembled As a Complete Assembly
- 609255 (Currently Unavailable) - Left-Side Complete Steering Box Assembly (All X-RIDE Models) * Comes with All the Individual Steering Box Components Already Pre-Assembled

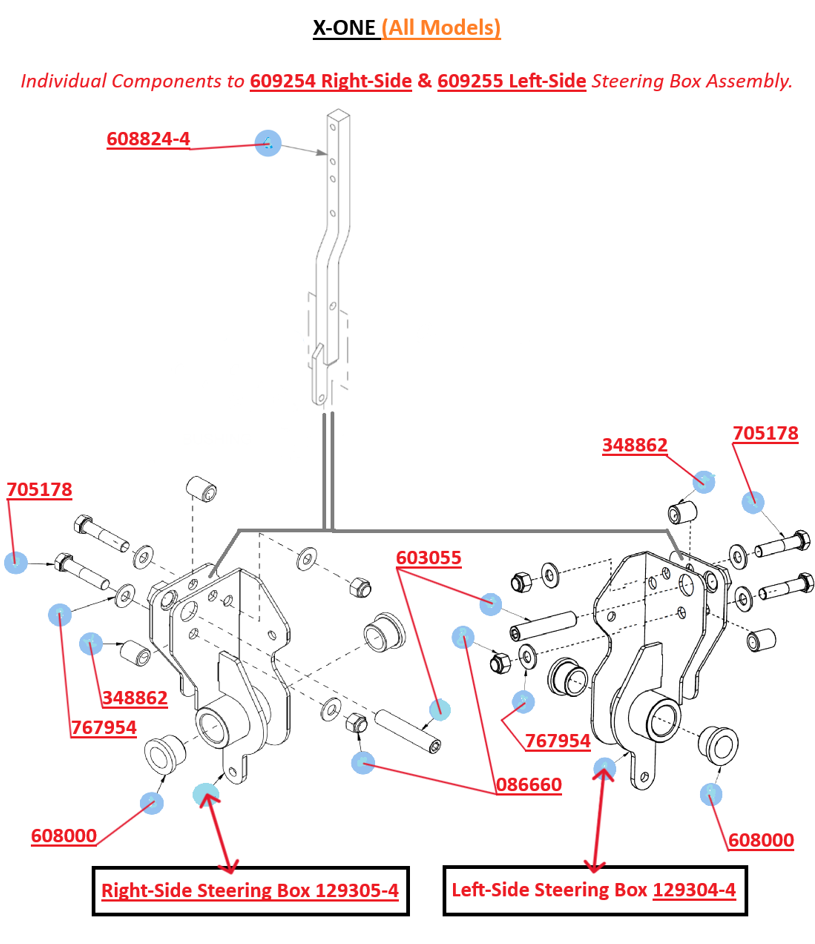

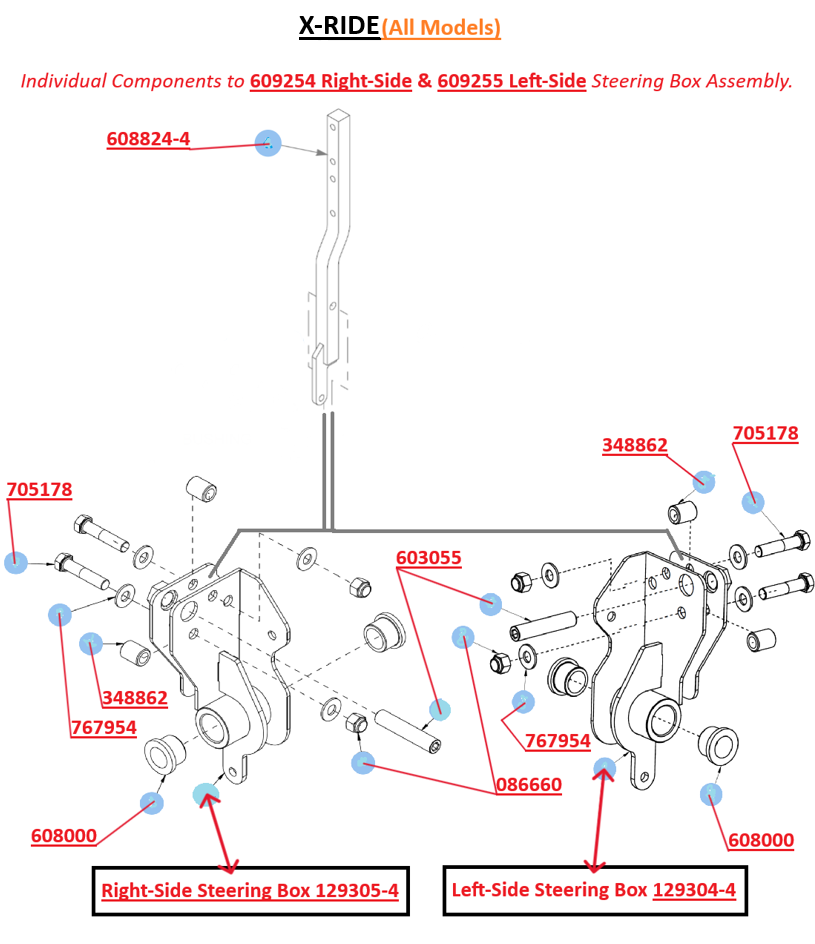

129304-4 – Associated Individual Components
- 608000 - Insert Bushings * Replaceable Pivot Wear Component - Insert into the Steering Box
- 608824-4 - Steering Arm * Retained in the Steering Box - Retains the Operators Control Lever/Handle - Communicates and Controls the Pivot Motion of the Steering Box.
- 348862 - Spacers * Supports the Steering Arm as Well as Enables the Retaining Hardware to Properly be Tightened Without it Hindering the Steering Box or the Steering Arm Motion.
- 797738 - Stop Stud * Prevents the Steering Box from Pivoting to Far Forward
- 705178 - Bolt * Retains the Spacers and Lower Steering Arm
- 767954 - Washer * Retains the Spacers and Lower Steering Arm
- 086660 - Nut * Retains the Spacers and Lower Steering Arm
- 129303-6 - Left-Side Pivot Stud & Steering Cover Assembly * Mounts to the Frame and Retains the Steering Box on the Weldment Stud
- 778399 - Washer * Assembled Between the Lock Nut and Steering Box on the Pivot Stud Weldment and Supports the Lock Nut Retaining the Steering Box Assembly.
- 604495 - Lock Nut * Retains the Steering Box on to the Pivot Weldment Stud
Before You Order
Please verify that Part Number 129304-4 is the correct replacement for your equipment before placing your order.
Model Fit Chart
X-RIDE (All Models)
944074, 944868
If you're unsure, send us your model and serial number, and we'll be happy to verify the correct part before you order.
Why Choose Genuine OEM Parts?
| ✓ | Built to the manufacturer's exact specifications |
| ✓ | Guaranteed fit with no modifications required |
| ✓ | Designed for maximum performance and durability |
| ✓ | Maintains the safety and reliability of your equipment |
| ✓ | Manufactured using high-quality materials |
| ✓ | Helps reduce downtime caused by poor-fitting replacement parts |
| ✓ | Protects the value and longevity of your equipment |
Choosing genuine OEM parts helps ensure your machine continues to operate as the manufacturer intended.
Whether you're performing routine maintenance or repairing a broken component, using genuine OEM parts helps maintain the reliability and performance of your equipment.
Keep your equipment performing the way it was designed with this genuine OEM replacement part. Manufactured to the original equipment manufacturer's specifications, this part is engineered for the proper fit, dependable performance, and long service life.
Fast Shipping from Hilly Ridge Sales & Service
Your order is shipped by a knowledgeable outdoor power equipment dealership—not a general warehouse.
Every order is carefully packed, and our experienced parts specialists are available to help if you have questions before or after your purchase.
Thank you for choosing Hilly Ridge Sales & Service for your genuine OEM parts needs.
Part Number: 129304-4
Description: 129304-4 OEM Left-Side Steering Box * Does Not Come as an Assembly (Steering Arm, Spacer & Other Components are Not Included) - Is the Steering Box Component Only for the 609255 Steering Box Assembly.
