Description
OEM Replacement Steering Box (Left-Side) – 123305
Product Information
- Part Number: 123305
- Supersession: n/a
- Description: 123305 OEM Left-Side Steering Box * Does Not Come as an Assembly (Steering Arm, Spacer & Other Components are Not Included) - Is the Steering Box Component Only.
- Application & Usage: Steering Box Usage - The Operator's Forward & Reverse Movement of the Operator's Steering Control Levers (Fastened to the Steering Arm & Steering Arm Is Retained in the Steering Box) Dictates to the Steering Box Creating a Pivotal Movement of the Steering Box over the Retaining Pivot Pin - The Steering Box Pivotal Movement Then Transfers the Movement to the Hydraulic Linkage Connected to the Steering Box, Allowing the Operator’s Control Levers to Control the Machine’s Drive Functions.
Hustler OEM 123305 Steering Box Retains the Pivotal Position of the Steering Lever - If it Becomes Worn it Will Contribute to Uncontrollable Drifting in Neutral Position, Inconsistent Drive Tracking and Incoherent or Jerky Speed Acceleration and Deceleration.
- Common Associated Components:
123305 – Assembled As a Complete Assembly

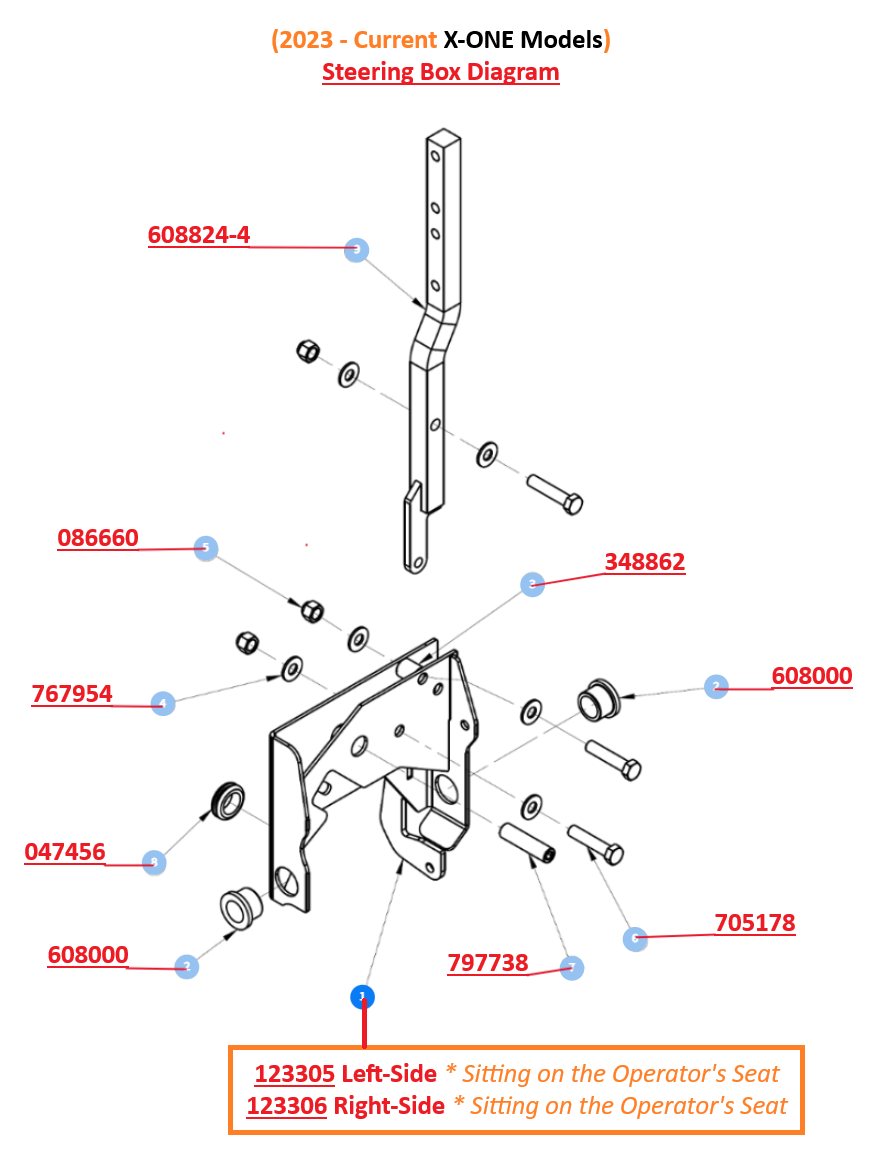

- 608822 - Left-Side Complete Steering Box Assembly (2023 - Current X-ONE Models) * Comes with All the Individual Steering Box Components Already Pre-Assembled

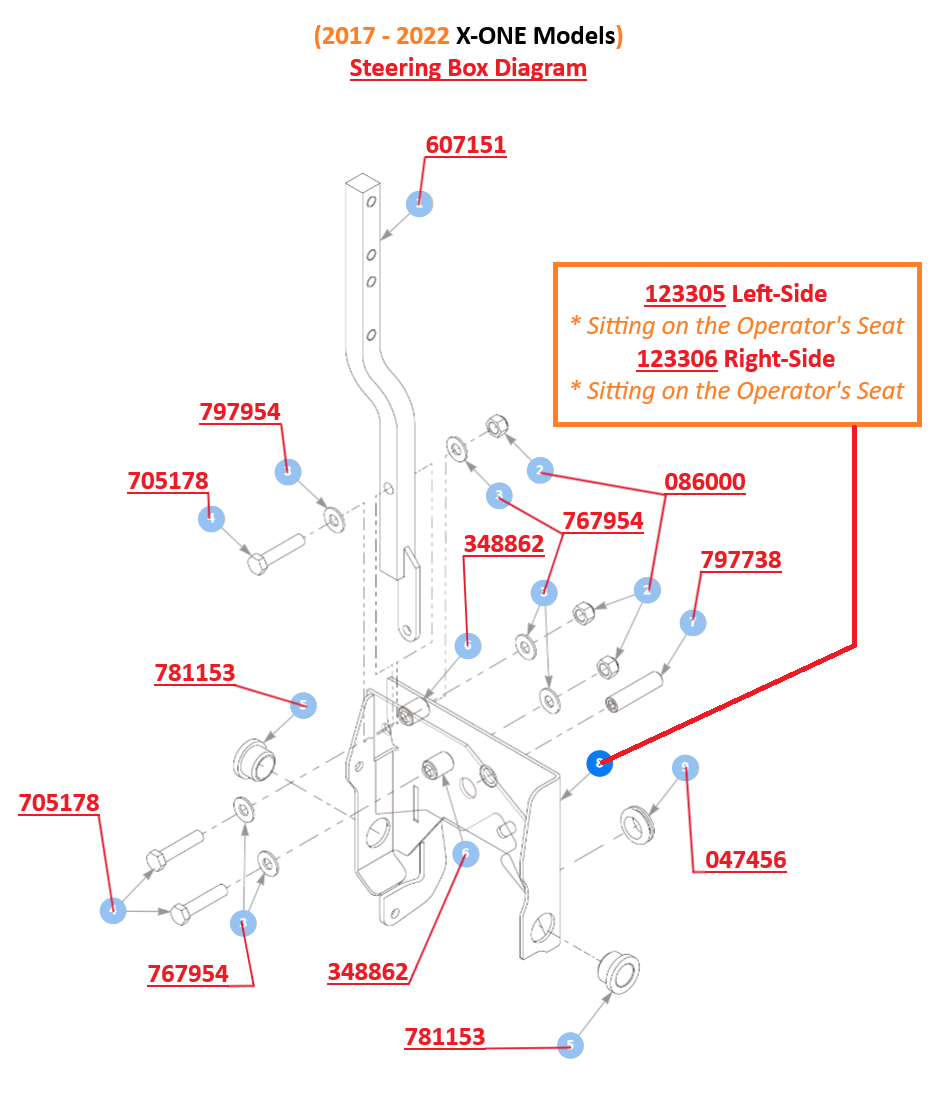

- 606511 - Left-Side Complete Steering Box Assembly (2017 - 2022 X-ONE Models) * Comes with All the Individual Steering Box Components Already Pre-Assembled
123305 – Associated Individual Components
- 608000 - Insert Bushings (2023 - Current X-ONE Models) * Replaceable Pivot Wear Component
- 781153 - Insert Bushings (2017 - 2022 X-ONE Models) * Replaceable Pivot Wear Component
- 608824-4 - Steering Arm (2023 - Current X-ONE Models) * Retained in the Steering Box - Retains the Operators Control Lever/Handle - Communicates and Controls the Pivot Motion of the Steering Box.
- 607151 - Steering Arm (2017 - 2022 X-ONE Models) * Retained in the Steering Box - Retains the Operators Control Lever/Handle - Communicates and Controls the Pivot Motion of the Steering Box.
- 348862 - Spacers * Supports the Steering Arm as Well as Enables the Retaining Hardware to Properly be Tightened Without it Hindering the Steering Box or the Steering Arm Motion.
- 797738 - Stop Stud * Prevents the Steering Box from Pivoting to Far Forward
- 047456 - Rubber Grommet * Enables the Safety Switch Wire to Travel Through the Steering Box Without It Rubbing & Wearing on Metal Contact During the Pivotal Motion of the Steering Box
- 705178 - Bolt * Retains the Spacers and Lower Steering Arm
- 767954 - Washer * Retains the Spacers and Lower Steering Arm
- 086660 - Nut * Retains the Spacers and Lower Steering Arm
- 113007 - Steering Pivot Pin/Tube * Inserts into the Weldment Holes, Assist in Retaining the Steering Box & Enables the Steering Box to Pivot over it
- 784439 - Lock Collar * Retains the Pivot Pin/Tube in the Weldment Holes on the Frame also Retaining the Steering Box by Not Leaving the Pivot Pins Move out of the Holes.
Before You Order
Please verify that Part Number 123305 is the correct replacement for your equipment before placing your order.
Model Fit Chart
X-ONE (2016 – Current) * Read Note Below
* Excluding 2016 Models Ending in 934... - 2016 Model 936... on will Overlap Into 2017 Models and Be Included in the same Usage and Steering Box Diagram Charts.
936237, 936245US, 936252, 936260, 936278, 936286, 936294US, 936302, 936310, 936328, 936336, 936740, 936765, 936773, 936781, 936799, 936815, 936823, 936831, 936849, 939314, 939322, 940056, 940064, 940072, 940080, 940106, 940114, 940122, 940130, 940197, 941062, 941070, 941369, 941831, 941856, 941864, 941872, 941880, 941898, 941922, 941930, 941971, 942201, 942334, 942797, 943399, 943407, 943787, 943795, 943803, 943811, 943829, 943837, 943845
If you're unsure, send us your model and serial number, and we'll be happy to verify the correct part before you order.
