Description

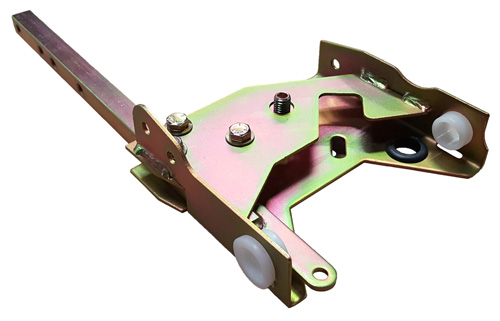

Hustler OEM 604296P Left-Hand Steering Box
The Hustler OEM 604296P Left-Hand Steering Box (Left to Right as You Sit on the Operator Seat) - 604296P Is Equipped with Spacer and Bushings enabling a Smooth Pivotal Movement to Be Transferred from the Operators Left Steering Control Lever to the Hydraulic Adjuster Rod to the Arm that Controls the Pressure on the Left-Side Hydraulic Pump. Hustler OEM 604296P Steering Box Retains the Pivotal Position of the Steering Lever - If it Becomes Worn it Will Contribute to Uncontrollable Drifting in Neutral Position, Inconsistent Drive Tracking and Incoherent or Jerky Speed Acceleration and Deceleration.
⚠️ Before You Order – Verify Fitment
Hustler uses Different Left-Hand and Right-Hand Steering Boxes as Well as Different Steering Boxes Depending on the Mower Model and Production Year. Because Fitment may vary by Model Number and Year Verify Your Model is Listed in the Model Fit Chart Below Before Ordering.
Not sure? Contact us with your Hustler model and serial number and we’ll help verify fitment.
Sold as One Left-Hand Steering Box Assembly - with Spacer and Bushing Components. However, this is not a Left-and-Right Pair.
What This Part Does
- Transfers Movement from the Left Steering Control Lever to the Other Steering System and Hydraulic Drive Components.
- Maintains Responsive and Predictable Mower Drive Handling.
- Replaces a Worn, Damaged, Loose, or Binding Steering Box.
- Provides Genuine Hustler OEM Fit, Construction, and Mounting Configuration.
Associated Parts

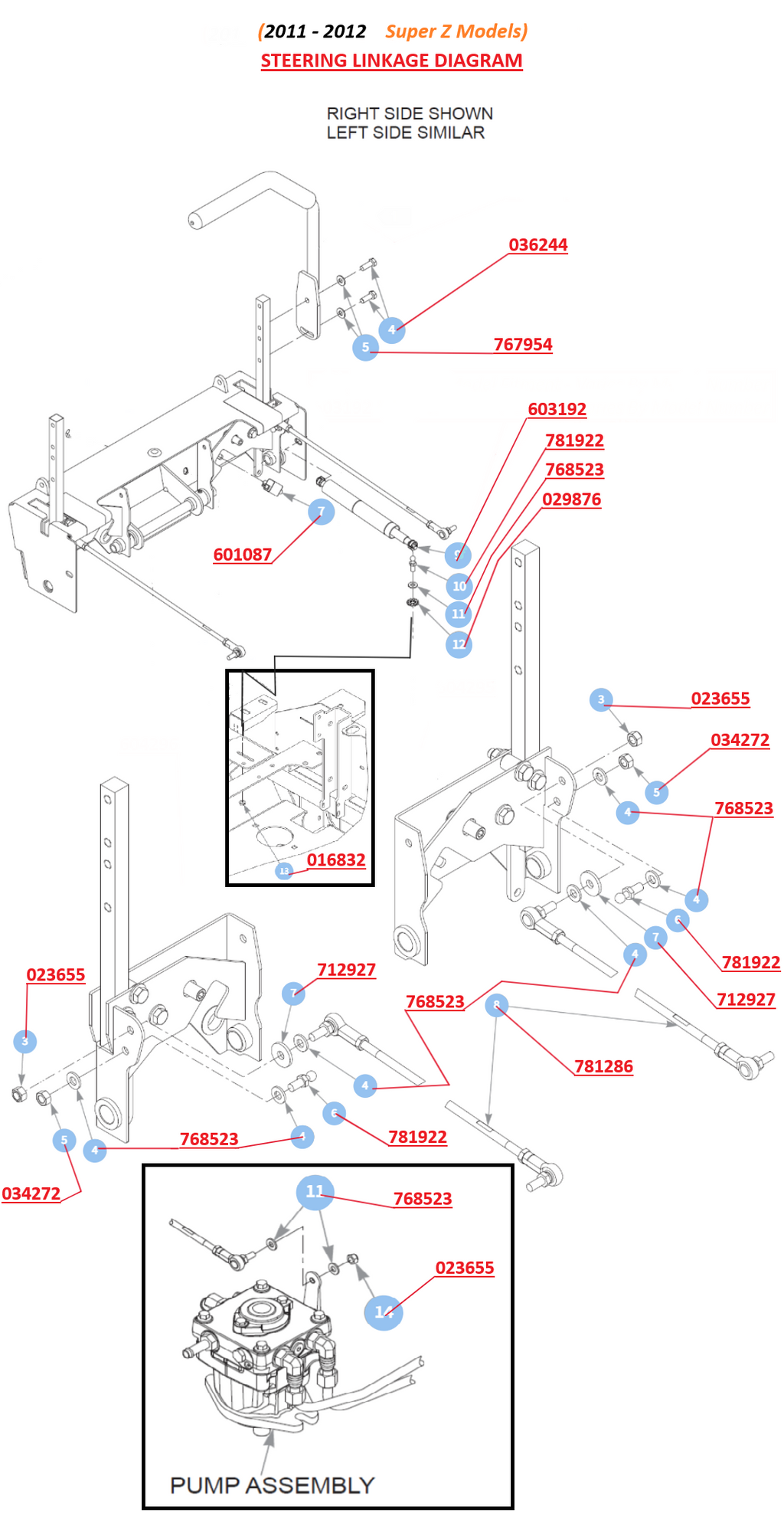

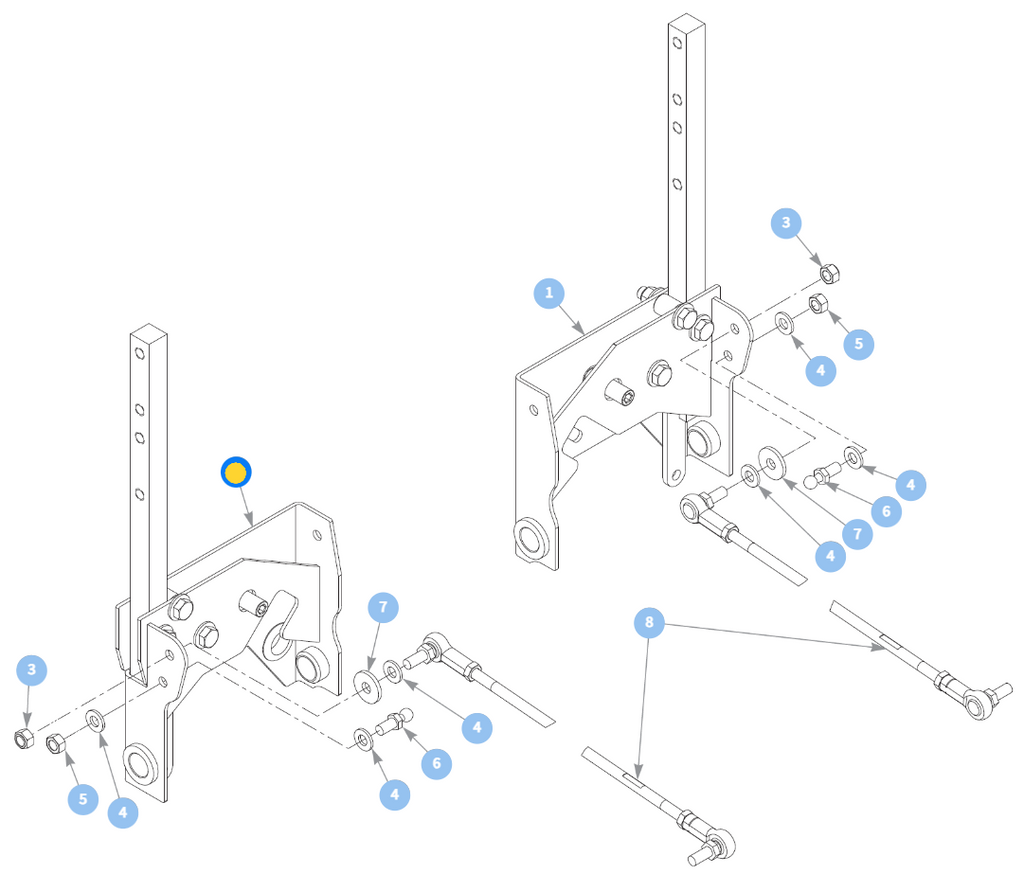

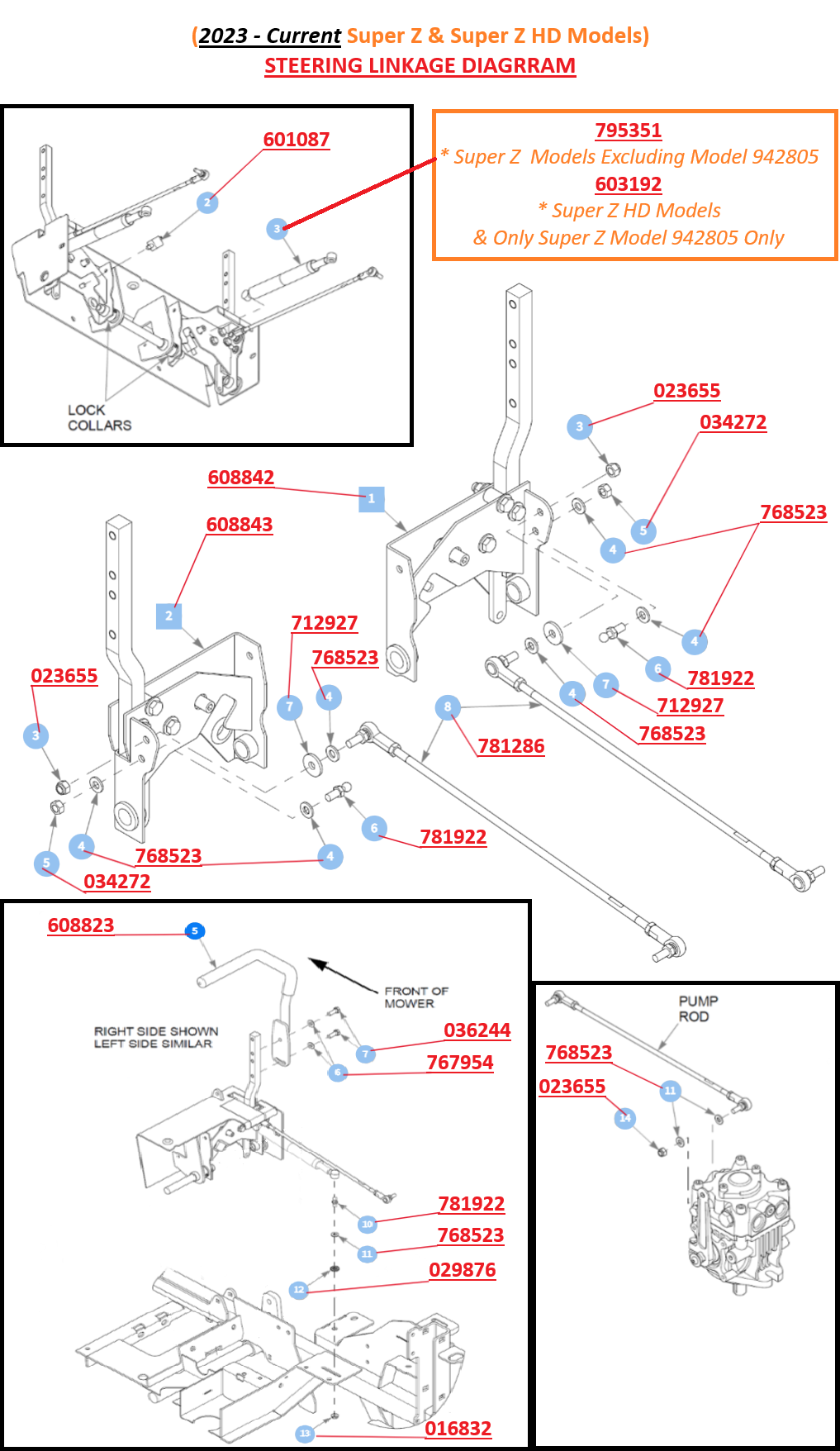

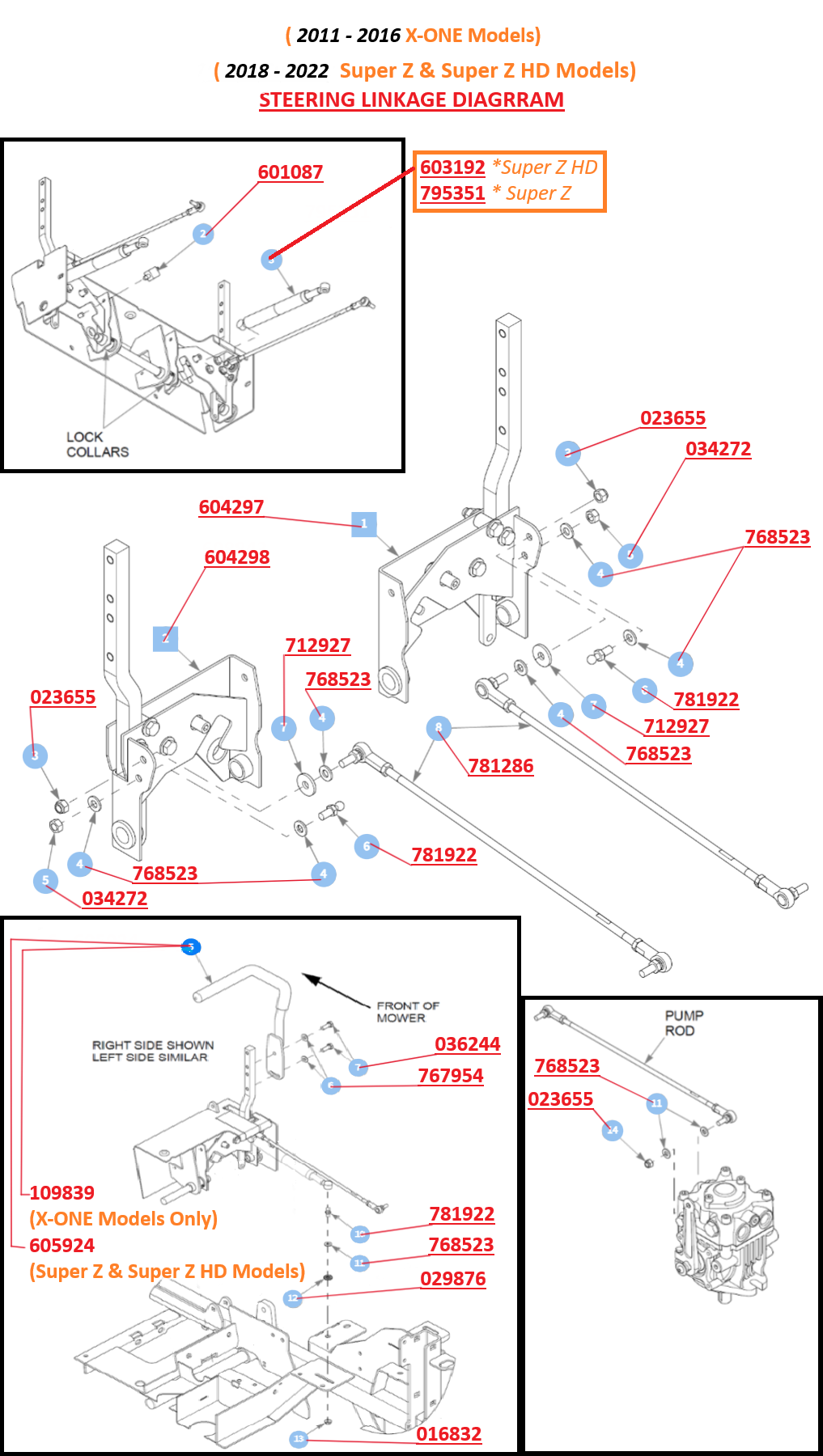

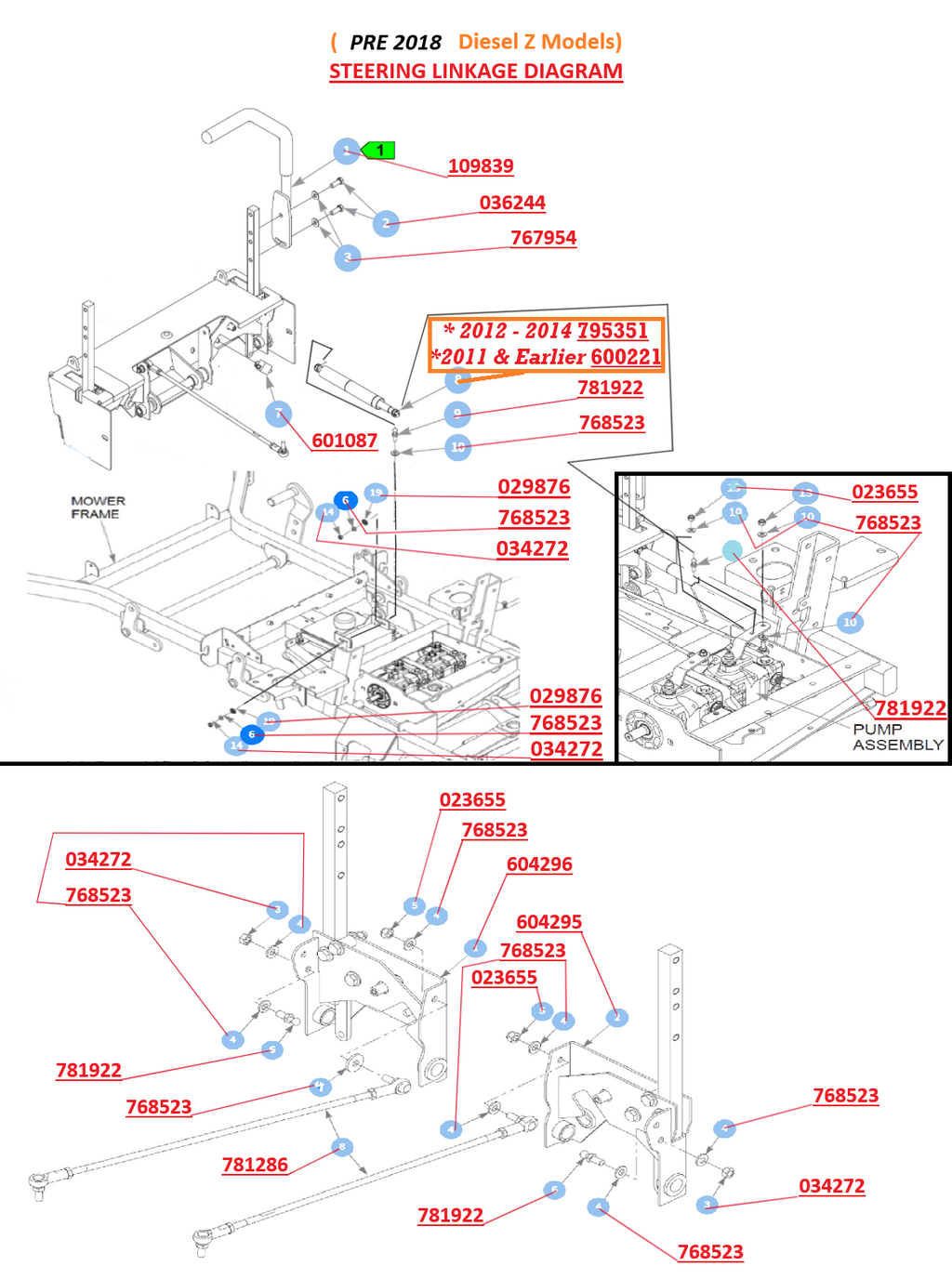

Refer to the Detail Parts Diagrams in the Images for Additional Parts Info.
Part Details
- Brand: Hustler Turf Equipment
- Part Number: 604296P
- Supersession: Part Number 604296 Supersedes to Part Number 604296P
- Part Name: Steering Box LH
- Position: Left-Hand Side * As You Sit on the Operator's Seat
- Part Type: Genuine OEM Replacement Steering Box Assembly
- Quantity: One Steering Box
Model Fit Chart

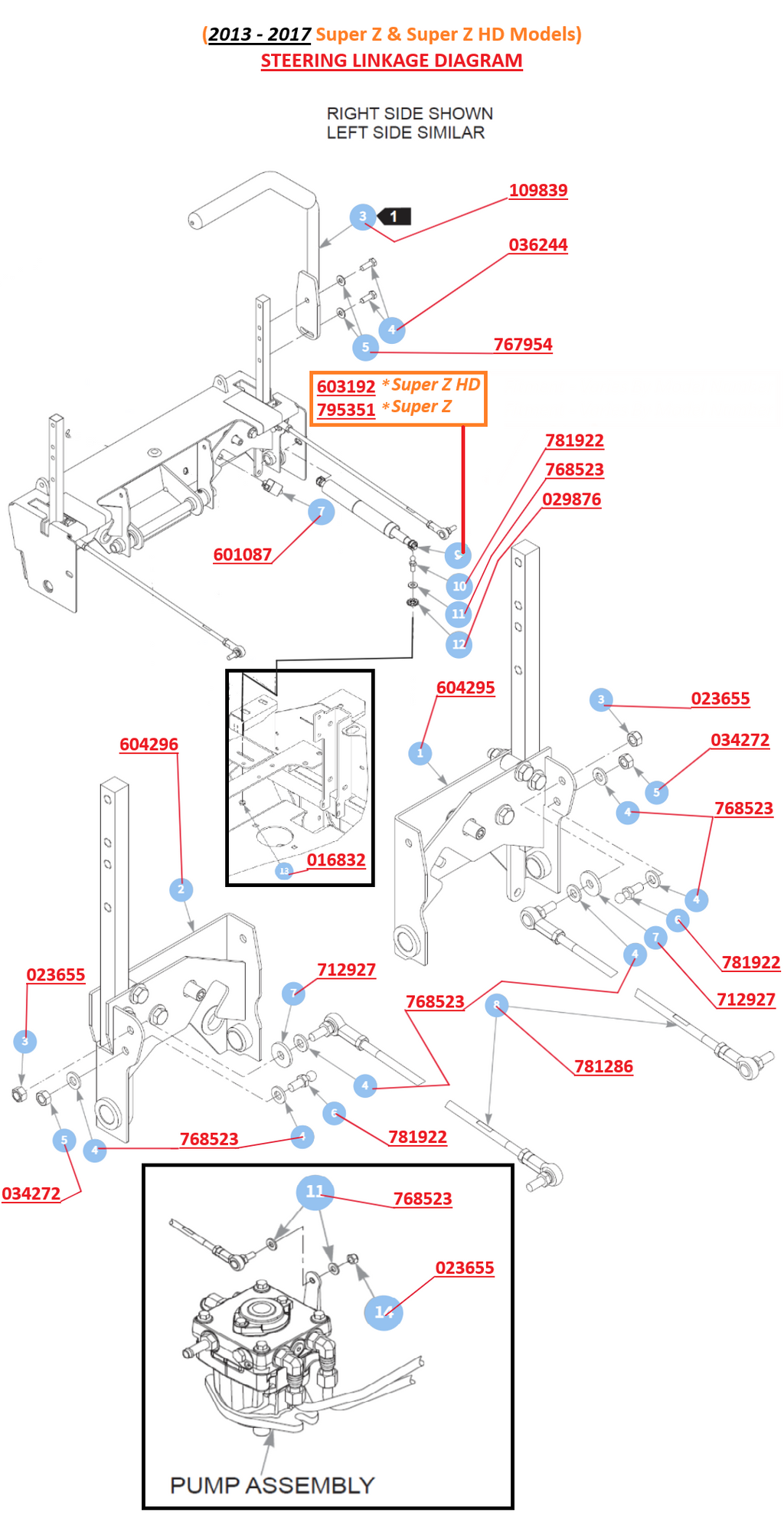

Super Z (2013 - 2017 Models)
932012, 932020, 932038, 932046, 932053, 932061, 932129, 932137, 932368US, 932376US, 932970, 932988, 933457, 933911US, 933929US, 934182US, 934208US, 934216, 934224, 934232, 934240, 934257, 934265, 934273, 934281, 934299, 934984US, 934992, 935007, 935015US, 935023, 935031, 935049, 935056US, 935064, 937714, 937722
Super Z Hyper Drive (2013 - 2017 Models)
932145, 932152, 932160, 932178, 932186, 932384US, 932392US, 932996, 933002, 934307, 934315, 934323, 934331, 934349, 934356, 934687, 934695, 934703, 934711, 934919, 934927, 934935, 934943, 934950, 934968, 934976, 936625

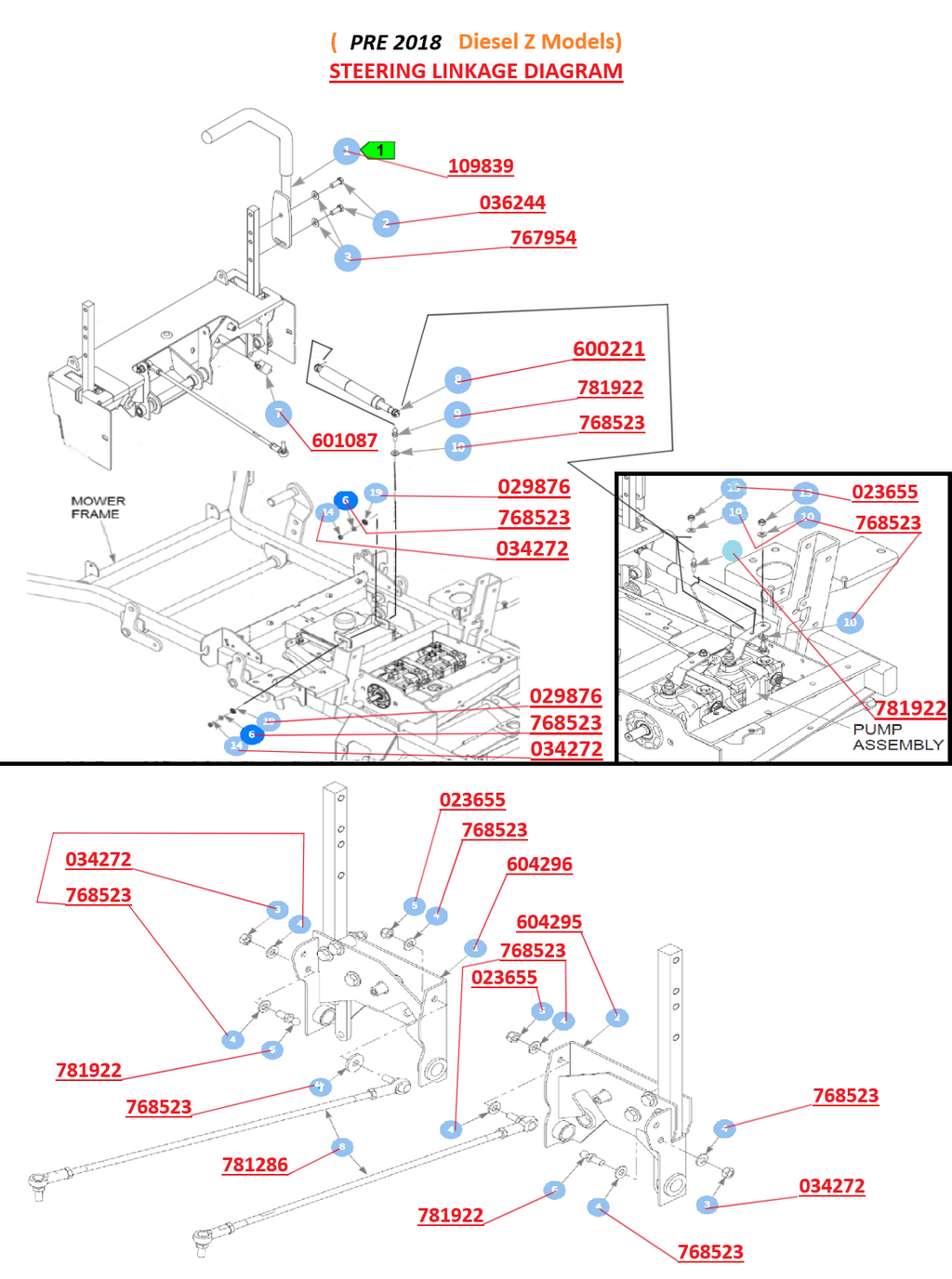

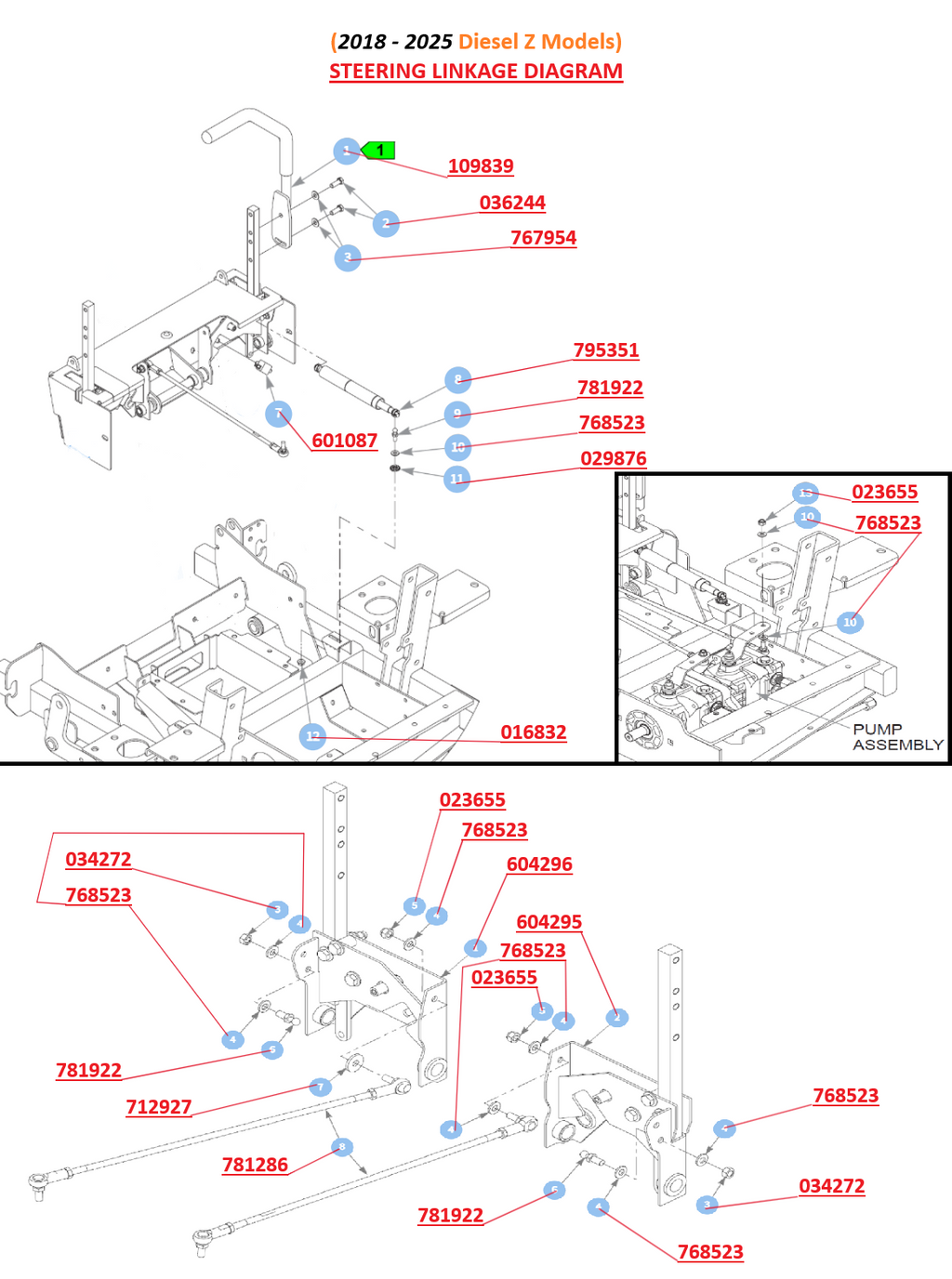

Diesel Z (All Models)
928606, 928606A, 928606B, 928614, 928614A, 928614B, 928614US, 928614EX, 928622, 928622A, 928622B, 928630, 928630A, 928630B, 928630US, 928630EX, 928655, 928655US, 928655EX, 928663, 928663EX, 932665US, 932673US, 932681US, 932699US, 932707US, 938233US, 938241US, 938258US, 938266US, 940452US, 940460US, 940478US, 940486US, 943233US, 943241US, 943249US, 943266US

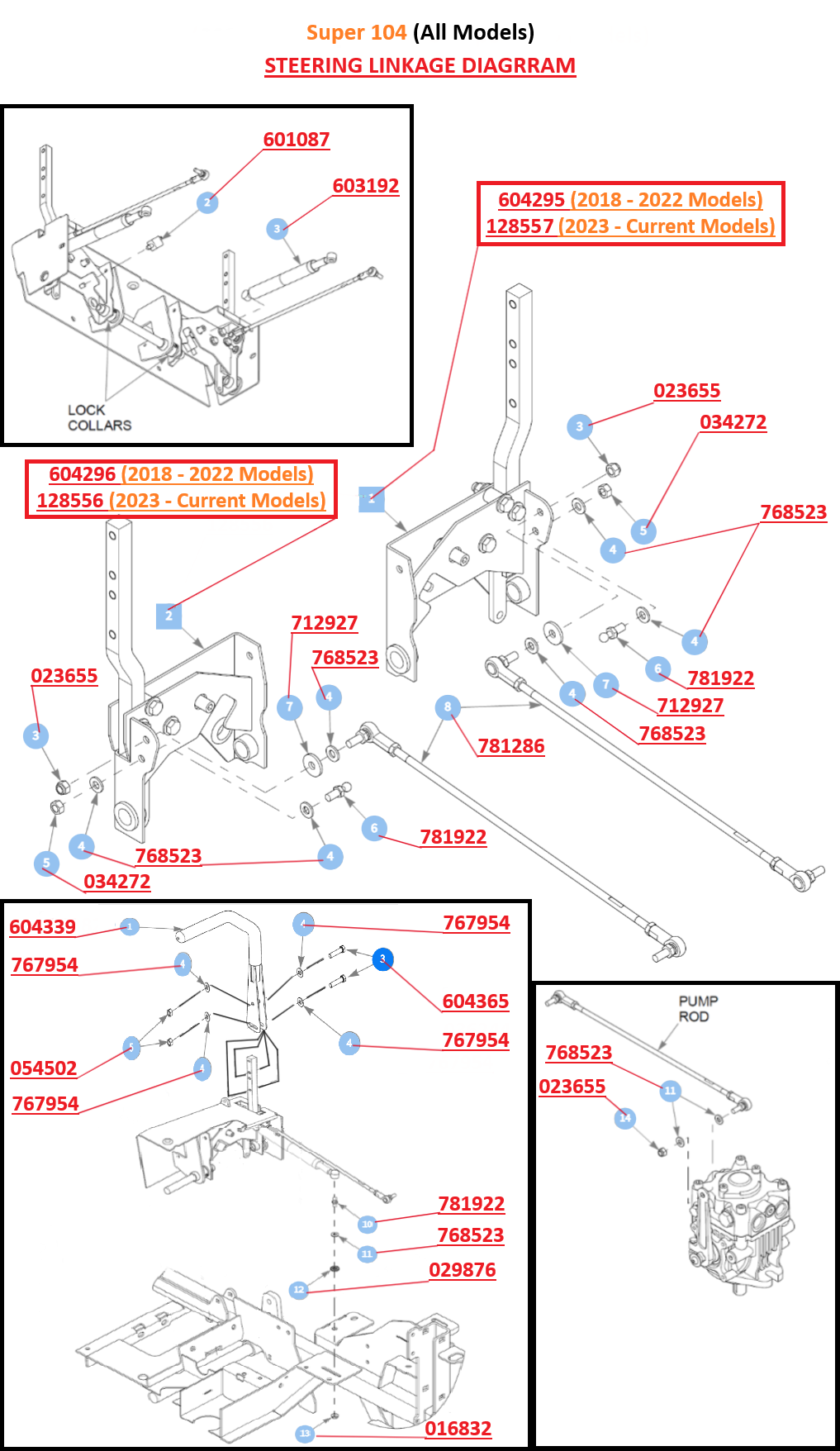

Super 104 (2018 - 2022 Models)
937201, 937219, 939462, 939470, 939603, 939652, 941005, 941526, 942318
