Description

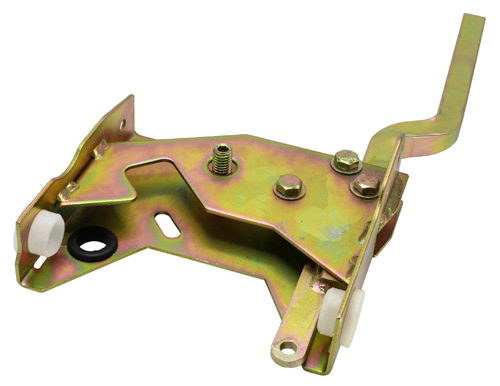

Hustler OEM 604297 Right-Hand Steering Box
The Hustler OEM 604297 Right-Hand Steering Box (Left to Right as You Sit on the Operator Seat) - 604297 Is Equipped with Spacer and Bushings enabling a Smooth Pivotal Movement to Be Transferred from the Operators Right Steering Control Lever to the Hydraulic Adjuster Rod to the Arm that Controls the Pressure on the Right-Side Hydraulic Pump. Hustler OEM 604297 Steering Box Retains the Pivotal Position of the Steering Lever - If it Becomes Worn it Will Contribute to Uncontrollable Drifting in Neutral Position, Inconsistent Drive Tracking and Incoherent or Jerky Speed Acceleration and Deceleration.
⚠️ Before You Order – Verify Fitment
Hustler uses Different Left-Hand and Right-Hand Steering Boxes as Well as Different Steering Boxes Depending on the Mower Model and Production Year. Because Fitment may vary by Model Number and Year Verify Your Model is Listed in the Model Fit Chart Below Before Ordering.
Not sure? Contact us with your Hustler model and serial number and we’ll help verify fitment.
Sold as One Right-Hand Steering Box Assembly - with Spacer and Bushing Components. However, this is not a Left-and-Right Pair.
What This Part Does
- Transfers Movement from the Right Steering Control Lever to the Other Steering System and Hydraulic Drive Components.
- Maintains Responsive and Predictable Mower Drive Handling.
- Replaces a Worn, Damaged, Loose, or Binding Steering Box.
- Provides Genuine Hustler OEM Fit, Construction, and Mounting Configuration.
Associated Parts

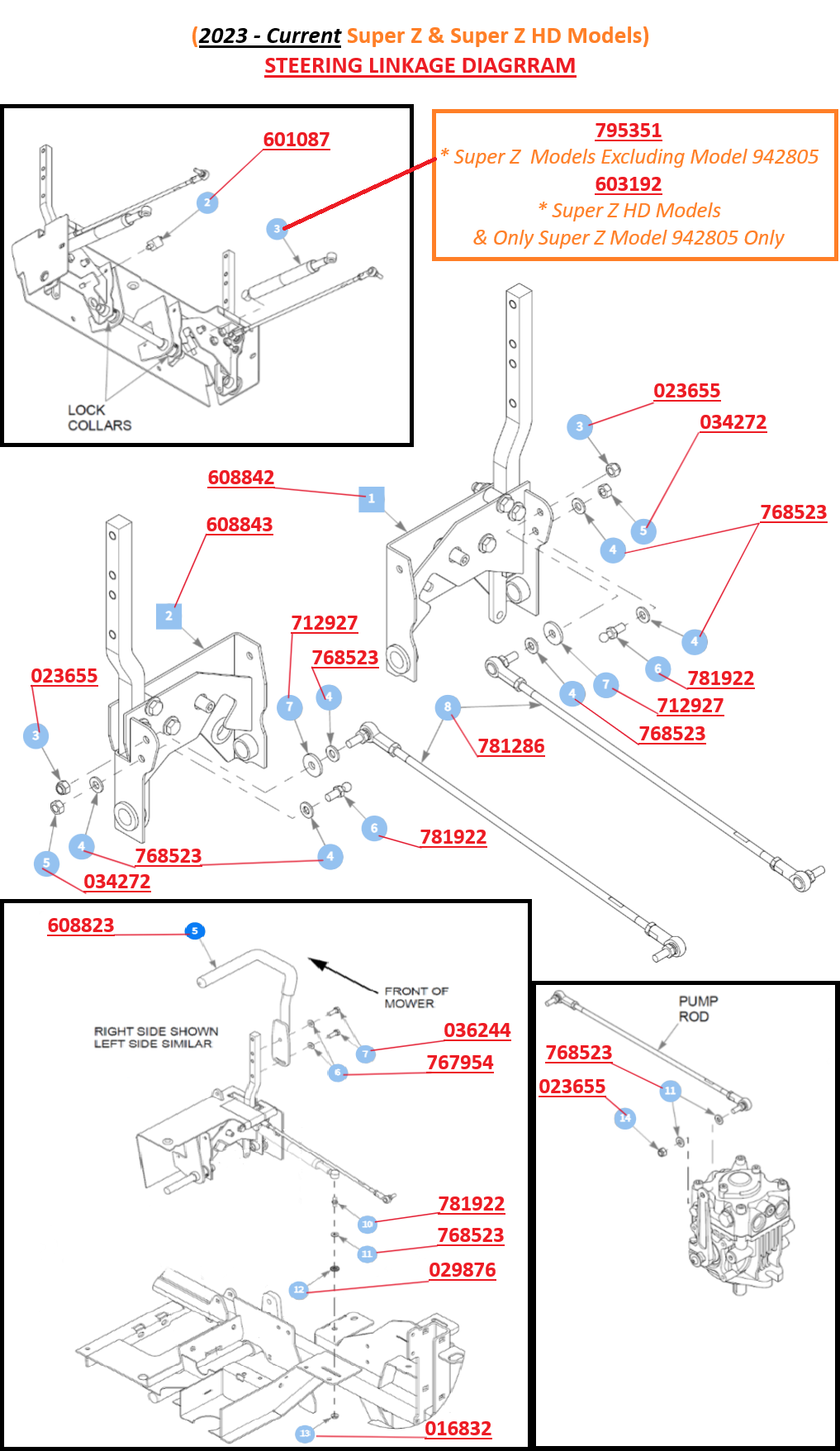

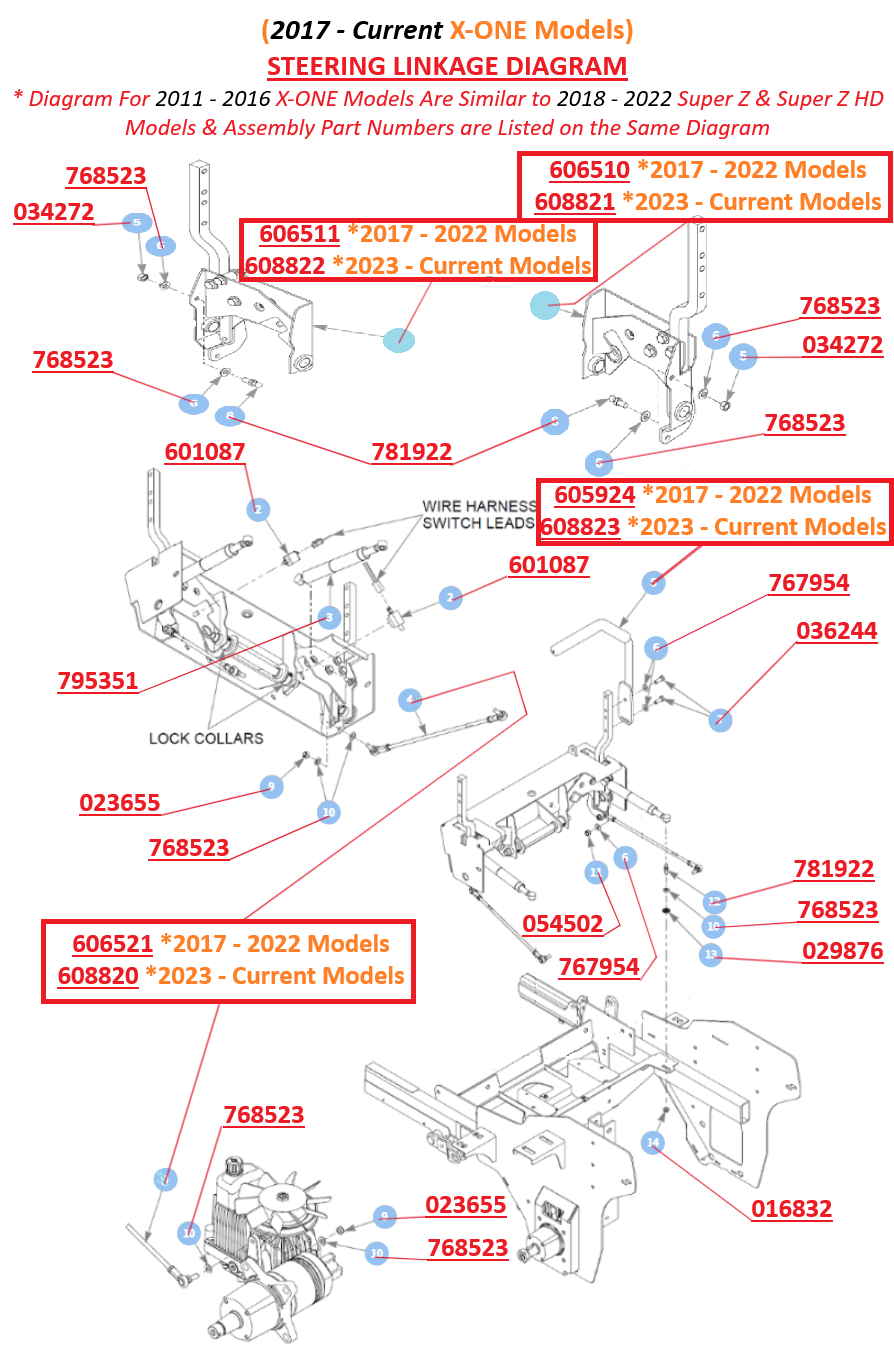

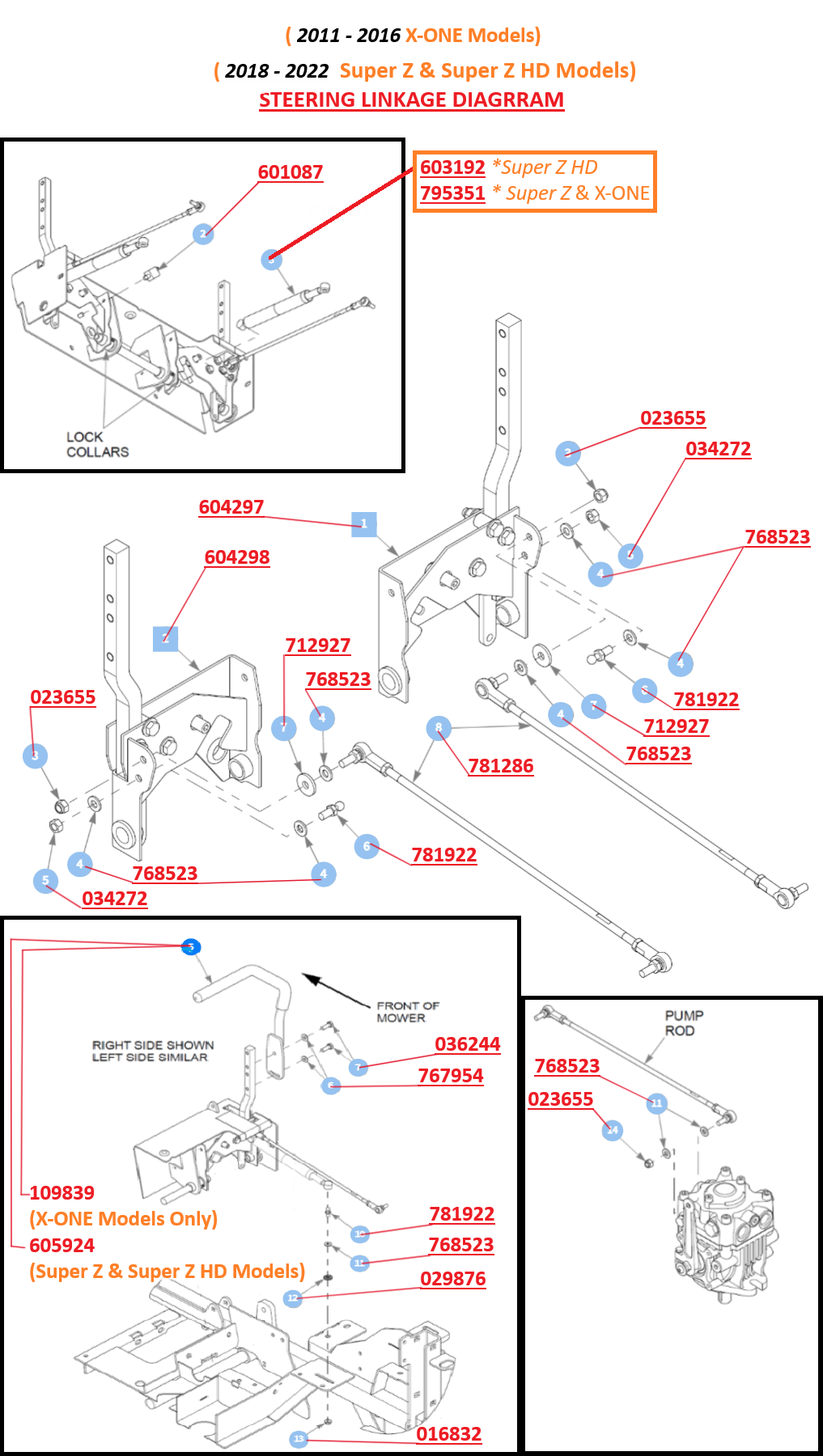

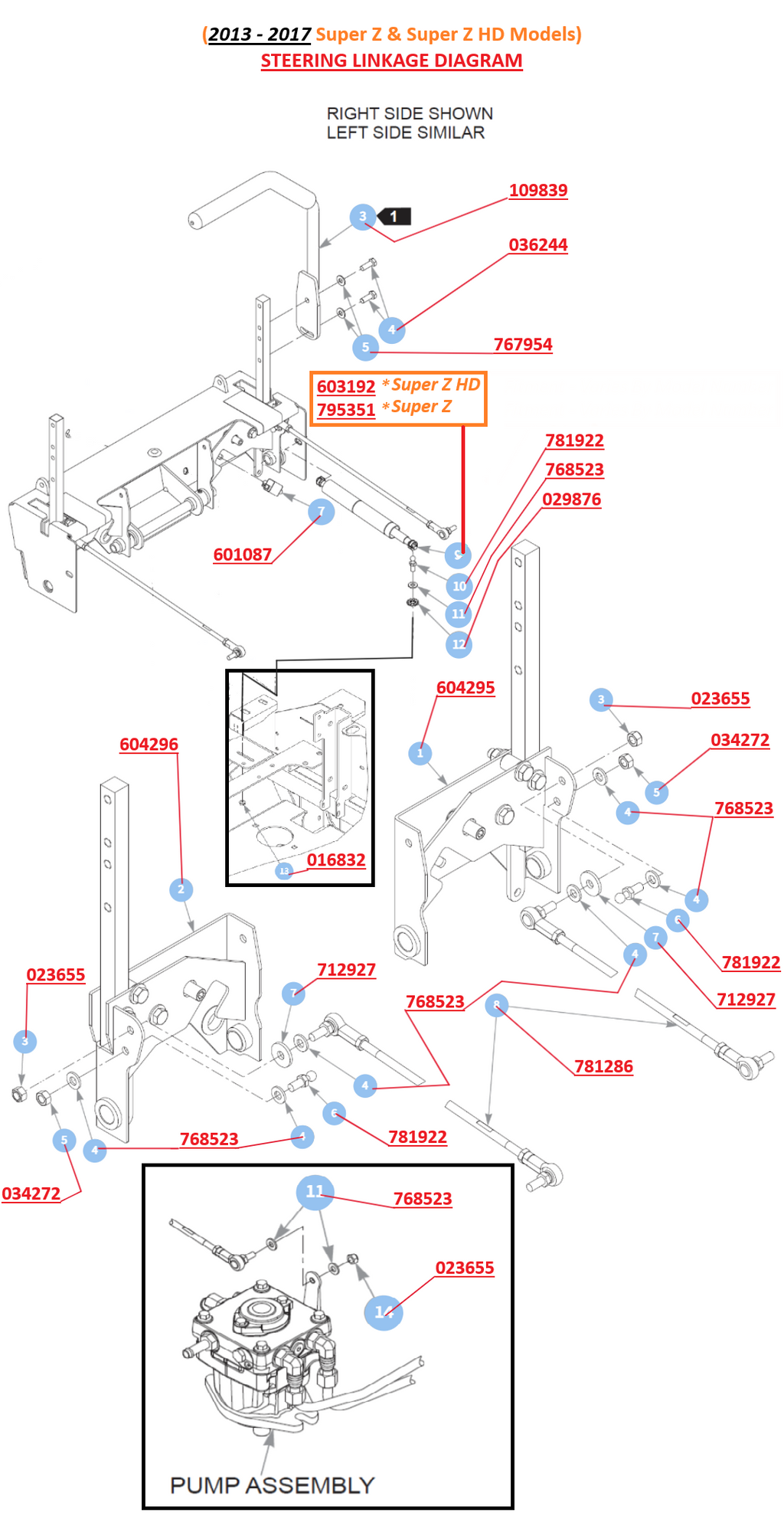

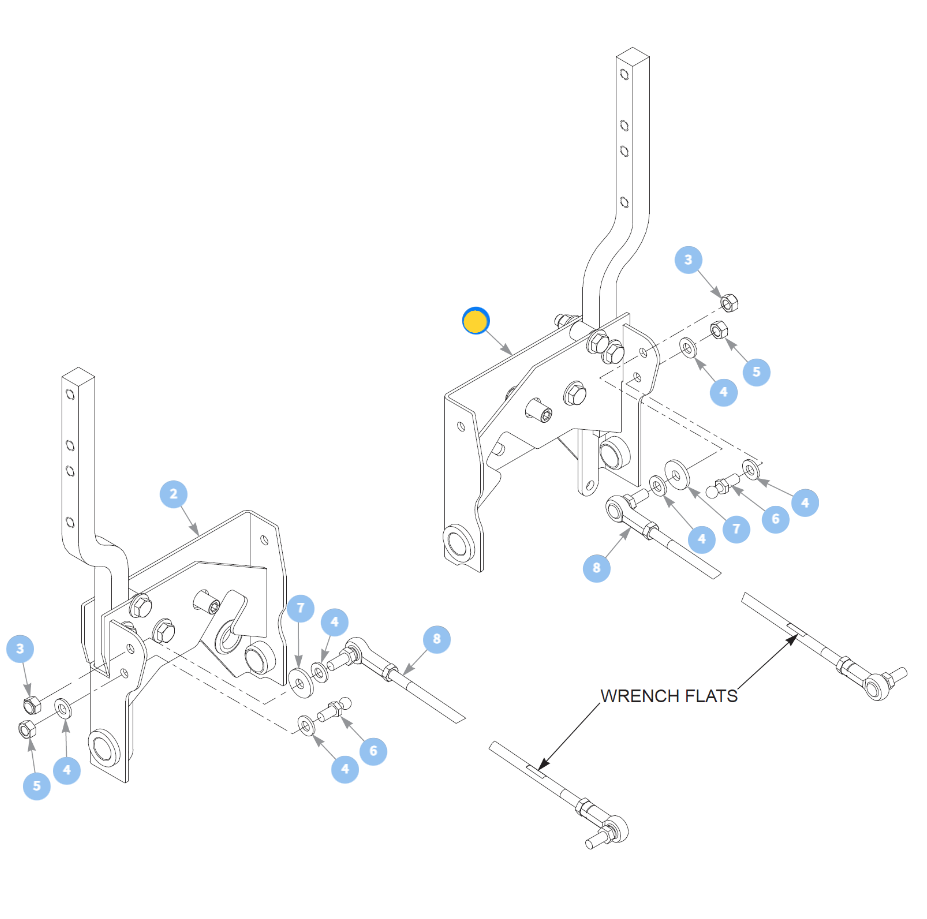

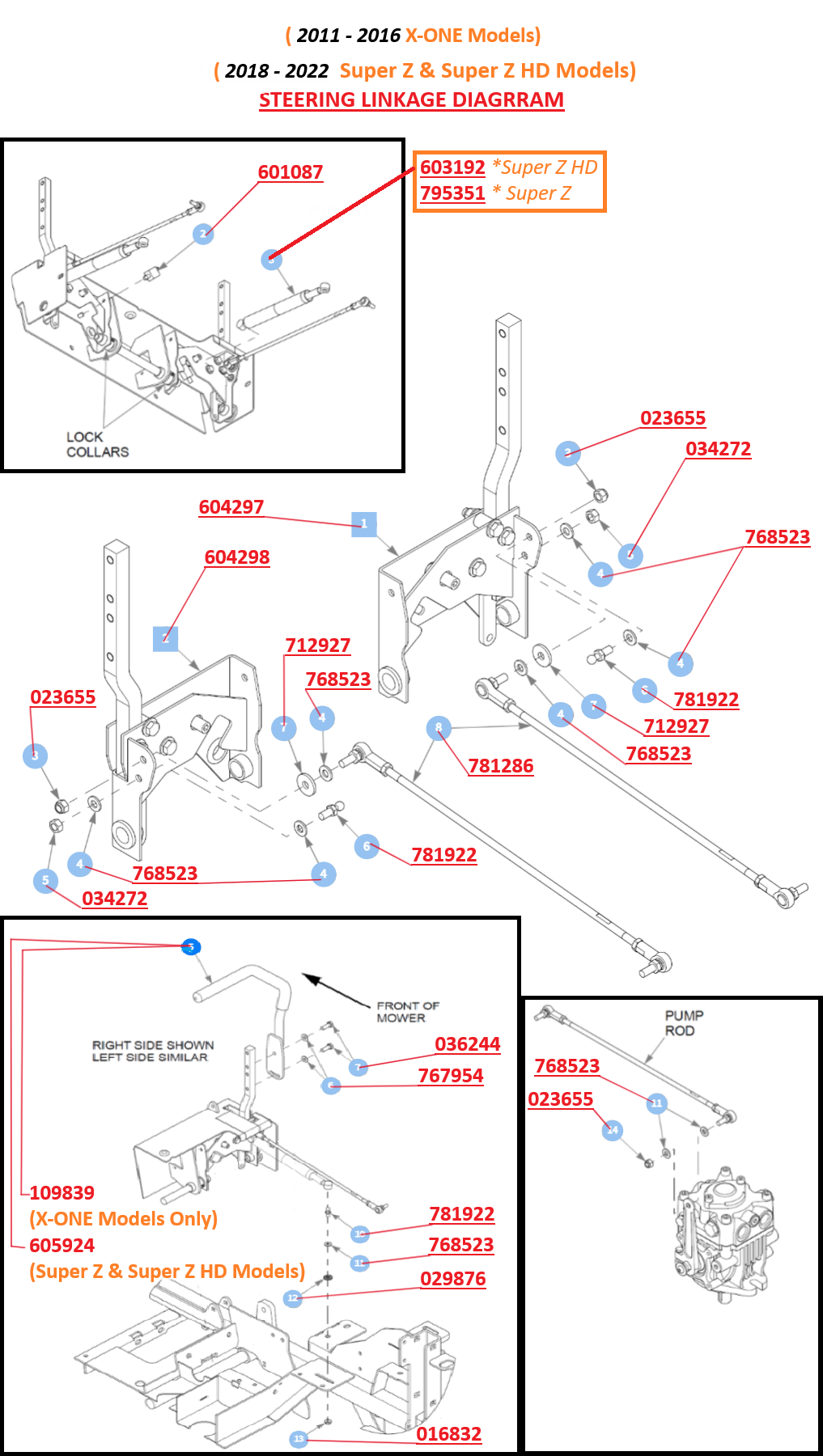

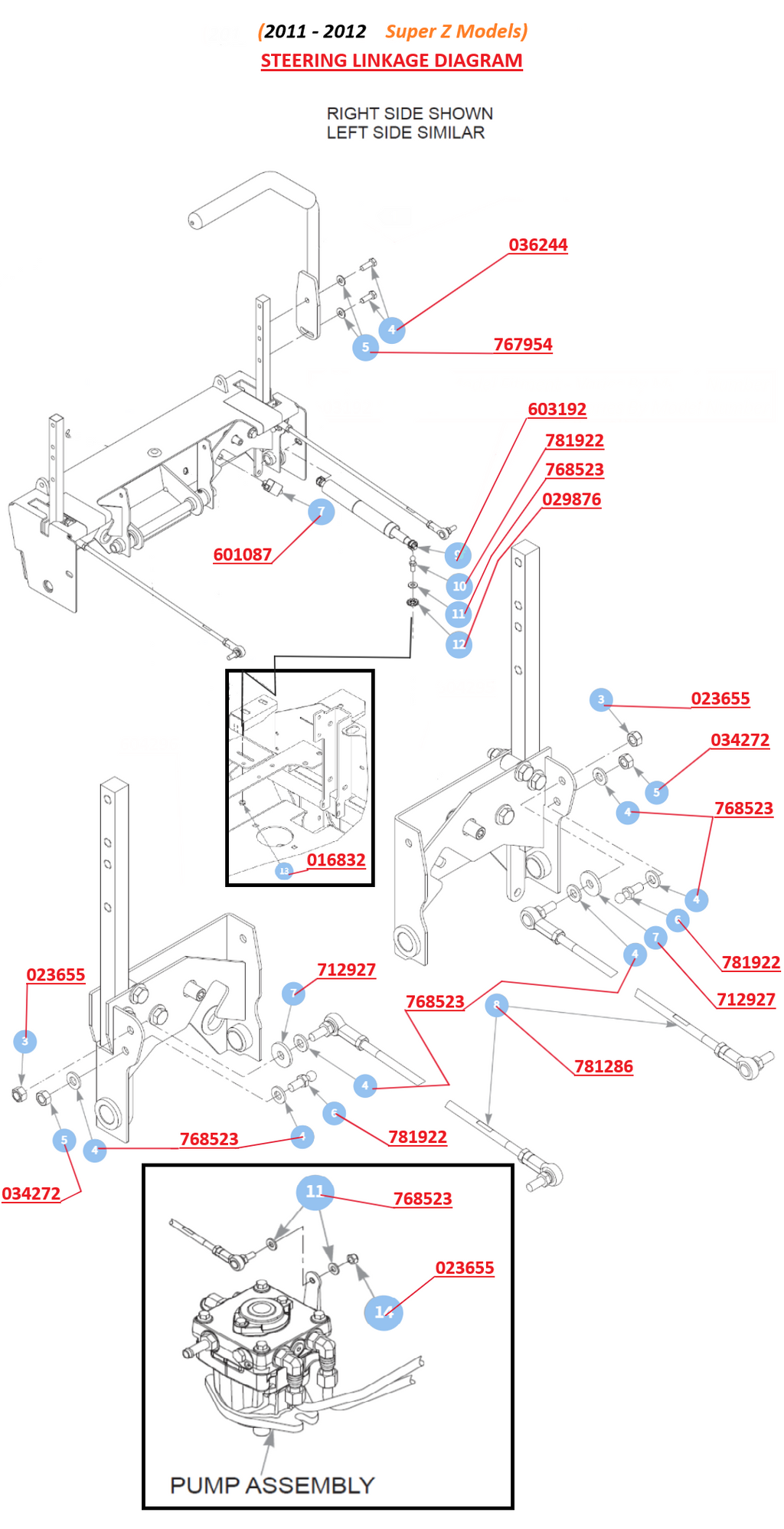

Refer to the Detail Parts Diagrams in the Images for Additional Parts Info.
Part Details
- Brand: Hustler Turf Equipment
- Part Number: 604297
- Supersession: n/a
- Part Name: Steering Box RH
- Position: Right-Hand Side * As You Sit on the Operator's Seat
- Part Type: Genuine OEM Replacement Steering Box Assembly
- Quantity: One Steering Box
Model Fit Chart
X-ONE (2011 – 2016 Models)
* Excluding 2016 Models Ending in 936... - 2016 Model 934... on will Overlap Into 2015 Models and Be Included in the same Usage and Steering Diagram Charts.
930503, 930503US, 930511, 930529, 930529US, 930537, 930537US, 930545, 930552, 930560, 930578, 930586, 930594, 930883, 930891, 931006, 931055, 931055US, 931774, 931782, 932194, 932202, 932210, 932228, 932236, 932244, 932251, 932269, 932715, 932723, 932731, 932749, 932756, 932764, 932772, 932780, 932798, 933317US, 933887US, 933895US, 933978US, 933986US, 933994US, 934117, 934125, 934133, 934141, 934158, 934166, 934174
Super Z (2018 - 2022 Models)
936872, 936880, 936898US, 936914, 936922, 936930, 936948US, 936955, 936989, 937714, 937722, 937730, 938985, 938993, 940031, 940049, 941138, 941146, 941153, 941161, 941179, 941187, 941195, 941203, 941377, 941385, 942342, 942763, 942771
Super Z Hyper Drive (2018 - 2022 Models)
936997, 937003, 937011, 937029, 937037, 937045, 937052, 937110, 939561, 939579, 939587, 939595, 941229, 941237, 941245, 941252, 941260, 941278, 941286, 941294, 941302, 941310, 941328, 941534, 941542, 941559, 941567, 942219, 942227, 942235, 942243, 942250, 942359
