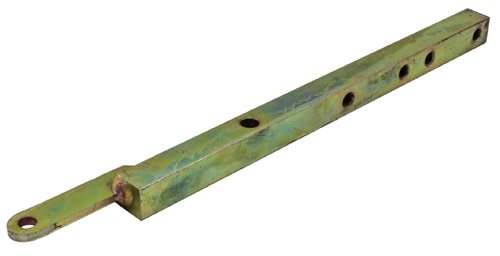

Hustler OEM 607152 Lower Steering Arm (Left & Right) Fits Hustler Super Z (2011 - 2017 Models), Super Z HD (2011 - 2017 Models), Super 104 (2018 - 2022 Models), Diesel Z (All Models).

• Part Number: 607152

• Supersession: n/a

• Description: 607152 OEM Lower Steering Arm * Left and Right are the Same Part Number.
• Application:

607152 – Lower Steering Arm Application & Usage

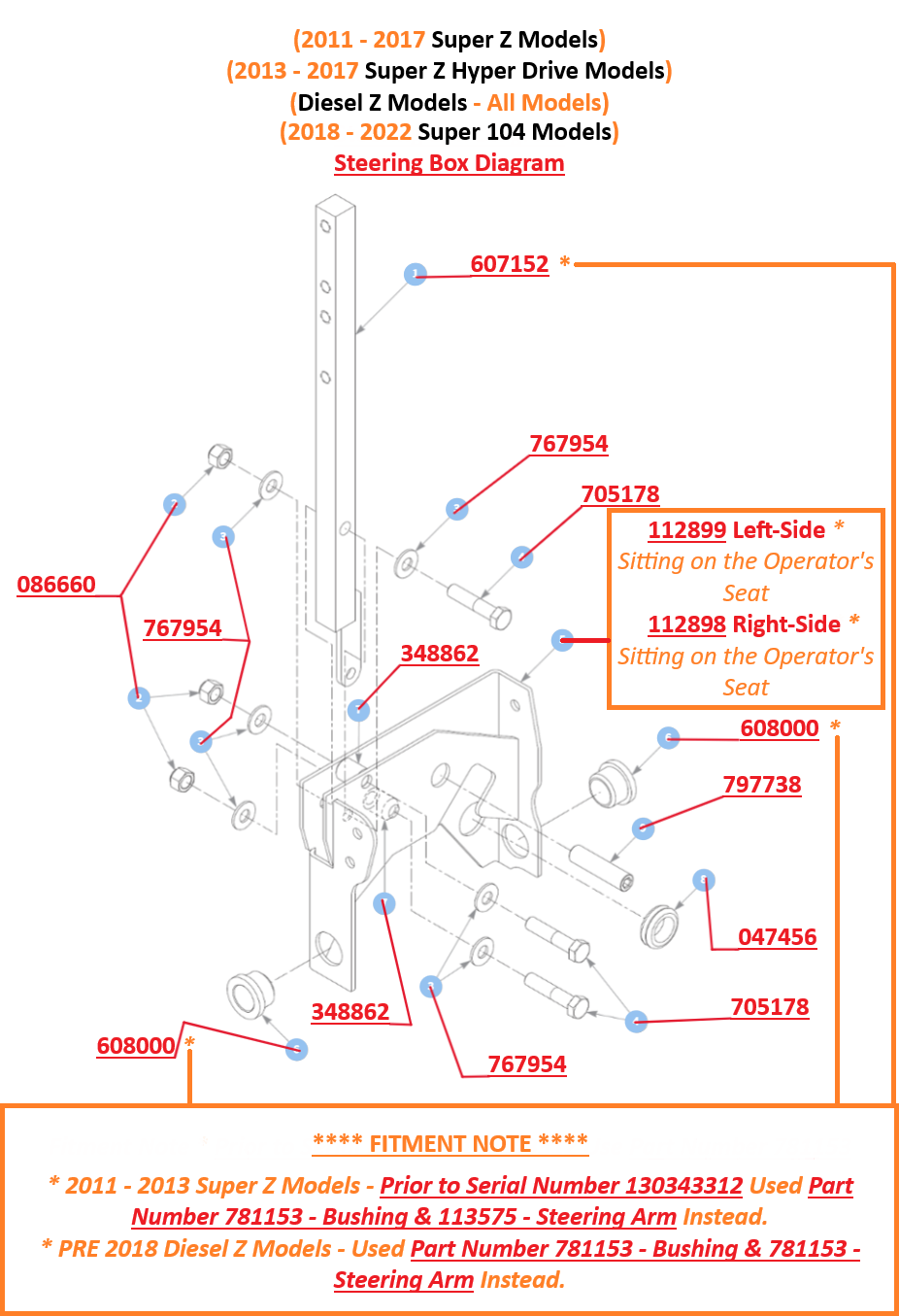

The 607152 Lower Steering Arm inserts into the steering box and provides the mounting point for the upper operator's hydraulic steering handle/levers. The upper operator's steering handle/lever attaches to the lower steering arm using the following hardware:



1. Bolt – 705178
2. Washer – 767954
3. Nut – 086660





The 607152 Lower Steering Arm transfers the forward and reverse movement of the operator’s hydraulic control levers through the pivoting steering box.



This movement is then transferred to the hydraulic linkage connected to the steering box, allowing the operator’s control levers to control the machine’s drive functions.



The 607152 Lower Steering Arm also connects to the brake linkage. This connection converts the inward and outward movement of the operator’s control handles at the neutral/brake position into movement of the brake linkage.



When the operator moves the control handles outward into the neutral/lock position, the linkage engages the brake. When the control handles are moved inward into the drive position, the linkage disengages the brake.

Choosing genuine OEM parts helps ensure your machine continues to operate as the manufacturer intended.

Please verify that Part Number 607152 is the correct replacement for your equipment before placing your order.

Model Fit Chart





Super Z (2011 - 2017 Models)



 Below 2011 - 2013 Model Numbers have a Serial Break in Using 607152 Lower Steering Arm - Prior to Serial Number 130343312 Refer to Part Number 113575 - Serial Number 130343312 & After Refer to Part Number 607152



929927, 929935, 929943, 929950, 930024, 930065, 930875, 931048, 931725



Below Model Numbers Have No Serial Number Breaks in Using 607152 Lower Steering Arm



932012, 932020, 932038, 932046, 932053, 932061, 932129, 932137, 932368US, 932376US, 932970, 932988, 933457, 933911US, 933929US, 934182US, 934208US, 934216, 934224, 934232, 934240, 934257, 934265, 934273, 934281, 934299, 934984US, 934992, 935007, 935015US, 935023, 935031, 935049, 935056US, 935064, 937714, 937722





Super Z Hyper Drive (2013 - 2017 Models)



932145, 932152, 932160, 932178, 932186, 932384US, 932392US, 932996, 933002, 934307, 934315, 934323, 934331, 934349, 934356, 934687, 934695, 934703, 934711, 934919, 934927, 934935, 934943, 934950, 934968, 934976, 936625





Diesel Z (All Models)



928606, 928606A, 928606B, 928614, 928614A, 928614B, 928614US, 928614EX, 928622, 928622A, 928622B, 928630, 928630A, 928630B, 928630US, 928630EX, 928655, 928655US, 928655EX, 928663, 928663EX, 932665US, 932673US, 932681US, 932699US, 932707US, 938233US, 938241US, 938258US, 938266US, 940452US, 940460US, 940478US, 940486US, 943233US, 943241US, 943249US, 943266US





Super 104 (2018 - 2022 Models)



937201, 937219, 939462, 939470, 939603, 939652, 941005, 941526, 942318





If you're unsure, send us your model and serial number, and we'll be happy to verify the correct part before you order.

Your order is shipped by a knowledgeable outdoor power equipment dealership—not a general warehouse.

Every order is carefully packed, and our experienced parts specialists are available to help if you have questions before or after your purchase.

Thank you for choosing Hilly Ridge Sales & Service for your genuine OEM parts needs.

Part Number: 607152

Description: 607152 OEM Lower Steering Arm * Left and Right are the Same Part Number.
