Description
- Part Number: 119807
- Supersession: n/a

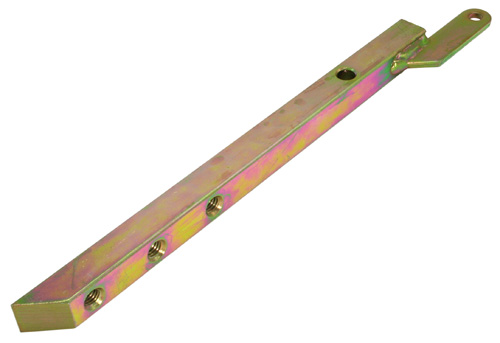

- Description: 119807 OEM Lower Steering Arm * Left and Right are the Same Part Number.
- Application:
119807 – Lower Steering Arm Application & Usage

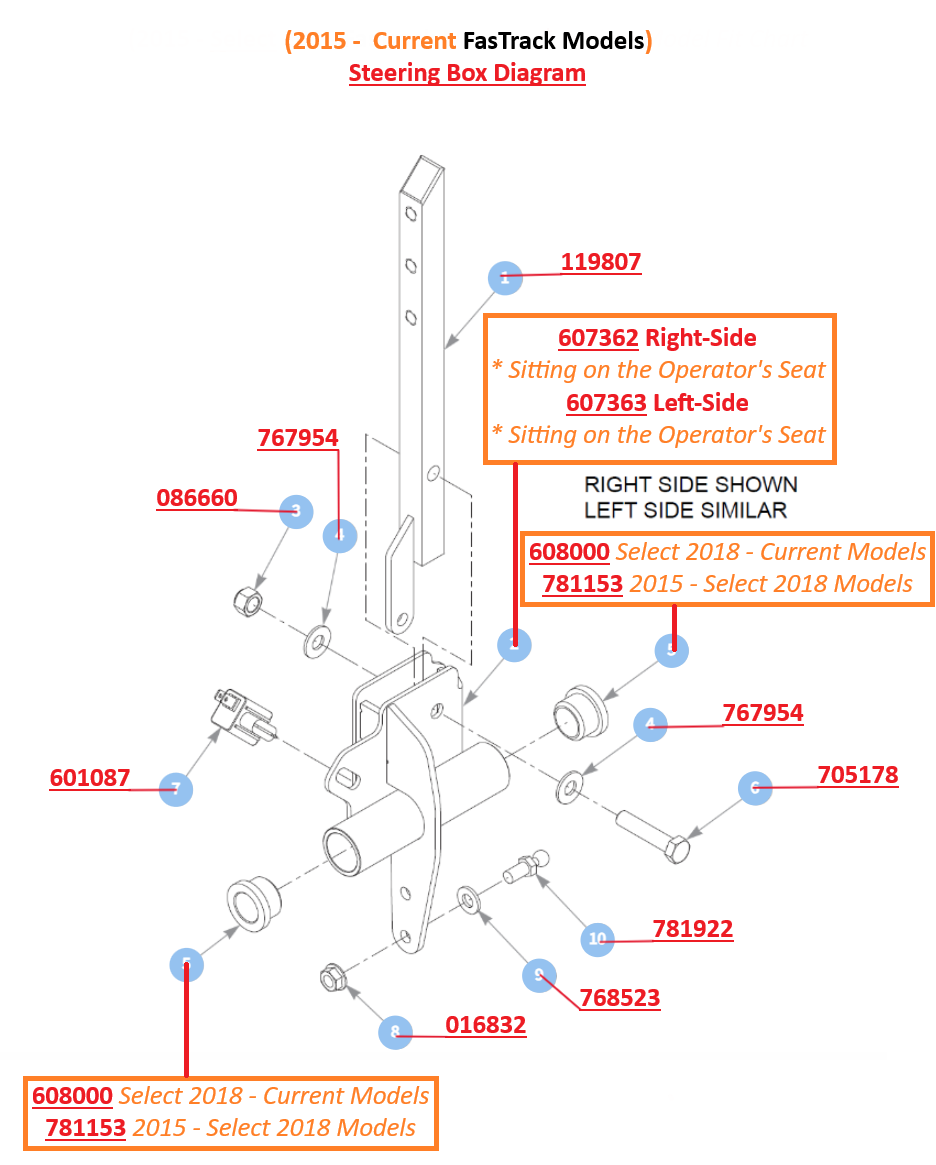

The 119807 Lower Steering Arm inserts into the steering box and provides the mounting point for the upper operator's hydraulic steering handle/levers. The upper operator's steering handle/lever attaches to the lower steering arm using the following hardware:
- Bolt – 705178
- Washer – 767954
- Nut – 086660
The 119807 Lower Steering Arm transfers the forward and reverse movement of the operator’s hydraulic control levers through the pivoting steering box.
This movement is then transferred to the hydraulic linkage connected to the steering box, allowing the operator’s control levers to control the machine’s drive functions.
The 119807 Lower Steering Arm also connects to the brake linkage. This connection converts the inward and outward movement of the operator’s control handles at the neutral/brake position into movement of the brake linkage.
When the operator moves the control handles outward into the neutral/lock position, the linkage engages the brake. When the control handles are moved inward into the drive position, the linkage disengages the brake.
| ✓ | Built to the manufacturer's exact specifications |
| ✓ | Guaranteed fit with no modifications required |
| ✓ | Designed for maximum performance and durability |
| ✓ | Maintains the safety and reliability of your equipment |
| ✓ | Manufactured using high-quality materials |
| ✓ | Helps reduce downtime caused by poor-fitting replacement parts |
| ✓ | Protects the value and longevity of your equipment |
Model Fit Chart
FasTrack (2015 - Current Models)
933424, 933432, 933440, 934851, 935627, 936054, 936062, 936070, 936088, 936104, 936112, 936120, 936138, 936146US, 936153US, 936161US, 938043, 938050, 938704, 938712, 938720, 938738, 938746, 938753, 938761, 938779, 938787, 938795, 940346, 940353, 940361, 940379, 940387, 940395, 940403, 940411, 940429, 940437, 941724, 941732, 941740, 941757, 941765, 941773, 941781, 941674, 941682, 941708, 943704, 943753, 943761
