SPARTAN KG-XD 61"

SpartanSKU: KG XD

Price:
Sale price$8,900.00

Pickup available, Usually ready in 24 hours

Description

Description:



  • 398.2 hours
  • New Carlisle HD Field Trax Tires
  • Fresh service
  • Equipped with an Advanced Chute System mulch door


Features:

  • Acreage: 5+

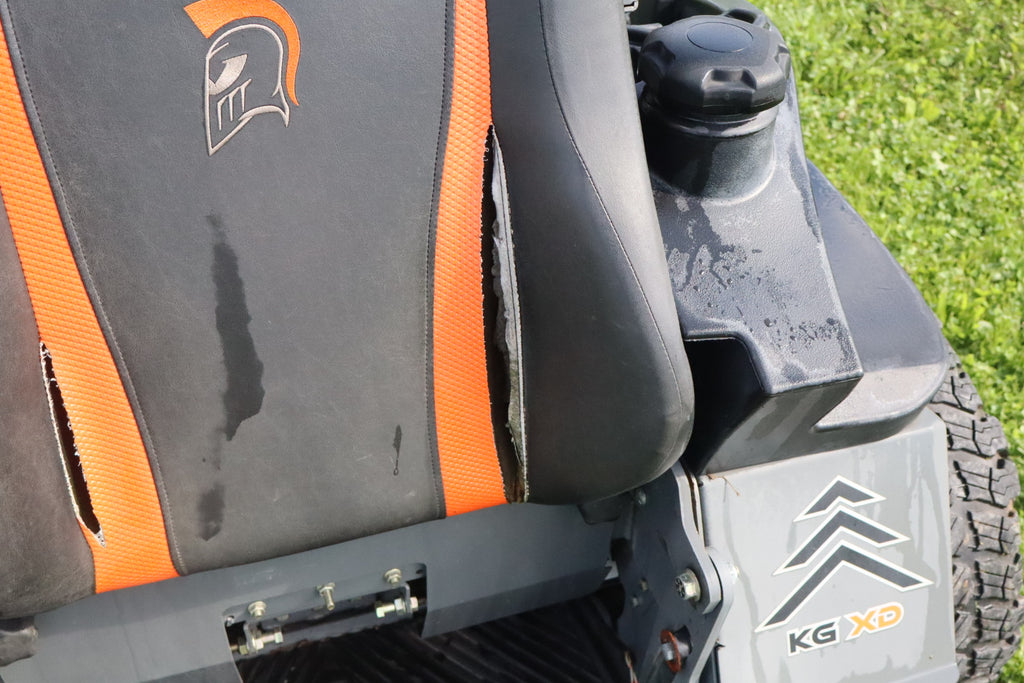

  • Seat: Smart Ride Technology w/ full suspension operator platform w/ supporting reinforced knee bolstering - adjustable TecsPak Elastomer rolling on radial tires w/ optional fully adjustable suspension seat system.
  • Steering Levers: Adjustable Speed Stops

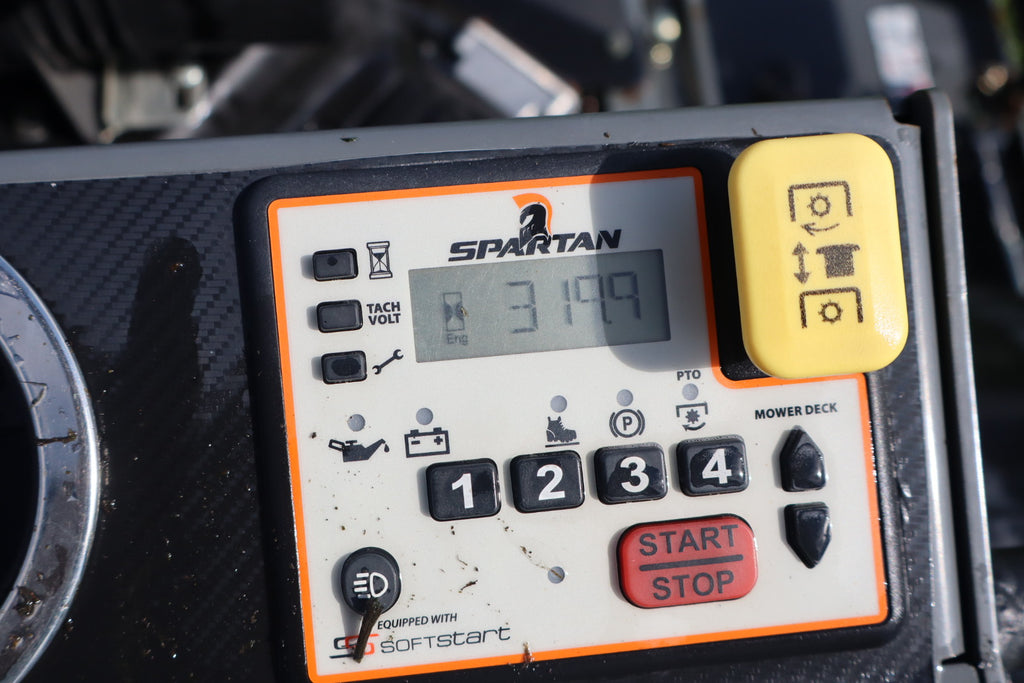

  • Control Panel LCD Display: Engine Hour Meter - Mower Deck Hour Meter - Tachometer - Low Level Warning Volt Meter - Time Between Oil Change Countdown - Fault Codes
  • Control Panel LED Warning Indicators: Parking Brake Set - Drive Levers - Operator Present - PTO - Low/Hi Battery Volts - Low Oil PSI
  • Ignition: Keyless, Personal Code activated
  • Auxiliary Power: 12v Outlet Next to Phone Holder
  • Storage: Phone Holder, Cup Holder, and Deep Storage Tray
  • Hitch: N/A


Specifications:


Engine

  • Horsepower: 37 hp
  • Fuel Capacity: 12 gal

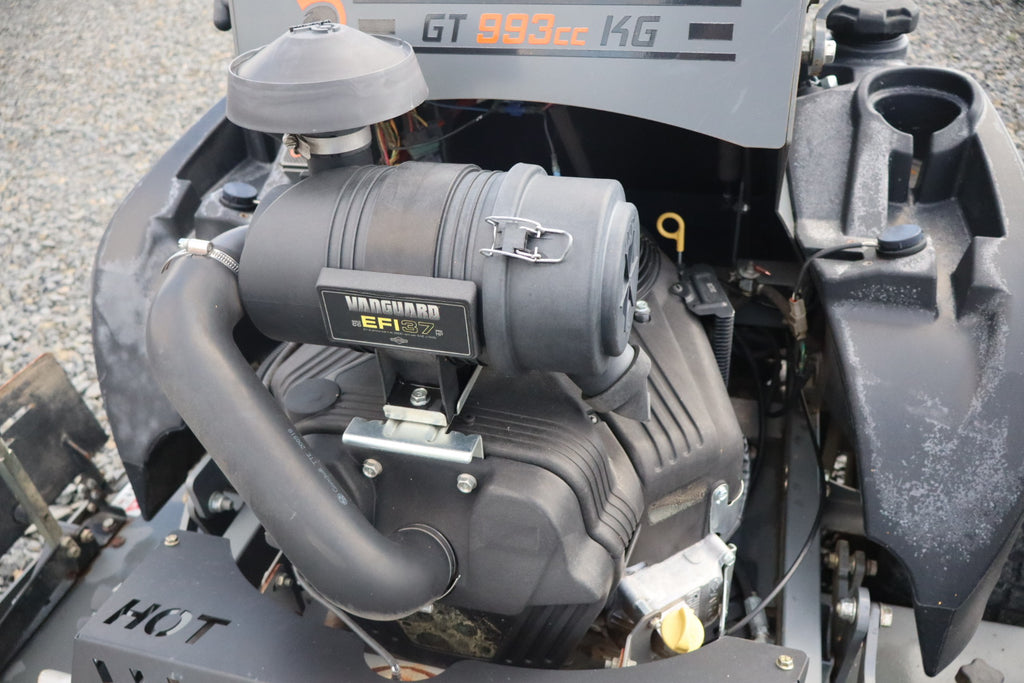

  • Engine Name: Vanguard Big Block


Drive Line

  • Hydraulic Drive: Parker HTJ Transaxles - 12cc Drive Motors
  • Hydraulic Drive Torque: Continuous - 262 ft-lb | Max Torque - 406 ft-lb
  • Hydraulic Drive Maintenance: 1000 Hours Between Oil Changes
  • Front Tires: 13x6.5-R6 Radial with Optional No Flats, or Tweels
  • Drive Tires: 54" - 24x10.50-R12 Radial | 61" - 24x12-R12 Radial
  • Wheel Type: Aluminum rear wheels
  • Speed (F/R): Forward - Up to 11mph | Reverse - Up to 5mph


Cutting Deck

  • Deck Size: 61"
  • Deck Depth: 6" Deep, Reinforced 7 Gauge Full-Floating Deck
  • Deck Lift: Foot Operated with Shock Assist
  • Deck Adjustment: Precision Deck Height Pin System
  • Cut Height: Quick Adjust Dial from 1" to 5" with 15 Cut Heights
  • Blade Spindles: Cast Aluminum, No Maintenance/Sealed Bearings
  • Parking Brake: Hand Operated
  • Frame: 1.5" by 3" Powder Coated Fusion-Bonded Solid Steel Bridge Frame


Measurements

  • Width: 61” Deck - 62.5” Wide
  • Weight: 61” Deck - 1112 lbs
  • Length: 72.5"
  • Height: 49"


Warranty

  • Full Warranty: 3 Year / 500 Hour Residential - 2 Year / Unlimited Hour Commercial - 120 Day Belt Warranty
  • Engine Warranty: 3 Year
  • Deck Warranty: Lifetime on the leading edge
  • Hydraulic Drive Warranty: 3 Year / 1500 Hour
  • Control Panel Warranty: 3 Year
