Description

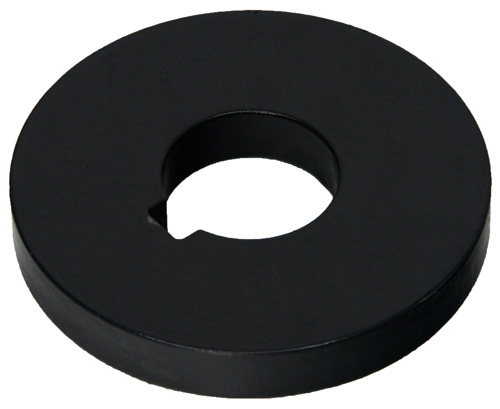

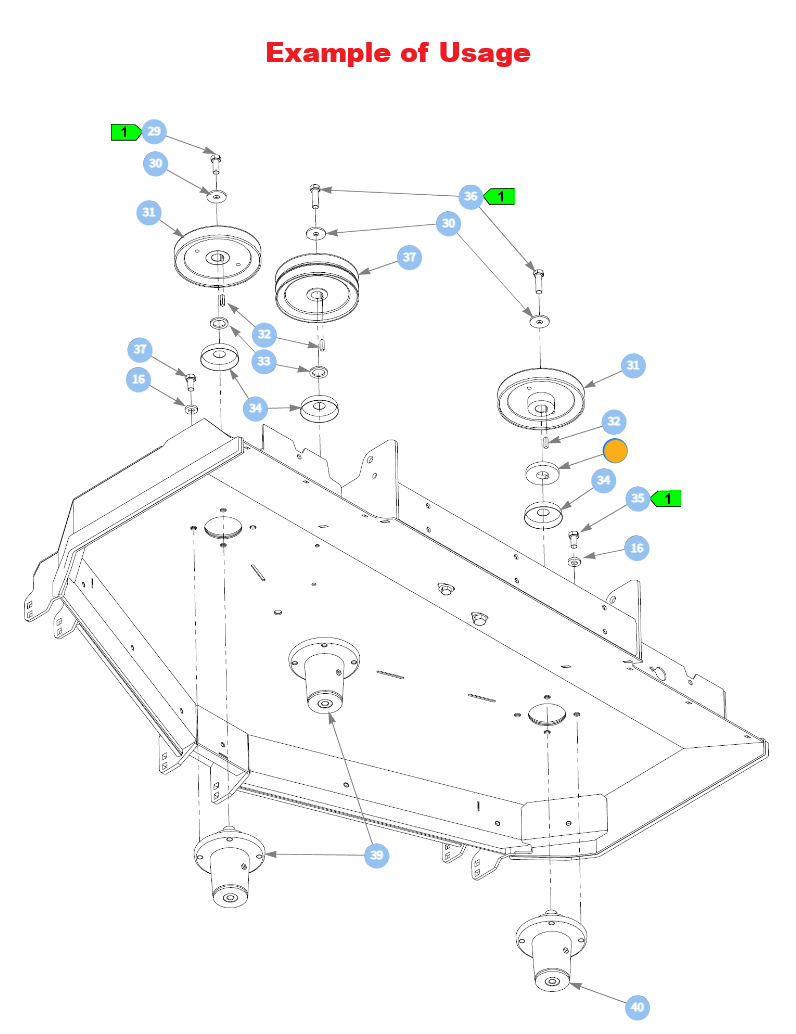

Hustler OEM 114108 is a 3/8" Spacer and is Designed for Specific Hustler Models (Rear Discharge Models) that Requires a Double Pulley and also Requires one of the Single Pulley to be Spaced and Aligned to the Upper Section of the Double Pulley. Refer the Correct Pulley Part Number on Hilly Ridge's Website Page for Your Specific Model or Family for Pulley Diagrams and Pulley Part Combination and Placement (This can be Found by Entering your Model Number and Part Type - Mower Deck Pulley - in the Search TAB @ the Top of the Page). Hustler 114108 Fits Hustler X-ONE (Early Select Rear Discharge Models Only) - 2011 - Current Super Z, Super Z HD, Diesel Z (Rear Discharge Models Only). Please Refer to the Images above, Model Fit Chart, Special Notes and Product References below to ensure a proper fit. Click on the Part Numbers to be redirected.
- 607408P - Left-Hand Mower Blade Spindle Assembly (Used at Select Locations on Rear Discharge Mower Models - OEM Mower Blades and Spindle Ass. are Painted Red to Determine the Difference)
Model Fit:
* 114108 May Be Used on Additional Models/Families like Deisel Z & X-One Models - Due to Lack of Information and Details - Hilly Ridge Will Continue to MANUELLY Improve the Model Fit Chart with Time - If you Have any Questions on Exact Fit Feel free to Message or Call us.
X-ONE - Rear Discharge Models
(Models 2011 and Later are Listed - Models Listed Prior To 2011 May Not Be Listed If Applicable)
Models are Currently Not Listed
Super Z - Rear Discharge Models
(Models 2011 and Later are Listed - Models Listed Prior To 2011 May Not Be Listed If Applicable)
930024, 930065, 932053, 932061, 934216, 934224, 935023, 935064, 936914, 936955, 940031, 940049, 941195, 941203, 942862, 942912, 943910, 943944
Super Z Hyper Drive - Rear Discharge Models
(Models 2013 and Later are Listed - Models Listed Prior To 2013 May Not Be Listed If Applicable)
930024, 930065, 932053, 932061, 934216, 934224, 935023, 935064, 936914, 936955, 940031, 940049, 941195, 941203, 942862, 942912, 943910, 943944
Diesel Z - Rear Discharge Models
Models are Currently Not Listed Will Be Eventually
Not sure if this is the correct part?
Contact us with your Hustler model and serial number and our parts team will verify fitment before you order.
