Description

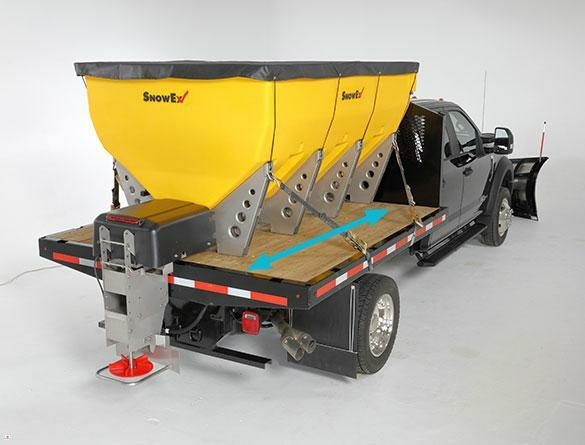

The SnowEx^® HELIXX™ poly hopper spreaders deliver proven, high-capacity performance with capacities ranging from 1.5 to 5.0 cu yd models. This line of spreaders is engineered from the ground up to ensure maximum efficiency on your toughest routes. Featuring the patented HELIXX™ shaftless auger material delivery system that is optimized to reduce chance of clogs, clumps, or bridging. Seamlessly spread, pre-treat, and perform direct liquid application—all from one reliable unit—with the optional Triple Threat system. This innovative spreader combines lightweight, rugged durability with next-level technology, making it the essential equipment you need to dominate every property.

Features

• Helixx Advanced Material Delivery: The patent-pending corkscrew – or “helix” – design of the HELIXX material delivery system is optimized for efficient and cost-effective use of salt and was designed to operate in the target range for salt spreading best practices. The innovative design helps prevent clogs and delivers a material flow superior to traditional augers.
• Full Length Helixx & Milti-Dimensional Tub: The HELIXX runs the entire length of the hopper with variable flights. Combined with strategically positioned ribs/angles within the poly tub walls, this promotes the best possible material flow and even unloading.
• Triple Threat: Spread, pre-wet or spray with one machine. By adding pre-wet tanks, a pump and a spray kit, the HELIXX spreaders not only pre-wet materials, but they can also be used for spraying liquid brine directly onto the driving surface for anti-icing applications. The components offer a simple plug-and-play installation, meaning a contractor can upgrade to pre-wetting or direct liquid applications at any time.
• Cab Forward Design: The cab forward hopper delivers better payload distribution to reduce stress on the truck.
• Material Leak/Spill Prevention: The HELIXX extends beyond the hopper and into the patented pre-wet mixing chamber to help prevent leaking/spilling during transport while providing an ideal location for pre-wetting material.
• Stainless Steel Frame: Constructed of corrosion-resistant stainless steel, the frame features a unique leg and sill design to form a ridged backbone structure for greater durability.
• Chute Baffle System: Baffles within the chute direct material to key areas on the spinner resulting in a remarkably even and consistent spread pattern, as well as reducing material directed back at the vehicle.
• Spinner Height Adjustment: Three spinner height adjustments allow spreaders to achieve a consistent spinner height of 18 to 22 inches off the ground, regardless of vehicle type (Standard on 11800 and 11810 models).
• Simple Installation: Only requires a single 4-pin wire routed into the cab to install the compact control.
• Fleet Flex: The FLEET FLEX electrical system provides a consistent electrical platform and complete fleet interchangeability between all HELIXX spreaders.
• No-Blast Startup: For maximum material placement and control, the spinner doesn’t blast upon startup, instead starting at the desired speed setting on the dial.
• Flip-Up/Removable Chute: Remove a single pin to flip-up the chute, or two pins to take it off entirely, for easy hitch access and more flexible storage.
• Dump Switch: Rear-mounted dump switch allows operators to quickly dispose of spreading materials left in tub/material control chamber.
• Rear-Mounted Gear Box: Easy access to motors, drives and other key components maximizes serviceability.
• Work Light: Offers better visibility at rear of spreader during night applications.
• Vibrator: Attached to structural cross member, it vibrates the entire unit (tub and sill) to maximize flow of bulk materials.
• Top Screen: Top screen ensures material that enters the hopper is consistent size by breaking up any large clumps and filters out large debris to ensure proper operation.
• Fitted Tarp: A tarp fitted to the spreader’s dimensions protects material from outside weather elements and keeps it dry.
• Fork Pockets: For simple install and removal, fork pockets are integrated into the frame legs.

Specifications

• Capacity: 3.5 cu yd
• Vehicle Compatibility: Dump Body, Flatbed, or 15,000+ GVWR Truck
• Material Compatibility: Bulk Salt, Pre-Wet, Liquid Brine
• Spreading Width: 8 - 40 ft
• Approx. Weight (Empty): 694 lb
• Overall Dimensions (LxWxH): 133" x 67.25" x76"
• Hopper Dimensions (LxWxH): 109" x 67.25" x 46.5"
• Min. Bed Length: 98"
• Capacity Weight: 7,280 lb
• Motors: Dual Electric, 12V, Sealed
• Spinner: 12"
• Helixx: 6.25" Heavy-duty shaftless auger variable pitch steel flighting
• Brake Light: Yes
