Description

Based on the material your operation most commonly uses for de-icing, the
SnowEx® Renegade line offers the best material delivery system for you. The
polyethylene construction and integrated lid system allows you to protect your
de-icing material as you complete your service routes.

Features

• Polyethylene Construction and Geometry - Resist the corrosive environment of de-icing with polyethylene construction. Lightweight, yet highly durable, these hoppers are built to last. The molded polyethylene tub geometry is optimized for better material flow. This allows for a smoother, even flow that prevents materials from getting stuck.
• Helixx Auger Technology - Patented corkscrew material delivery system is optimized to operate in the target range for rock salt spreading best practices. The auger has multiple pitches to help promote smooth, even material flow from the hopper and prevents bridging. The shaftless technology reduces drag on the motor and reduces the overall load on the electrical system.
• Pintle Chain Conveyor - The large conveyor delivers reliable, smooth, and consistent material flow for heavy, dense materials (like sand and 50/50 mix) while reducing bridging.
• Interlocking Poly lids - Standard lids have molded channels for moisture runoff. Pockets at the end of the lid allow a 2×4 to be inserted for leverage while opening.
• Stand On End - Special design allows the hopper to stand on end for easier storage in the off-season and easier installation into the truck bed. Simply remove the two pins, unplug it, and take off the chute before standing up the hopper.
• Extended Material Delivery & Pre-Wet Chamber - A material delivery extension reduces leaking/ spilling during transport and leads into the patented pre-wet mixing chamber. It also provides a cab-forward design for added stability and weight distribution of the hopper.
• Optimized Spinner Channels - The ridges on the spinner ensure an even distribution of material throughout the spread arc. The spinner is 16” diameter and can spread salt up to 36’ and sand up to 24’.
• Chute Power Plug - Heavy-duty, weather-resistant plug is IP-68 rated. Positive latching ensures a secure connection, even with vibrations caused by consistent travel. The plug has been tested to 5,000 mating cycles for durability for many winter seasons to come.
• Common Part Chute design - The ergonomic, hinged design uses fewer components for all models, making service easy. A direct-drive motor offers better torque and reduces servicing.
• Swing Away Chute Assembly - Remove the pin, unplug it, and swing the chute from the the driver’s side to the passenger side, providing easy access for maintenance or material unloading. The chute assembly can also be removed for convenient access to the hitch or to stand the hopper up on end during storage.
• Material Spill Protector (Chain Models Only) - A protection flap at the end of the conveyor prevents material from spilling out and pooling near the vehicle cab.
• Inverted V - Reduce heavy startup loads on the drivetrain and potential bridging during operations with the optional inverted V. Made of 12 gauge 201 stainless steel, the inverted V is strong and corrosion resistant, for use in highly demanding environments. The inverted V is easy to assemble and install and will provide years of trouble free use.
• Electric Motor - The two high-torque 12-volt electric motors provide quiet, reliable, and independent control over the conveyor and spinner mechanisms. The spinner motor is sealed inside a weather-resistant housing, protecting it from corrosion, while the conveyor motor is completely sealed from the elements.
• Shutter Deflector - The easy-to-adjust circular shutter deflector allows directional spreading, providing optimal material control, while maintaining even coverage. For quick adjustments, simply move the convenient hand operated lever left or right to limit spread pattern to protect sensitive surfaces.

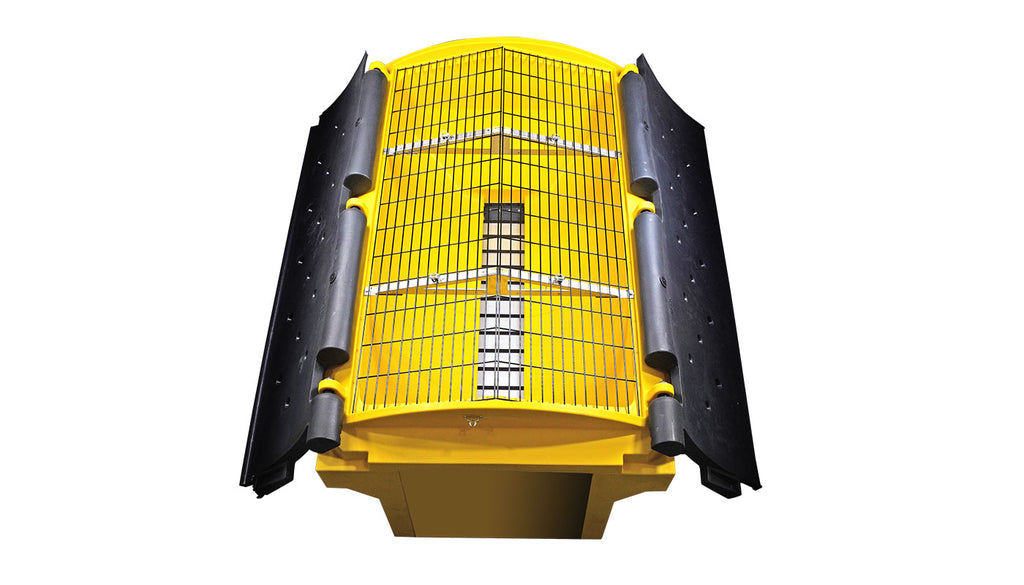

• Top Screen & Replaceable Anchor - A steel top screen comes standard, which helps break up large chunks of de-icing material during the loading process to prevent clogging and bridging during spreader operation. The anchor piece is now bolted on instead of welded for easy replacement.
• Accessory Integration & Knock Outs - Conveniently connect accessories directly into the hub mounted in the back of the hopper. Accessories automatically integrate with the hopper control without having to run additional wires from the front of the truck. Hoppers feature knock-out holes for plug-and-play integration of certain accessories.
• Dump & Work Light Switches - Operators can safely offload material or fill walk-behind spreaders by using the rear-mounted dump switches. A third switch is also provided so that an accessory work light may be conveniently controlled from not only the cab but also the rear of the hopper.
• Fleet Flex Electrical System - SnowEx hopper spreaders are designed with FLEET FLEX technology for easy interchangeability between electric hopper spreaders without having to change the wiring or the controls. It provides easy operation, increased reliability, simple wiring, and easy installation. Additionally, accessories automatically integrate into the control for easy plug-and-play.

Specifications

• Capacity (volume) - 1.5 cu yd
• Vehicle Compatibility - ¾ or 1-Ton Pickup, Dump Body, Flatbed, or 15,000+ GVWR Truck
• Material Compatibility - Bulk Salt, Pre-Wet* & Liquid Brine*
• Capacity (Weight) - 3240 lbs
• Spreading Width - Salt: Up to 36'
• Approx. Weight (Empty) - 673 lbs
• Hopper Length (A) - 96.5"
• Bed length (B) - 80"
• Overall Hopper Length (C) - 108.25"
• Width of Hopper Opening (D) - 63.50"
• Height of Hopper Opening w/o Chute (E) - 46"
• Body Side Length - 7'
• Rec. Bed Length - 74"
• Material Delivery Dimensions - 6" Diameter
• Hopper Construction - Polyethylene Body, Stainless Steel Drive Line
• Spinner Size - 16" Diameter
• Factory Chute Configuration - Short
