Description

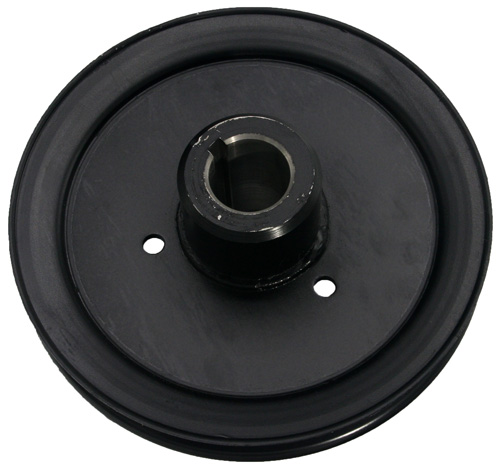

Hustler OEM 602755 Engine Pulley
The Genuine Hustler OEM 602755 Engine Pulley is used in Select Hustler Mower Drive Systems to Help Transfer Engine Power Through the Drive Belt to the Hydraulic Pumps/Wheel Motors. Hustler OEM 602755 Pulley is as a 7.35 OP x 1.125 Pully Diameter & Shaft Size.
⚠️ Before You Order – Verify Fitment
Engine Pulleys can vary by Hustler Model, Engine Package, Clutch Setup, Shaft Size and Belt Layout. Do not order by appearance alone. Confirm that Your Model Number is Listed in the Model Fit Chart Below.
Not sure? Contact us with your Hustler Model and Serial Number and We’ll help Verify Fitment.
What This Part Does
- Helps Transfer Engine Power to the Hydraulic Components Through the Mower Drive Belt
- Replaces a Worn, Damaged or Grooved Engine Pulley that Would Cause Continual Drive Belt Damage
- Helps Maintain Proper Belt Tracking and Drive Performance
- Genuine Hustler OEM Replacement Part for Correct Fit for Approved Mower Drive Belt Applications
Part Details
- Brand: Hustler
- Part Number: 602755
- Superseded Part Numbers: n/a
- Part Type: Engine Pulley / Drive Pulley
- Size: 7.35 (Outer Diameter) x 1.125 (Shaft/Bore Size)
- OEM: Genuine Hustler Replacement Part
Fits Select Hustler Models
Used on select commercial Hustler mower applications including:
- Hustler Super Z (Select Models)
- Hustler Super Z HD (2013 - Current Model)
- Hustler Super 104 (All Models)

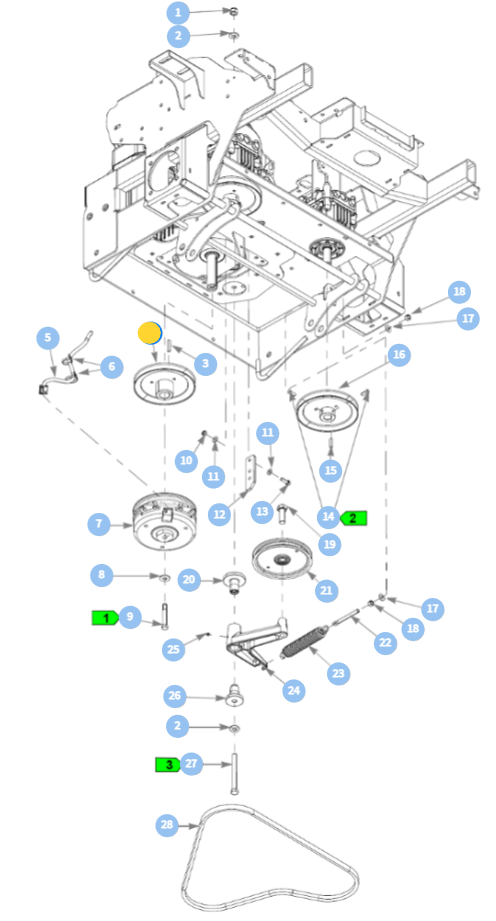

Associated Parts List
- 036236 - Clutch Anchor Bolt (5/16 x 1.00 - 18) - Reference Number 1
- 768523 - Clutch Anchor Washer (SAE 0.343 - Fits 5/16)- Reference Number 2
- 113347 - Clutch Anchor - Reference Number 3
- 000331 - Wire Tie - Reference Number 4
- 034272 - Clutch Anchor Lock Nut (5/16 - 18) - Reference Number 5
- 606936P - PTO Clutch - Reference Number 11 * All Model Except Select Super 104 Models
-
601278P - PTO Clutch - Reference Number 11 * Fits Only Super 104 Model 943225
- 609186K - PTO Clutch - Reference Number 11 * Fits Only Super 104 Model 944058 & 944066
- 791251P - Clutch Harness Wire Pigtail - Reference Number 12
- 602680 - PTO Clutch Washer (.453 x 1.012 x .12 Fits 7/16) - Reference Number 13
- 601834 - PTO Bolt / Loctite (7/16 x 3 1/4 - 20) - Reference Number 14 * Fits Select Models Only
- 785048 - PTO Bolt / Loctite (7/16 x 3.00 - 20) - Reference Number 14 * Fits Select Models Only
Assembly Directions & Helps
For Clearer More Readable Assembly Direction Right Click Image and Select Open in a New Window. Direction Can also Be Magnified in the Images as well
- NOTE: To Replace the Engine Pulley, it is Necessary to Remove the PTO Clutch and Reinstall it After the Pulley is Installed - Below are the Disassembly and Assembly Directions for the PTO Clutch
- NOTE: To Replace the Engine Pulley, it is Necessary to Remove the Hydraulic Drive Belt. When Re-Installing the Hydraulic Drive Belt, it is Imperative to Make Sure it is Adjusted Properly - Below are Adjustment Direction for the Hydraulic Drive Belt
Model Fit Chart
Super Z (Select Models)
929927, 929935, 929943, 929950, 930024, 930065, 930875, 931048, 942805, 942813, 942839
Super Z Hyper Drive (All Models)
932145, 932152, 932160, 932178, 932186, 932996, 933002, 934307, 934315, 934323, 934331, 934349, 934356, 934687, 934695, 934919, 934927, 934935, 934943, 934950, 934968, 934976, 936997, 937003, 937011, 937029, 937037, 937045, 937052, 937110, 939561, 939579, 939587, 939595, 941229, 941237, 941245, 941252, 941260, 941278, 941286, 941294, 941302, 941310, 941328, 941534, 941542, 941559, 941567, 942219, 942227, 942235, 942243, 942250, 942359, 942765, 942961, 942979, 942995, 943001, 943019, 943027, 943035, 943043, 943050, 943068, 943951, 943969, 943977, 943985, 943993, 944017, 944025, 944033, 944041
Super 104 (Select Models)
937201, 937219, 939462, 939470, 939603, 939652, 941005, 941526, 942318, 943217, 943225, 944058, 944066
