Description

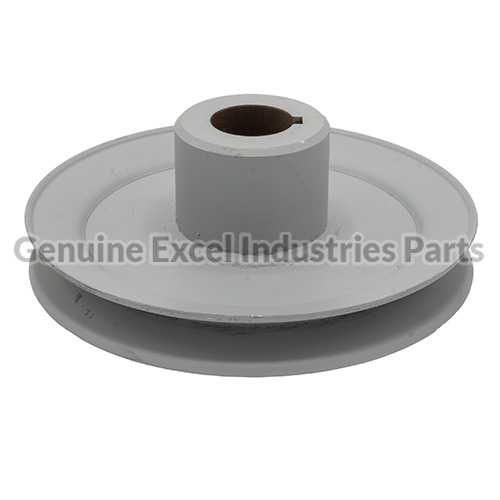

Hustler OEM 606736 Engine / Hydraulic Drive Pulley
The genuine Hustler OEM 606736 pulley is used in select Hustler commercial mower drive systems to transfer engine power through the hydraulic drive belt. This pulley measures 6.67" outside diameter with a 1.125" bore and is designed for approved Hustler Super SF and Super 88 applications.
⚠️ Before You Order – Verify Fitment
Engine pulleys can vary by model, engine package, clutch setup, shaft size, and belt layout. Do not order by appearance alone.
Not sure? Contact us with your Hustler model and serial number and we’ll help verify fitment.
Part Details
- Brand: Hustler
- Part Number: 606736
- Part Name: Engine / Hydraulic Drive Pulley
- Size: 6.67" OD x 1.125" Bore
- OEM: Genuine Hustler Replacement Part
Fits These Hustler Models
942029, 942037, 942045, 942052, 943506, 943514, 943522, 943530, 936617, 939546

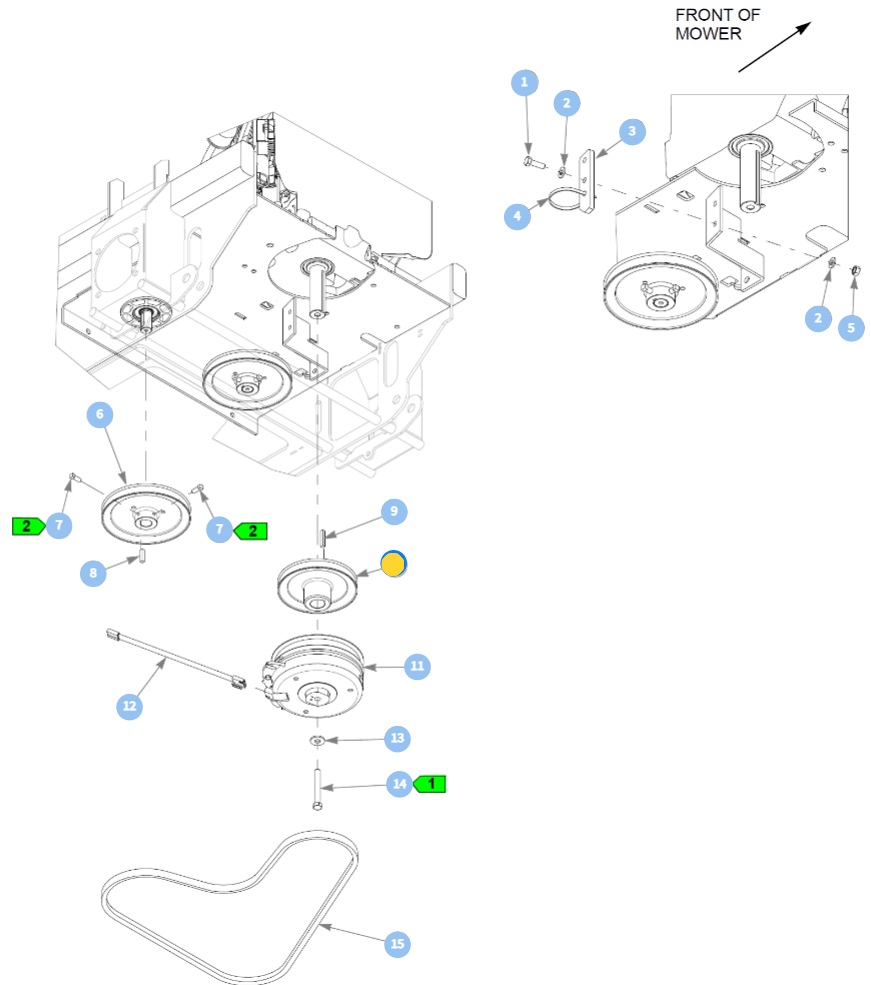

Related Parts Frequently Replaced Together
- 606936P – PTO Clutch
- 791251P – Clutch Harness Wire Pigtail
- 602680 – PTO Clutch Washer
- 601834 – PTO Bolt / Loctite, 7/16 x 3-1/4 - 20
- 785048 – PTO Bolt / Loctite, 7/16 x 3.00 - 20
- 113347 – Clutch Anchor
- 036236 – Clutch Anchor Bolt
- 768523 – Clutch Anchor Washer
- 034272 – Clutch Anchor Lock Nut
Installation Tips
- Disconnect the battery and spark plug wires before service.
- The PTO clutch must be removed to replace this engine pulley.
- Inspect the PTO clutch, clutch bolt, washer, and harness while the pulley is removed.
- The hydraulic drive belt must be removed and reinstalled during pulley replacement.
- After installation, verify belt routing, belt tension, and pulley alignment before operating the mower.
- Replace any grooved, damaged, or heat-worn belts to avoid premature pulley or belt failure.
Need help confirming fitment? Send us your Hustler model and serial number before ordering.
