Hustler OEM 127273-1 Brake Pull Link
The Hustler OEM 127273-1 Parking Brake Pull Link - 127273-1 Parking Brake Pull Link Attaches to the Operator's Brake Control Handle Via its Weldment Stud or Insert Pin on the Side or Center of the Handle Assembly Using Washers and Cotter/Clip Pin. The Lower End of 127273-1 Park Brake Pull Link Also Attaches to the Unit's Tread Lock Pivot Rod Assembly Via Pivot Rod Weldment Stud or Insert Pin with Washer and Clip/Cotter Pin. This Enable the Tread Lock Teeth to Insert into the Tread of the Mower Tires Via Pivotal Movement of the Operator's Handle Transferred to 127273-1 Brake Pull Link and Transferred to Tread Lock Pivot Rod Assembly on Which the Tread Lock Teeth are Fastened to - If any of These Components Becomes Worn It Will Contribute to Drifting or Coasting with the Brakes On. (Part Numbers May Vary for Components Based on the Serial Number Range - Review Part Diagram Above).
⚠️ Before You Order – Verify Fitment
Because Fitment Within Model Numbers and Year Ranges Very - Verify Your Model & Serial Numbers are Listed in the Model Fit Chart Below Before Ordering.
Not sure? Contact us with your Hustler model and serial number and we’ll help verify fitment.
Sold Individually - As Pictured
What This Part Does
- Transfers Movement from the Brake Control Handle to the Other Brake Components.
- Maintains Predictable Brake Engagement.
- Replaces a Worn, Damaged, Loose, or Binding Brake Pull Linkage.
- Provides Genuine Hustler OEM Fit, Construction, and Mounting Configuration.
Associated Parts

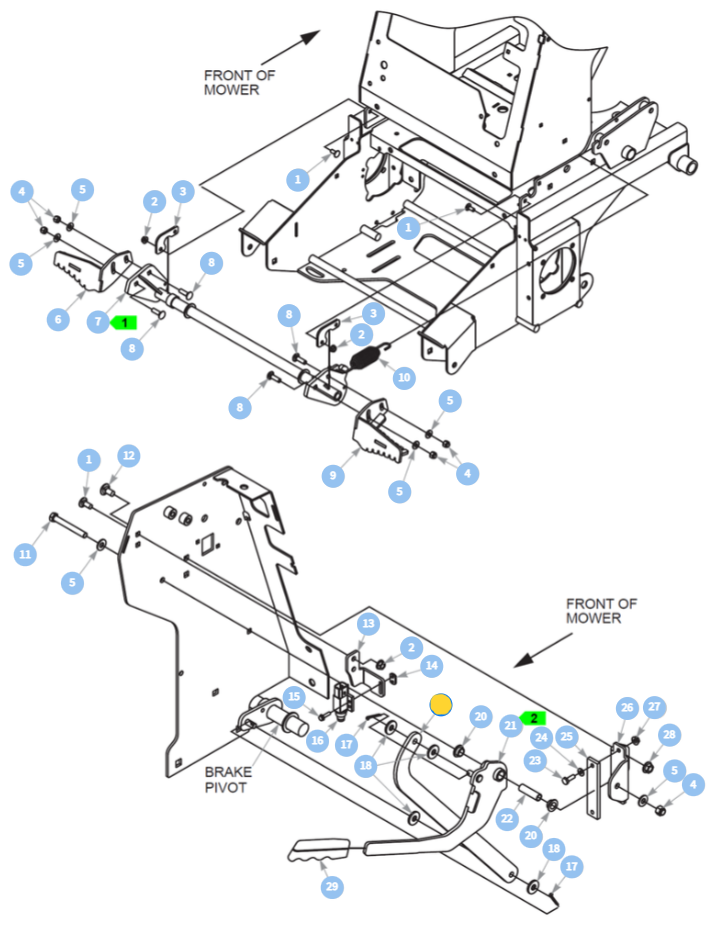

Refer to the Detail Parts Diagrams in the Images for Additional Parts Info.
Part Details
- Brand: Hustler Turf Equipment
- Part Number: 127273-1
- Supersession: n/a
- Part Name: Brake Pull Link Linkage
- Position: Located on the Right-Hand Side as You Stand on the Operator's Platform.
- Part Type: Genuine OEM Brake Pull Link Linkage
- Quantity: One Brake Pull Link
Model Fit Chart
Super S (Select 2021 - Current 48", 52", 60" Models)
940213, 940221, 940247, 940254, 940296, 940304, 941393, 942292, 943126, 943134, 943142, 943167, 943175
