Description
Hustler OEM 122662 Brake Pull Link
The Hustler OEM 122662 Parking Brake Pull Link - 122662 Rotates on 765339 Bushings enabling a Smooth Pivotal Movement to Be Transferred from the Operator's 123269 Brake Control Handle to the Unit's 606345 Tread Lock Pivot Rod Assembly this Enable the 606299 Tread Lock Teath to Insert Into the Tread of the Mower Tires Via the Pivotal Movement of the 606345 Tread Lock Pivot Rod Assembly - If any of These Components Becomes Worn it Will Contribute to Drifting or Coasting with the Brakes On.
⚠️ Before You Order – Verify Fitment
Because Fitment may vary by Model Number and Year Verify Your Model is Listed in the Model Fit Chart Below Before Ordering.
Not sure? Contact us with your Hustler model and serial number and we’ll help verify fitment.
Sold Individually - As Pictured
What This Part Does
- Transfers Movement from the Brake Control Handle to the Other Brake Components.
- Maintains Predictable Brake Engagement.
- Replaces a Worn, Damaged, Loose, or Binding Brake Pull Linkage.
- Provides Genuine Hustler OEM Fit, Construction, and Mounting Configuration.
Associated Parts

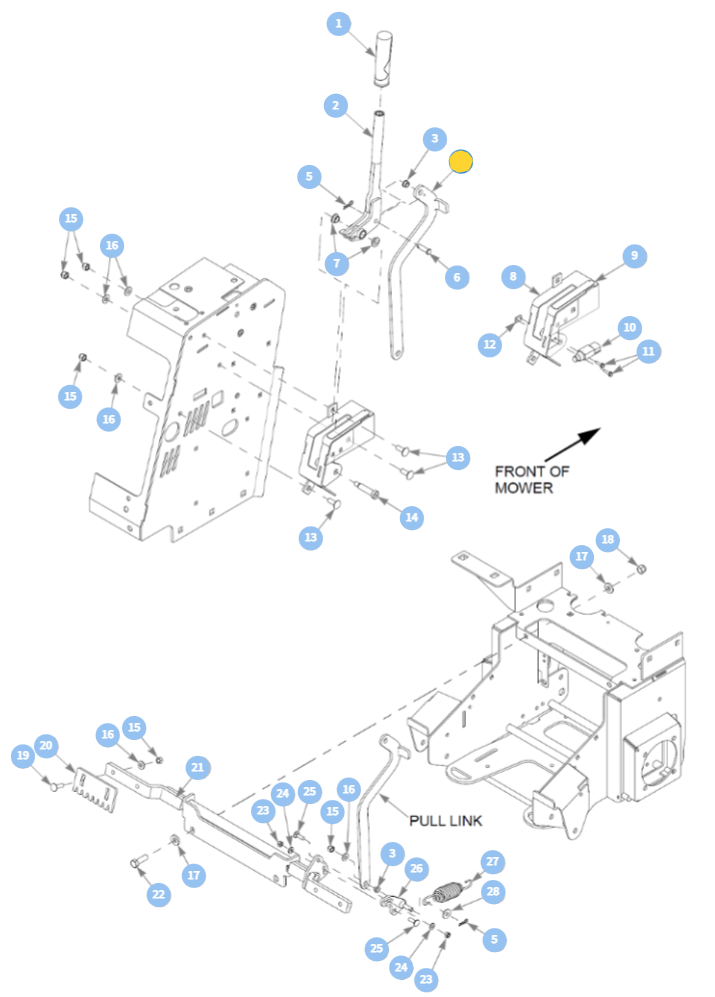

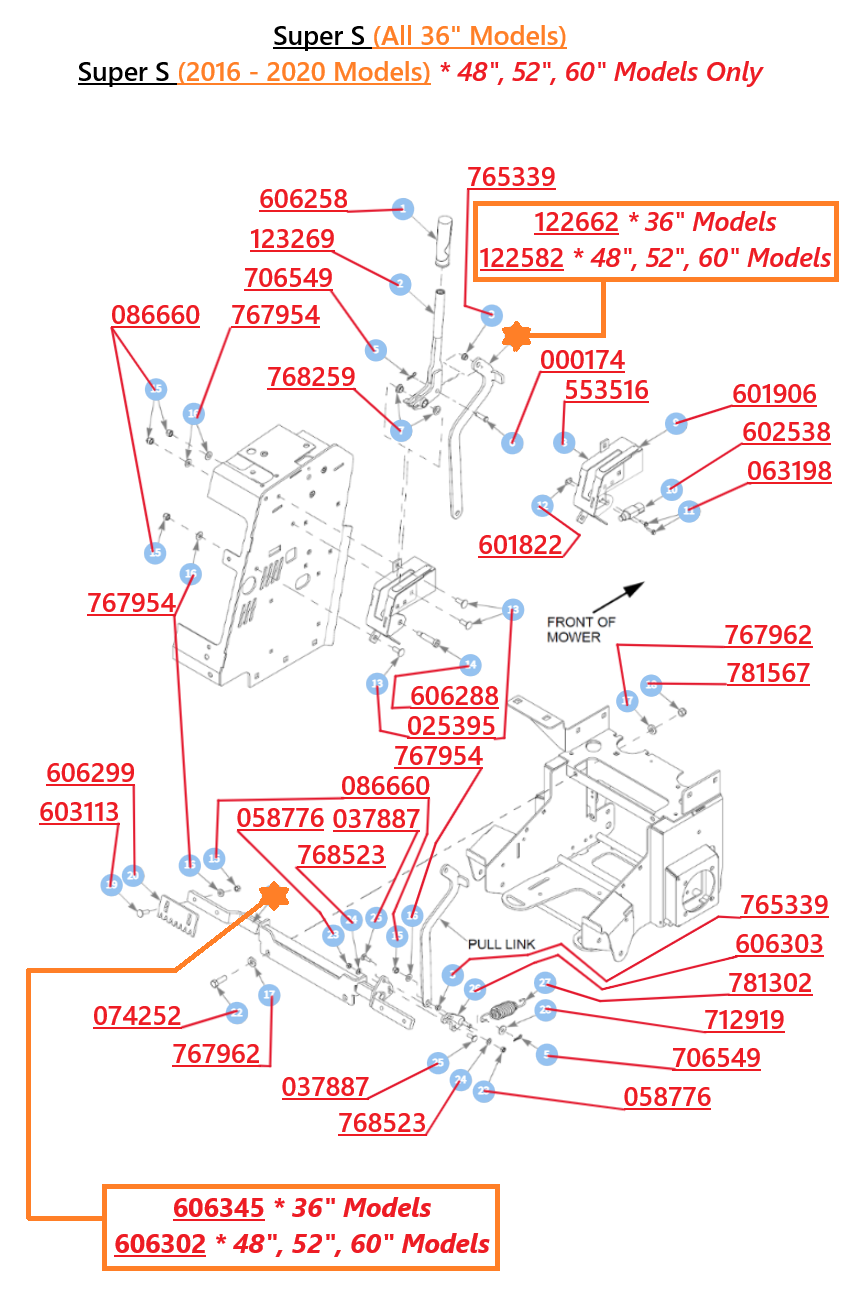

Refer to the Detail Parts Diagrams in the Images for Additional Parts Info.
Part Details
- Brand: Hustler Turf Equipment
- Part Number: 122662
- Supersession: n/a
- Part Name: Brake Pull Link Linkage
- Position: Located on the Right-Hand Side as You Stand on the Operator's Platform.
- Part Type: Genuine OEM Brake Pull Link Linkage
- Quantity: One Brake Pull Link
Model Fit Chart
Super S (All 36" Models)
933325, 935387US, 937128, 939439, 940205, 940288
