Description

NO LIGHTWEIGHT HERE.

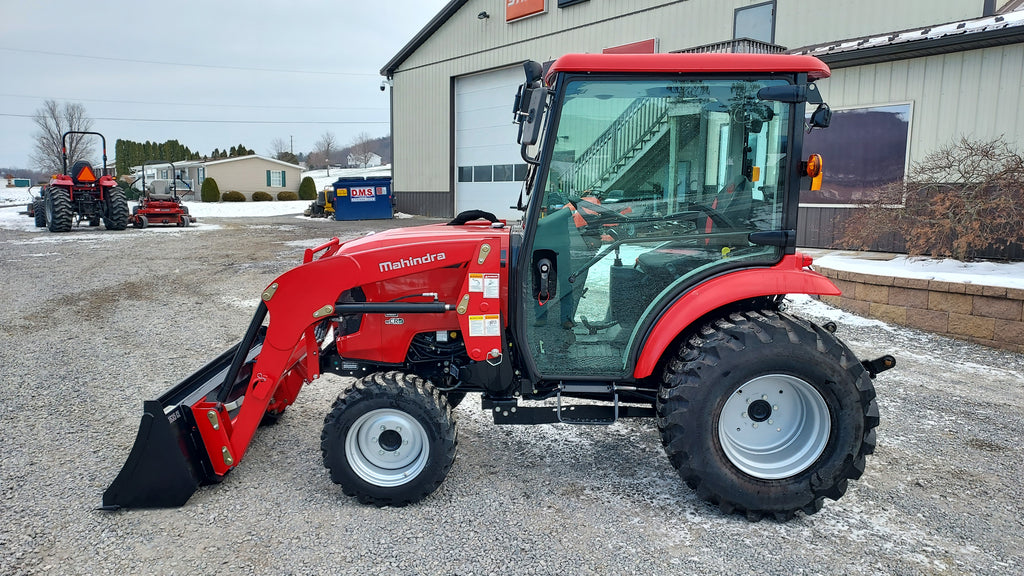

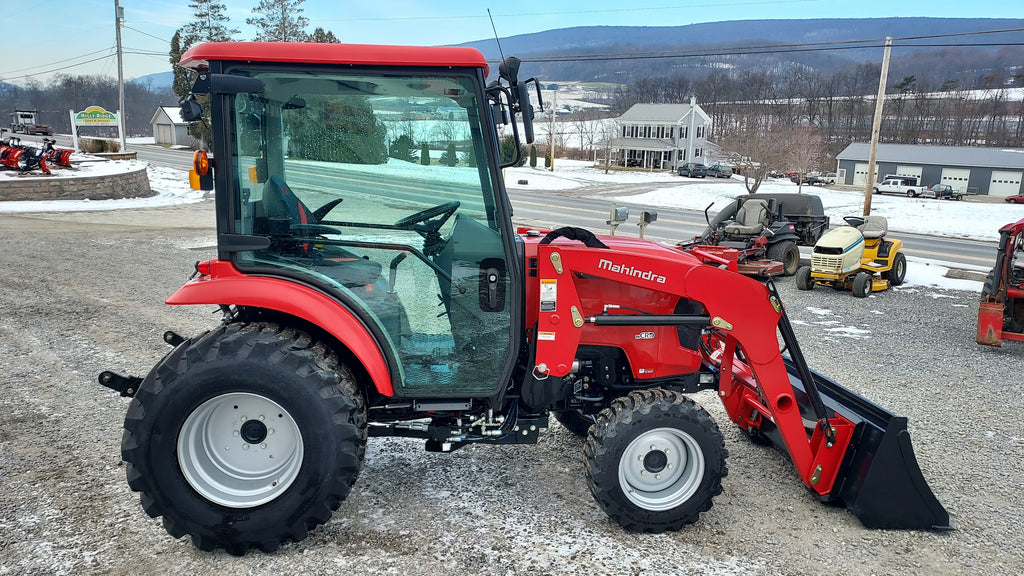

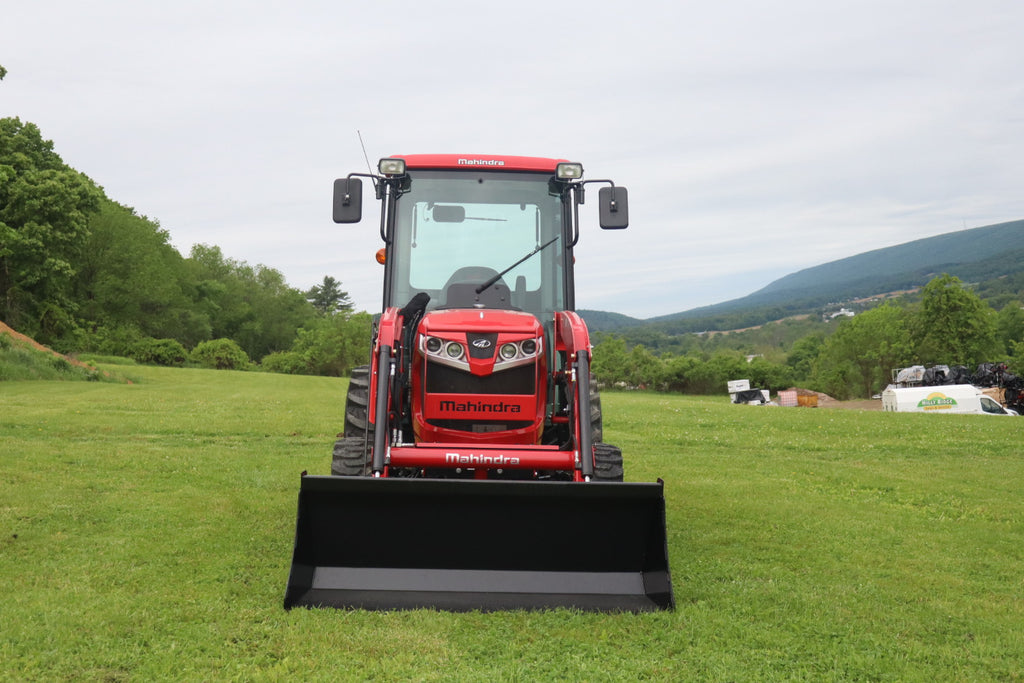

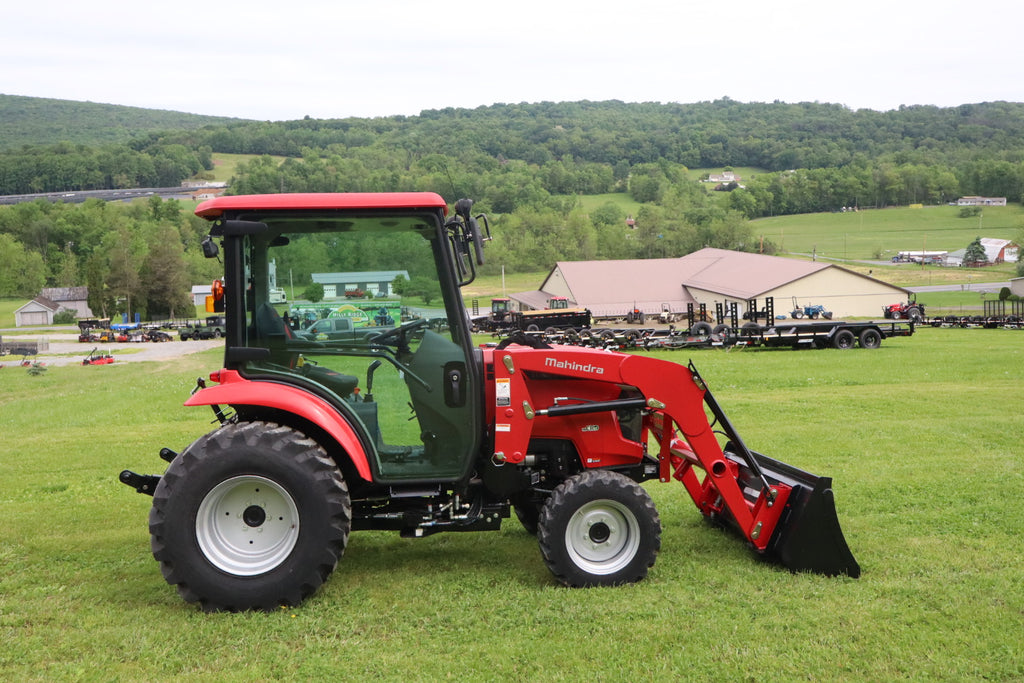

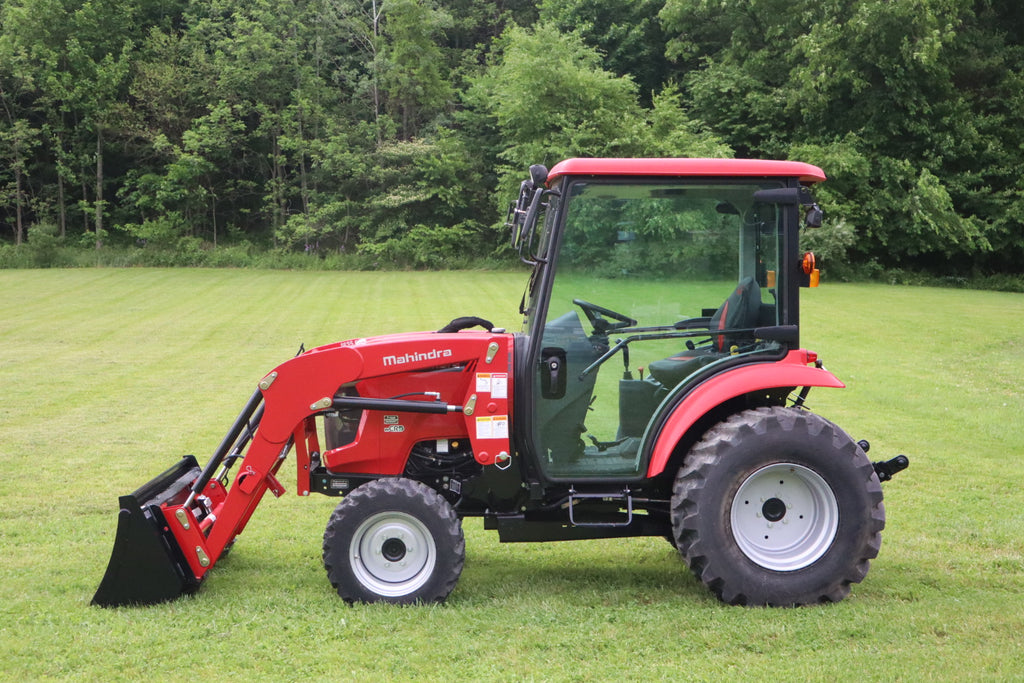

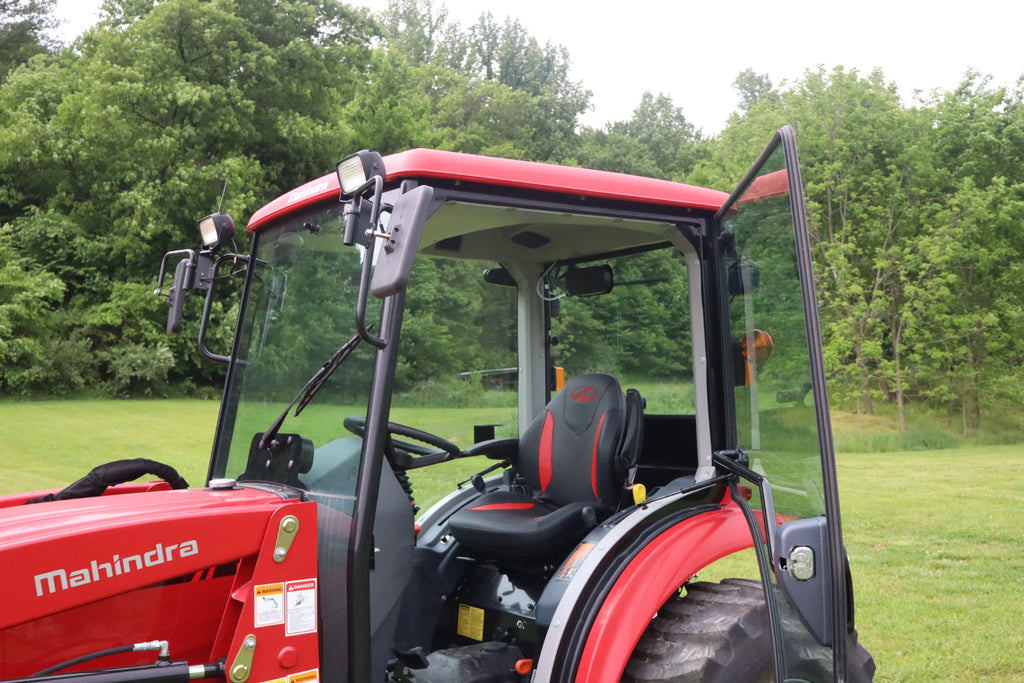

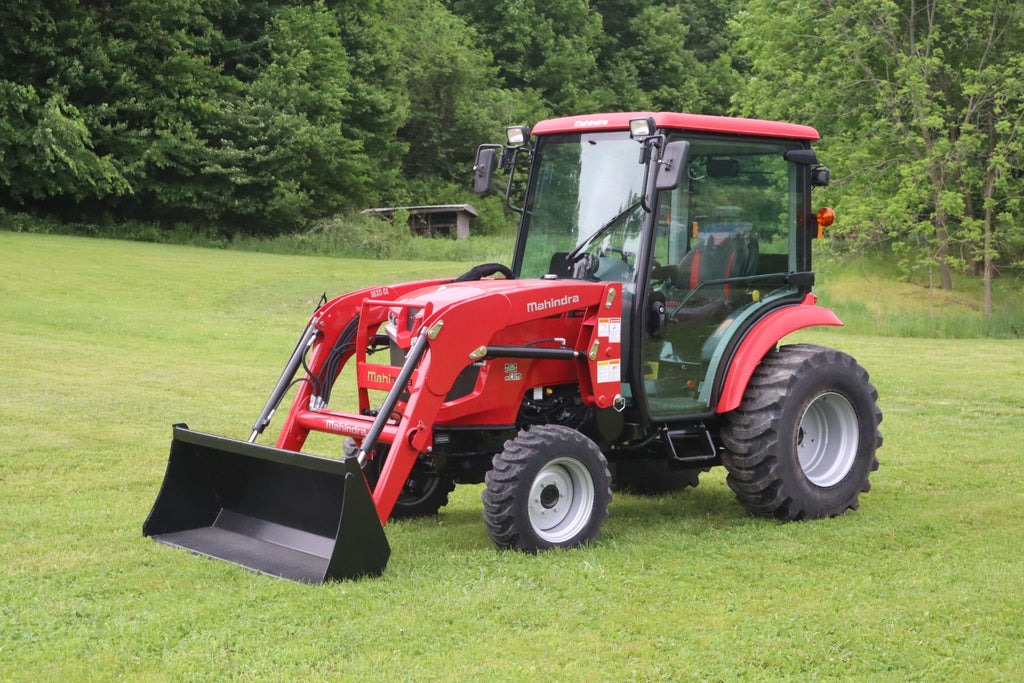

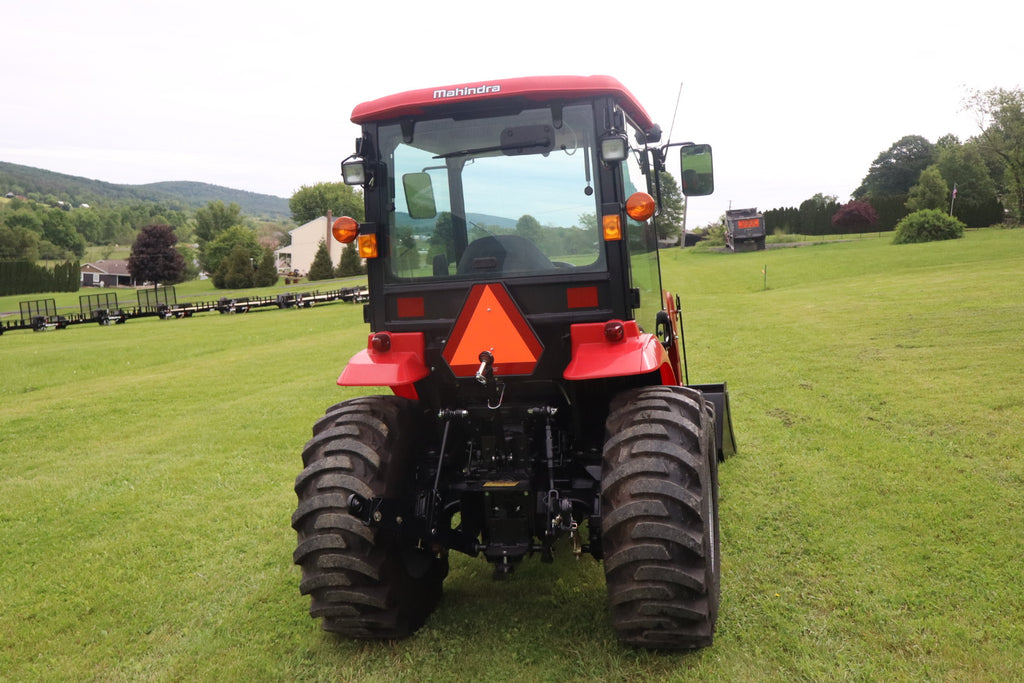

Mahindra 1600 compact utility tractors are built to handle grueling jobs around the ranch, hunting property, park, or large estate. They offer a small footprint but powerful diesel engines, competitive lift capacities, and exclusive features like a cab and mid-mower to maximize versatility and comfort.

Specifications

Engine:

• Type: Four-stroke, Naturally Aspirated, Direct Injection, Water Cooled Diesel Engine
• Horsepower: 36.2 HP (27 kW) @ 2500 RPM
• Displacement: 125 cu. in. (2048 cc)
• Number of Cylinders: 3
• Fuel Tank Capacity: 7.7 gal. (29 L)

Drive Train:

• Transmission: HST (Hydrostatic Transmission) with 3 Ranges
• Number of Speeds: Infinite
• Clutch: Dry-Single
• Brakes: Wet Disc
• Max Speed: 13.3 mph

PTO (Power Take-Off):

• Type: Live
• Rear PTO RPM: 540 @ 2376 RPM
• Mid PTO RPM: 2000 (Optional) @ 2526 RPM
• PTO Horsepower: 26 HP (19.4 kW)

Hydraulics:

• Type: Open Center
• Implement Pump Output: 7.5 gpm (28.5 L/min)
• Maximum Total Flow: 10.8 gpm (40.7 L/min)

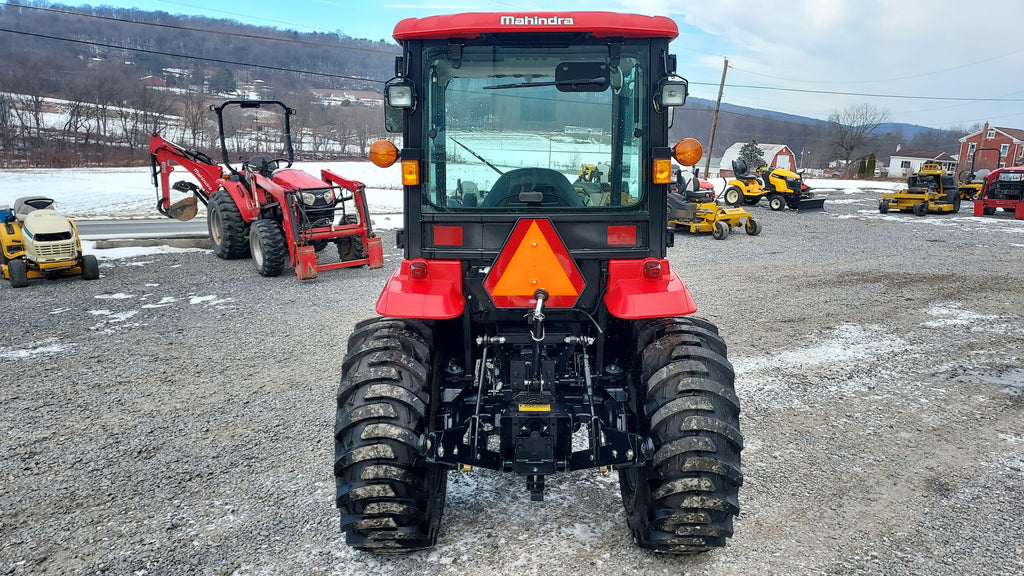

• 3-Point Hitch: CAT I with Telescoping Stabilizers & Flex Links
• Lift Capacity: 720 lb (780 kg)

Electrical:

• Battery: 12 V, 925 CCA
• Alternator: 12 V, 90 A

Dimensions:

• Overall Length: 123.8 in (3144 mm)
• Overall Width: 64 in (1626 mm)
• Overall Height: 88 in (2235 mm)
• Wheelbase: 73 in (1854 mm)
• Minimum Ground Clearance: 12.2 in (310 mm)
• Turning Radius: 8.5 ft (2.6 m)
• Weight: 3527 lb (1600 kg)

Wheels & Tires:

• AG (Agricultural) Front: 7 x 16
• AG Rear: 11.2 x 24
• IND (Industrial) Front: 27 x 8.5-15
• IND Rear: 15 x 119.5
• TURF (Turf) Front: 25 x 8.5-14
• TURF Rear: 13.6 x 16

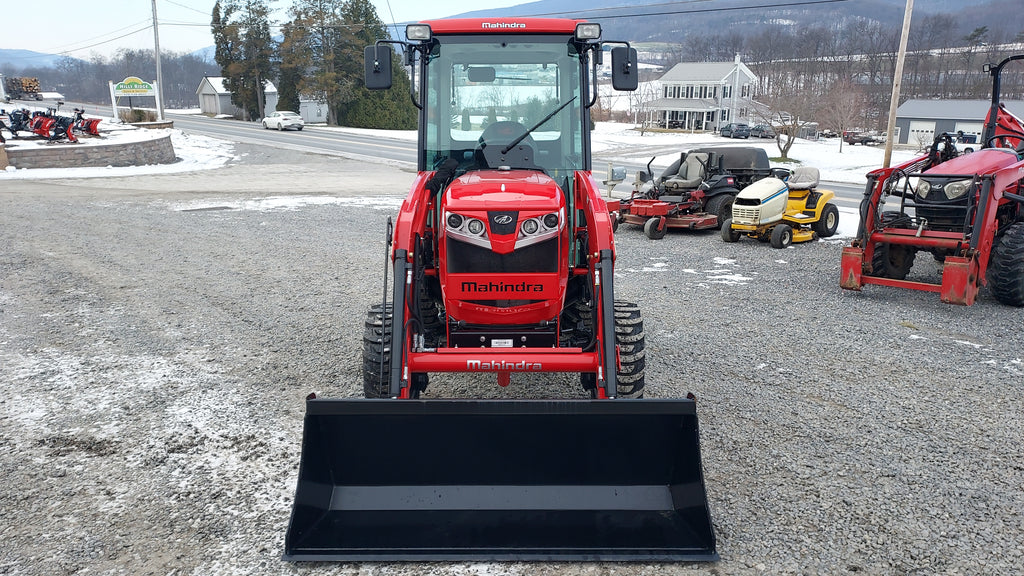

Loader:

• Model Number: 1635L
• Max Lift Height (in): 92
• Loader Lift Capacity (lb): 1830
• Digging Depth (in): 3
