Description
Features
- Steel Body
- 2.7L Turbo Diesel
- 3500 lb Towing Capacity
- 144 lb-ft Torque
- Boxed Steel Frame
- Heavy-Duty Transmission, No Belts
- Fuel Capacity: 16 Gal/60.5 L
- Warranty: 2-Year Limited
- Horsepower: 55
- Displacement: 2730cc (2.7 L / 165 in3)
- Ground Clearance: 9" / 22.86 cm
Specifications
- Wheelbase: 96"
- Base Curb Weight: 3075 lb / 1395 kg
- Length: 144” / 366 cm
- Width: 60.7″ / 154 cm
- Height: 75”/ 191 cm
- Ground Clearance: 9” / 22.86 cm
- Fuel Capacity: 16 gal / 60.5 L
- Payload Capacity: 1525 lb / 692 kg
- GVWR: 4600 lb / 2087
- Towing Capacity: 3500 lb / 1588 kg @ 15 mph
- Person Capacity: 2
- Engine Type: Four-stroke, Turbocharged, Direct-Injection, Water Cooled Diesel Engine
- Cylinders: 4
- Displacement: 2730cc (2.7L / 165 in3)
- Bore & Stroke: 88.9 x 110.0 mm
- Engine: 55 hp @ 2300 RPM (max 2700 RPM)
- Torque: 144 ft-lb @ 1400 rpm
- Compression Ratio: 18.7 : 1
- Cooling System: Liquid
- Fuel System: Mahindra Common Rail Diesel (mCRD)
- Max Speed: 55 mph
- Max Towing Speed: 15 mph
- Max Flat Towing Speed: 55 mph
- Chassis Type: Boxed Steel Frame
- Front Suspension: HD Leaf Spring w/ Shock Absorbers & Stabilizer Bar
- Rear Suspension: HD Leaf Spring w/ Shock Absorbers
- Tires: 235 / 70R16 All-Terrain
- Wheels: 16 x 7 in Painted Steel

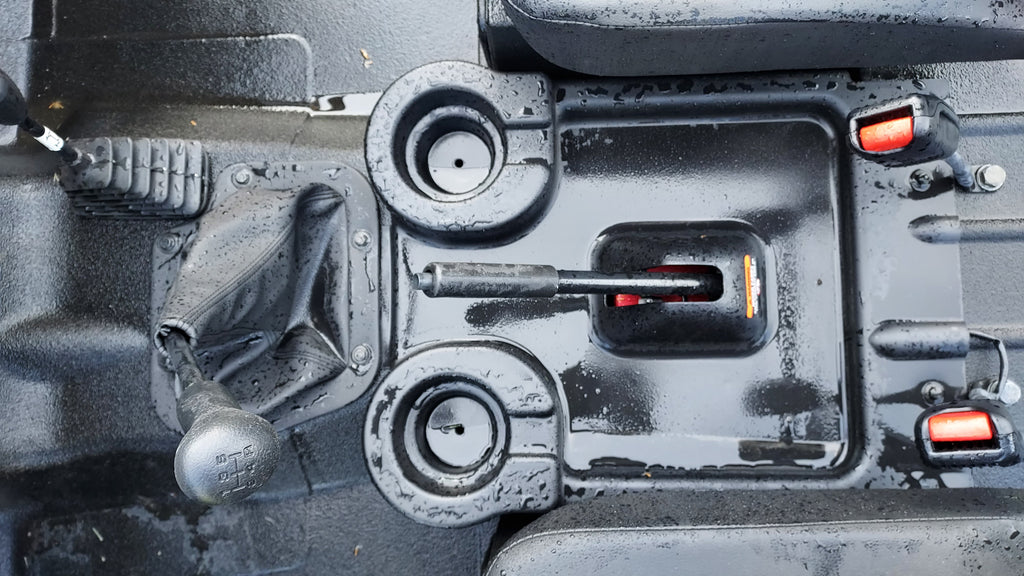

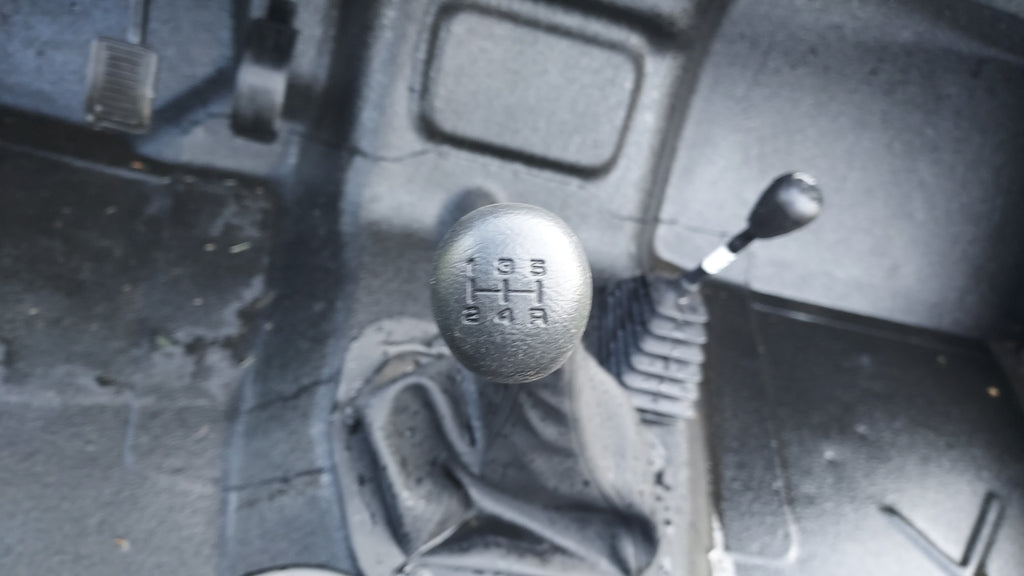

- Transmission: 5-speed manual
- Transfer Case: 2-speed manual with 2.41.1
- Driveline: 2WD / 4WD
- Full Floating Front Axle: Full Floating w/5.38 : 1 Gear Ratio
- Semi Floating Rear Axle: Semi Floating w/5.38 : 1 Gear Ratio
- Protection: Roll-Over Protection System (ROPS)
- Seat Belts: (2) 3-point
- Brakes: Hydraulic Power
- Parking Brake: Mechanical
- Front Brakes: 11" Disc / 27.94 cm
- Rear Brakes: 11" Drum / 27.94 cm
- Colors: Red, Black, Green
- Steering: Hydraulic Assist
- Storage: (2) Lockable underseat boxes
- Interior Floor: Roxliner

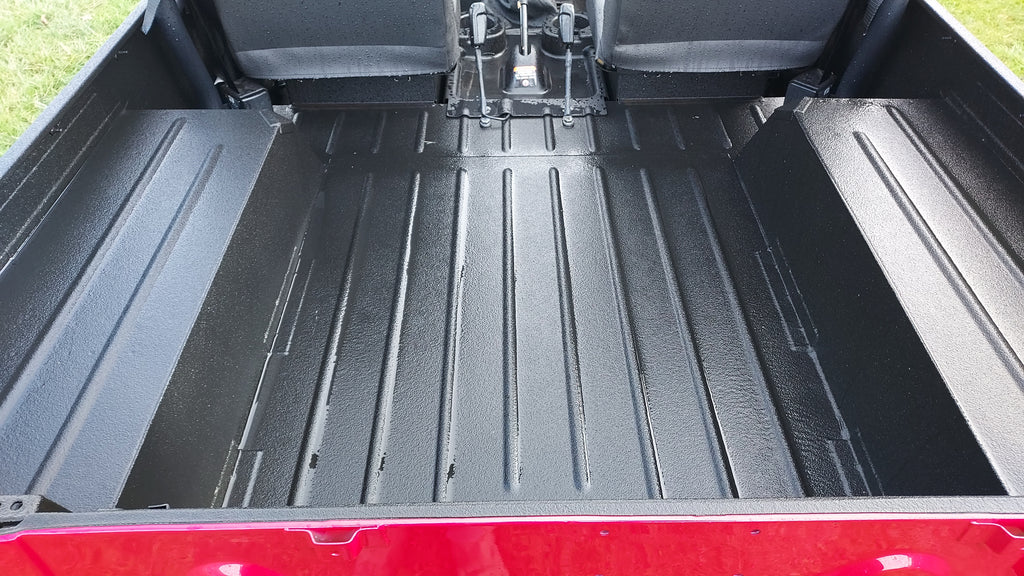

- Cargo Bed: Roxliner
- Cargo Area Tie Downs: 8 Side Rail, 2 Floor
- Bumper: Painted steel
- Battery: 12V AGM
- Alternator: 90A
- Power Outlet: 12-volt
- Instrumentation: Digital Cluster
- Headlights: Halogen
- Taillights: Low-Profile LED
- Country of Assembly: USA
- Warranty: 2-Year Limited Warranty
