Description

Don't treat your soil like dirt

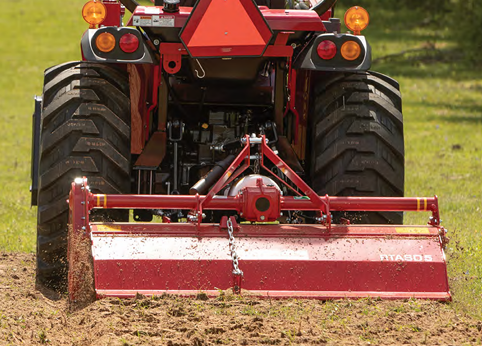

Mahindra tillers help everyone, from the novice to the commercial farmer, get more out of the soil. They're ideal for home gardening, landscaping, nurseries, orchards, and agriculture. They efficiently increase soil aeration, which helps crops root quicker and grow deeper, improving overall plant health. So, if you need to turn over, break down, mix and weed soil – let us dig in. Our tillers exhibit hefty frames, thick gauge shrouds, overbuilt gearboxes, forgiving slip clutches, robust flanges and high-strength blades. All backed by a 5-year gearbox and 1-year full / comprehensive warranty.

Features

• CAT 1 quick-hitch compatible
• 4-, 5-, and 6-ft wide tillers with 6.5- or 7.5 inch digging depth, depending on model
• Side-gear drive to ease mechanical stress, reduce heat buildup and extend gearbox and oil life

Specifications

• Duty Cycle: Standard
• Min/Max PTO (hp): 40 - 55
• Operating Width (in): 74
• Overall Length (in): 27.6
• Overall Height (in): 33.1
• Min/Max Working Depth (in): 7.5
• Weight (lb): 626
• Shipping Width (in): 79.3
• Hitch Type: 3-pt Lift
• Hitch Category: CAT I
• Quick-hitch Compatible: Yes (CAT I only)
• Parking Stand: Yes
• Drive Type: Gear
• PTO Speed (RPM): 540
• PTO Category: 1
• Driveline Protection: Slip Clutch
• Remote Valve Required: No
• Hood Thickness (ga): 5.5
• Rotor size (in):18.3
• Rotor Speed (rpm): 240
• Blades Type: C
• Blade Qty: 54
• Flange Qty: 9
• Blade Length (in): 9.5
• Depth Control: Via Skid Shoes
• Gearbox Warranty: 5-years limited
• Warranty: 1-year full/comprehensive
• Tractor Compatibility:
  • 2660
  • 2670
  • 4540
  • 4550
  • 5145/5155
