Description

Outstanding performance great value

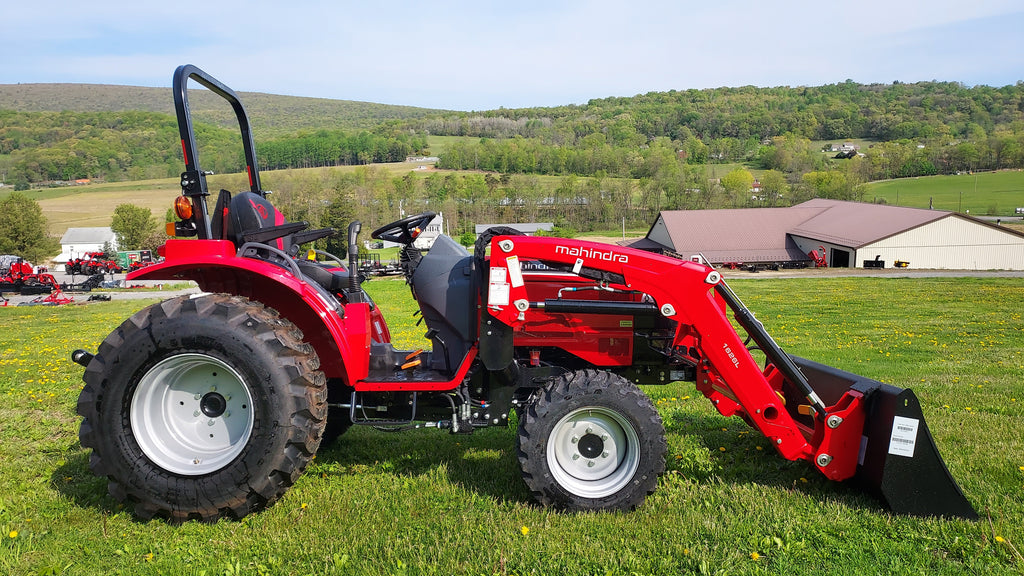

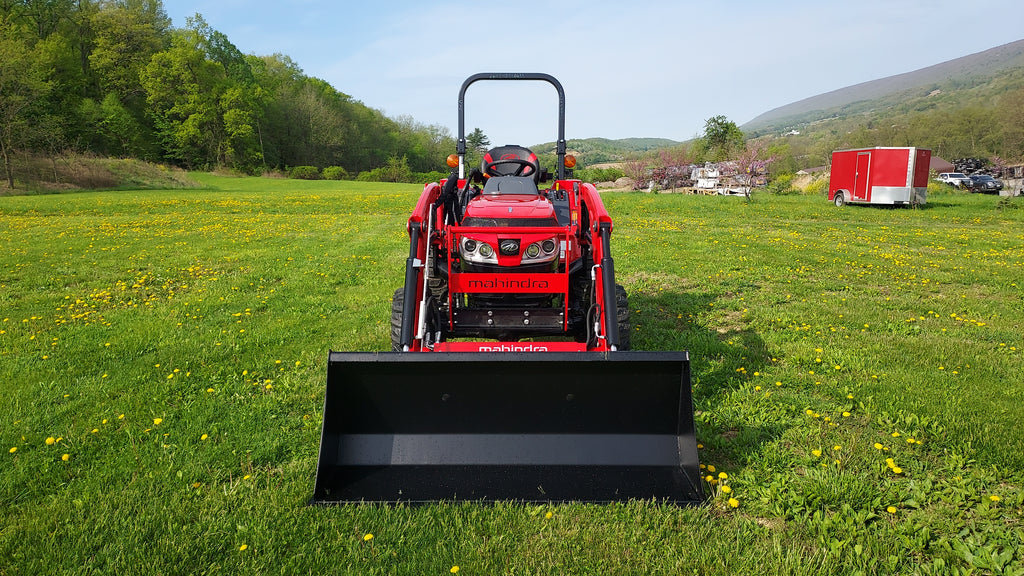

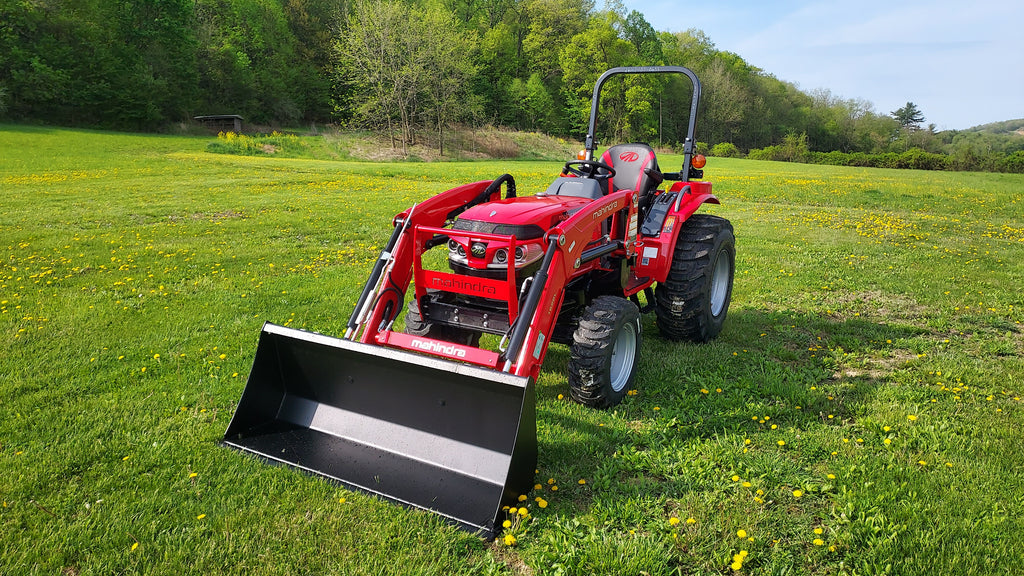

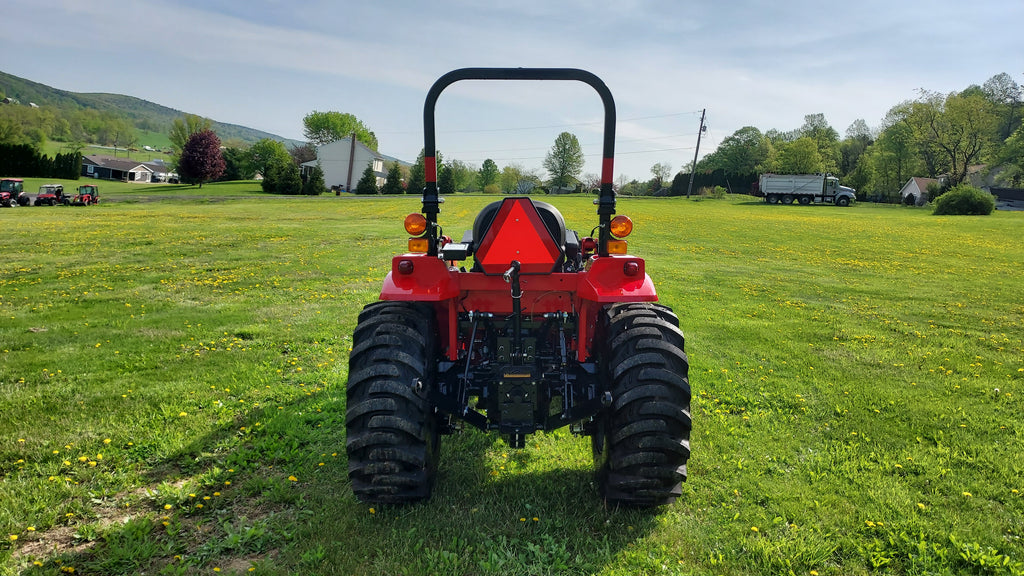

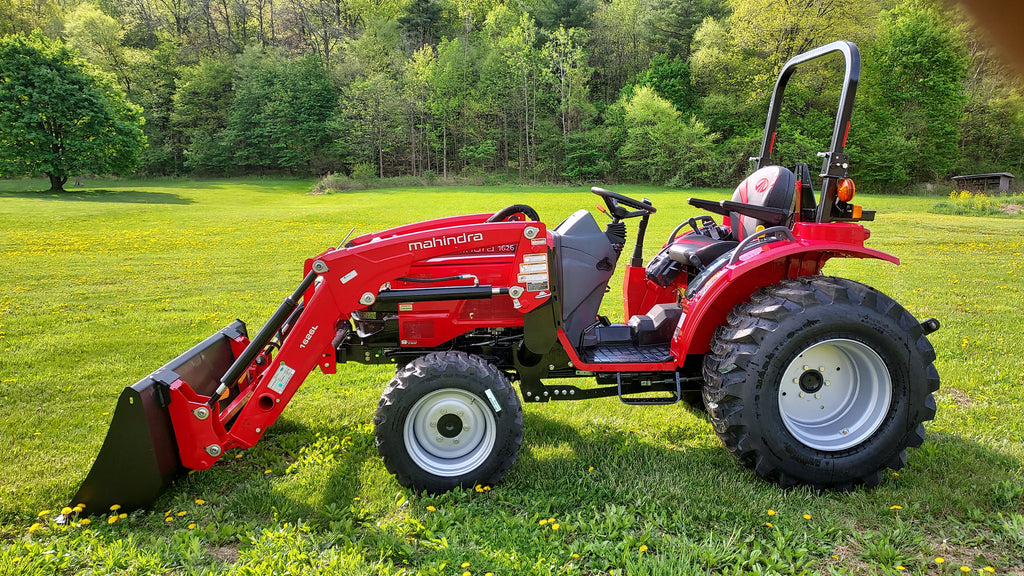

1600 series tractors give you the best of both worlds. Optimal for light to medium application labor. These premium compact utility vehicles offer both a small footprint and a competitive lift capacity, along with deluxe features designed to keep you comfortable

Features

• Reinforced steel fenders & hood ensure durability and longevity.
• Easy access to battery, air filter, and fuel tank for convenient maintenance.
• Powerful steering with a tight turning radius for maneuverability in various environments.
• Optional canopies available on open station models for added protection from the elements.

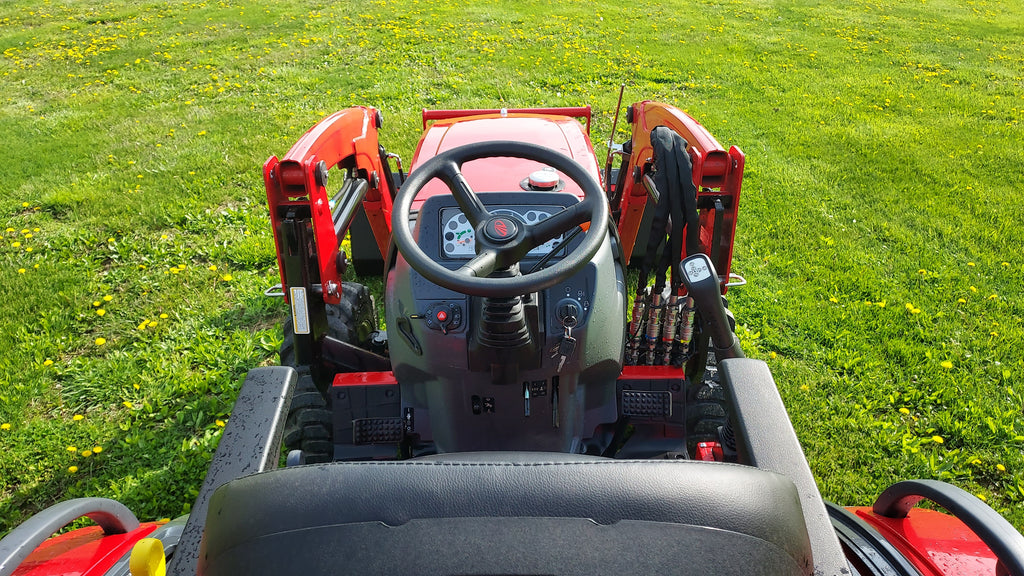

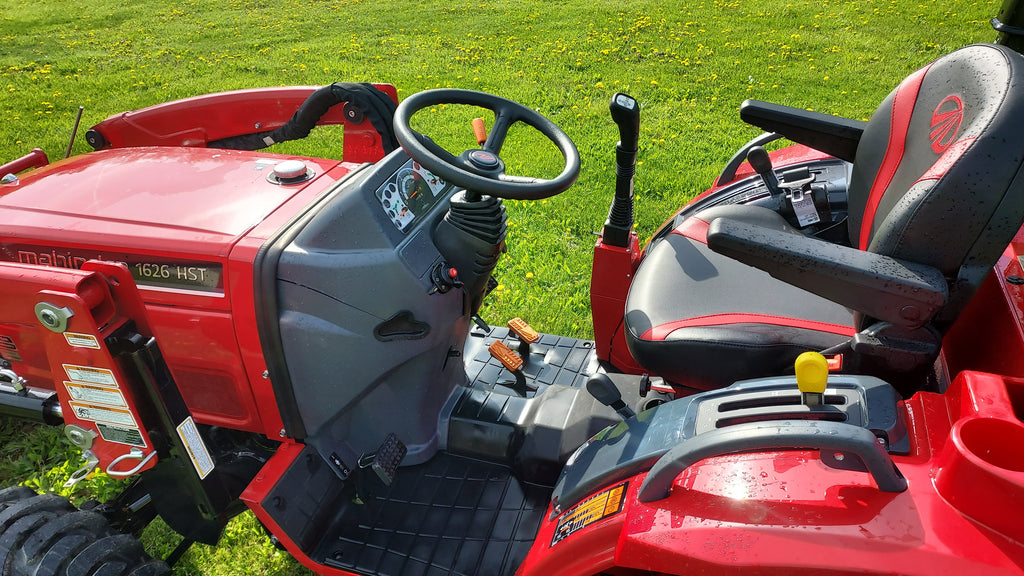

• Comfort seat with foldable armrests to enhance operator comfort during extended use.
• Separate forward and reverse pedals

Specifications

• Type: Four-stroke, Naturally Aspirated, Indirect Injection, Water Cooled Diesel Engine
• Engine @ RPM: 25.9 HP (19.1 kW) @ 2500
• Displacement: 80.4 (1318 cc)
• Fuel Tank: 7.1 gal.
• Transmission: HST - 3 Ranges
• Number of Speeds: Infinite
• Clutch: Dry-Single
• Brakes: Wet Disc
• Type: Live
• Rear PTO RPM: 540 @ 2376
• Mid PTO RPM: 2000 (Opt.) @ 2526
• PTO: 19 HP (14.2 kW)
• Type: Open Center
• Implement Pump: Output 7.5 gpm
• Maximum Total Flow: 10.8 gpm
• 3-Point Hitch: CAT I with Telescoping Stabilizers
• Lift Capacity: 2646 lb.
• Battery: 12V, 540 CCA
• Alternator: 12V, 50A
• Overall Length: 121.3 in.
• Overall Width: 63 in.
• Overall Height: 81.5 in.
• Wheelbase: 67.3 in.
• Minimum Ground Clearance: 11.4 in.
• Radius: 7.9 ft.
• Weight: 2459 lb.
• Industrial [Front/Rear]: 27" x 8.5-15" / 15" x 19.5"
• Standard Bucket Size: 62 in.
• Maximum Lift Height: 86 in.
• Dig Depth: 4.5 in.
• Lift Capacity to Full Height at Pivot Pin: 1560 lb.
• Breakout Force: 2795 lb.
• Shipping Weight: 774 lb.
