Description

The 1100 series is the toughest, friendliest, and smartest tractors in the world. We challenge all weekend warriors to test their mettle. Novices will smile at an intuitive and informative cockpit.

Features

• Effortless Controls at Your Fingertips: Electronic PTO engagement for your mid and rear implements is ideal for those with arthritis and is designed to prevent accidental activation, improving operator safety.
• Unmatched Ride Quality: Try sitting on a tractor all day, and then you'll see why the 1100 comes with power steering standard and mComfort — the comfiest seat in its class. It offers outstanding support, featuring a superior form-fitting seat cushion and foldable armrests.
• Best-In-Class Loader Tractor: Our hydrostatic drive system (HST) eliminates gear shifting by safely engaging color-coded forward or reverse pedals. Combining HST with a super smooth joystick for loader-control makes fast and efficient loader work.
• Won't Stop Until You Stop: Using projector-style headlights for best-in-class output, we offer bright, white lighting for after-dark chores.

Specifications

• Engine Type: Four Stroke, Naturally Aspired, Indirect Injection, Water-Cooled Diesel Engine
• Engine HP (kW) @ RPM: 22.9 (17.0) @ 3000
• Displacement: 67.2 (1102)
• Number of Cylinders: 3
• Fuel Tank (Gal): 6.6
• Bore & Stroke: Bore : 3, Stroke : 3.2
• Transmission Type: HST - 2 Range
• Number of Speeds: Infinate
• Clutch: N/A
• Max Speed: 7.3 mph
• Brakes: Single Pedal
• PTO Type: Independent Wet Clutch
• Rear PTO RPM: 540 @ 2837
• Mid PTO RPM: 2500 @ 2837
• PTO HP: 16.8 (12.5)
• Hydraulic Type: Open center,full-live hydraulic with Position Control
• Maximum Total Flow (GPM): 11.2
• Total Pump Output, Main (GPM): 7.6
• Total Pump Output, Steering (GPM): 3.8
• 3-Point Hitch: CAT 1 with Check Chains
• 3- Point Hitch Lift Capacity @ 24" aft (lb): 771
• Battery: 12.6V, 650 CCA
• Alternator: 12V, 55 A
• Overall Length: (in): 100.4
• Wheelbase (in): 55.1
• Turning Radius (ft): 7.2
• Overall Width (in): 46.3
• Overall Height (in): OS 86.6
• Minimum Ground Clearance (in): 6.7
• Weight: (lb): 1620
• IND (Front/Rear): 18x18.5-10 / 26x12-12
• Loder Model: L11
• Max Lift Height (in): 68
• Loader Lift Capacity (lb): 794
• Digging Depth (in): 3

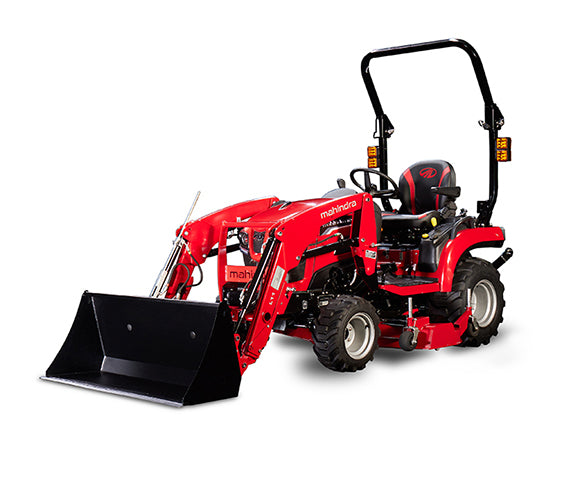

11234FHILM60 Tractor
1123 HST, W/LOADER, 60" MOWER
