Description:



PUNCHES ABOVE THEIR WEIGHT CLASS.

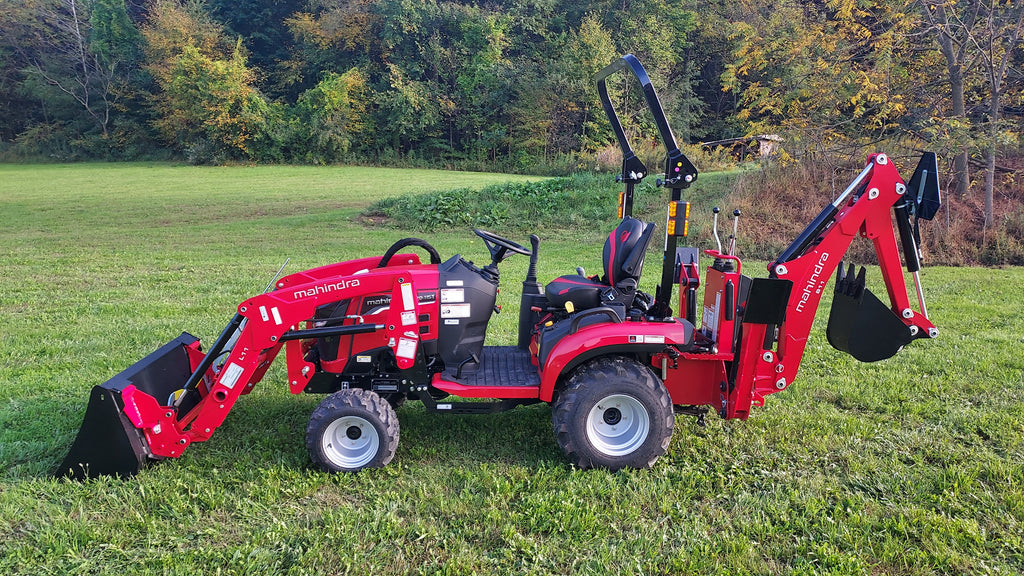

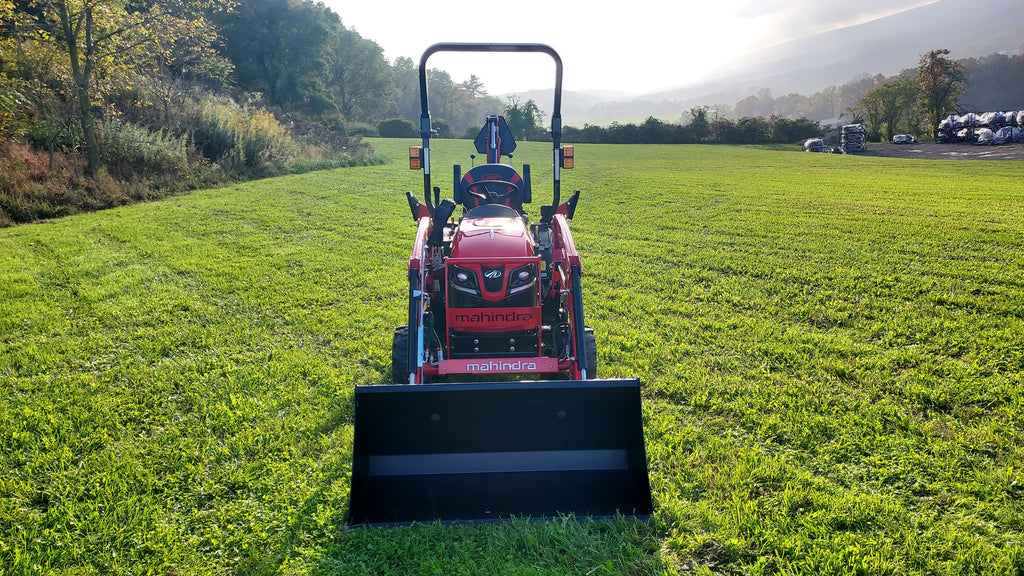

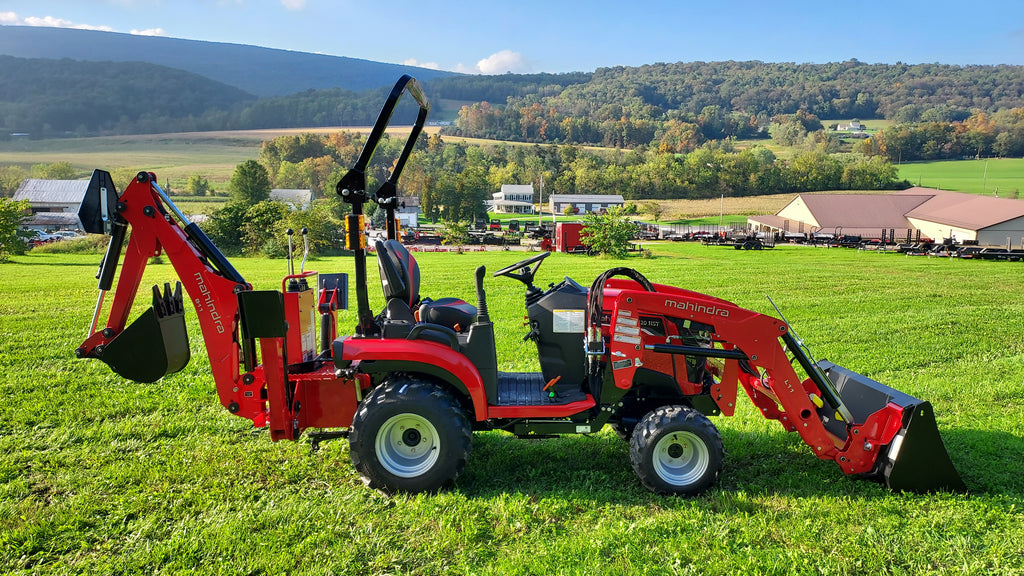

Meet the newest subcompact class of fighters... The Mahindra 1123. They're smart, friendly, and tough tractors. Phone app lovers will be pumped by their intelligent Mahindra MyOJA software. First-time operators will smile at Smart Assist and their intuitive cockpits. Weekend warriors will be rocked when testing their mettle. Discover why the Mahindra 1123 Series will deliver every day, every time, for the small acreage or estate homeowner.

Ideal Uses:

• Planting a garden, landscaping projects, material handling, trenching, mowing lawn & pastures, spreading weed & feed, fence work, grading driveways, and clearing snow.



Key Features:

• Effortless Controls at Your Fingertips: Electronic PTO engagement for your mid and rear implements is ideal for those with arthritis and is designed to prevent accidental activation, improving operator safety.
• Unmatched Ride Quality: Try sitting on a tractor all day, and then you'll see why the 1100 comes with power steering standard and mComfort - the comfiest seat in its class. It offers outstanding support, featuring a superior form-fitting seat cushion and foldable armrests.
• Best-in-Class Loader Tractor: Our hydrostatic drive system (HST) eliminates gear shifting by safely engaging color-coded forward or reverse pedals. Combining HST with a super smooth joystick for loader-control makes fast and efficient loader work.
• Won't Stop Until You Stop: Using projector style headlights for best-in-class output, we offer bright, white lighting for after-dark chores.

Includes:

• Four Wheel Drive
• Foldable ROPS (Roll-Over Protection Structure)
• Hydrostatic Transmission
• Industrial Tires
• Loader

• Backhoe

Specifications:



Engine / Motor:

• Brand & Model: Mitsubishi MVL3E3
• Type: Four-stroke, Naturally Aspirated, Indirect Injection, Water-Cooled Diesel Engine
• Cylinders: 3
• Engine HP (kW) @ RPM: 22.9 (17.0) @ 3000

• Compression Ratio: 22.0 - 23.0 to 1
• Cylinder Sleeve: Parent Bore
• Displacement: 67.2 (1102 cc)
• Exhaust System: LH, Side Draft
• Fuel Tank: 6.6 gal.


Electrical:

• Battery Capacity: 12.6V, 650 CCA
• alternator: 12V, 55 A

Transmission:

• Type: HST - 2 Range

Steering:

• Type: Hydrostatic Power

Brakes:

• Type: Single Pedal

Hydraulic System:

• Type: Open Center, Full-Live Hydraulic with Position Control
• Pump Output GPM (LPM): 7.6 (28.7)
• Loader Lift Capacity lb (kg): 794 (360)
• 3-pt Linkage: CAT I with Check Chains
• 3-pt Lift Capacity 24-inch from pin (lb (kg): 771 (350)
• Rear Auxiliary Remote Valves: Optional Single or Dual

PTO:

• Type: Independent Wet Clutch
• PTO HP (KW): 16.8 (12.5)
• Rear PTO RPM @ Engine RPM: 540 @ 2837
• Optional Mid PTO RPM @ Engine RPM: 2500 @ 2837

Operating Weight:

• Total Weight lb (kg): 1620 (735) OS / 1962 (890) Cab

Dimensions:

• Overall Length in. (mm): 100.4" (2550)
• Overall Width in. (mm): 46.3" (1177)
• Overall Height OS in. (mm): 86.6" (2200)
• Overall Height Cab in. (mm): 80.5 (2044)
• Wheelbase in. (mm): 55.1" (1400)
• Ground Clearance in. (mm): 6.7" (169)
• Turning Radius with Brakes ft. (m): 7.2' (2.2)

Tires Sizes & Options:

• Industrial (Front / Rear): 18 x 8.5 - 10 / 26 x 12 - 12
• Turf (Front / Rear): 18 x 8.5 - 10 / 26 x 12 - 12

Loader: L11

• Max Lift Height (in / mm): 68" / 1721
• Digging Depth (in / mm): 3" / 80
• Lifting Capacity Full Height at Pivot Pins (lb / kg): 794 lbs / 360
• Breakout Force (lb / kg): 1433 lb / 650
• Shipping Weight (lb / kg): 406 lbs / 184
• Bucket Width (in / mm): 50" / 1270
• Bucket Capacity - Heaped (ft3): 6.5 ft3
• Bucket Capacity - Struck (ft3): 5.05 ft3

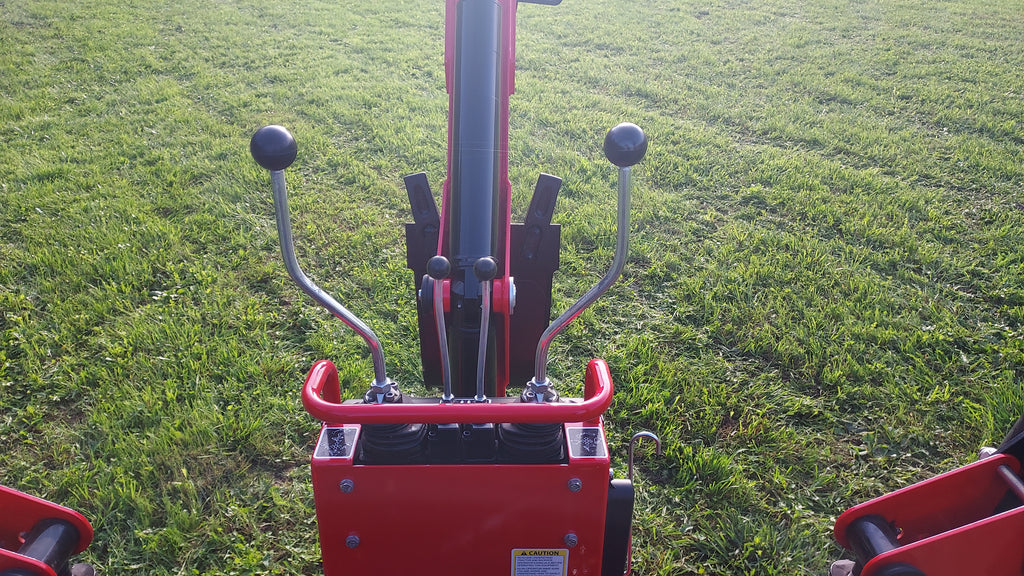

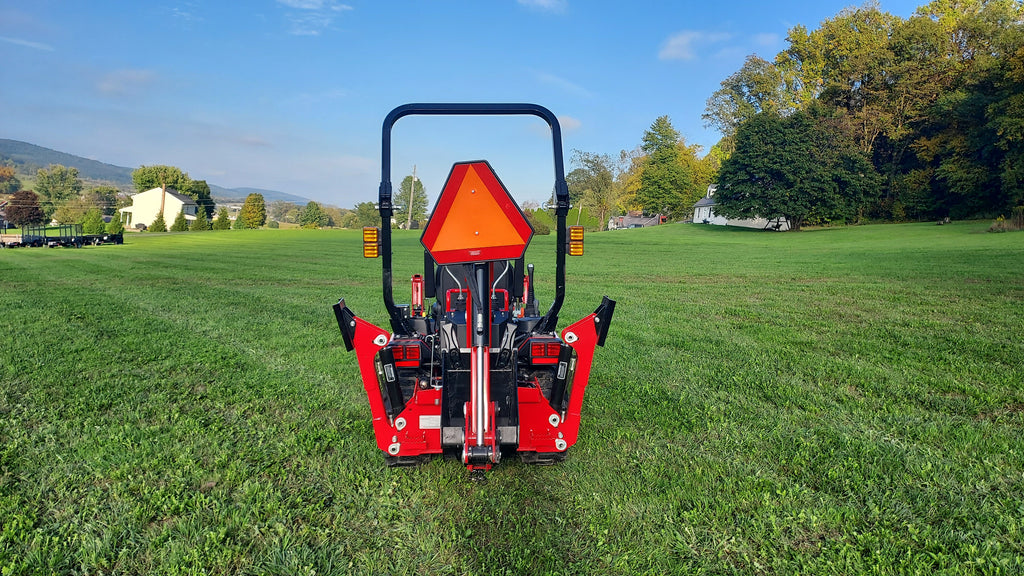

Backhoe: B11

• Maximum Digging depth (in / m): 76" / 1.94
• Digging Depth 2 ft. Flat Bottom (in / cm): 75" / 12.9
• Digging Force - Bucket (lb / N) 2304 lbs / 10250
• Digging Force - Dipper (lb / N): 1553 lbs / 6910
• Shipping Weight (lb / kg): 708 lbs / 321
