Description:

Features:

• LS3 Model: Designed for compact to small tractors, available with 2 motor sizes.
• Hydraulic System: Engineered for lower flow hydraulic systems compared to skid steers.
• Affordable Solution: Ideal for cutting slopes, offering a cost-effective alternative to units used by municipalities.
• Vertical Cutting: The only residential/small farm unit capable of cutting vertically, suitable for maintaining roads, trails, plantations, hunting lanes, etc.
• Versatile Cutting: Easily handles 2-3” saplings, underbrush, and limbs on slopes and in tight spots.
• American Made: Manufactured in the USA using American parts and labor.
• Cutting Positions: Offers 11 cutting positions, including 0° level, 25°-45° for ditches and slopes, and 90° for hunting lanes and roads.
• Two-Sided Blades: Ensures cleaner cuts and extends blade lifespan, easy to remove and flip for continuous cutting.
• Construction: Cutting deck constructed of 1/8” plate with 1/4” plate reinforcement for spindle and motor mount, additional reinforcement using 1/4” angle iron.
• Heavy Duty Skid Steer Plate: Built from 5/16” plate steel using CNC Plasma Table.

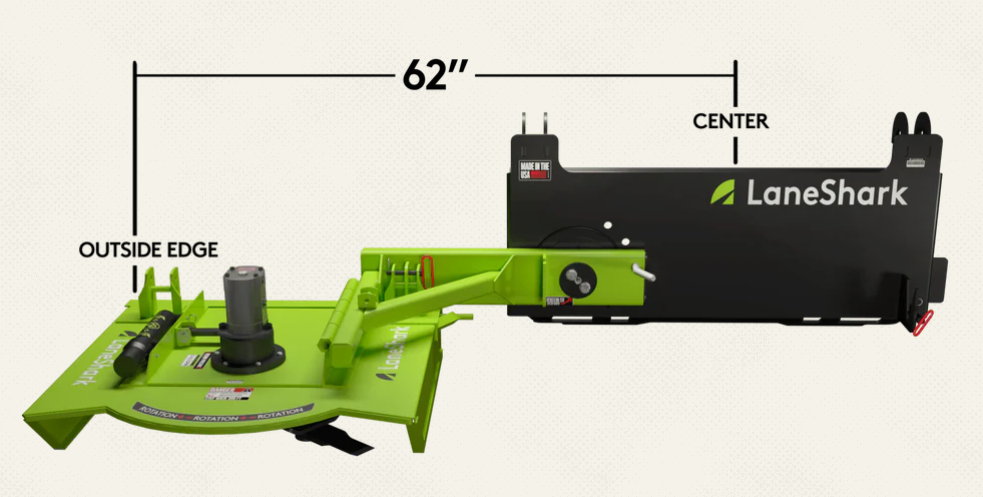

• Off-set Cutting: Adds 44 inches to cut width when coupled with a rear PTO brush cutter.
• Open Front Design: Blades protrude 2” from the center of the deck for closer cuts and easier access to dense brush.
• Integrated John Deere™ Hook System: Compatible with 400 & 500 Series—Pin style loader, available adapter plate for tractors equipped with John Deere™ Global/Euro quick connect system (adapter plate ordered separately).

Specifications:

• Hydraulic Flow Range: 5-8.5 gpm
• Weight: 320 lbs
• Dimensions: 34″L x 34″W x 29″H
• Cutting Diameter: 32″
• Cutting Capacity: 2-3″
• Cutting Positions: 11
• Deck Construction: 1/8″ Plate Reinforced with 1/4″
• Blades: 2, Double Sided
• Loader Compatibility:
• SSQA
• JD Pin
• Global (adapter required)
• Minimum Required Tractor Weight: 2,000 lbs

Width	Weight	Height	Length
34 Inch	320 Pounds	29 Inch	34 Inch
