Description

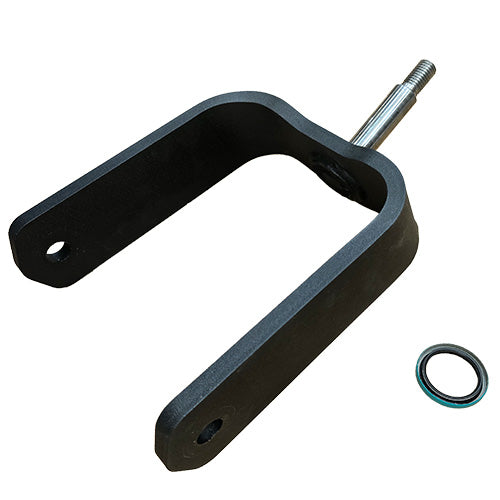

Hustler OEM 130055 Caster Fork
The Hustler OEM 130055 Caster Fork Enable the Front Wheels to Rotate in a full 360 Degrees allowing the Mower to Turn in a Zero Degree Radius. This part is replaceable when bent or damaged from impacts or contact with obstacles. Bent Caster Forks can Affect Drive Tracking or the Ability to Turn Properly. Whenever Replacing a Bent or Broken Caster Fork it is also Recommend checking additional Components for Additional Damage.
⚠️ Before You Order – Verify Fitment
Caster Forks can vary by Model Family and Series. This Fork is used only on Select Hustler Models. Please confirm your exact Model Number is listed in the Model Fit Chart Below before ordering.
Not sure? Contact us with your Hustler Model and Serial Number and we’ll help verify fitment.
What This Part Does
- Supports the front caster wheel assembly on compatible Hustler zero-turn mowers
- Helps maintain proper front-end tracking and steering performance
- Replaces worn, bent, or damaged caster fork assemblies
- Genuine OEM Hustler replacement part
Part Details
- Brand: Hustler
- Current Part Number: 130055
- Superseded Part Numbers: 129670P, 129670-6, 1296706, 123644-1, 1236441, 123644-6, 1236446
- Part Type: Caster Fork Assembly
- Position: Front Caster / Front Wheel Assembly
- Color: Black
Fits Select Hustler Models
Known Fitment Family References Include:
- X-ONE Series: 2019 - Current 52", 54", 60", and 72" Side & Rear Discharge Models
- X-RIDE Series: All 60" Side Discharge Models
- Super Z Series: 2018 - Current 54", 60", 72" Side & Rear Discharge Models
- Super Z HD Series: 2018 - Current 60", 72 Side & Rear Discharge Models
- Super S Series: 2021 - Current 60" Side Discharge Models
- Super SF Series: 2021 - Current 60", 72" Side Discharge Models
Suggested Parts Links

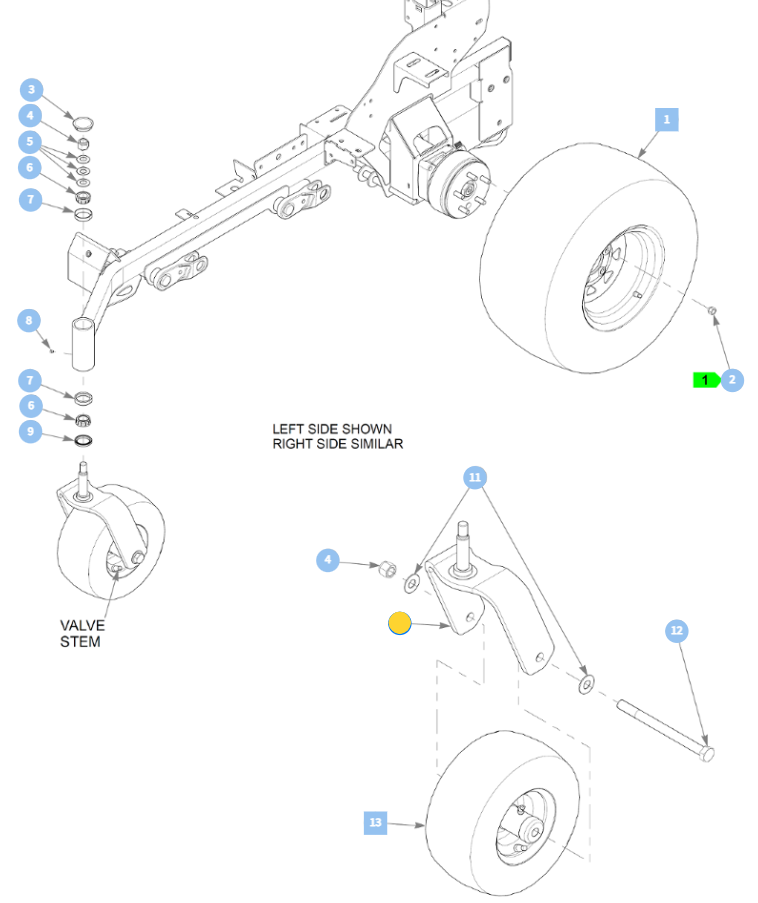

UPPER CASTER WELDMENT & CASTER FORK
- 606696 - Optional FLEX Fork Kit * Upgrade Option for Smoother Ride - Comes as a Set of Two.
- 608751 - Dust Cap (Black) - Reference Number 3
- 606711 - Dust Cap (Gold) - Reference Number 3
- 061101 - Lock Nut (3/4 - 10) - Reference Number 4
- 606715 - Belleville Style Lock Washer - Reference Number 5
- 606712 - Tapered Roller Bearing - Reference Number 6
- 606713 - Tapered Roller Bearing Race - Reference Number 7
- 606817 - Grease Plug - Reference Number 8
- 606714 - Grease Seal - Reference Number 9
- 606712 KIT - Tapered Roller Bearing x 2, Bearing Race x 2, Lower Seal x1 (Does One Side Only)
CASTER FORK & WHEEL
- 606745 - Tire/Wheel Assembly - Reference Number 2 (For Individual Rebuild Parts References Refer to the Part Number) - Black Wheel 13 x 6.50 - 6 Pneumatic Tire
- 606744 - Tire/Wheel Assembly - Reference Number 2 (For Individual Rebuild Parts References Refer to the Part Number) - Silver Wheel 13 x 6.50 - 6 Pneumatic Tire
- 607964 - Tire/Wheel Assembly - Reference Number 2 (For Individual Rebuild Parts References Refer to the Part Number) - Black Wheel 13 x 6.50 - 6 Semi-Pneumatic Run Flat
- 607317 - Tire/Wheel Assembly - Reference Number 2 (For Individual Rebuild Parts References Refer to the Part Number) - Silver Wheel 13 x 6.50 - 6 Semi-Pneumatic
- 025296 - Flat Washer - Reference Number 3
- 041475 - Bolt (3/4 x 9 1/2 - 10) - Reference Number 4
- 061101 - Lock Nut (3/4 - 10) - Reference Number 5
SPECIAL TOOLS
- 015495 - Grease Zirk
- 124351 - Race Installation Kit

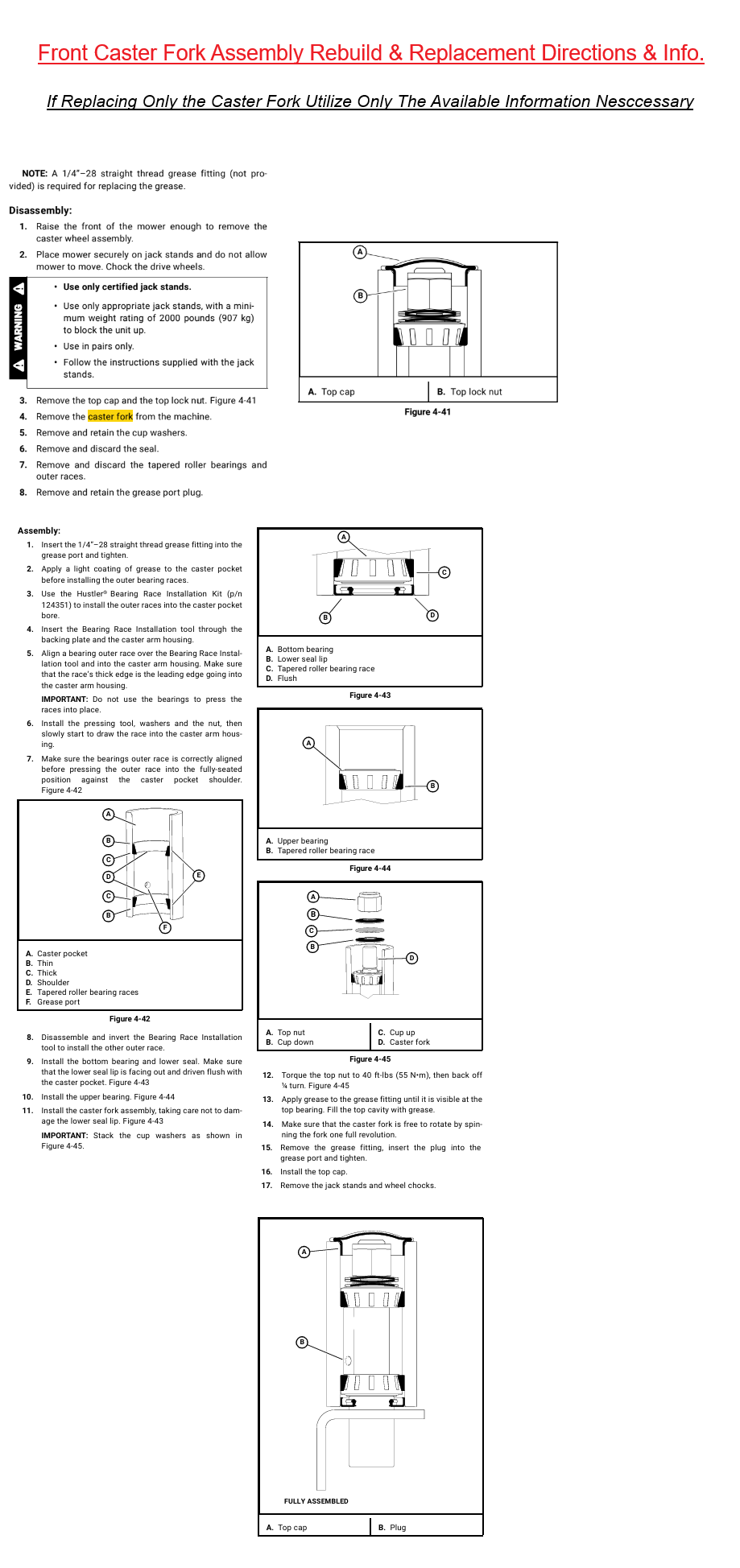

Assembly & Rebuild Directions
For Clearer More Readable Assembly Direction Right Click Image, Select Open in a New Window and Left Click to Magnify or Enlarge. Direction Can also Be Magnified in the Images as well
Model Fit Chart
X-ONE (2019 - Current Side & Rear Discharge Models)
936740, 936765, 936773, 936781, 936799, 936815, 936823, 936831, 936849, 939314, 939322, 940056, 940064, 940072, 940080, 940106, 940114, 940122, 940130, 940197, 941062, 941070, 941369, 941831, 941856, 941864, 941872, 941880, 941898, 941922, 941930, 941971, 942201, 942334, 942797, 943399, 943407, 943787, 943795, 943803, 943811, 943829, 943837, 943845
X-RIDE (All 60" Models)
944074, 944868
Super Z (2018 - Current Side & Rear Discharge Models)
936872, 936880, 936898US, 936914, 936922, 936930, 936948US, 936955, 936989, 937730, 938985, 938993, 940031, 940049, 941138, 941146, 941153, 941161, 941179, 941187, 941195, 941203, 941377, 941385, 942342, 942771, 942763, 942805, 942813, 942821, 942839, 942854, 942862, 942870, 942888, 942896, 942912, 942920, 943852, 943860, 943878, 943886, 943894, 943910, 943928, 943936, 943944
Super Z Hyper Drive (2018 - Current Side & Rear Discharge Models)
936997, 937003, 937011, 937029, 937037, 937045, 937052, 937110, 939561, 939579, 939587, 939595, 941229, 941237, 941245, 941252, 941260, 941278, 941286, 941294, 941302, 941310, 941534, 941542, 941559, 941567, 942219, 942227, 942235, 942243, 942250, 942359, 942961, 942979, 942995, 943001, 943019, 943027, 943035, 943043, 943050, 943068, 943951, 943969, 943977, 943993, 943985, 944017, 944041, 944025, 944033
Super S (2021 - Current 52" & 60" Models Only)
940254, 940304, 943167, 943175
Super SF (2021 - Current Models)
942029, 942037, 942045, 942052, 943506, 943514, 943522, 943530
