DESCRIPTION

Built For All Day, Every Day Performance.

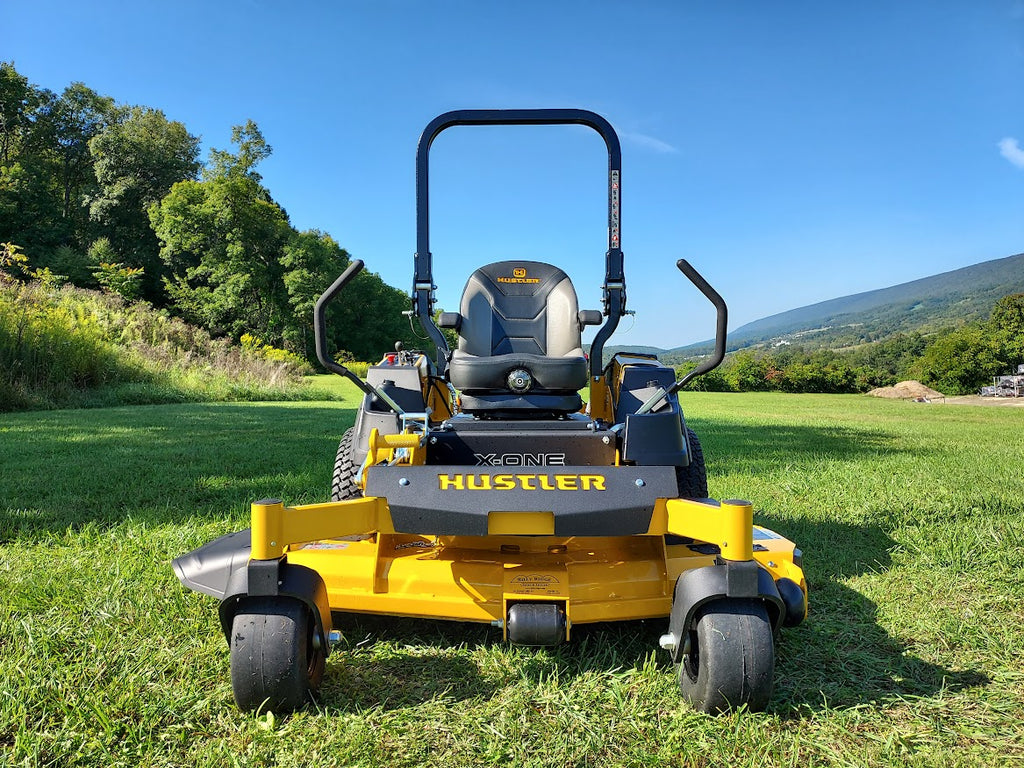

The X-ONE® is built for the full-time commercial landscaper to provide all day, every day performance. It offers a choice of carbureted or fuel-injected engines and a selection of side or rear-discharge decks. The X-ONE sets the standard for commercial zero-turn value.

ENGINE

• Engine Manufacturer: Kawasaki FX850
• Engine Horsepower: 27
• Displacement: 852cc
• Cooling: Air Cooled
• Engine Warranty: 3 Year Warranty
• Air Cleaned: Heavy Duty Canister

DRIVE SYSTEM

• Type: Dual Hydrostatic
• Transmission: Parker unitized 12cc/rev pump with 15.9ci/rev wheel motors
• Fuel Capacity: Duel fuel tanks w/ 12 gal. total capacity
• Ground Speed (FWD): Up to 10.5 mph
• Parking Brake: Integrated with steering levers
• Hydraulic Cooling: Transmission mounted fan

DECK

• Cutting Width: 60", 60" Rear Discharge
• Cutting Height: 1" to 5.5"
• Deck Depth: 5.5"
• Deck Lift: Foot Operated
• Number of Blades: 3
• Blade Length: 20.5"
• Blade Tip Speed: 18,800
• Spindles: Ductile cast iron with steel shaft and sealed ball bearings
• Deck Engagement: Electric PTO Clutch
• Deck Material: Fabricated 7 gauge with 7 gauge wrappers
• Spindle Mounts: Reinforced 7 ga. stamped disc, Rear Discharge: 10 gauge with 11 gauge doubler
• Impact Trim Area: Front of deck: 11 gauge formed channel with rolled edge

CONSTRUCTION

• Frame: 1.5" X 3" steel tubing
• Front Axel: Fabricated with tapered roller bearings
• Front Caster Wheel: Tapered wheel bearings and debris cap
• Front Caster Fork: Fabricated 1/2" steel

GENERAL

• Seat: I3M Suspension Seat
• Cup Holder: Yes

DIMENSIONS

• Front Tire (inches): 13 x 6.5-6
• Drive Tire (inches): 24 x 12-12
• Weight (lbs): 1245, 1305 Rear Discharge
• Height (inches): 49, 72.5 w/ ROPS up
• Length (inches): 80.2
• Width w/ chute up (inches): 62.4, 61.72 Rear Discharge
• Tire-to-tire Width (inches): 54.5
• Productivity (acres per hour): 6.36

WARRANTY

• Warranty: 5 Year / 1200 Hour (First 2 Years No Hour Limit)

DIMENSIONS WITH CATCHER

• Catcher Style: 3-bag
• Powered / Non-Powered: Powered
• Catcher Capacity: 12 bushel
• Mower Length w/ Catcher: 111.1"
• Mower Width w/ Catcher: 70.9"
• Style 2: Catcher Style: BAC-VAC
• Style 2: Powered / Non-Powered: Powered
• Style 2: Catcher Capacity: 10 bushel
• Style 2: Mower Length W/ Catcher: 108.3"
• Style 2: Mower Width W/ Catcher: 70.9"

KEY SPECS

• Engine Manufacturer: Kawasaki FX850
• Engine Horsepower: 27
• Transmission: Parker unitized 12cc/rev pump with 15.9ci/rev wheel motors
• Fuel Capacity: 11.7 gal.
• Ground Speed (Fwd): Up to 10.5 mph
• Cutting Width: 60", 60" Rear Discharge
• Cutting Height: 1" to 5.5"
• Front Tire: 13 x 6.5-6
• Drive Tire: 24 x 12-12
• Warranty: 5 Year / 1200 Hour (First 2 Years No Hour Limit)

ACCESSORIES

• 3-Bag Powered Bagger: Easy-on, easy-off blower and hopper assemblies. Holds 12 bushels.
• Mesh Side Bagger: Easy-on, easy-off bagger has a 3-bushel capacity.
• Steel Side Bagger: Easy-on, easy-off bagger has a 3.5 bushel capacity.
• BacVac Bagger: Electric-accuated DFS bagger system. Easy-on, easy-off versatility with a 10-bushel capacity.
• MICHELIN® X® TWEEL® TURF CASTER: The MICHELIN® X® TWEEL® TURF Caster replaces the current front tire/wheel assembly on zero turn radius mowers, and offers the same trouble-free benefits.
• MICHELIN® X® TWEEL® TURF: The MICHELIN® X® TWEEL® TURF airless radial tire is designed to help zero turn radius mowers achieve excellent cutting results and outstanding rider comfort, while eliminating downtime caused by flat tires and unseated beads. 24" x 12" tire. 60" and 72" X-ONE models, 60", 66" and 72" Super Z models only.
• Semi-Pneumatic Front Tires: Flat-free front tire option.
• Mulch Kit: Recycle clippings back into the soil and reclaim nutrients for your lawn.
• Single Anti-Scalp Wheel: Additional kit for increased deck scalping protection. Two height settings. Can be used in conjunction with the dual anti-scalp kit.
• Light Kit: Extend your productivity into the late hours with our optional light kit. Kit contains two high-quality 12-volt lights with a switch that mounts in the instrument panel.
• Steering Lever Extension Kit: Allows height adjustment of steering levers to make your mowing experience as comfortable as possible.
• Stripe Kit: Helps provide a professional manicured finish to your lawn.
• Flex Forks®: Shock absorbing front caster forks improve operator comfort and provide a more even cut, especially over uneven terrain and at higher speeds.
• Rear Hitch Kit: Rear hitch kit available for multiple user applications.
• Electric Deck Lift: Raise and lower the deck with the flip of a switch. This electric lift kit consists of simple bolt on hardware and switch installation.

FEATURES

• Commercial-Grade Engines: Kawasaki® FX, Kohler® Command Pro® and Vanguard® Engine options
• I3M™ Seat: High-back seat with adjustable armrests and 3-inch suspension travel range.
• VX Deck: Engineered for extreme vaccum, the all new Hustler VX deck more efficiently.
