Description
Description:

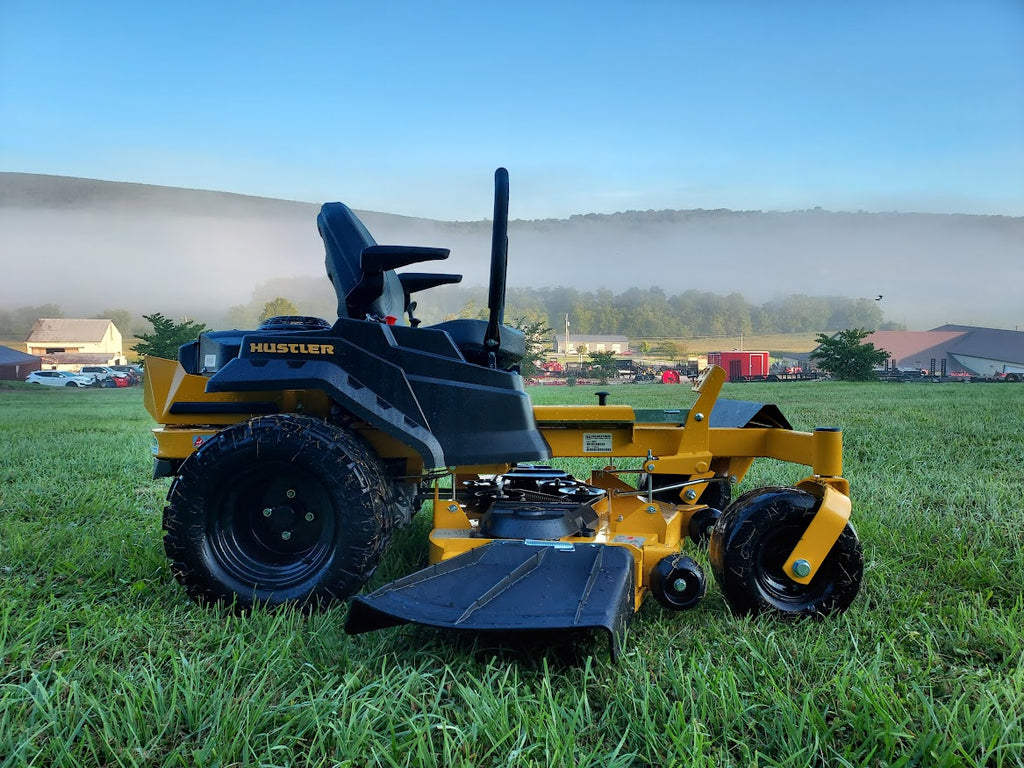

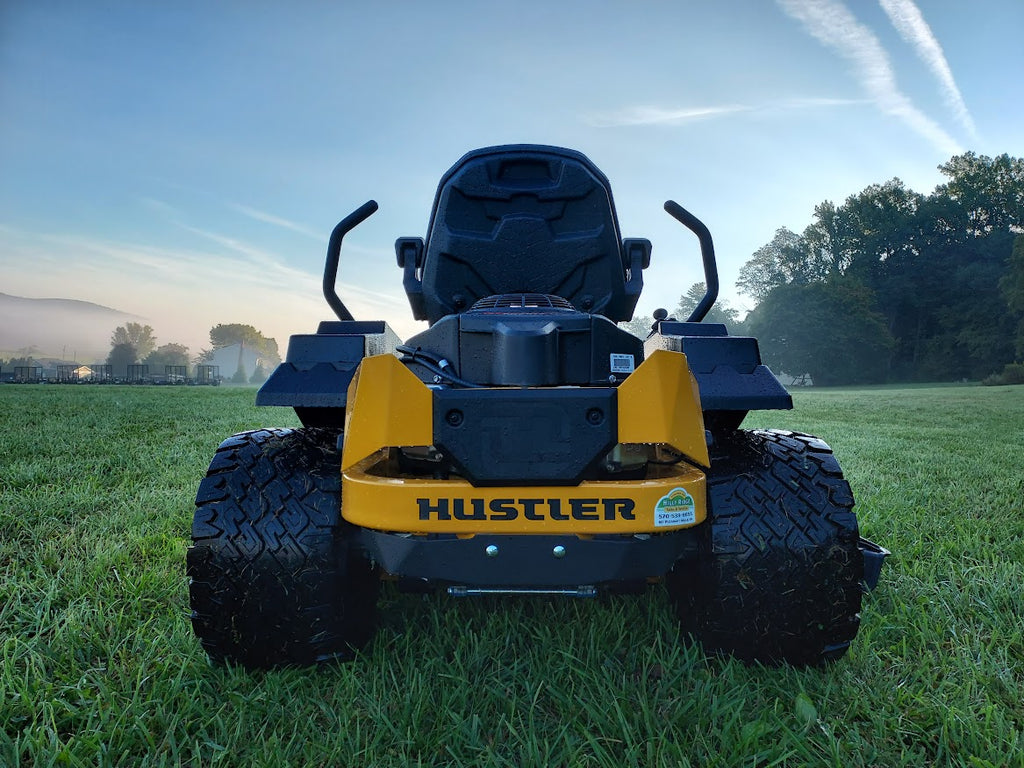

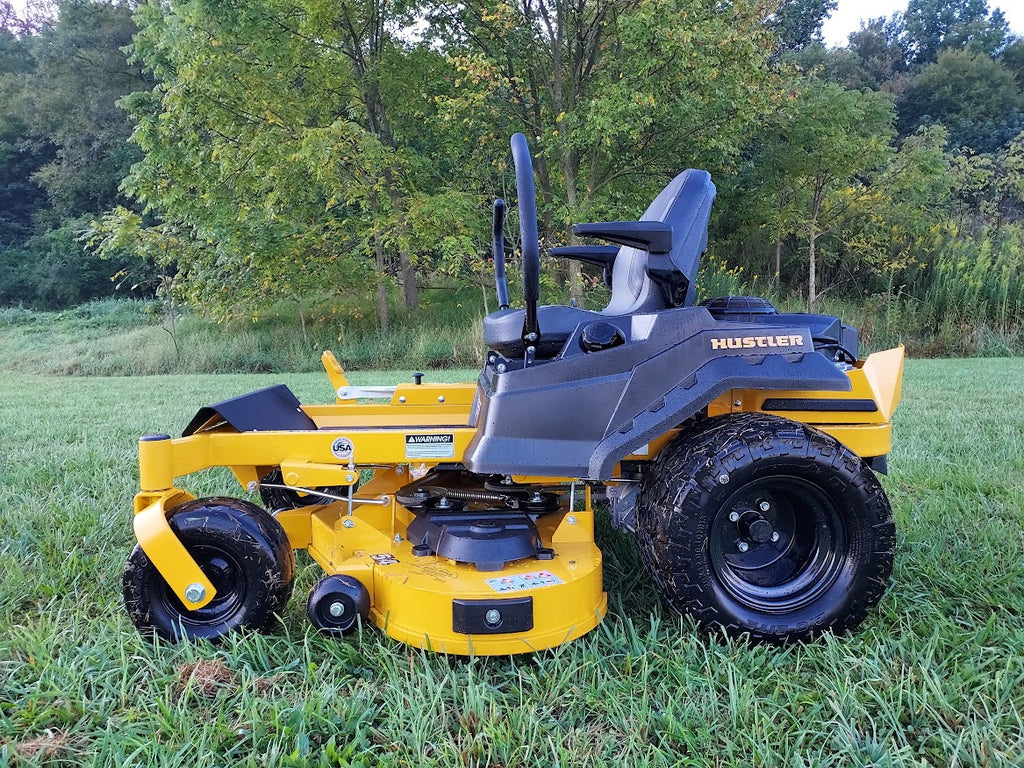

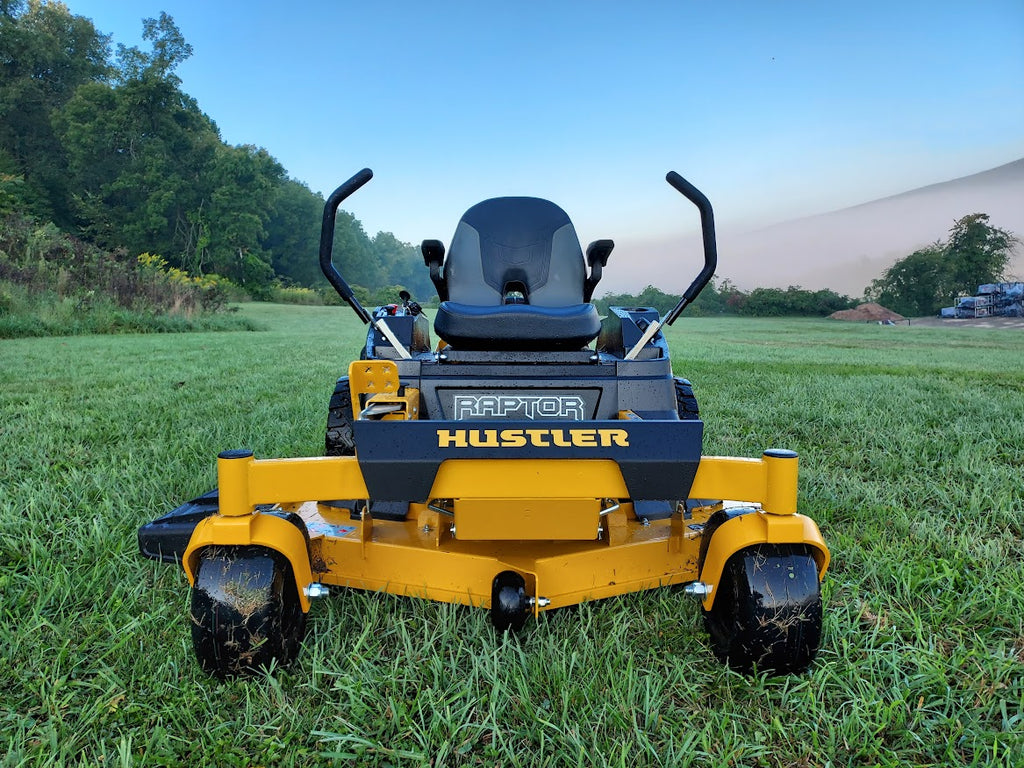

The Raptor® XD is the ideal zero-turn for homeowners with up to five acres of property. The up to 24hp Kawasaki® engine and 60-inch deck option makes the XD a premium lawn mower in the residential zero-turn category. Like all Raptors, we’ve spent decades and thousands of hours perfecting our durable fabricated decks that provide a crisp, clean cut-quality. Raptor XDs are backed by a 3yr / 300hr limited warranty.
Features:
- Welded Steel Deck: Welded fabricated steel deck helps add durability and can extend the mower's life.
-
Wider Stance: Designed to provide ample room adding to the comfort for the operator.
- SmoothTrak Steering: Precision control designed to help trim and maneuver easily around obstacles.
- Bolstered Seat: Helps provide a comfortable ride with armrests and airflow to the back.
- Rubber Floor Mat: Helps provide comfort by minimizing vibration on the operator's feet. Standard on all Raptor models.
- Fabricated Frame: Continuous one-piece 1½ inch by 3 inch welded tubular frame.
- Foot-Operated Deck Lift: Easily adjust the deck height between 1.5" - 4.5".
- Easy To Service: Flip-up seat pan, removable floor pan, vented pulley covers.
- Exclusive BigBite Rear Tires: We worked directly with the tire manufacturer on this design.
- Kawasaki Power: Powered by a V-Twin Kawasaki® Engine.
Specifications:
Key Specifications
- Engine Manufacturer: Kawasaki FR691
- Engine Horsepower: 23 hp
- Transmission: Hydro-Gear® ZT-2800®
- Fuel Capacity: 3 gal
- Ground Speed (FWD): Up to 7.5 mph
- Cutting Width: 54 in
- Cutting Height: 1.5 in to 4.5 in
- Front Tire: 13 x 6.5
- Drive Tire: 20 x 12-10 BigBite™
- Warranty: 3 Year/300 hour residential
Engine
- Engine Manufacturer: Kawasaki FR691
- Engine Horsepower: 23 hp
- Displacement: 726cc
- Cooling: Air Cooled
- Engine Warranty: 3 Year Warranty
Drive System
- Type: Dual Hydrostatic
- Transmission: Hydro-Gear® ZT-2800®
- Engine Warranty: 3 year warranty
- Fuel Capacity: 3 gal
- Ground Speed (FWD): Up to 7.5 mph
- Parking Brake: Integrated with steering levers
General
- Seat: Bolstered extra high-back seat with armrests and built-in lumbar support
- Cup Holder: Yes
Dimensions
- Front Tires (in): 13 x 6.5
- Drive Tire (in): 20 x 12-10 BigBite™
- Weight (lbs): 653 lbs
- Height (in): 43.7 in
- Length (in): 71.1 in
- Width W/ Chute Up (in): 58.5 in
- Tire-To-Tire Width (in): 48.6 in
- Productivity (Acres Per Hour): 3.27 aph
Warranty
- Warranty: 3 Year/300 hour residential
