Description
Description:
Feel the Power, Not the Bumps.
The new X-Ride is equipped with Custom Ride Technology, an isolated operator suspension platform designed to deliver a comfortable ride for the operator even while on rough terrain. The platform absorbs up to 4 inches of travel and has 5 levels of adjustability for the operator to find their comfort preference all while maintaining the stability on the mower.
Features:
- Fabricated Frame: 1.5” x 3.0” steel single piece fabricated frame.
- SmoothTrak™ Steering: Precision control to help trim and maneuver easily around obstacles.
- Foot Operated Deck Lift: Easily adjust the deck height between 1”- 5.5” with your foot.
- VX4 Deck: Fabricated 7 GA steel deck engineered to move grass at high speed while maintaining cut-quality.
- Commercial-grade Torque: Driven by Hydro-Gear® ZT-5400™ transmissions.
- Commercial-Grade Seat: Bolstered high-back seat with padded armrests and adjustable back.
- Rubber Floor Mat: Helps provide operator comfort.
- Dual Fuel Tanks: 12-gallon capacity with mechanical fuel gauges.
- Commercial-Grade Engine: Kawasaki® FX® EVO EFI engine backed by 3-year limited warranty.

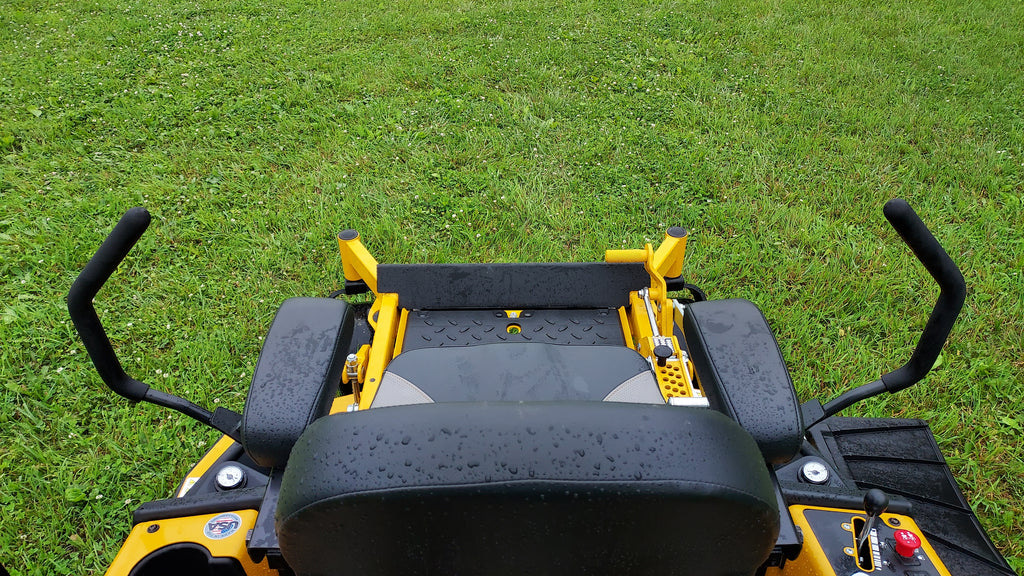

- Suspension Platform: Custom ride technology separates the platform from the frame which pivots along the front footrest. Dial-in comfort with 5-adjustment positions, coil-over-shock suspension system, and 4" of total suspension travel.
Specifications:
Key Specifications
- Engine Manufacturer: Kawasaki FX820 EVO EFI
- Engine Horsepower: 34.5 hp
- Transmission: Hydro-Gear® ZT-5400®
- Fuel Capacity: 12 gal. capacity
- Ground Speed (FWD): Up to 13 mph
- Cutting Width: 60 in
- Cutting Height: 1 in to 5.5 in
- Front Tire: 13 x 6.5
- Drive Tire: 26 x 12
- Warranty: 5 Year / 1200 Hour (First 2 Years No Hour Limit)
Engine
- Engine Manufacturer: Kawasaki FX820 EVO EFI
- Engine Horsepower: 24.5 hp
- Displacement: 822cc
- Cooling: Air Cooled
- Engine Warranty: 3 Year Limited
Drive System
- Type: Dual Hydrostatic
- Transmission: Hydro-Gear® ZT-5400®
- Hydraulic Cooling: Transmission mounted fan
- Engine Warranty: 3 year Limited
- Fuel Capacity: 12 gal
- Ground Speed (FWD): Up to 13 mph
- Parking Brake: Integrated with steering levers
General
- Seat: Bolstered high back seat with padded arm rests & adjustable back
- Cup Holder: Yes
Dimensions
- Front Tires (in): 13 x 6.5
- Drive Tire (in): 26 x 12
- Weight (lbs): 1570 lbs
- Height (in): 45 in, 74 in w/ ROPS up
- Length (in): 87 in
- Width W/ Chute Up (in): 61 in
- Tire-To-Tire Width (in): 56 in
- Productivity (Acres Per Hour): 6.3 aph
Warranty
- Warranty: 5 Year / 1200 Hour (First 2 Years No Hour Limit)
