Description

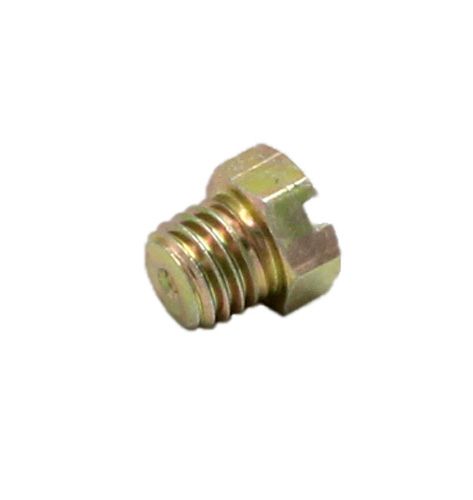

Hustler OEM 606817 Grease Plug

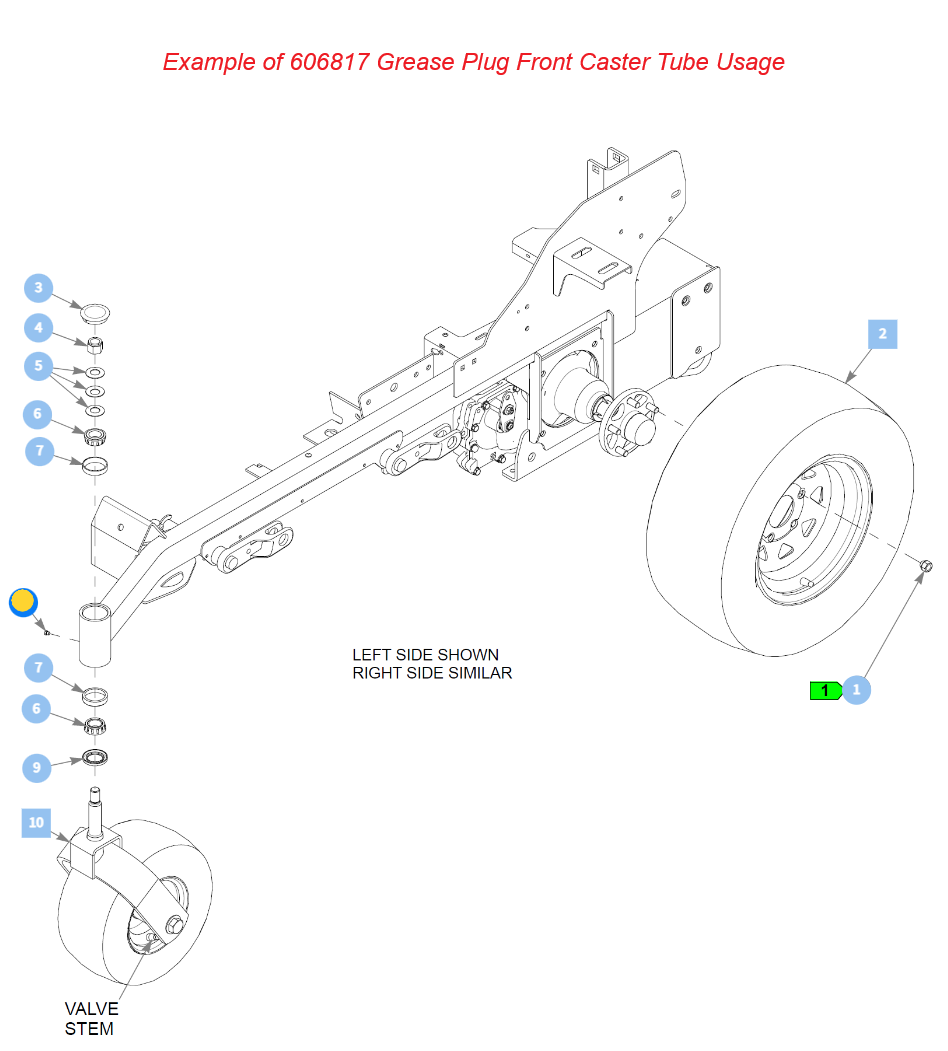

The Hustler OEM 606817 Grease Plug is designed as a Removable Grease Plug to Allow the Operator or Maintenance Personal to Remove 606817 Gease Plug and Add Grease to the Front Axle Only after long Duration of Usages or When Doing Repairs or Maintenance on the Front Caster Tube. One May Ask why A Grease Plug Instead of a Grease Zirk the Answer Is to Discourage Greasing with Other Grease Points During Necessary Maintenance Which Eliminates a Very Common Problem with Bearing and Grease Seals (Over-Greasing). Hustler OEM 606817 Grease Plugs are Installed in the Front Axle or Caster Tubes with Tapered Roller Bearings, Bearing Races and Grease Seals to Unsure Front Axles Only Periodically will be Grease - the Only time Front Caster Tubes Should Be Greased is when Grease is Lost from Extended Time of Usage or When Grease is Lost by do Maintenance and Repairs on the Front Casters or Axles. Over Greasing of the Front Axle will Result in Pushing the Seals out and Possibly Pushing the Dust Caps Off which would Allow Grease to Accumulate Outside Contamination which would be Rotated Through the Roller Bearings at some Point.
⚠️ Before You Order – Verify Fitment
Caster Fork Grease Plug Will Only Fit Select Model Family and Series. Please confirm your exact Model Number is listed in the Model Fit Chart Below before Ordering.
Not sure? Contact us with your Hustler Model and Serial Number and we’ll help Verify Fitment.
Fits Select Hustler Models
Known Fitment Family References Include:
- Trimstar Series: (2020 - Current) * Used in the Front Axle
- X-ONE Series: (2019 - Current) * Used in the Front Axle
- X-RIDE Series: (All Models) * Used in the Front Axle
- Super S Series: (2017 - Current) * Used in the Front Axle
- Super SF Series: (All Models) * Used in the Front Axle
- Super Z Series: (2018 - Current) * Used in the Front Axle
- Super Z HD Series: (2018 - Current) * Used in the Front Axle
- Super 104 Series: (All Models) * Used in the Front Axle
Suggested Caster Fork Links
When Redirecting to Different Part Numbers Be Sure to Verify your Model Number is Listed Under the Part Number Listing in the Model Fit Chart Before Purchasing.
Trimstar Series
125825-1
Super S Series
123651-1 - 126408-1 - 123648-1 - 129670-6
Super SF Series
130055
X-ONE Series - X-RIDE Series - Super Z Series - Super Z HD Series
130055 - 606696
Super 104 Series
123647-1
Model Fit Chart
Trimstar (2020 - Current) * Used in the Front Axle Only
939496, 939504, 939512, 939538, 942268, 942276
Super S (2017 - Current Models)
937128, 937136, 937144, 937151, 937169, 937177, 939439, 939447, 939454, 940205, 940213, 940221, 940247, 940254, 940288, 940296, 940304, 941393, 942292, 943126, 943134, 943142, 943167, 943175
Super SF (All Models)
942029, 942037, 942045, 942052, 943506, 943514, 943522, 943530
X-ONE (2019 - Current Models)
936740, 936765, 936773, 936781, 936799, 936815, 936823, 936831, 936849, 939314, 939322, 940056, 940064, 940072, 940080, 940106, 940114, 940122, 940130, 940197, 941062, 941070, 941369, 941831, 941856, 941864, 941872, 941880, 941898, 941922, 941930, 941971, 942201, 942334, 942797, 943399, 943407, 943787, 943795, 943803, 943811, 943829, 943837, 943845
X-RIDE (All Models)
944074, 944868
Super Z (2018 - Current Models)
936872, 936880, 936898US, 936914, 936922, 936930, 936948US, 936955, 936989, 937730, 938985, 938993, 940031, 940049, 941138, 941146, 941153, 941161, 941179, 941187, 941195, 941203, 941377, 941385, 942342, 942771, 942763, 942805, 942813, 942821, 942839, 942854, 942862, 942870, 942888, 942896, 942912, 942920, 943852, 943860, 943878, 943886, 943894, 943910, 943928, 943936, 943944
Super Z Hyper Drive (2018 - Current Models)
936997, 937003, 937011, 937029, 937037, 937045, 937052, 937110, 939561, 939579, 939587, 939595, 941229, 941237, 941245, 941252, 941260, 941278, 941286, 941294, 941302, 941310, 941534, 941542, 941559, 941567, 942219, 942227, 942235, 942243, 942250, 942359, 942961, 942979, 942995, 943001, 943019, 943027, 943035, 943043, 943050, 943068, 943951, 943969, 943977, 943993, 943985, 944017, 944041, 944025, 944033
Super 104 (All Models)
937201, 937219, 939462, 939470, 939603, 939652, 941005, 941526, 942318, 943217, 943225, 944058, 944066
