Description

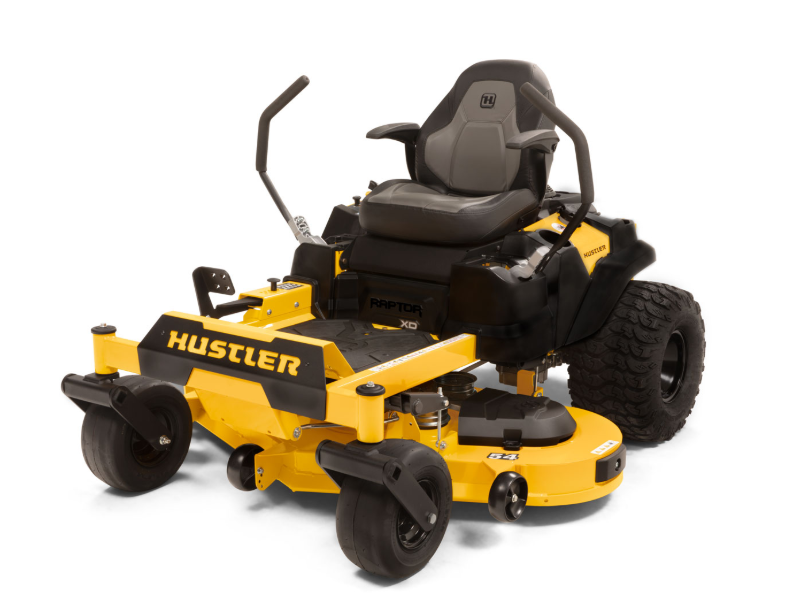

The next generation of Raptor® XD is the ideal zero-turn for homeowners with up to five acres of property. The up to 24hp Kawasaki® engine and 60-inch deck option makes the XD a premium lawn mower in the residential zero-turn category. Like all Raptors, it features a 1"x3" steel frame, 10 ga. fabricated steel deck, and large 20" VersaTrac* drive tires. Raptor XDs are backed by a 3yr / 300hr limited warranty.

Features

• Welded Steel Deck - Welded fabricated steel deck helps add durability and can extend the mower's life.
• Wider Stance - Designed to provide ample room adding to the comfort for the operator.
• SmoothTrak Steering - Precision control designed to help trim and maneuver easily around obstacles.
• Bolstered Seat - Helps provide a comfortable ride with armrests and airflow to the back.
• Rubber Floor Mat - Helps provide comfort by minimizing vibration on the operator's feet. Standard on all Raptor models.
• Fabricated Frame - Continuous one-piece 1½ inch by 3 inch welded tubular frame.
• Foot-Operated Deck Lift - Easily adjust the deck height between 1.5" - 4.5".
• Easy to Service - Flip-up seat pan, removable floor pan, vented pulley covers.
• 20" Drive Tires - 20" VersaTrack Drive Tires
• Kawasaki Power - Powered by a V-Twin Kawasaki® Engine.

Specifications

• Engine Manufacturer: Kawasaki FR730
• Engine Horsepower: 24
• Displacement: 726cc
• Cooling: Air Cooled
• Engine Warranty: 3 Year Warranty
• Type: Dual Hydrostatic
• Transmission: Tuff Torq TZ350
• Engine Warranty: 3 Year Warranty
• Fuel Capacity: 3.5 gal
• Ground Speed (FWD): Up to 7.5 mph
• Parking Brake: Integrated with steering levers
• Seat: 20" Bolstered high-back seat with armrests and sliders
• Cup Holder: Yes
• Front Tire (inches): 13 x 6.5
• Drive Tire (inches): 20 x 12-8 VersaTrack
• Weight (lbs): 681
• Height (inches): 43.7
• Length (inches): 71.1
• Width w/Chute Up (inches): 64.4
• Tire-to-Tire Width (inches): 48.6
• Productivity (acres per hour): 3.64
• Warranty: 3 Year/300 hour residential
