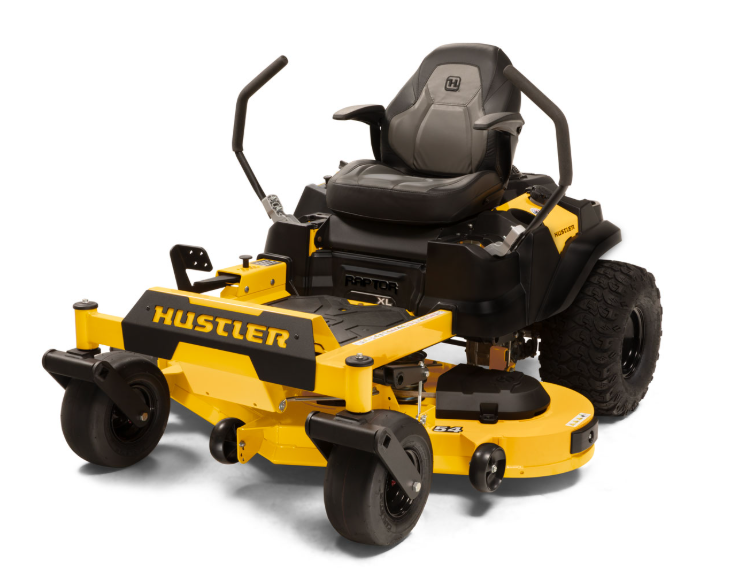

The next generation of the Raptor® XL features premium upgrades to the Raptor X. The XL provides some added comfort with added armrests on it's 20" high-back bolstered seat and Flex Forks® for a smoother ride. Also, there is an option for additional horsepower with a 23hp Kawasaki® FR Engine. More comfort and more power backed by a 3yr / 300hr limited warranty.
Features
- Welded Steel Deck - Welded fabricated steel deck helps add durability and can extend the mower's life.
- Wider Stance - Designed to provide ample room adding to the comfort for the operator.
- SmoothTrak Steering - Precision control designed to help trim and maneuver easily around obstacles.
- High Back Bolstered Seat - Helps provide a comfortable ride with armrests
- Rubber Floor Mat - Helps provide comfort by minimizing vibration on the operator's feet. Standard on all Raptor models.
- Fabricated Frame - Continuous one-piece 1½ inch by 3 inch welded tubular frame.
- Foot Operated Deck Lift - Easily adjust the deck height between 1.5" - 4.5".
- Easy to Service - Flip-up seat pan, removable floor pan, vented pulley covers.
- 20" Drive Tires - 20" VersaTrack Drive Tires
- Kawasaki Power - Powered by a V-Twin Kawasaki® Engine.
Specifications
- Engine Manufacturer: Kawasaki FR691
- Engine Horsepower: 23
- Displacement: 726cc
- Cooling: Air Cooled
- Engine Warranty: 3 Year Limited
- Drive System Type: Dual Hydrostatic
- Transmission: Hydro-Gear ZT-2200
- Fuel Capacity: 3.5 gal
- Ground Speed (FWD): Up to 7 mph
- Parking Brake: Integrated with steering levers
- Seat: 20" Bolstered high-back seat with armrests
- Cup Holder: Yes
- Front Tire: 11 X 6.5
- Drive Tires (inches): 20 x 10-8 VersaTrack
- Weight (lbs): 655
- Height (inches): 42.6
- Length (inches): 71.7
- Width W/ Chute Up (inches): 58.6
- Tire-To-Tire Width (inches): 46.5
- Productivity (Acres Per Hour): 3.05
- Warranty: 3 Year/300 hour residential
